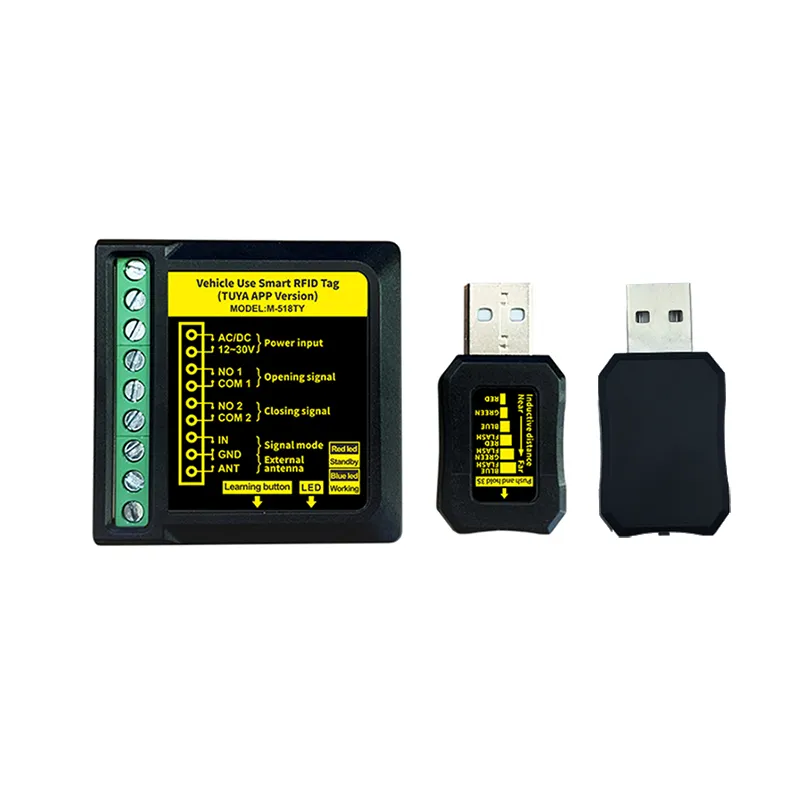

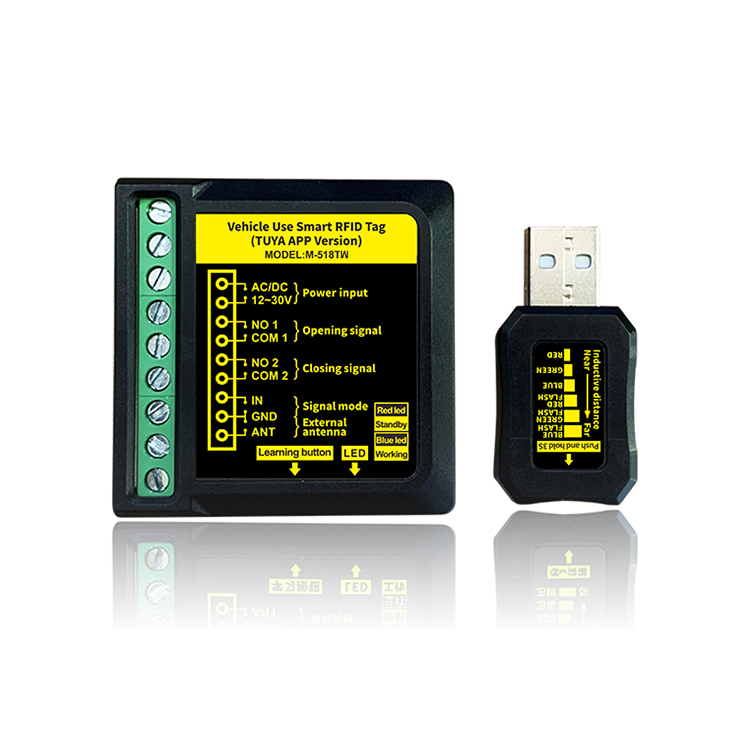

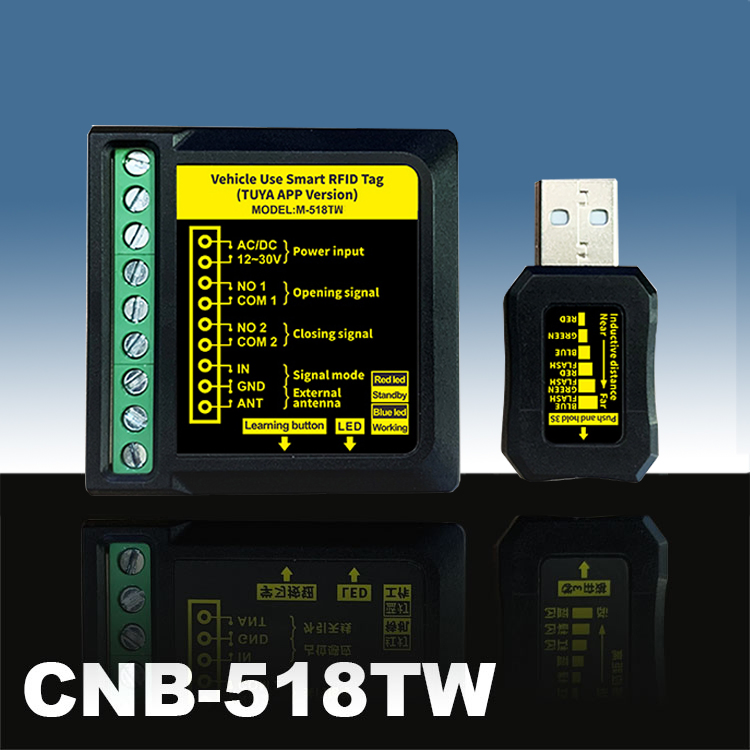

The M-518 Series is an advanced Smart RFID Tag system designed to provide authorized vehicles with completely automatic, hands-free entry through automatic doors and gates.

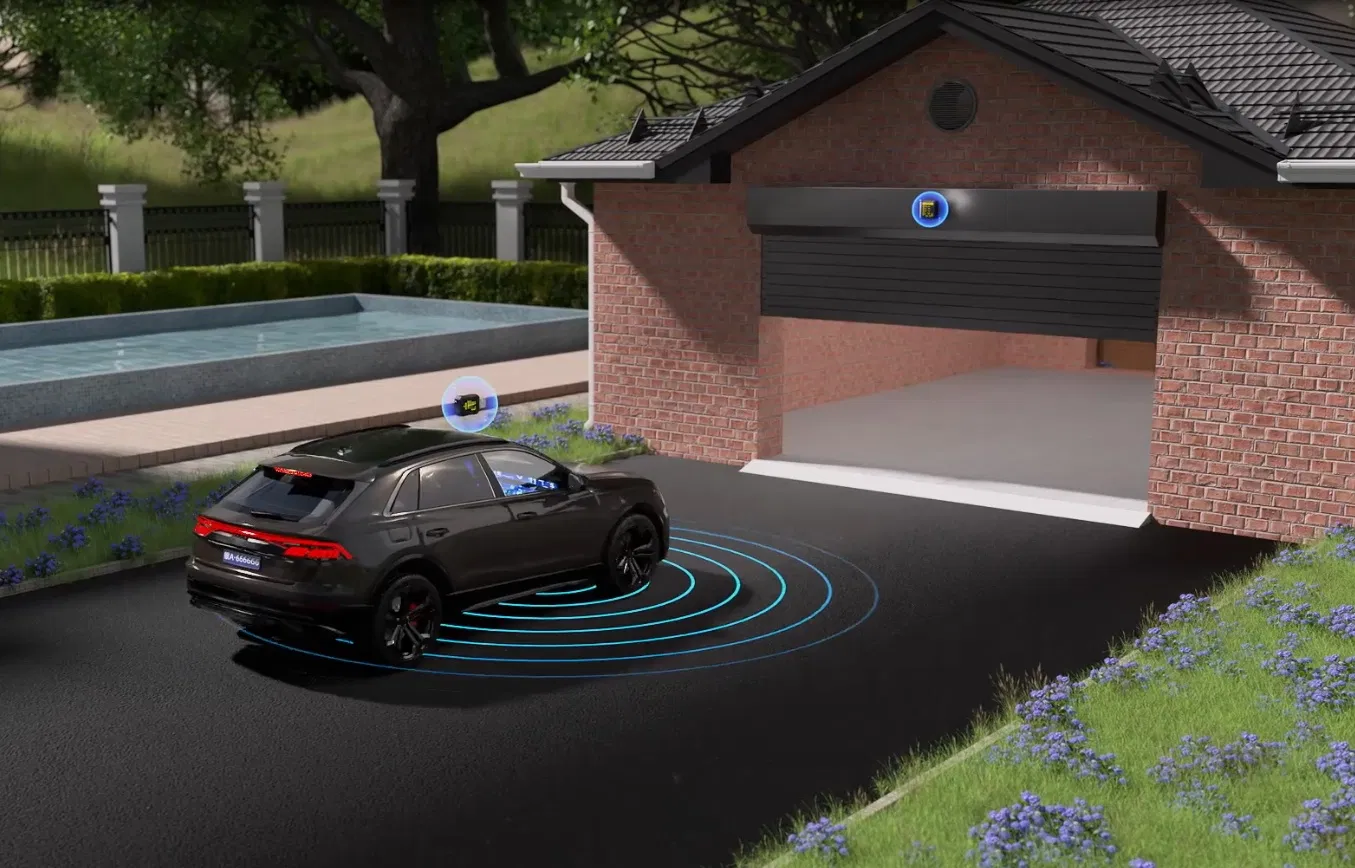

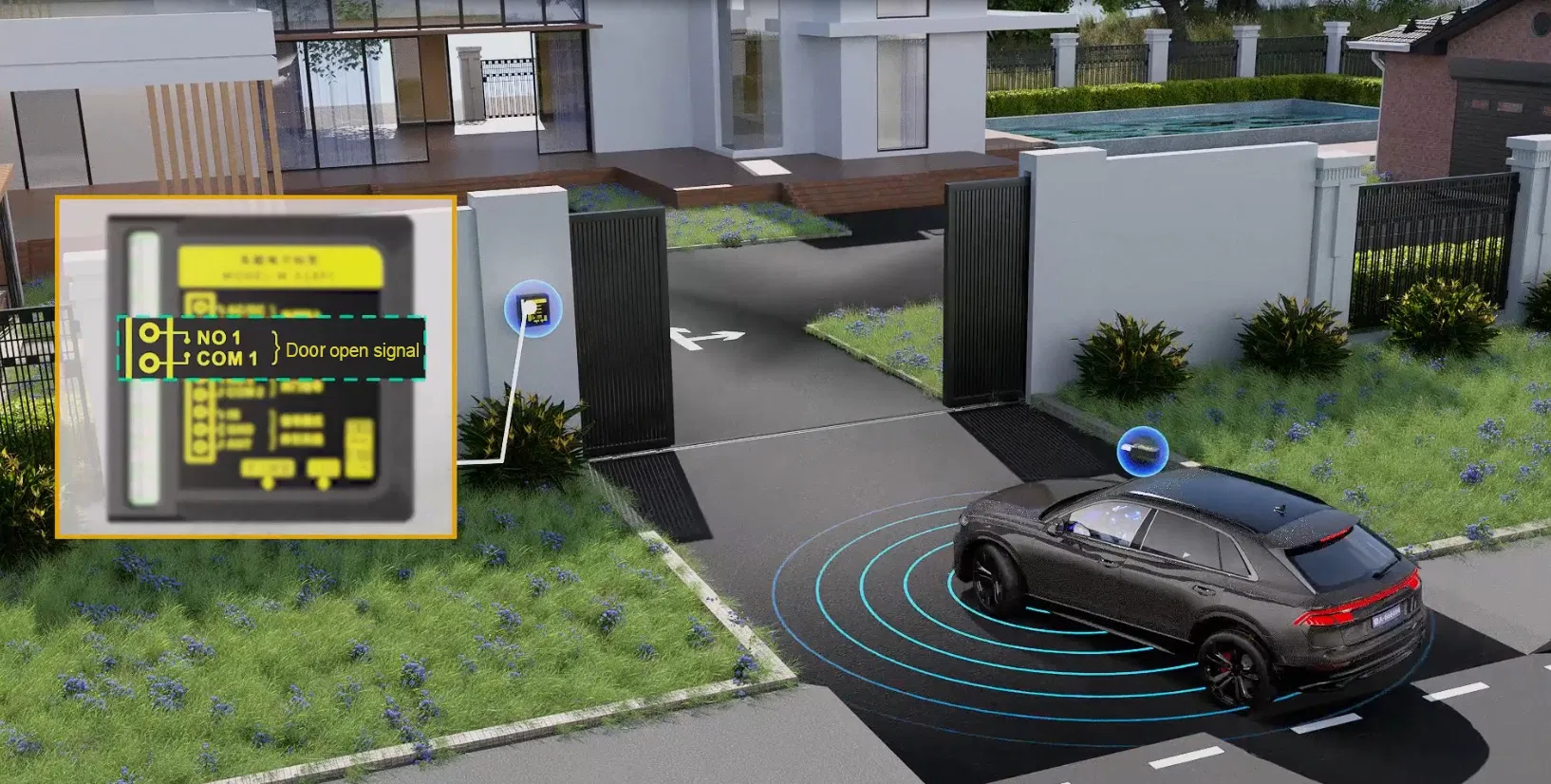

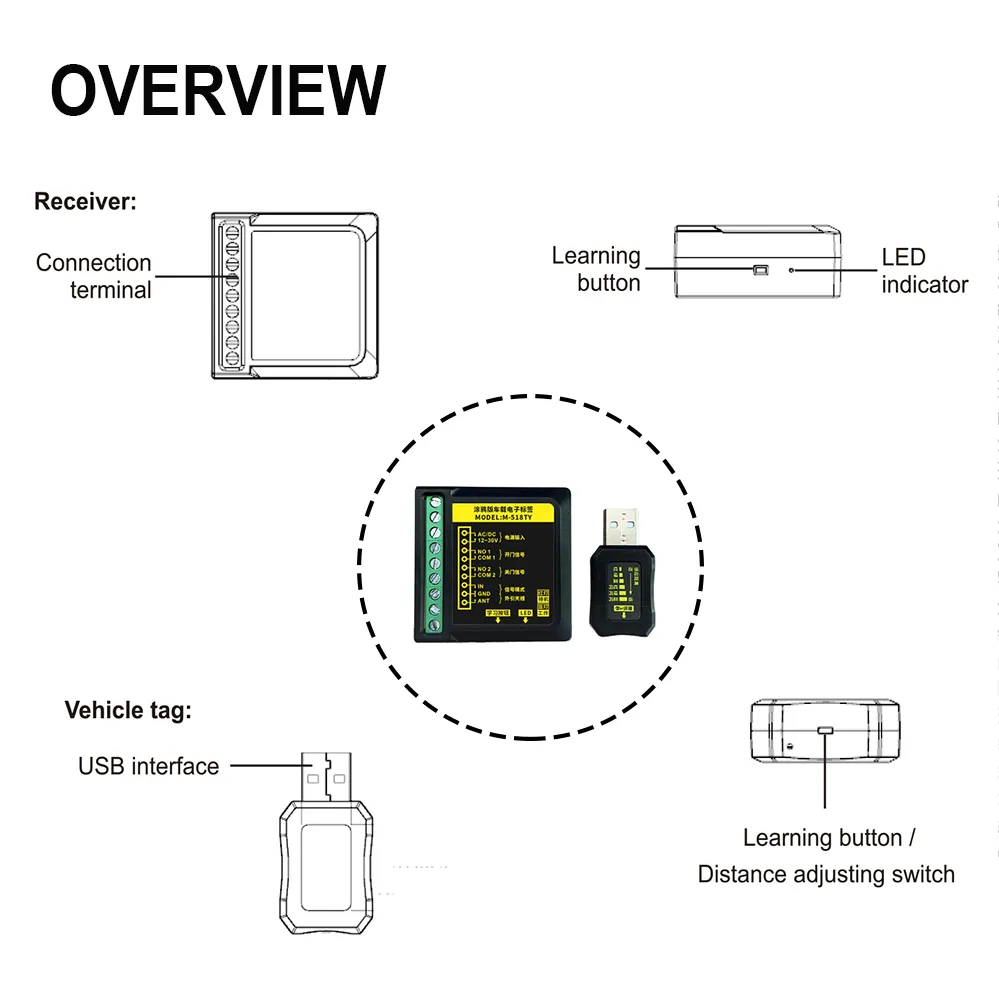

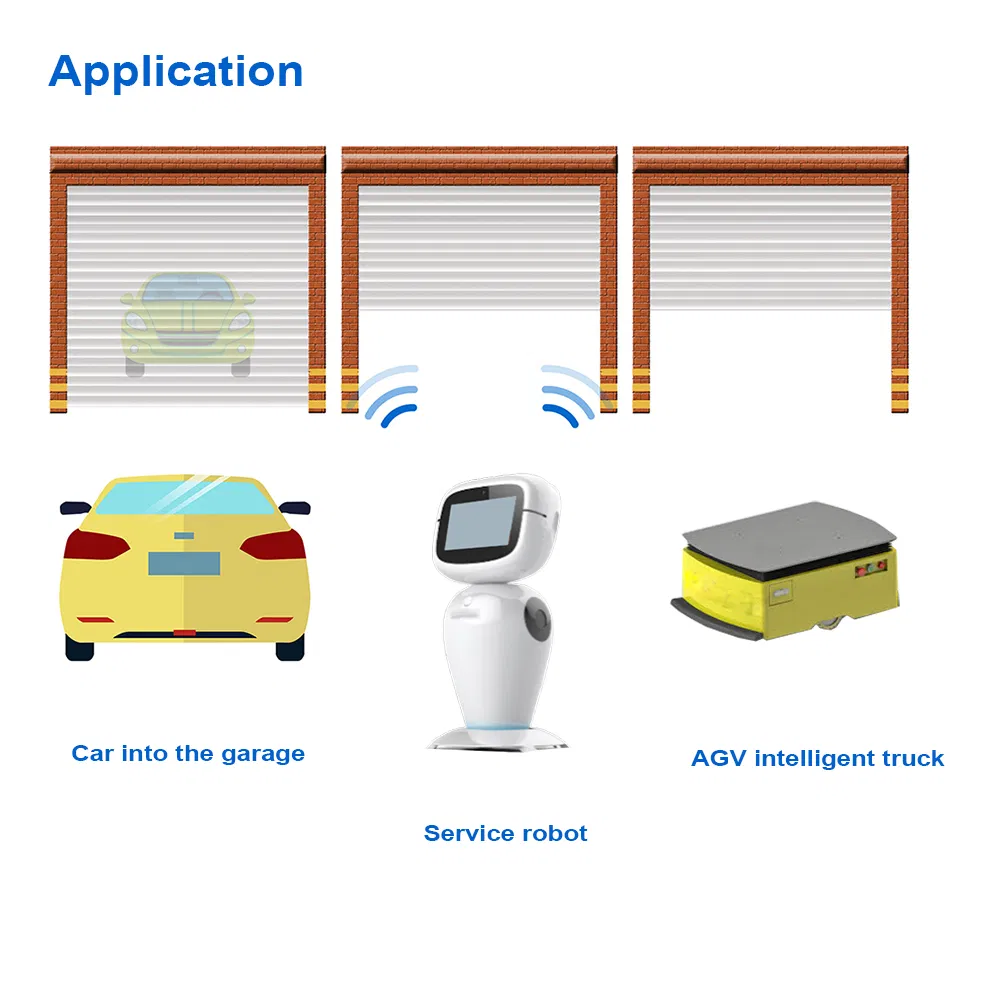

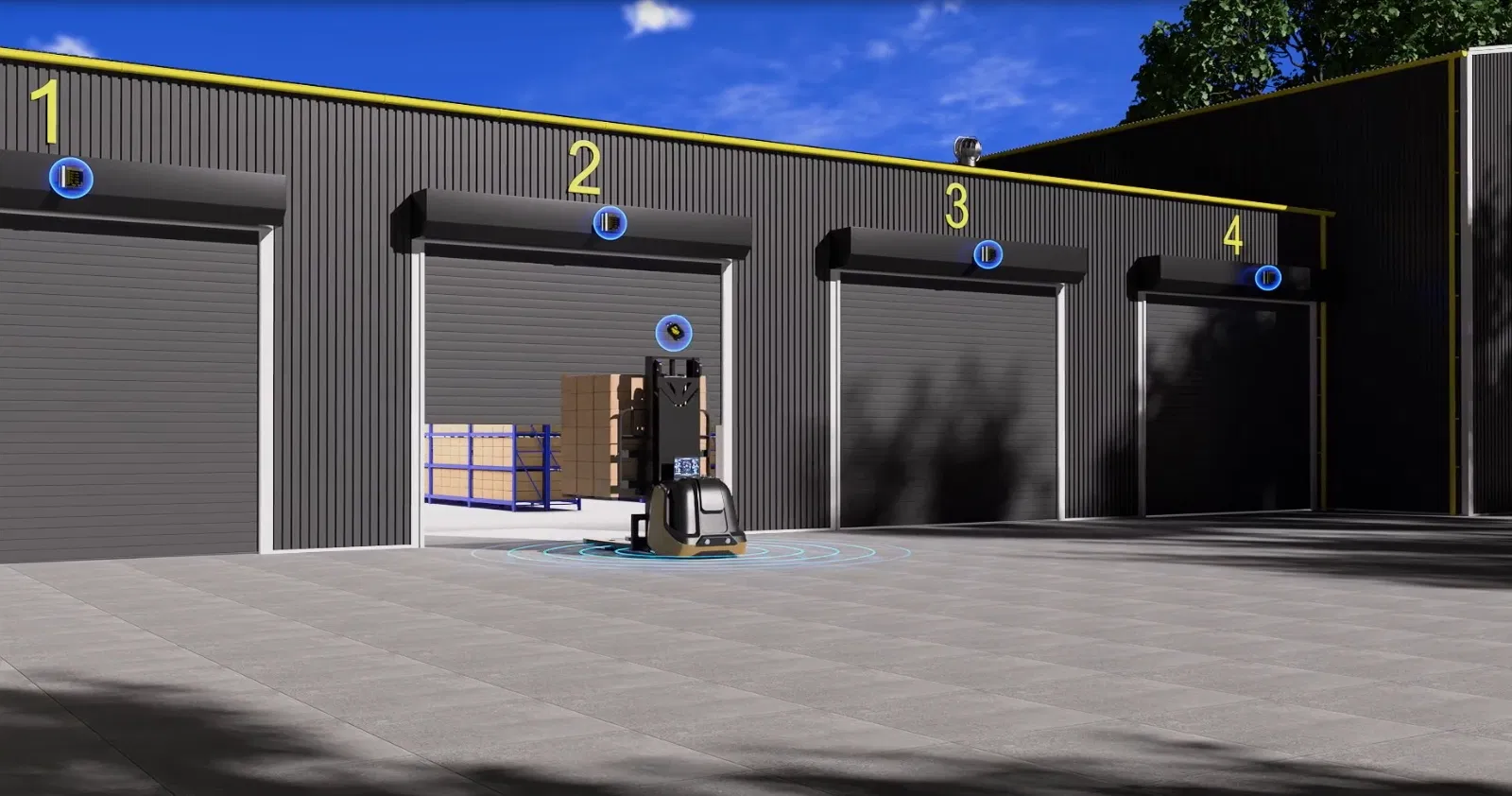

By pairing a compact receiver installed on your door controller with a USB-powered tag placed in the vehicle, the system enables a smooth, stop-free access experience within a robust 30-meter sensing distance. Ideal for factories, warehouses, home garages, and commercial facilities.
| System Specifications | |
|---|---|
| Product Name | RFID Electronic Tag Sensor |
| Receiver Units | |
| Power Input | AC/DC 12~30V |
| Static Current | 31mA (at DC 12V) |
| Action Current | 107mA (at DC 12V) |

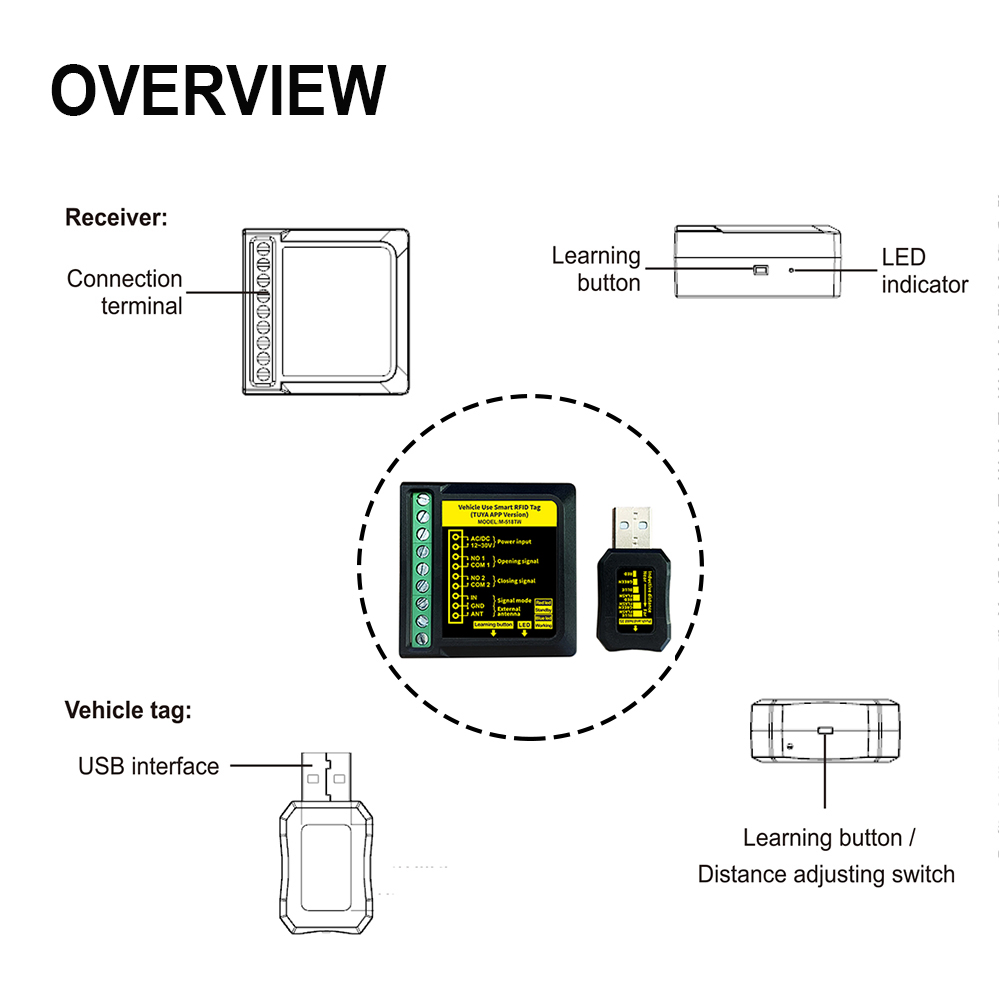

| Dimensions | 51.95 x 52 x 22.5 mm |
| Electronic Tag Units | |
| Power Supply | DC 5V (USB Port) |
| Sensing Distance | Up to 30 Meters |
| Dimensions | 45 x 23 x 9.6 mm |

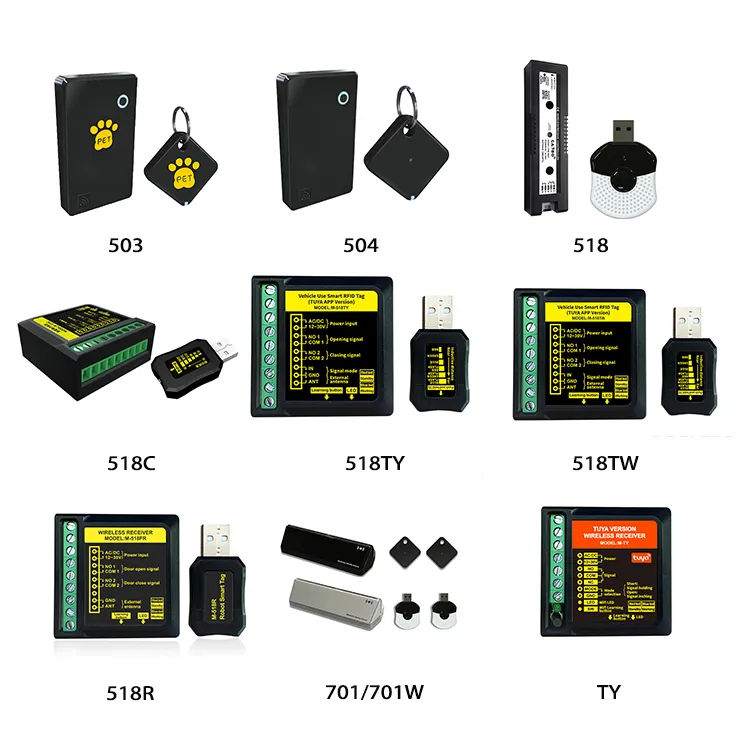

We specialize in automatic door sensors (activation, safety, camera sensors), push buttons, touchless switches, and smart access control systems suitable for various industrial and commercial doors.

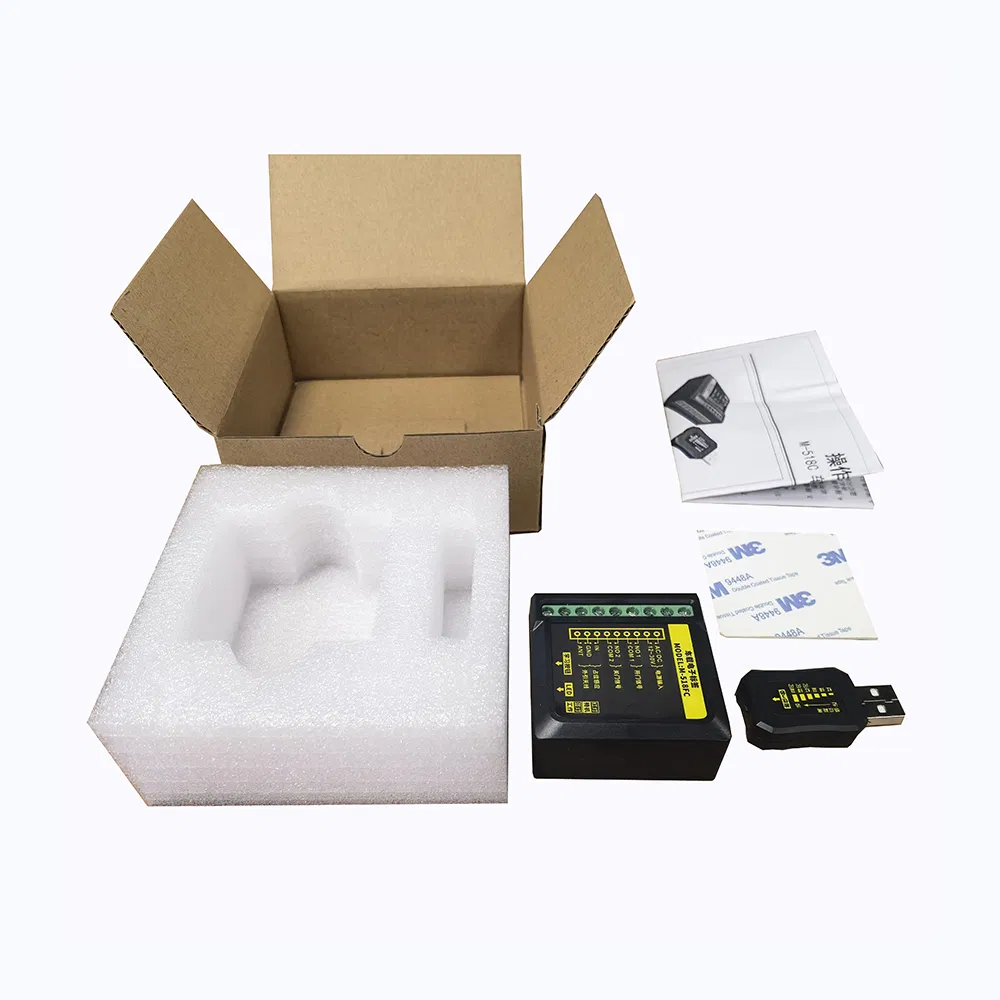

No, the installation is straightforward. Each unit comes with a comprehensive manual containing wiring diagrams and step-by-step guidelines. Both surface and concealed installation options are available for most products.

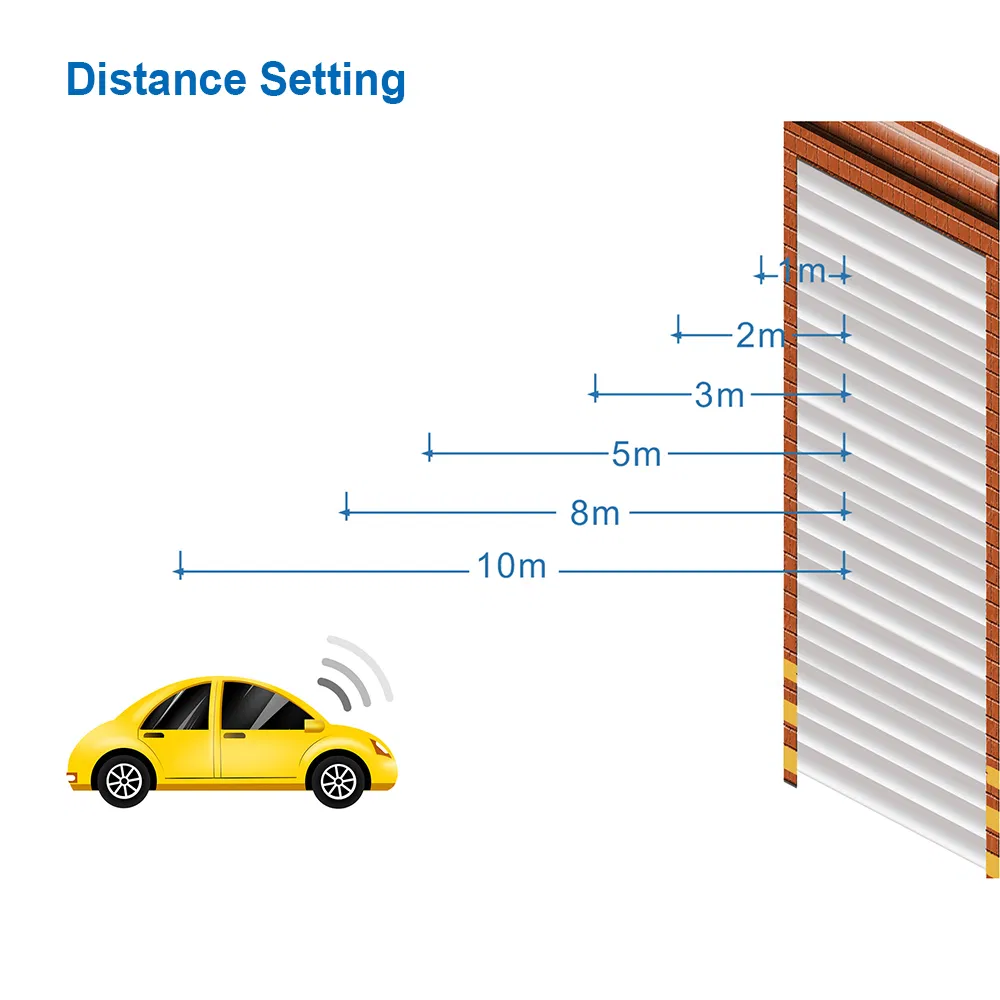

Yes, the system features a 6-level distance adjustment setting, allowing you to set the activation range up to 30 meters to suit your specific driveway layout.

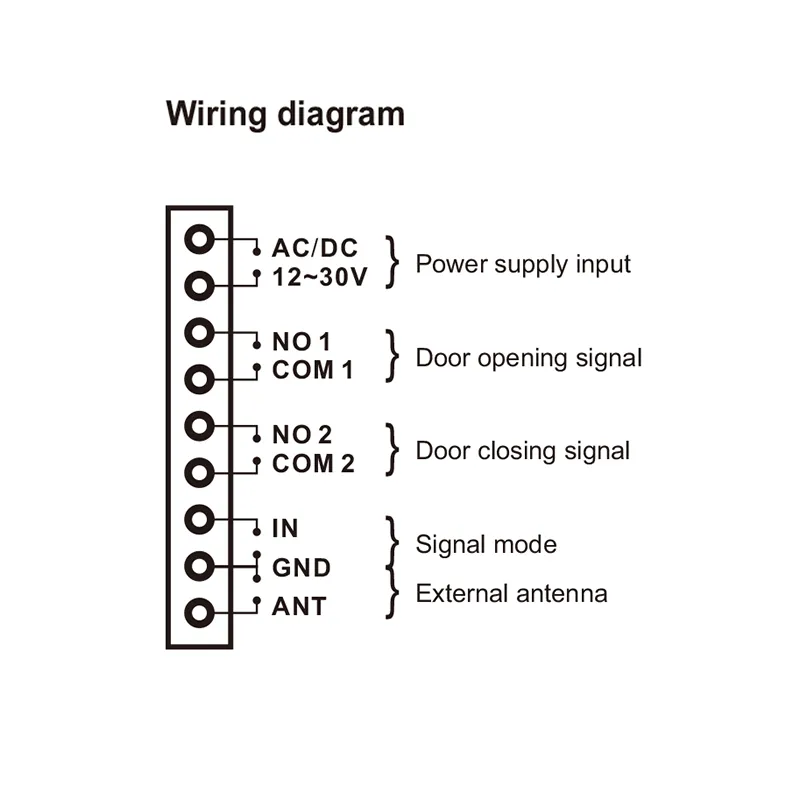

The door receiver operates on AC/DC 12~30V, while the vehicle electronic tag is conveniently powered via a standard DC 5V USB port.

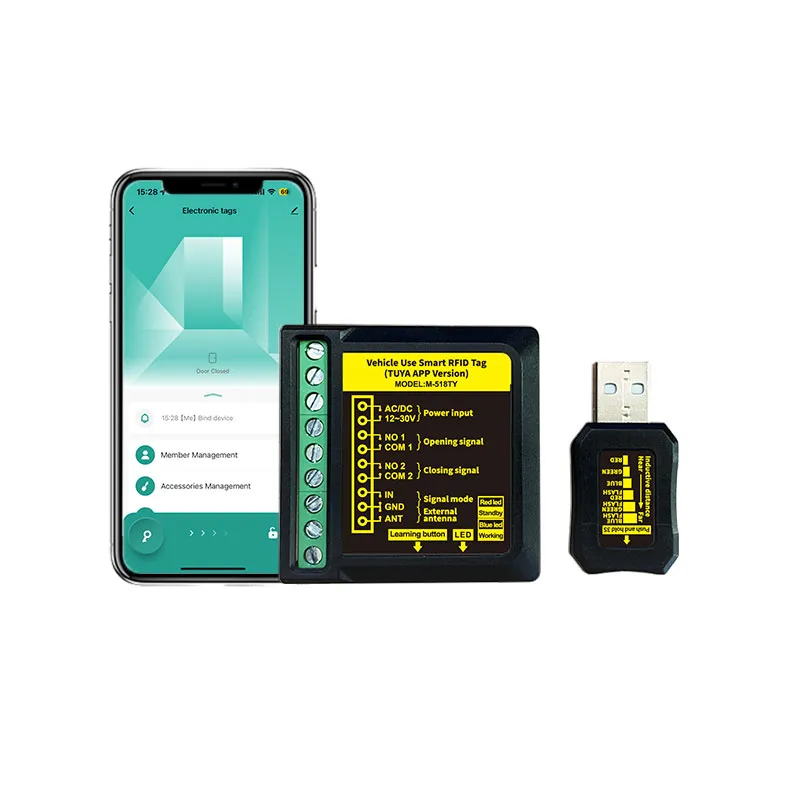

Yes, the controller is equipped to work with a mobile application, allowing authorized users to open the doors remotely via Bluetooth or Wi-Fi connection.
Most products have passed CE, FCC, and ROHS certifications, ensuring they meet rigorous safety and quality standards for global distribution.
