| Model NO. | MW24 | Detection Range | 6 Meters |
| Installation Type | Surface Mount | Number of Sensors | 1 Sensor |
| Operating Voltage | 12V DC | Sensor Type | Radar Sensor |
| Waterproof Rating | IP67 | Scope of Application | Straight Bar Gate |
| Working Frequency | 24-24.5GHz | Origin | China |

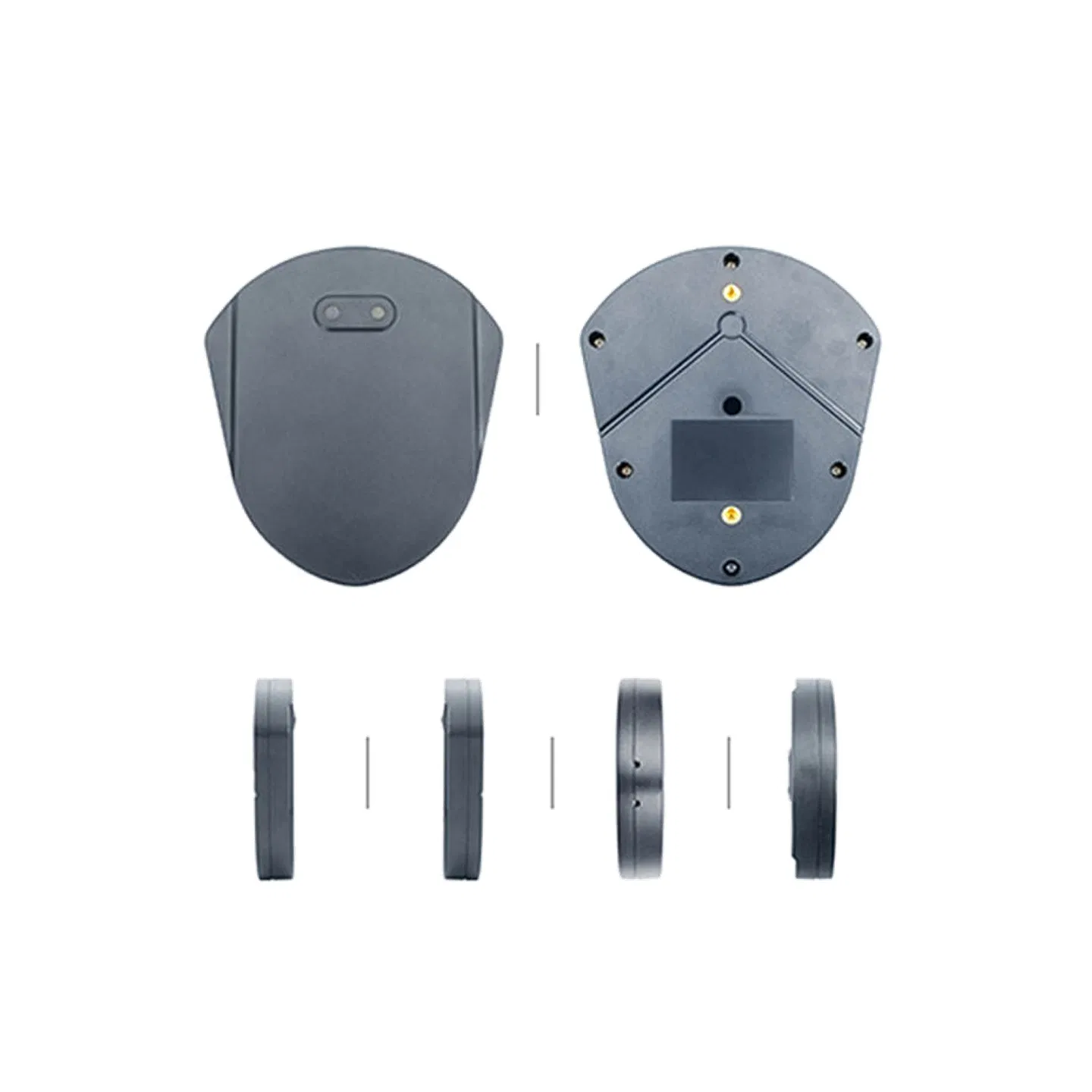

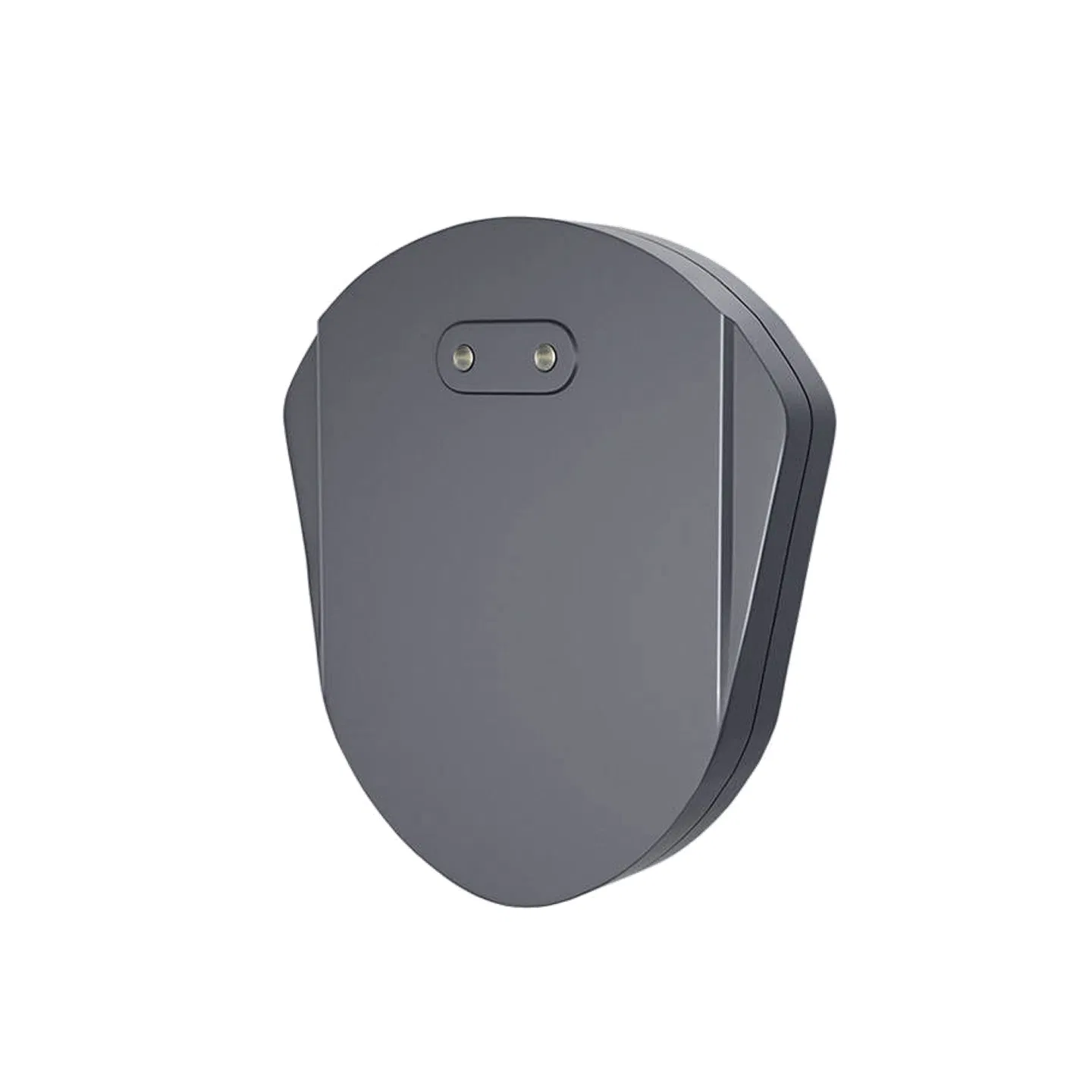

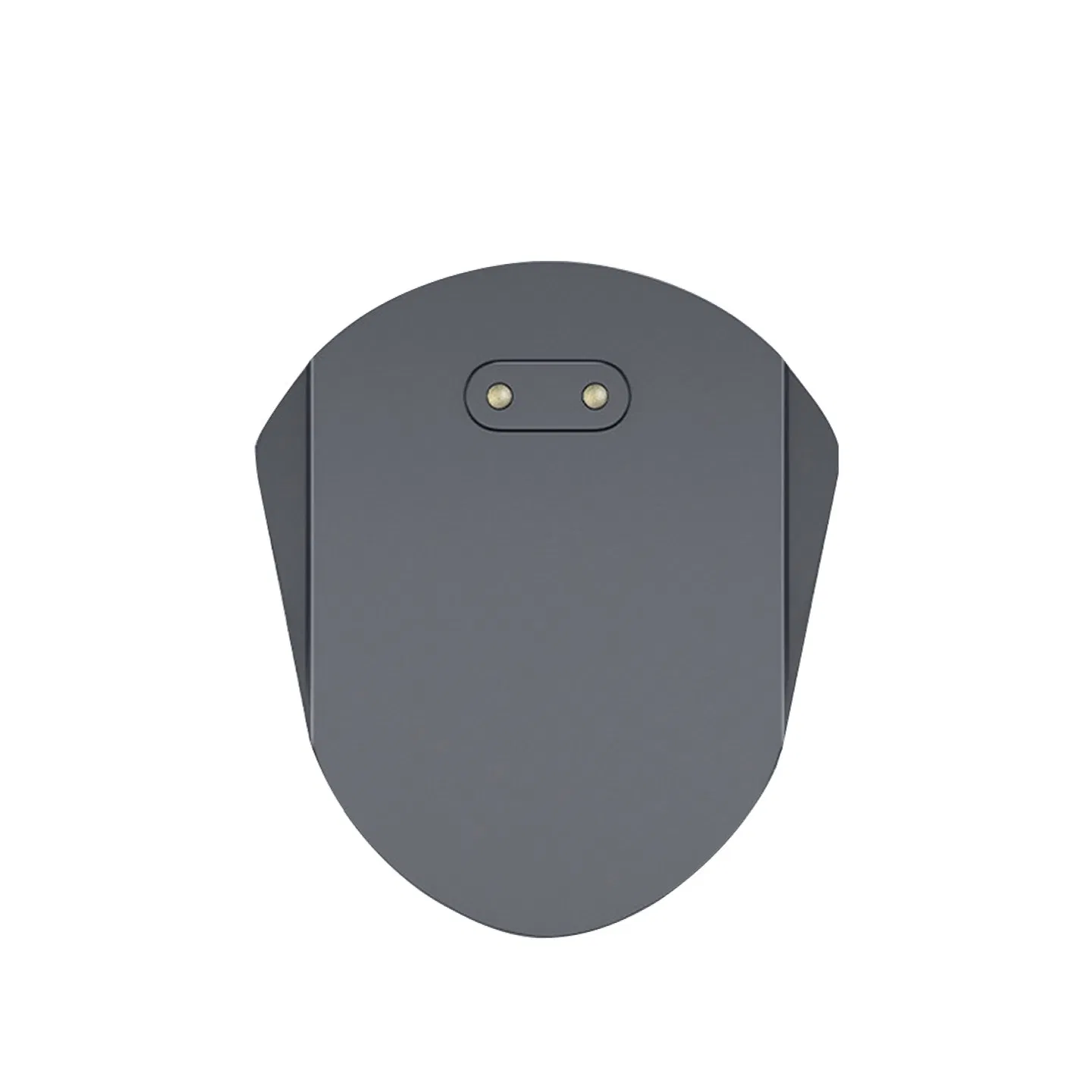

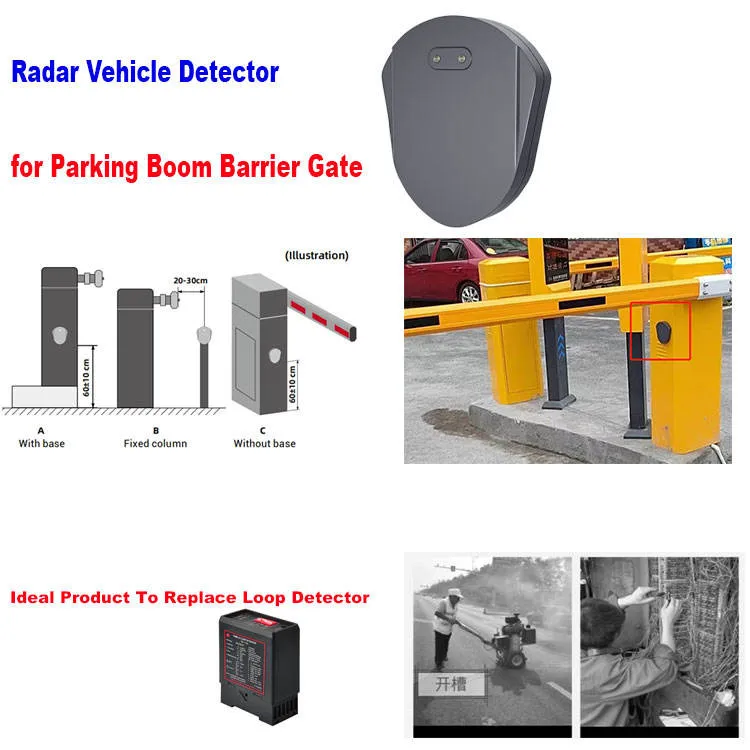

Barrier gate radar detector - vehicle parking system access sensor MW24

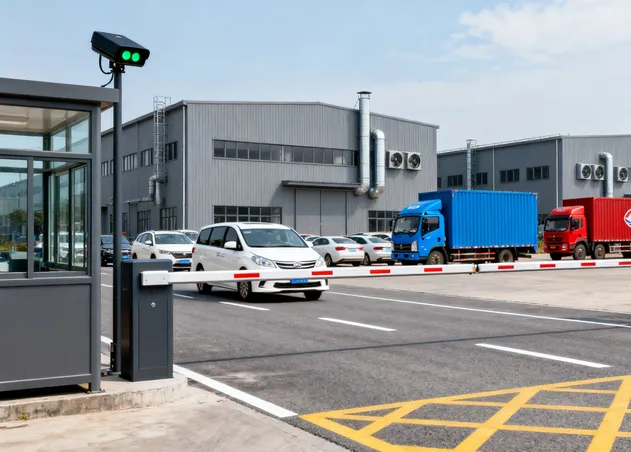

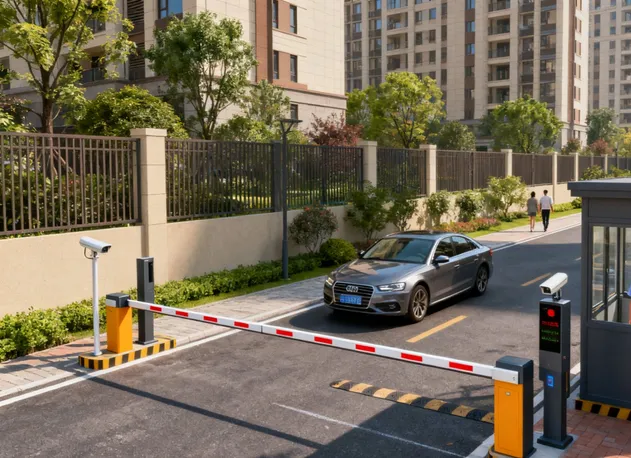

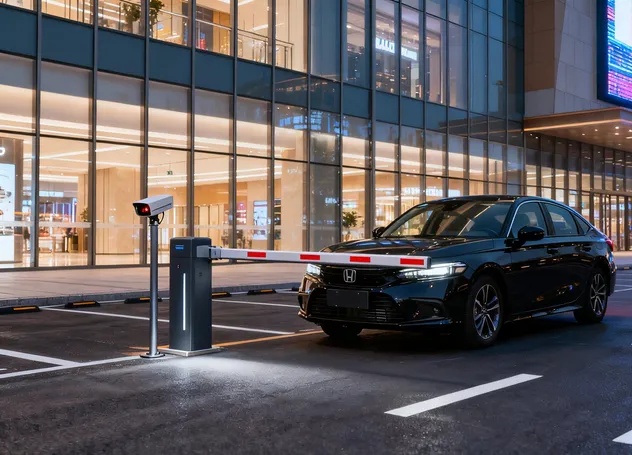

The MW24 barrier radar detector is a dedicated outdoor access control sensor designed for straight-bar barriers. Operating at a frequency of 24-24.5GHz with FMCW modulation mode, it features precise vehicle detection capabilities to meet the security control needs of parking lots, community entrances, and industrial park gates. With IP67 protection, it operates stably in extreme environments from -40°C to +85°C.
| Parameter | Specification |
|---|---|
| Scope of Application | Straight bar gate |
| Input Voltage | DC12V 150mA |
| Working Frequency | 24-24.5GHz |
| Modulation Mode | FMCW |
| Transmit Power | 10-15dBm |
| Beam Angle | Horizontal < 30°, Vertical < 17° |
| Detection Distance | 1-6 meters, +-0.1 meters |
| Operating Temperature | -40°C ~ +85°C |
| Degree of Protection | IP67 |
Our manufacturing processes comply with Quality Management Systems GB/T19001-2016 / ISO 9001:2015. Our products have obtained CE and RoHS certifications, meeting requirements such as EN16005, EN61000, and IEC62321.
A: Yes, we specialize in microwave, radio frequency (RF), infrared (IR), and laser sensing technologies, offering comprehensive solutions including sensor supply and technical services.
A: Yes, sample orders are welcome. Please contact our team to discuss your specific requirements and availability.
A: Yes, logo customization and specific product adjustments are available to meet your needs.
A: Standard products typically ship within 3-5 working days. For custom or bulk orders, lead times depend on quantity and specific requirements.
A: We accept T/T (Bank Transfer), Western Union, PayPal, and Letter of Credit (L/C).
A: The sensor is IP67 rated and can operate reliably in temperatures ranging from -40°C to +85°C.
