| Model NO. | CT9 PRO |
| Interface | Serial Port, 4G, TCP/IP, RS485, Weigand |
| Reading Distance | 10cm-15m |
| Application | Parking, Hospital, Library, Company, Bank, Store |
| Product | 4G TCP/IP Access Control Terminal |
| Operating System | Linux OS |
| Display | 3.5" Touch Screen Display |
| Identification | RFID, NFC, BLE, Pin Code |
| RFID | MIFARE Plus, MIFARE, DESFire EV1/EV2, Em 125kHz |
| Mobile Credential | ISO18092 NFC, BLE (Bluetooth Low Energy) |

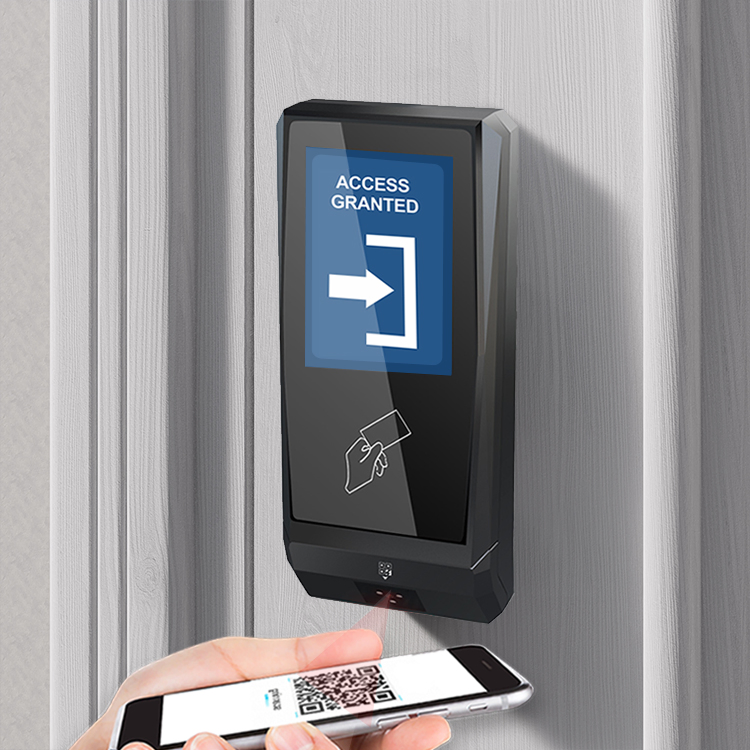

| Qr Code | Qr Code, Barcode |
| Work Mode | Standalone & Network Mode |
| Power | 12-30V, Poe |
| IP Protection | Waterproof Outdoor Use |
| Certification | CE, FCC |

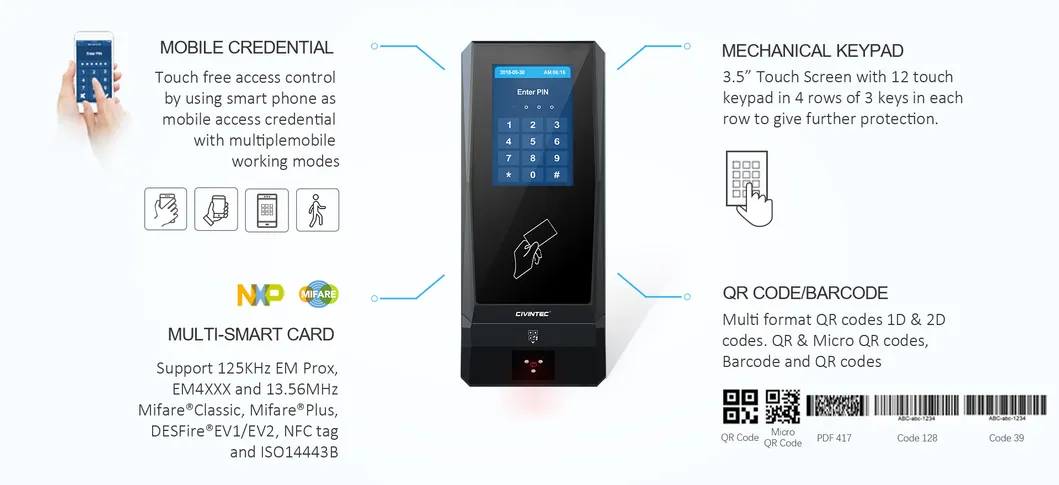

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, featuring embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning.
| Display | 3.5" capacitive touch screen |
| QR code | QR Code, Micro QR code, PDF417, Code 128, Code 39, etc. |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module |
| Offline Logs | 10,000 users / 50,000 logs |
| Protection | IP65 outdoor/indoor use, UV-resistance |
We offer ODM customization on hardware, reader housing, firmware, and software design services. Users can program and display their own LOGO on the 3.5" touch screen.
