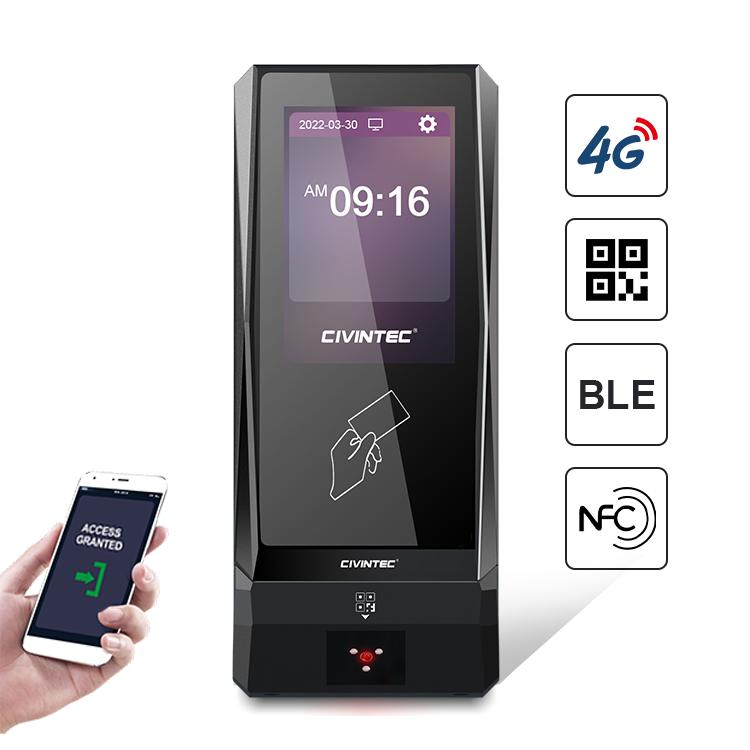

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39. |
| Mobile ID | BLE, NFC |
| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Mifare® Plus, DESFire® EV1, EV2, NFC tags. |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| I/O Port | Relay output, Tamper alarm, Door contact, Exit button, Buzzer control |
| Capacity | 10,000 users / 50,000 logs |
| IP protection | IP65 outdoor/indoor use |

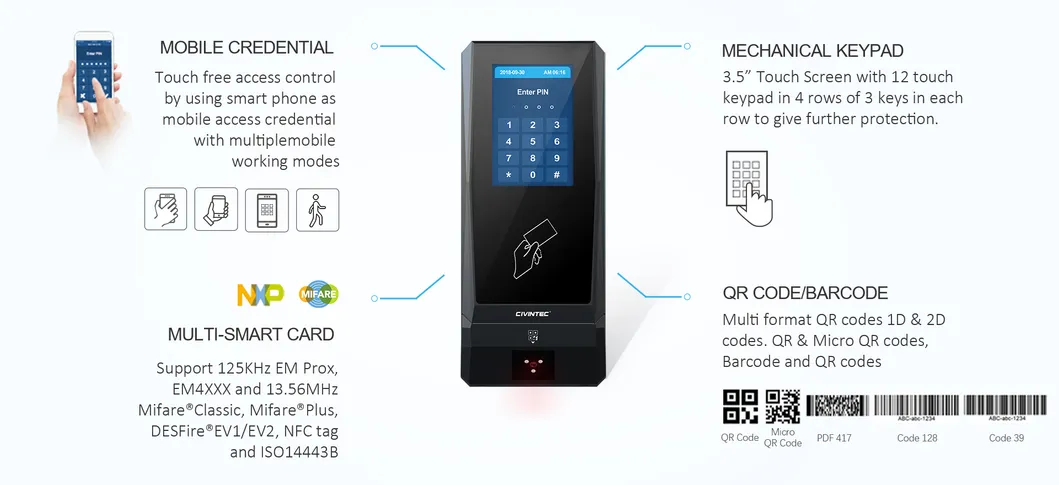

Incorporates 5-in-1 technologies: touch keypad, RFID dual frequencies, BLE & NFC mobile access, and QR CODE/barcode scanning for visitor management.
Bio-directional communication via standard HTTP & HTTPs between the terminal and server to remotely control door locks and IoT facilities.
Remotely controlled by cloud web-based software in real-time. Features embedded relay output to manage Access Denied or Access Granted statuses.
Offering customization on hardware, reader housing, firmware, and software design. Users can program and display their own logos on the 3.5" touch screen. OEM logo printing is also available on the reader body.
