Product Description

Basic Information

Model NO.

FusionModule 800

Installation

Vertical

Fan Number

One

Capacity

30U-40U

Certification

CE, ISO, RoHS, GS

Condition

New

Power Supply

380/400/415VAC, 50/60Hz, 3pH+N+PE

Channel Type

Single Row, Sealed Aisles

Protection Level

IP20

Cabinets

1-15 Units

✓

Product Introduction

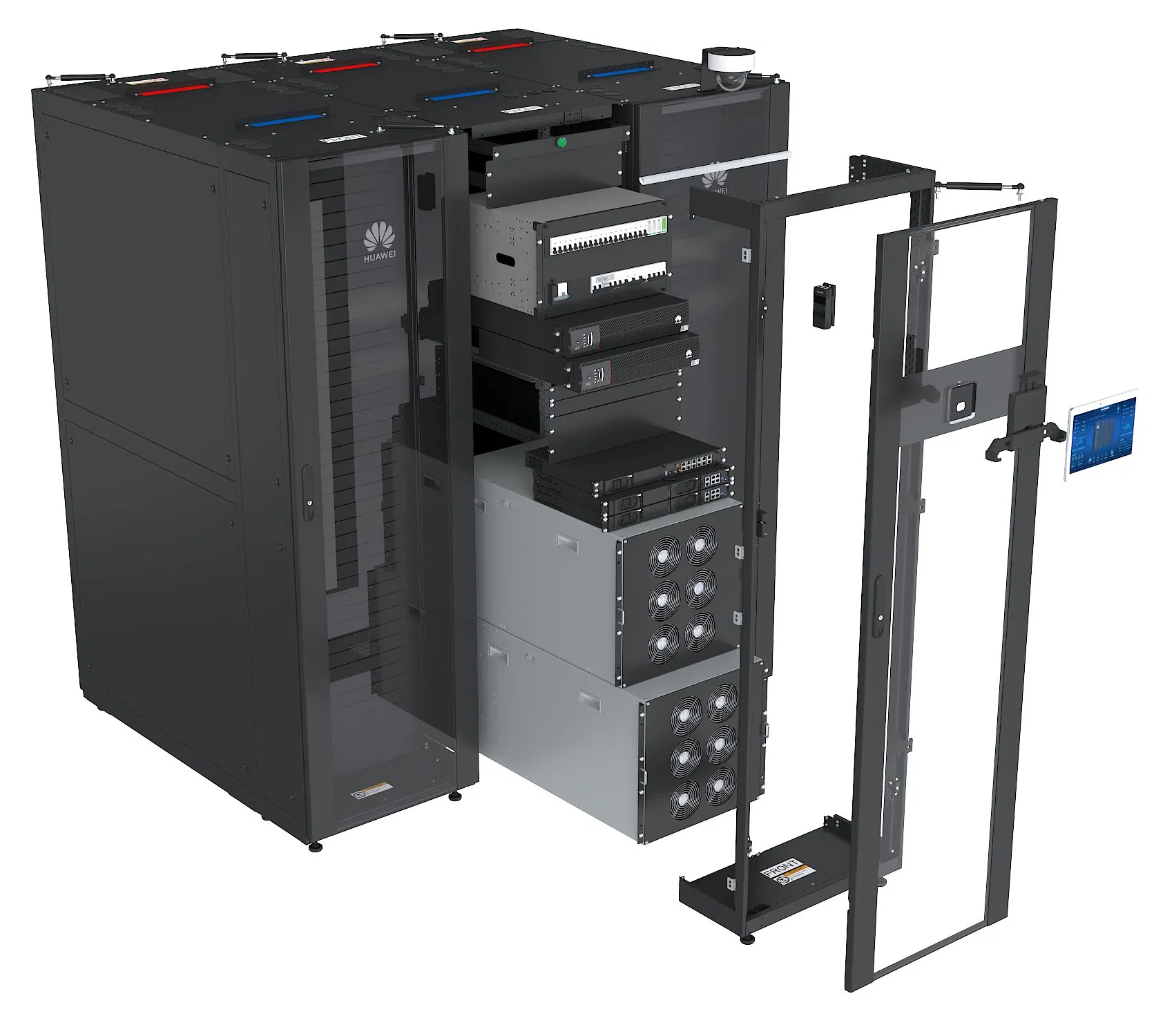

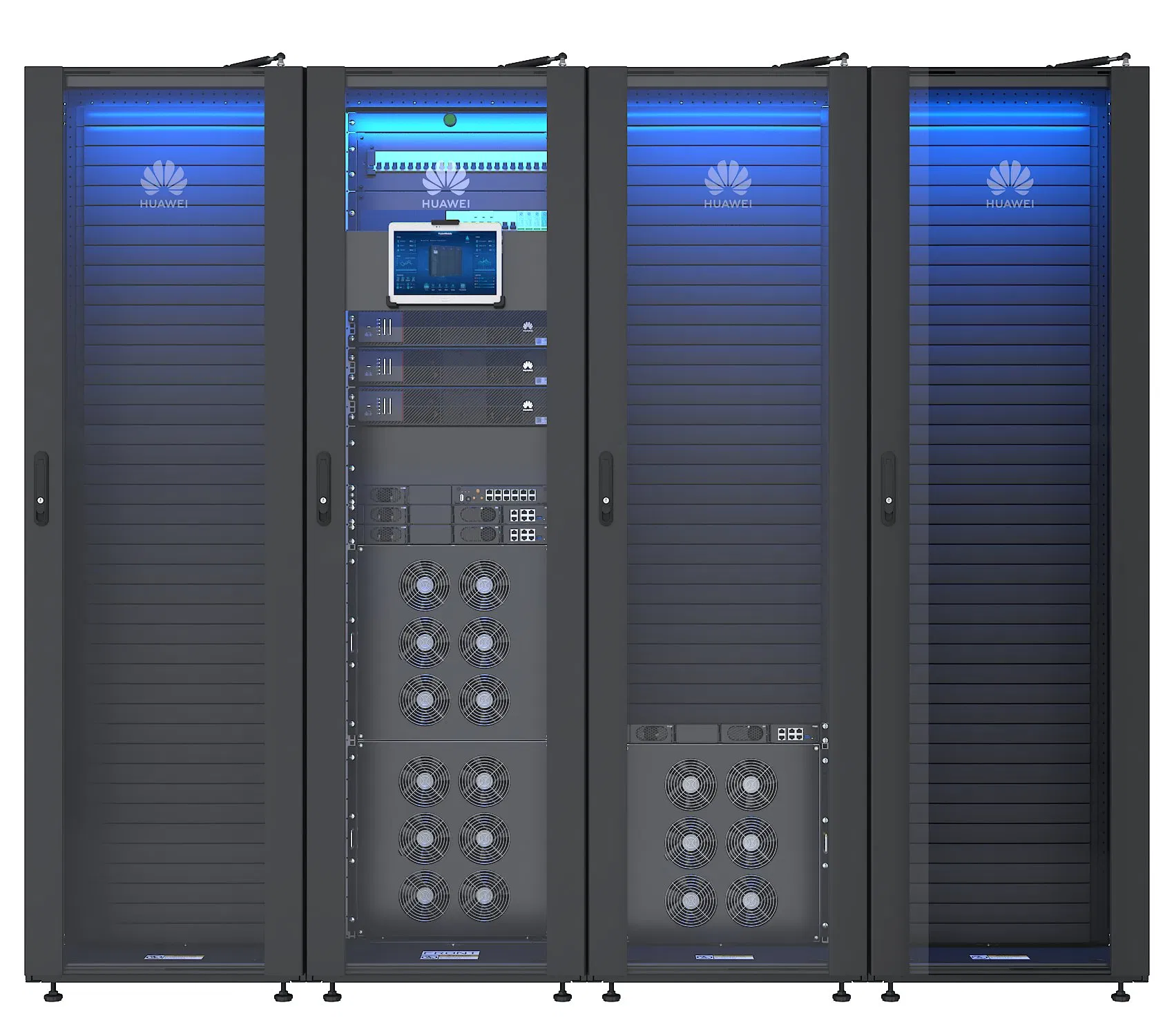

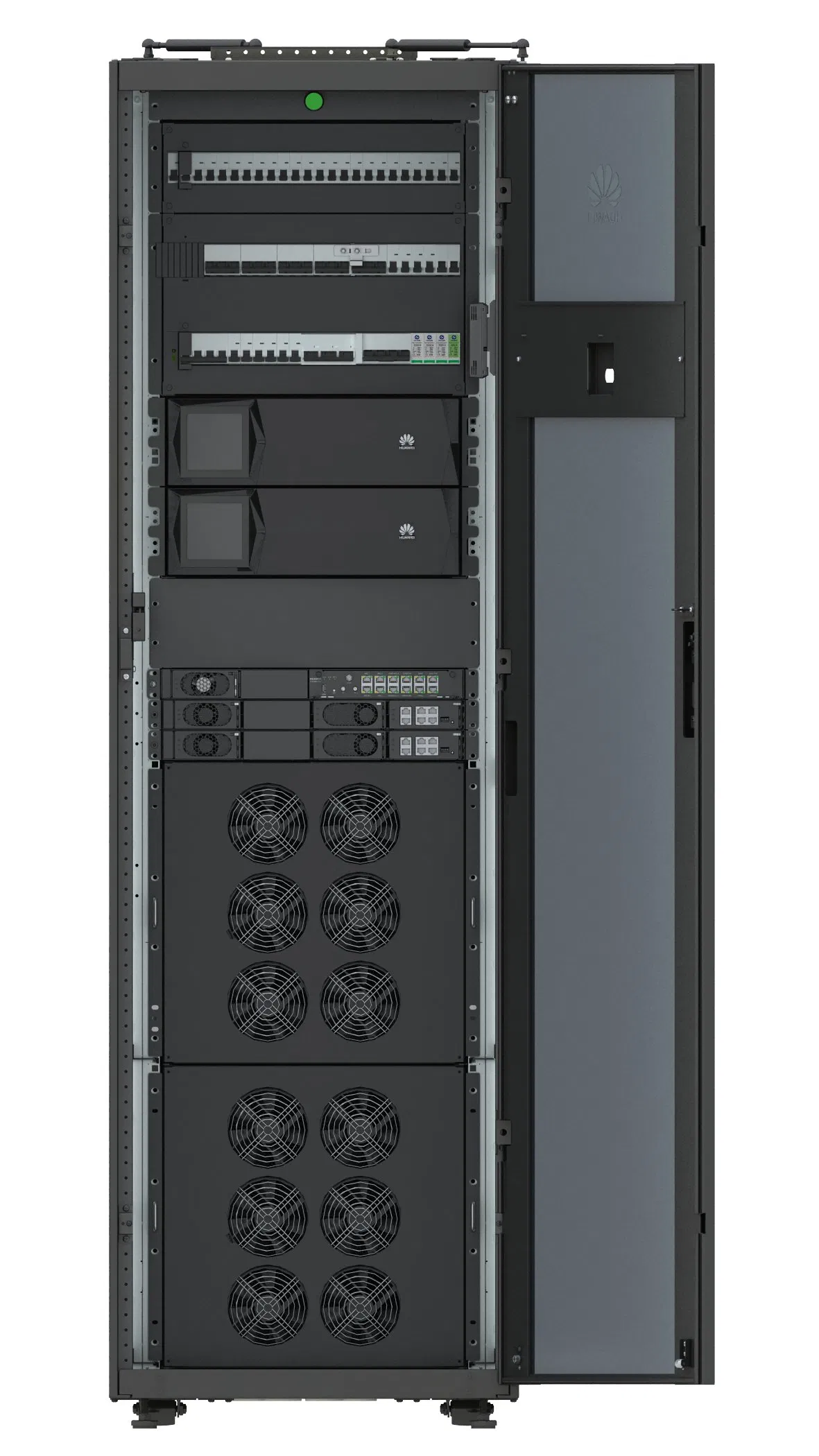

FusionModule800 is a small modular data center solution designed for edge computing and branch sites. It integrates power distribution, UPS, monitoring, cooling, cabinets, and optional fire extinguishing modules into a highly integrated "one row, one DC" minimalist design.

Adopting a factory pre-test and pre-commissioning approach, it allows for on-site plug-and-play deployment. Paired with advanced management systems, it enhances O&M efficiency through centralized monitoring and remote operations.

Layout & Scenarios

Application Scenarios: Finance (branches), Government, Education, Healthcare, Public Security, Transportation, Energy, SMEs, Commercial Retail, and Operator business outlets. Suitable for all indoor scenes.

★

Value & Characteristics

Simple

Prefabricated components allow hardware setup in 4 hours and business launch in 2 days. Supports internal fire extinguishing modules with plug-and-play capability.

Green

Integrated cold and electrical control saves 2-3 cabinets of space. Sealed aisles ensure dust prevention, noise reduction, and efficient cooling.

Intelligence

Supports face recognition, keyless entry, smart electricity meters for PUE display, and remote mobile App O&M.

Safety

Reliable dehumidification at 10% load prevents condensation. Automatic pop-up doors assist in heat dissipation during high temperatures.

Technical Specification

Power supply system	380/400/415VAC, 50/60Hz, 3Ph+N+PE
Cabinet Dimensions (mm)	2000 × (600-9200) × 1350
Channel type	Single row, sealed cold and hot aisles
System protection level	IP20
Single-module cabinets	1-15 Units
Installation method	Cement floor, raised floor
