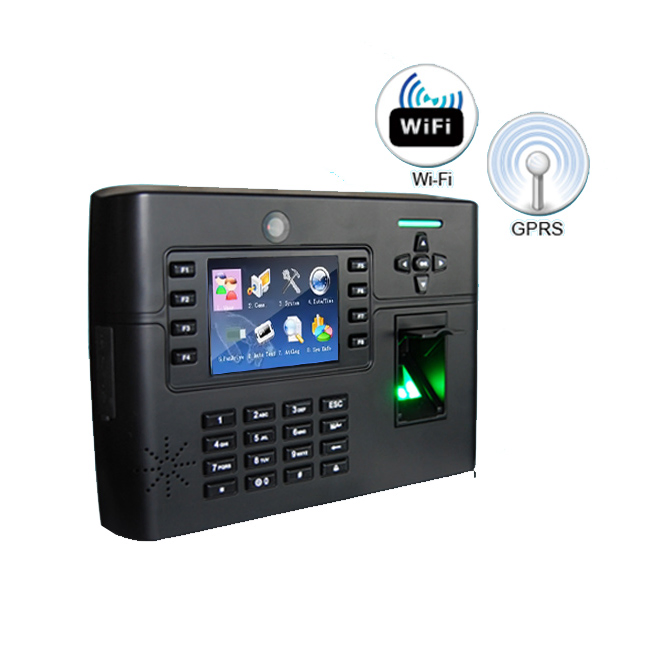

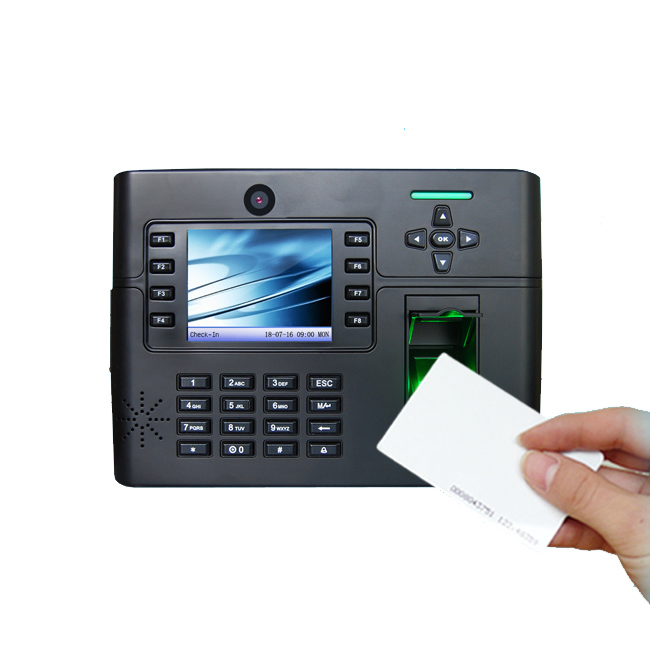

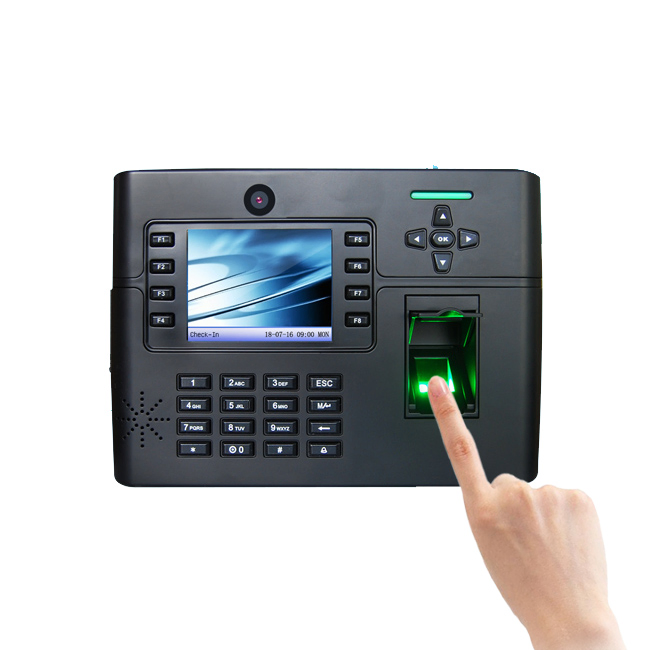

(TFT900-H) Big Capacity 50000 Users Fingerprint Access Control System and Biometric Time Attendance Device

Still deciding? Get samples of $ !
Request Sample

Product Description

📋Basic Information
Model NO.
TFT900-H
Color
Black
Fingerprint Capacity
50,000 Fingers
Logs Capacity
800,000
Screen
3.5 Inch TFT Color Screen
Communication
TCP/IP, USB, RS485, RS232, Wiegand, WiFi/3G (Optional)
Power Supply
12V DC, Built-in Backup Li-Battery
Status Support
Check in/out, Break in/out, Overtime in/out
🔍Product Overview
Big Capacity 50,000 users Fingerprint Access Control system and Biometric Time Attendance device.

TFT900-H is a professional fingerprint access control & time attendance terminal. High speed processor and better-quality hardware lead to excellent performance and high stability. It's easy to connect with third party devices such as electric locks, door sensors and exit buttons. Wiegand input & output interface enable Master & Slave solutions, providing maximum security with anti-passback functions. It supports both standalone and network environments, suitable for factories, banks, schools, and many other high-security locations.

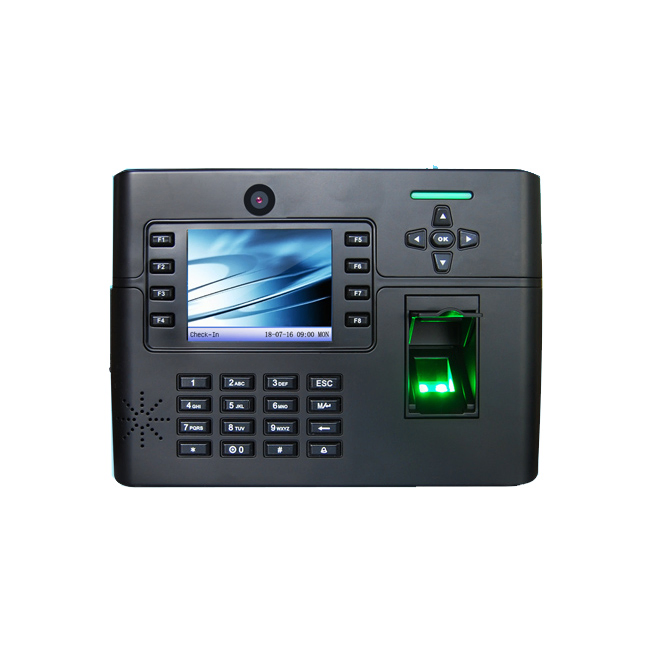

TFT900-H Main View
Key Features
Latest Fingerprint Algorithm and Firmware
3.5 inch TFT high definition LCD screen
Supports 50,000 fingerprints and 800,000 logs
TCP/IP, RS232/485, USB Host/Client, Wiegand
Anti-Passback function with slave reader

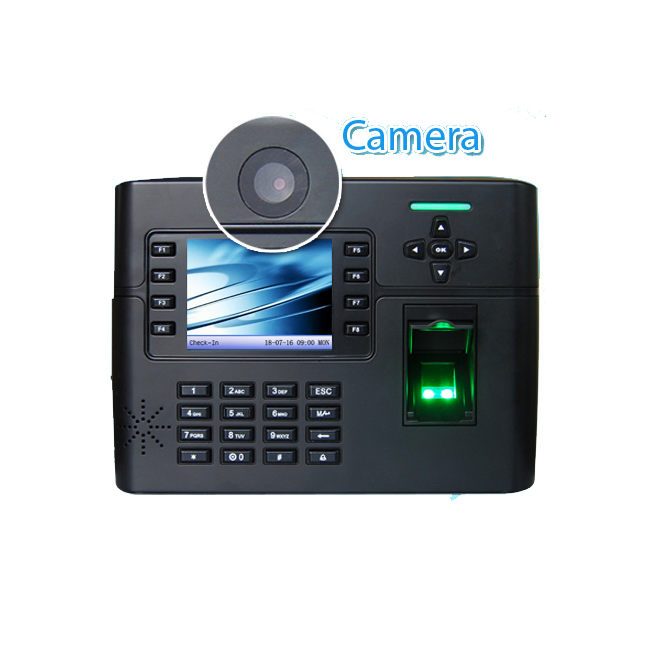

Built-in camera for user photo capture
Built-in backup Lithium battery
Optional WiFi, GPRS or 3G wireless communication

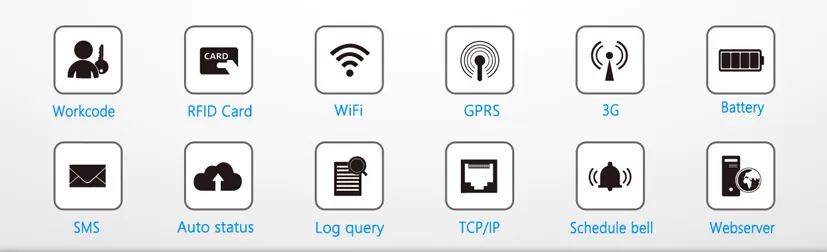

TFT900-H Features Display
⚙️Specifications
Display 3.5'' TFT high-definition graphical interface
Speaker Voice prompt (language selectable)
Capacity Fingerprint: 50,000; Card: 10,000 (Optional); Logs: 800,000
Verification Speed <= 0.5s (1:1); <= 1s (Identification)
Identification FRR <= 0.01%; FAR <= 0.0001%
Access Control 50 time zones, user grouping, relay output, door sensor, exit button
Environment Temp: 0-45°C; Humidity: 20%-80%
Functions Internal Camera, Work Code, Photo-ID, Webserver, T9 Input, Auto Status
🔌Connection Diagram

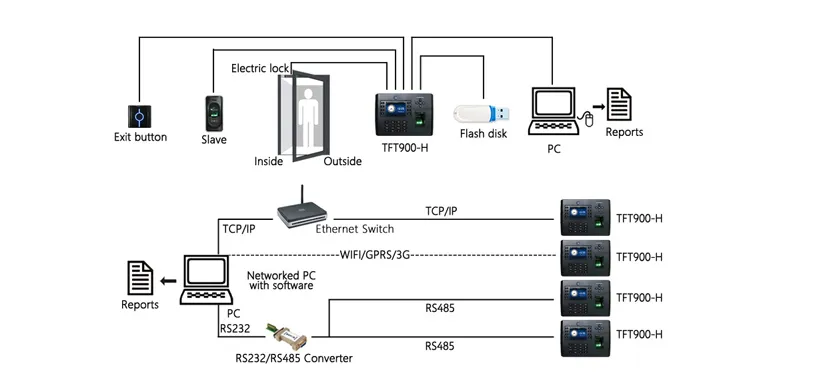

Connection Diagram
📸Detailed Images

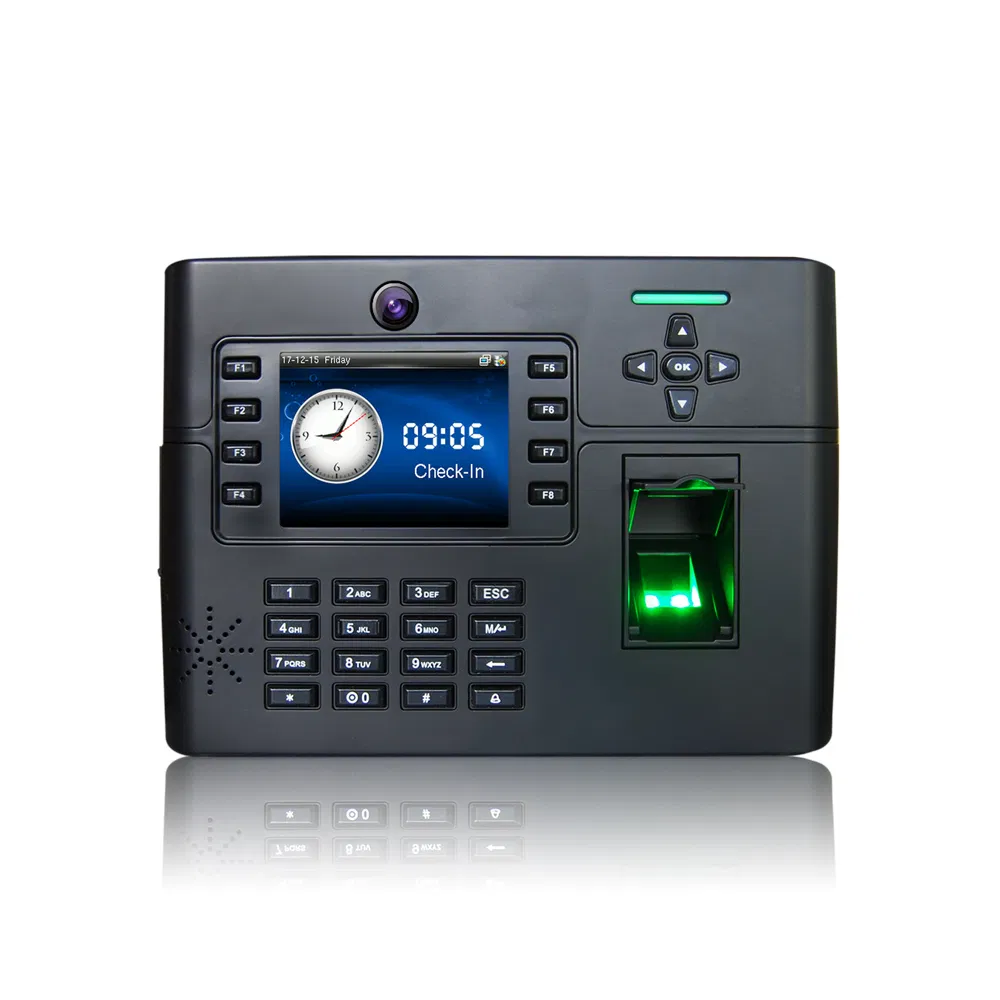

Detail 1

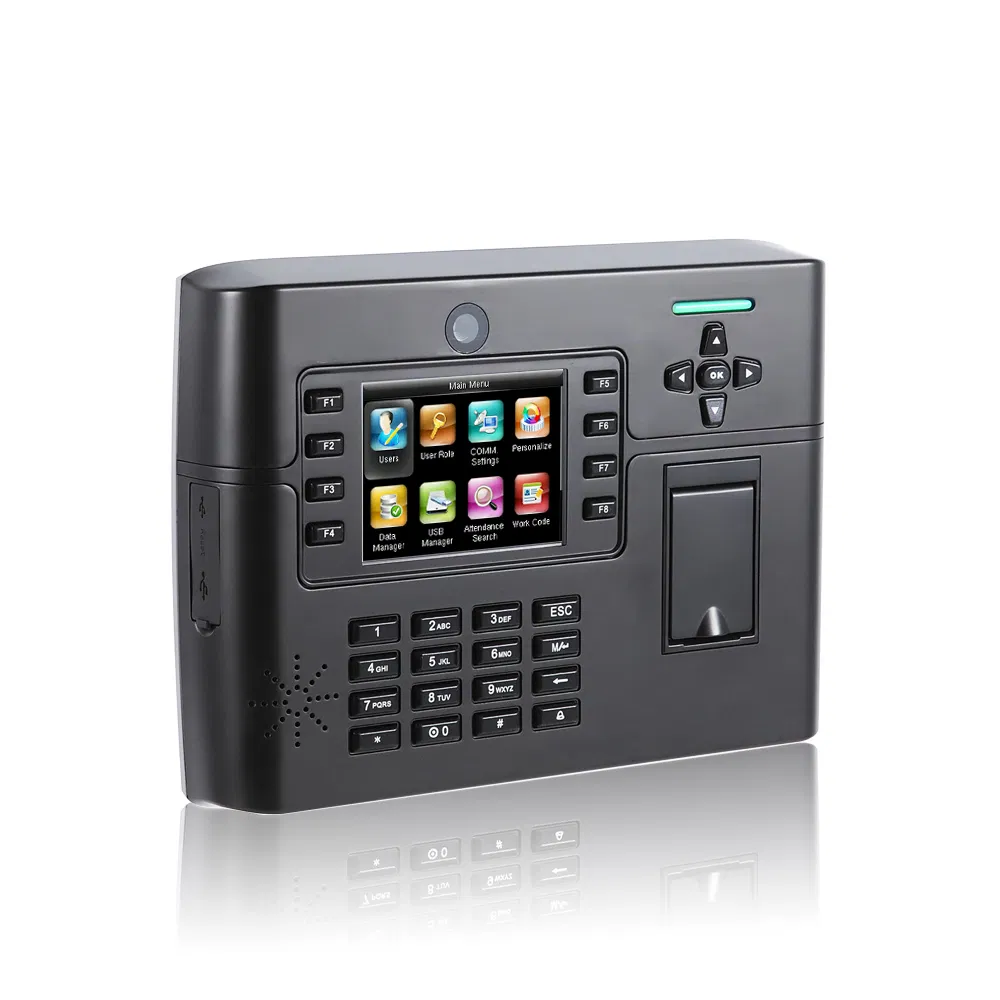

Detail 2

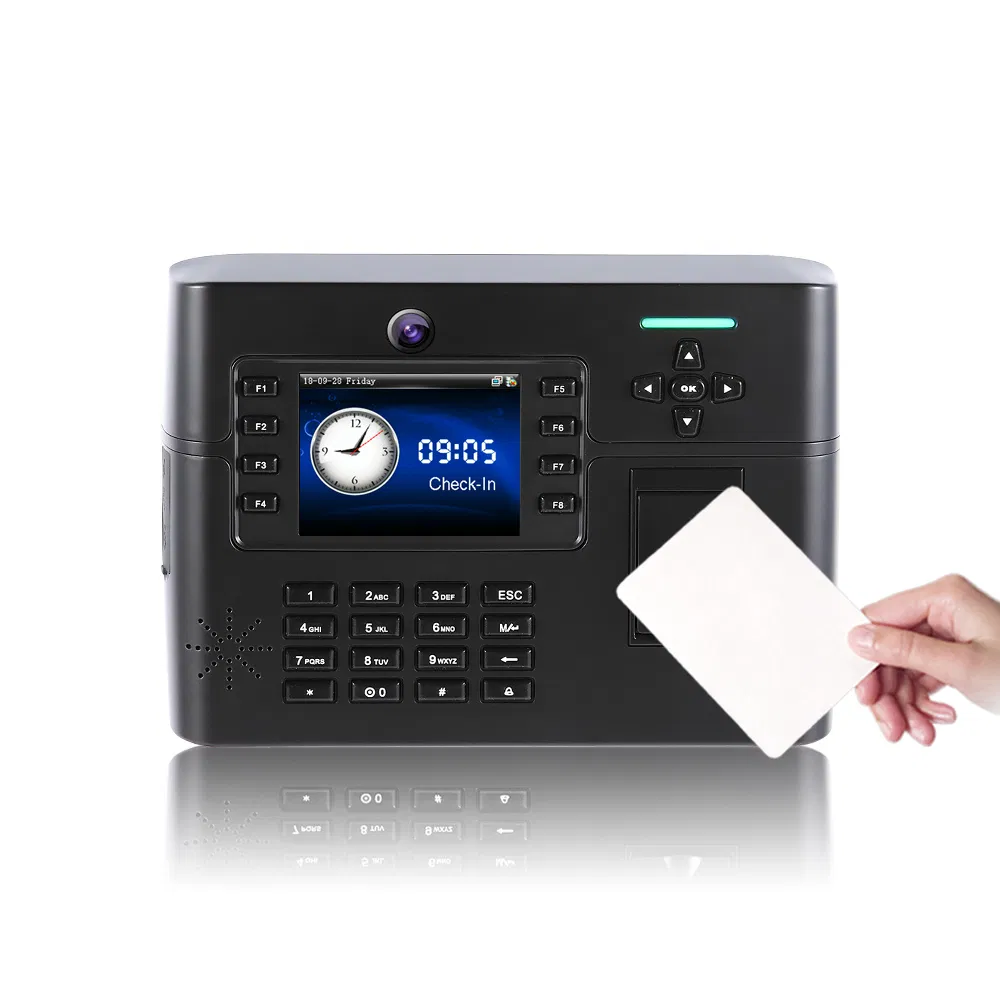

Detail 3

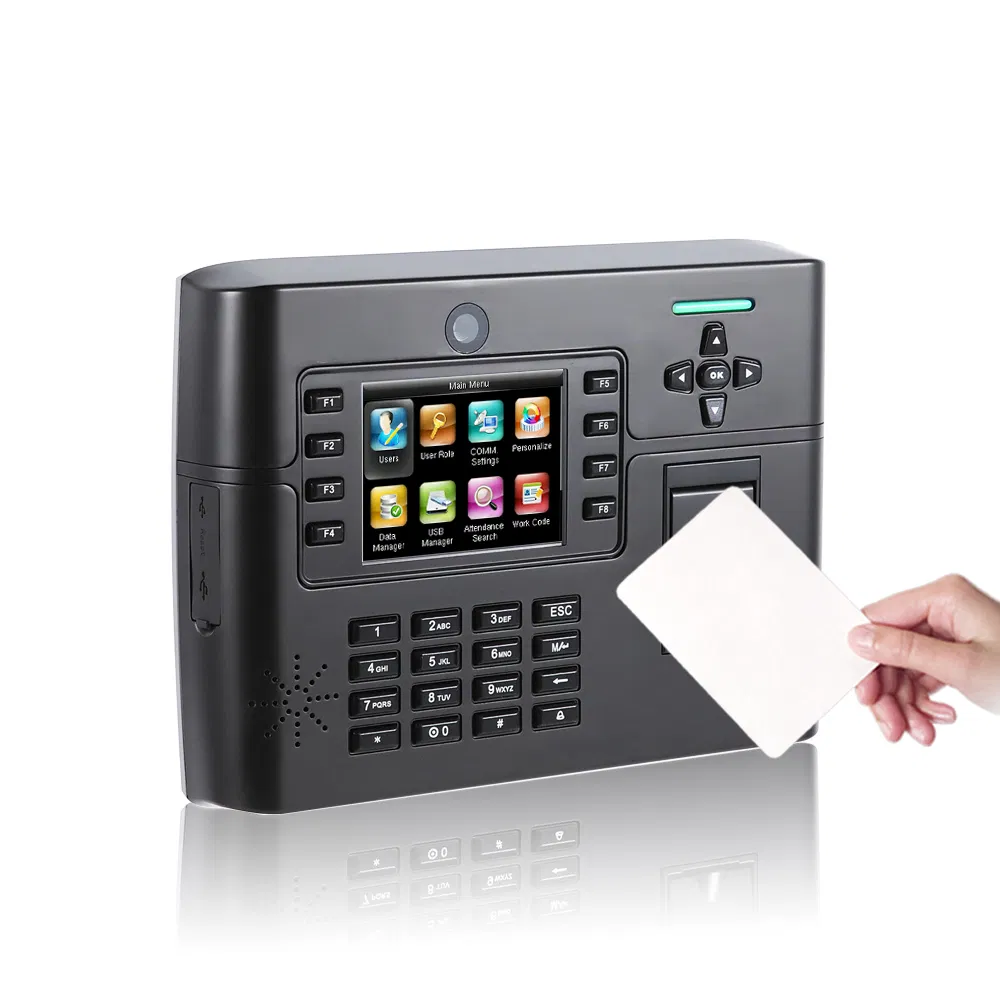

Detail 4

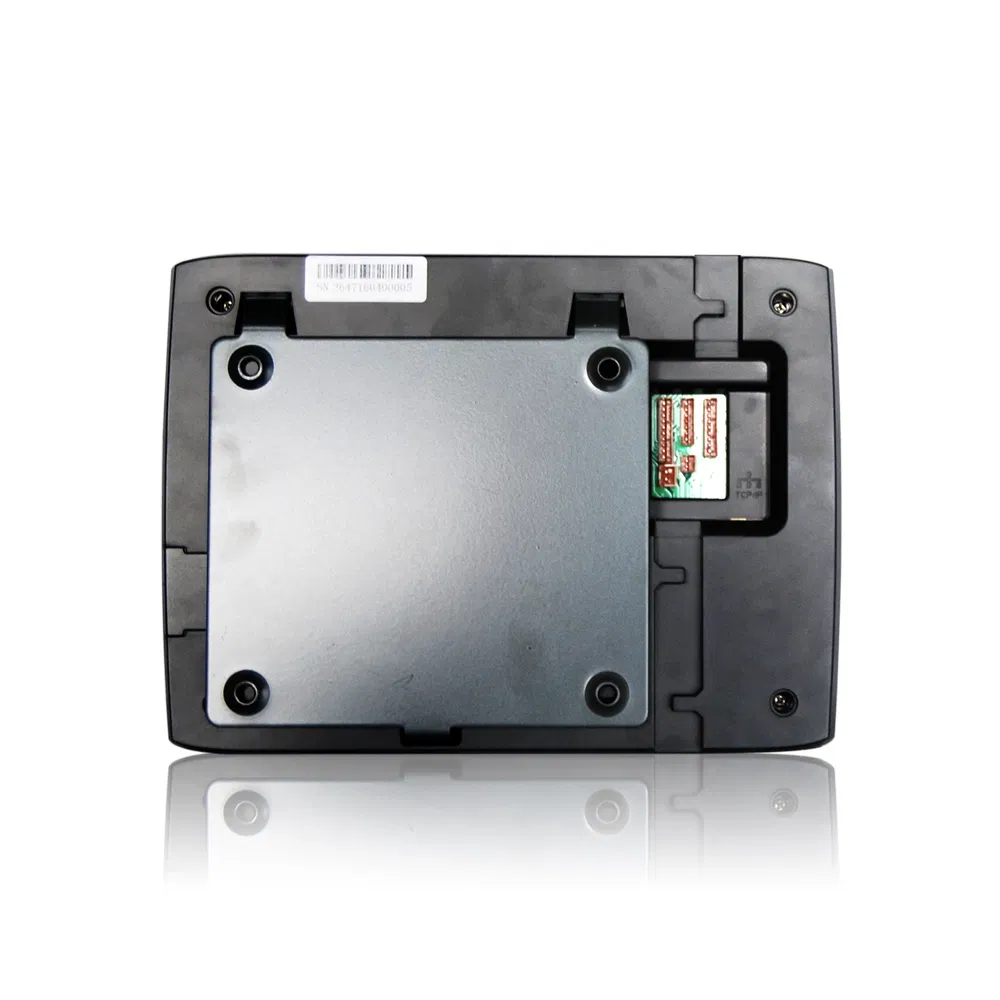

Detail 5
💻Software & Logistics

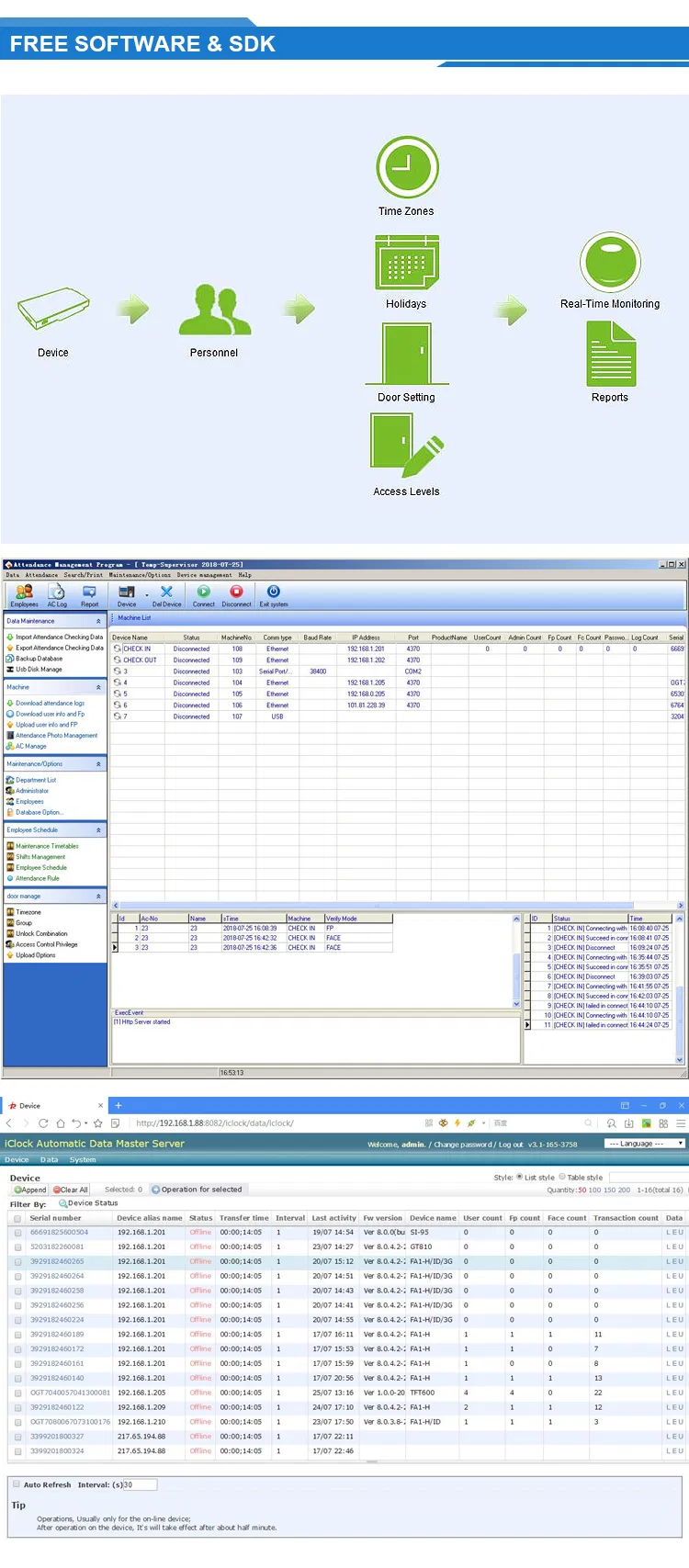

Software SDK
Shipment Way
Packaging Detail 1
Packaging Detail 2
Frequently Asked Questions
1. Do you have any MOQ limit?
For your convenience, we can accept 1 pcs. However, we offer better pricing for larger orders.
2. What if the products have technical problems?
We offer a 1-year warranty (excluding man-made damage) and provide full technical support for any operational issues.
3. Can the device language be customized?
Yes, our devices support multi-language customization including English, Spanish, Portuguese, Russian, Arabic, French, German, and more.
4. What are the accepted payment methods?
You can pay via T/T (Bank Transfer), Western Union, PayPal, Credit Card, L/C, or DP.
5. How are the goods shipped?
Small orders are shipped via Express (DHL, UPS, TNT, Fedex). Large orders can be shipped by Air or Sea.
6. What is the lead time for production?
Small orders usually take 1 week after payment; larger orders take approximately 2-3 weeks.
