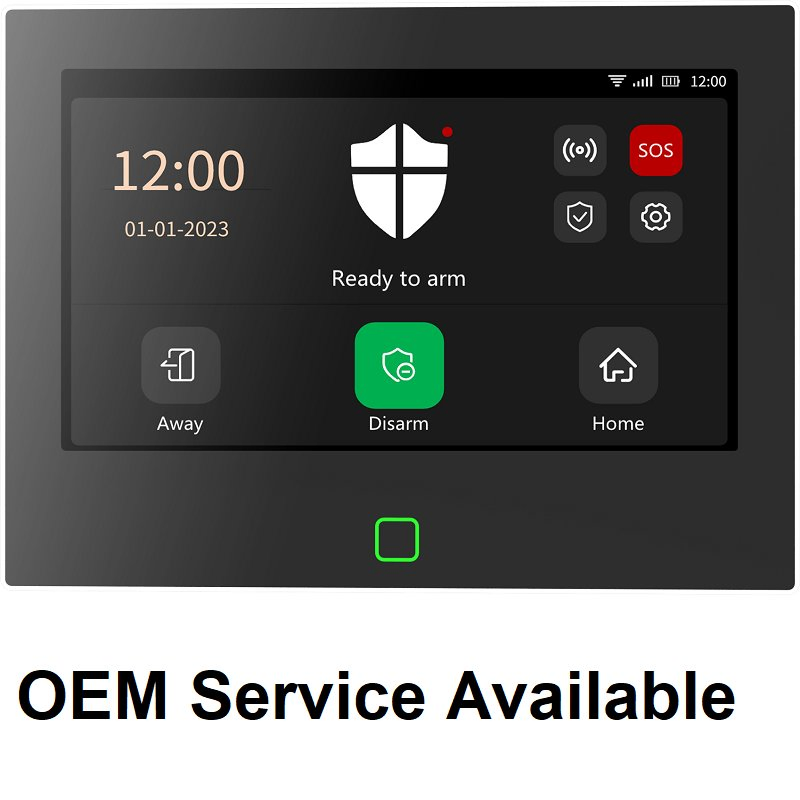

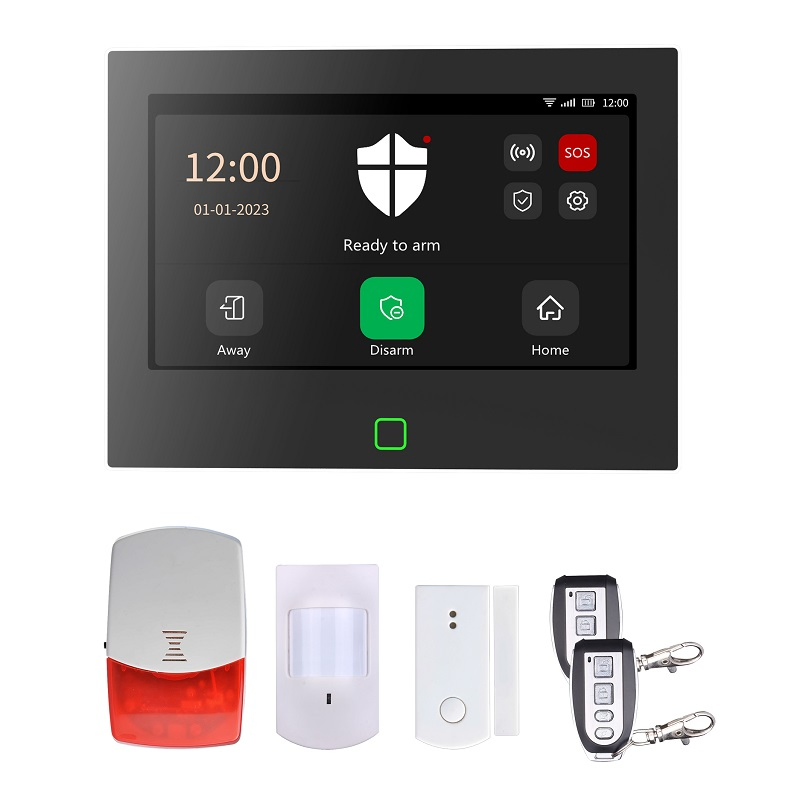

7" Touch Screen Tuya WiFi 4G Home Security Alarm System with Wired Wireless Smart Zones

Still deciding? Get samples of $ !
Order Sample

Product Description

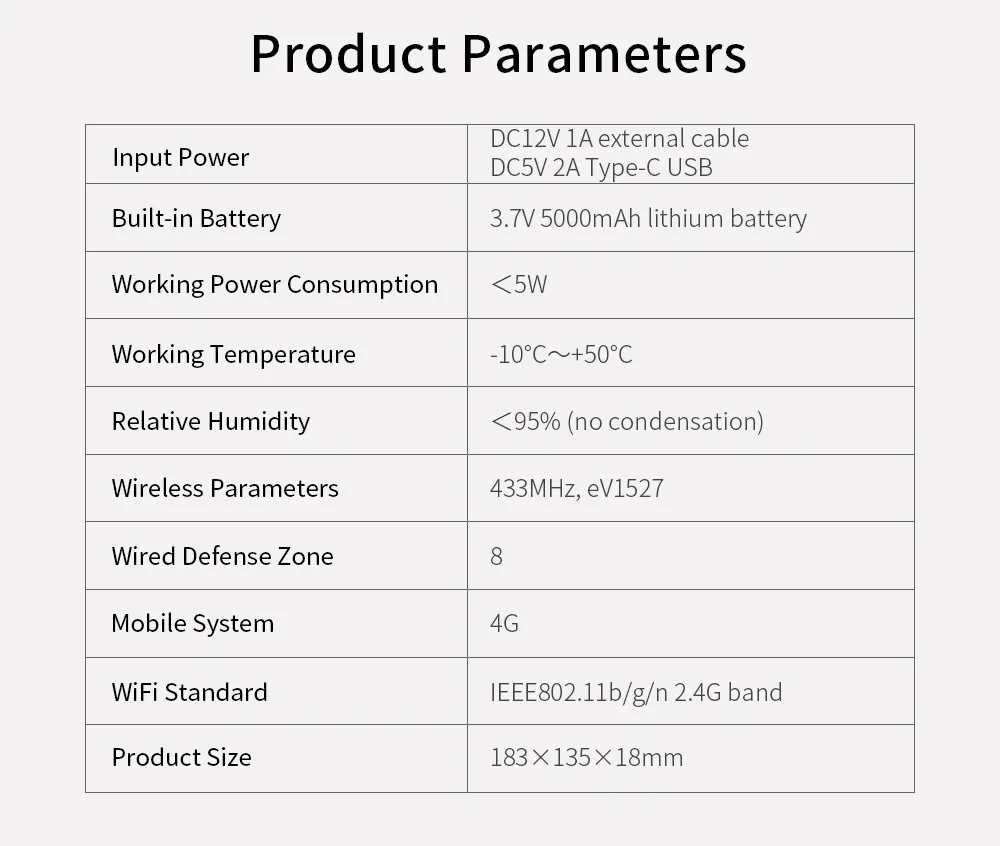

Basic Specifications

Model NO.:ES-X8
Working Mode:Passive
Certification:CE, ISO, FCC, RoHS, DOT, E-MARK
Application:Indoor
Working Principle:Infrared
Transmission:Wired and Wireless Alarm
Alarm Volume:≥110dB (within 1m)
Frequency:433MHz / 868MHz / 315MHz
Network:4G Global Support + WiFi
Zones:30 Wireless, 8 Wired Zones Optional

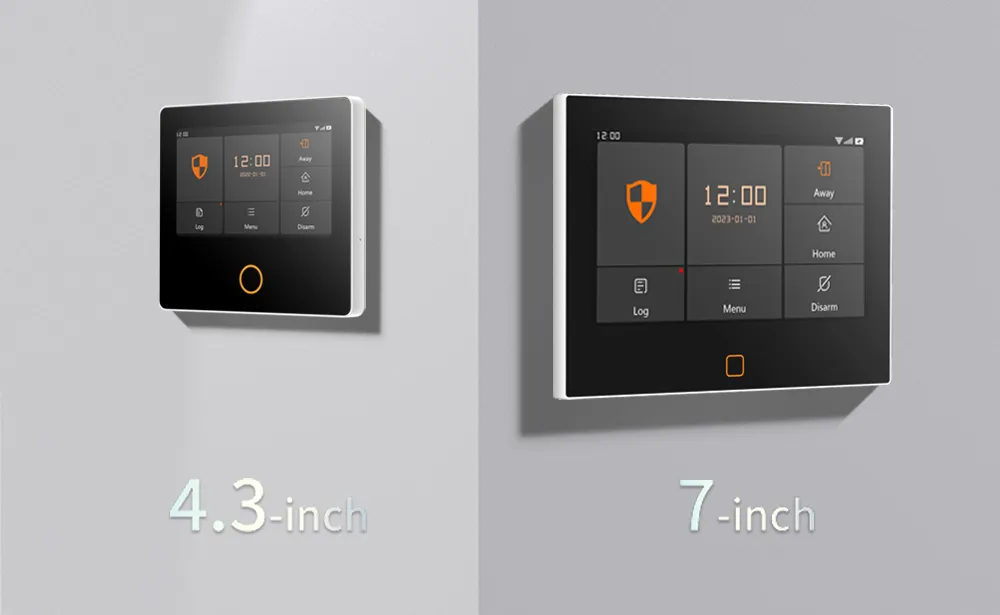

Screen Size:7" / 4.3" Touch Screen Optional

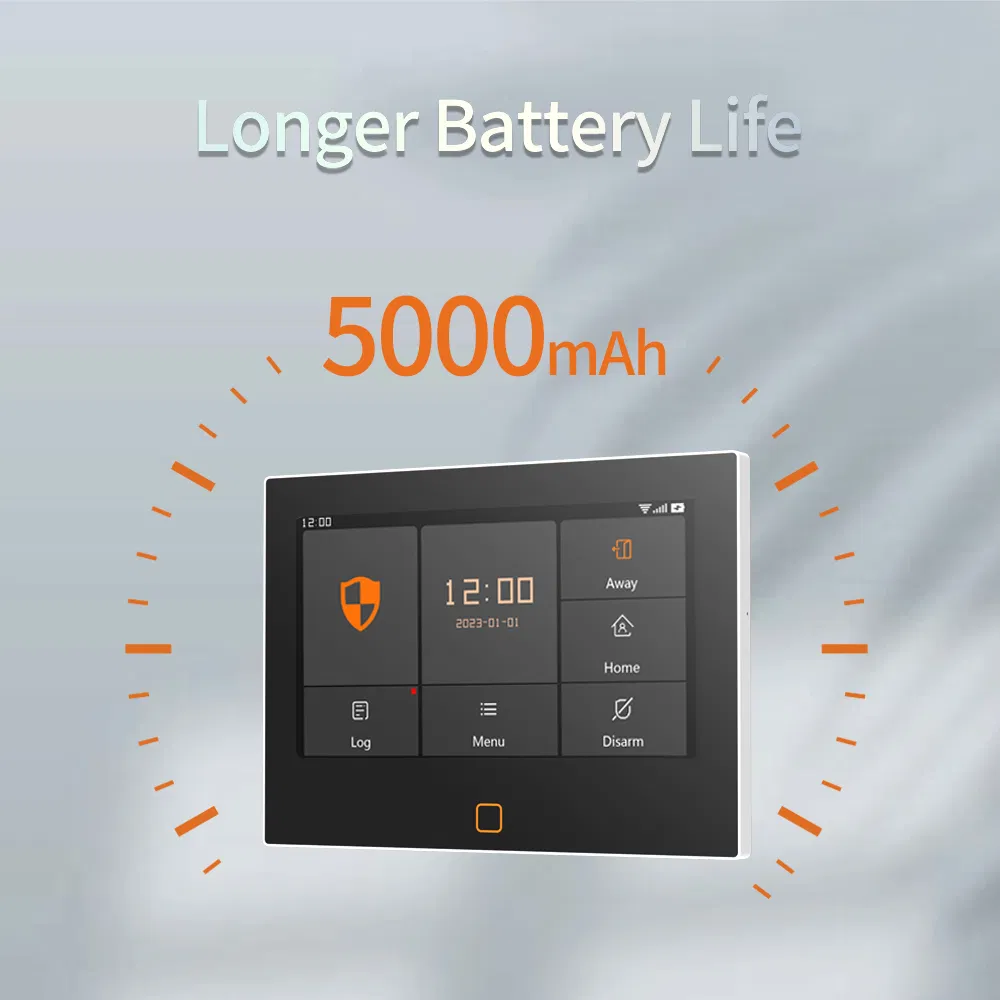

Battery Type:Rechargeable Li Battery

Packaging & Delivery

Package Size:30.00cm * 30.00cm * 20.00cm
Gross Weight:2.000kg
Packing Type:Blister Packing in Gift Box
Capacity:500,000 Sets/Month

Product Description

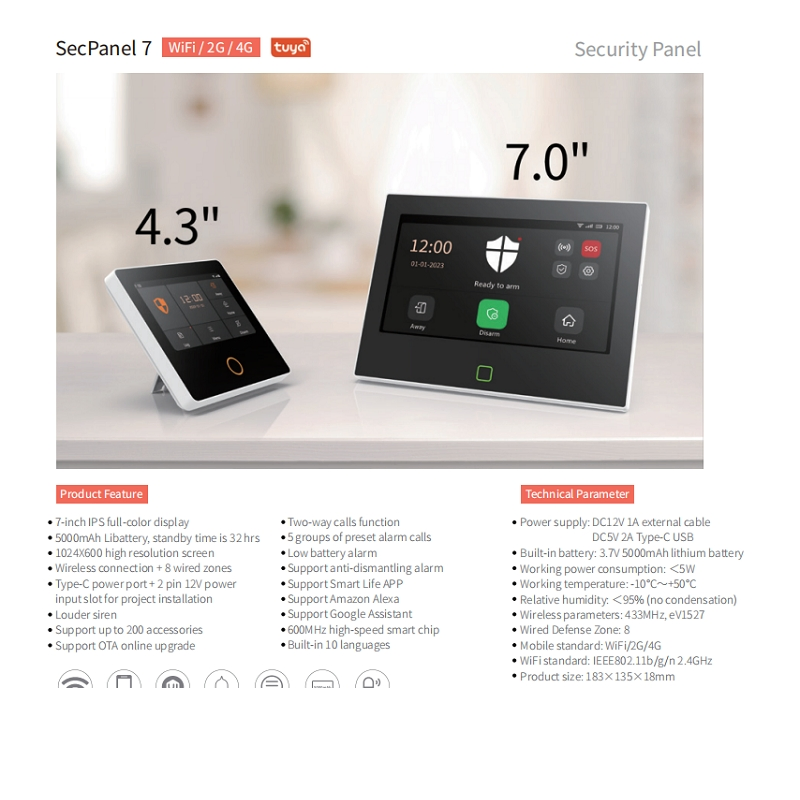

7" Tuya WiFi 4G Home Security Alarm System with Wired Wireless Smart Zones (ES-X8)

4G + WIFI dual network
SIA protocol supported
7" full touch screen
Internal antenna design
Rechargeable Li battery
Multi-language system

Core Features

  • 1 Compatible with Google Assistant and Amazon Alexa.
  • 2 Support for 100 wireless zones (renameable) and wired sirens.
  • 3 TUYA smart home platform integration for ecosystem connectivity.
  • 4 5 groups of phone numbers for SMS and calling alarms.
  • 5 Low battery voltage indication for wireless sensors.
  • 6 Door and window open warning & Voice operation prompts.

Main Panel & Customization

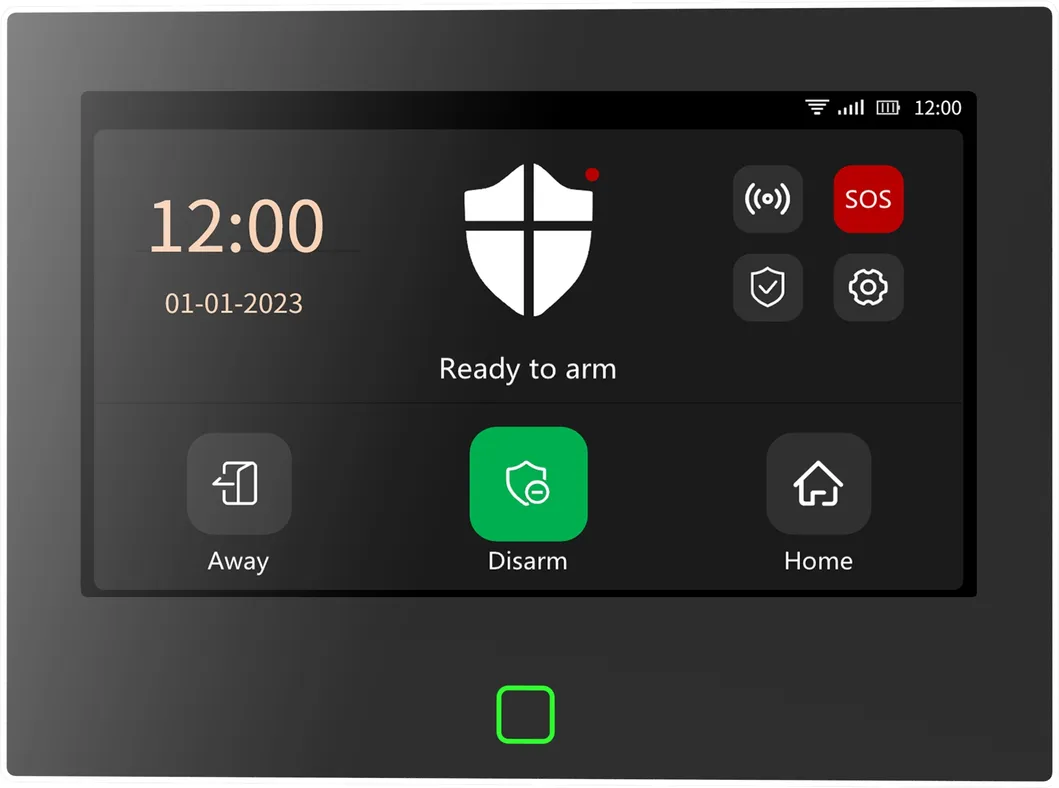

Alarm System Main Panel

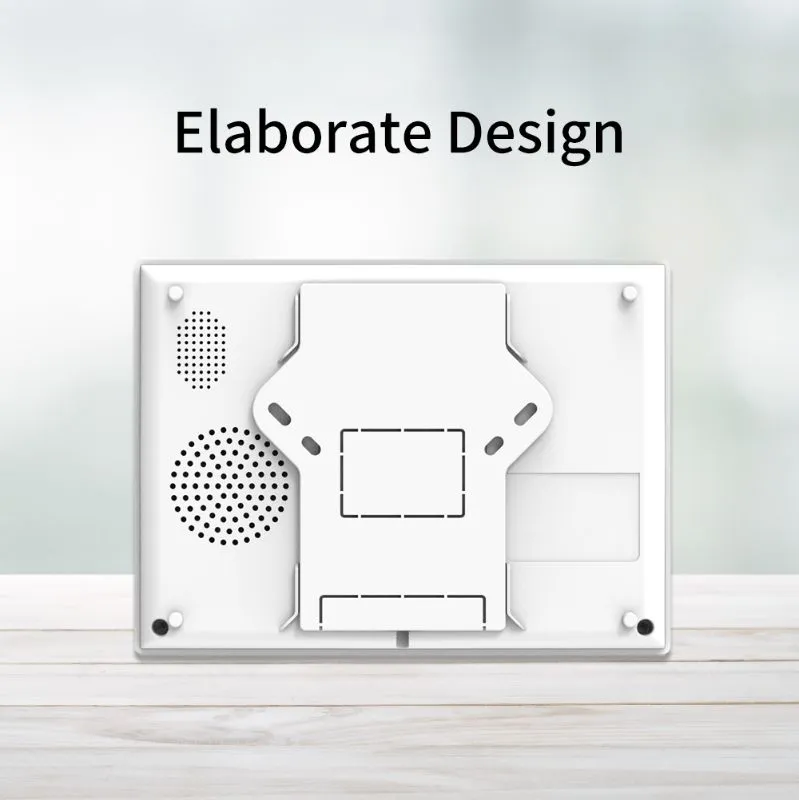

Touch Screen Interface

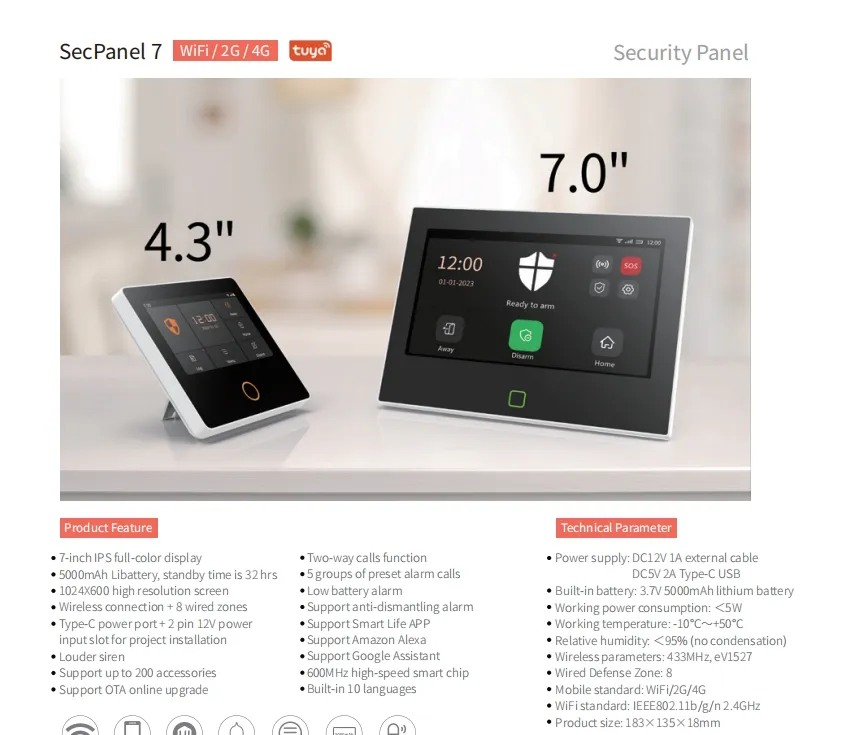

Customization Options

Accessories & Integration

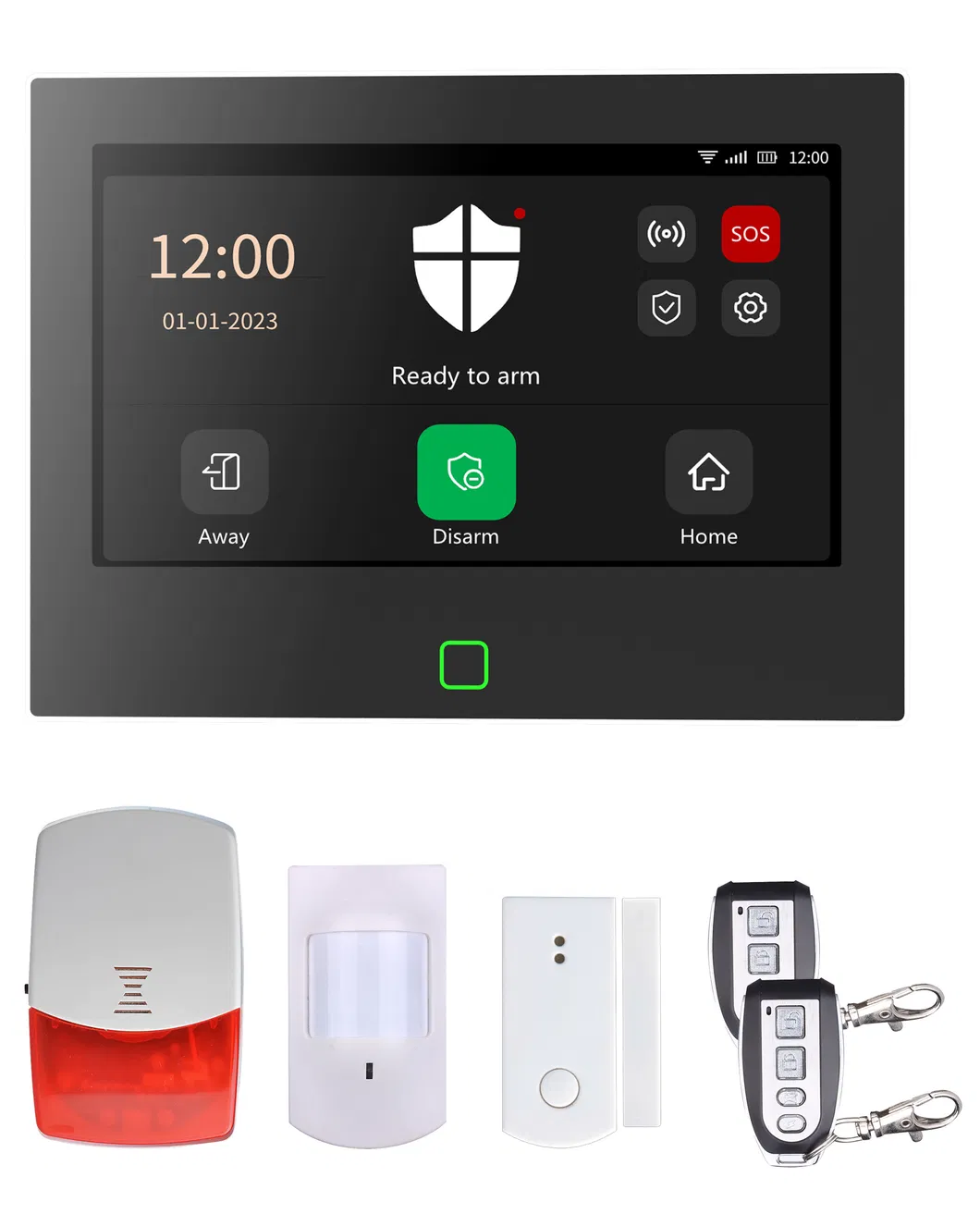

System Accessories
Internal Battery

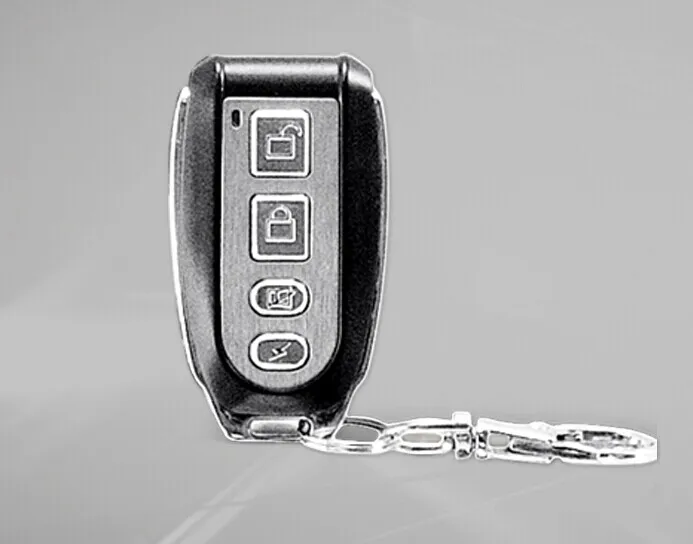

Remote Control

Solar Siren & Wired Zones

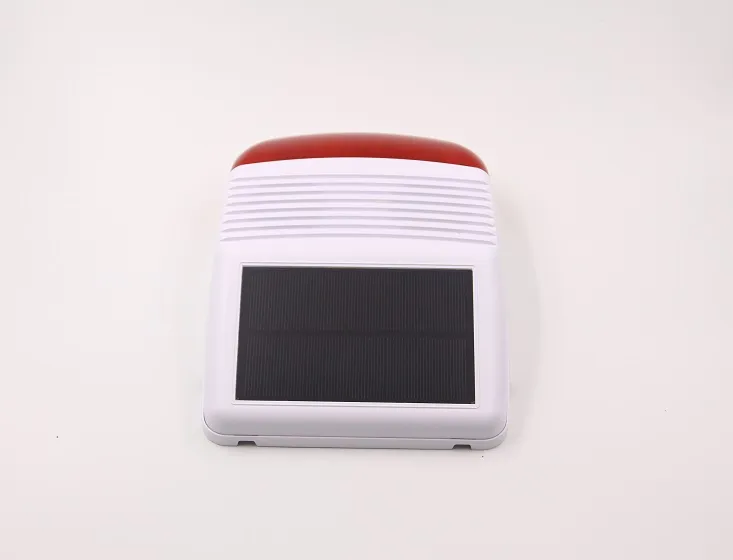

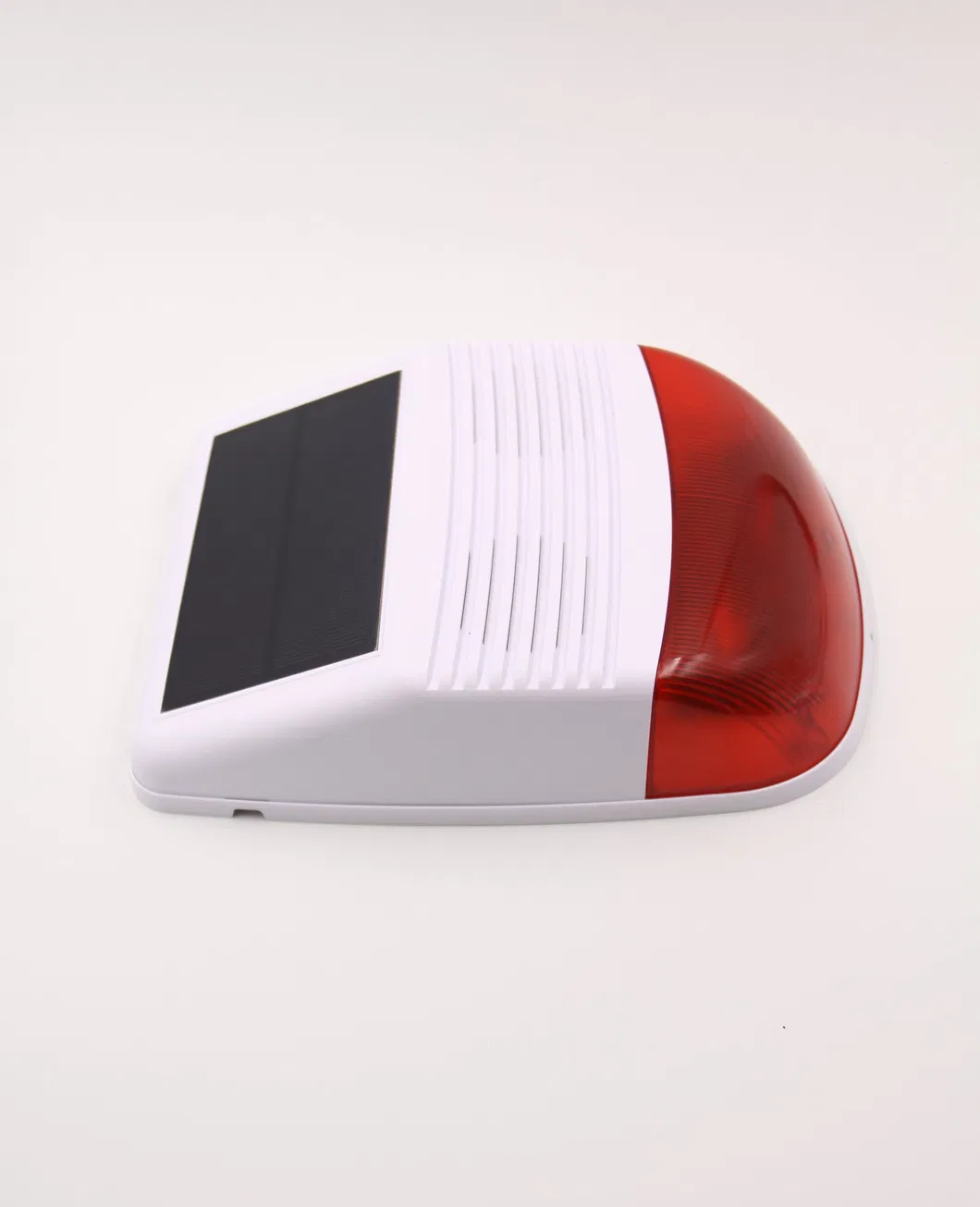

Solar Siren
Alarm Integration

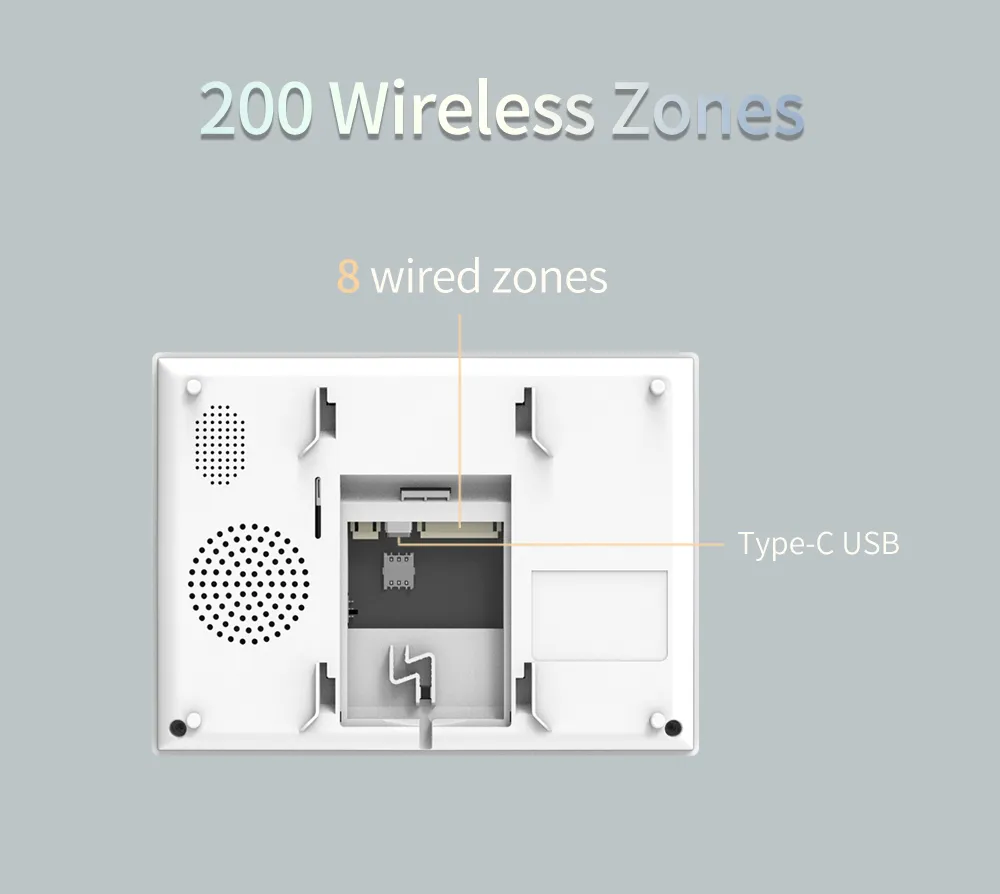

Wired Connection
Sensor Setup
System Layout
Application Interface

System Beep Notifications

No. Status System Beep Notification
1Arm DelayOne Di every second in Delay
2Alarm DelayOne Di every second in Delay
3ArmOne Di
4DisarmTwo Di
5Landline is offTwo Di every 30 seconds
6AC Power StatusOne Di when ON or OFF
7Low VoltageOne Di for sensor low voltage
8Sensor TriggeredContinuous Five Di (in disarm status)
9Arming with Open WindowContinuous Four Di

Frequently Asked Questions (FAQ)

Q1: Does the ES-X8 support both WiFi and cellular networks?
Yes, the system supports a dual-network configuration with WiFi and 4G, ensuring connectivity even if one network fails.
Q2: Can I rename the security zones for easier identification?
Absolutely. All 100 wireless zones can be renamed via the system settings to help you identify exactly which sensor has been triggered.
Q3: Is the system compatible with voice assistants?
Yes, the ES-X8 is fully compatible with Amazon Alexa and Google Assistant for convenient voice control.
Q4: What happens if there is a power outage?
The system includes a built-in rechargeable Li battery that provides backup power to the whole set (excluding remote controls).
Q5: How many languages does the alarm system support?
The system supports 11 languages that can be switched at any time, including English, German, French, Russian, Spanish, and more.
Q6: Does it alert me if a sensor's battery is low?
Yes, the ES-X8 features a low battery voltage indication specifically for wireless sensors to ensure your system is always operational.
