Product Description

Basic Specifications

Model NO.
NF-TF30
Color
Silver
Screen
1.77-inch TFT Display
Interface
USB / Tuya Bluetooth
Fingerprint Capacity
300 - 500
HS Code
830130
Material
Acrylic Hardened Panel

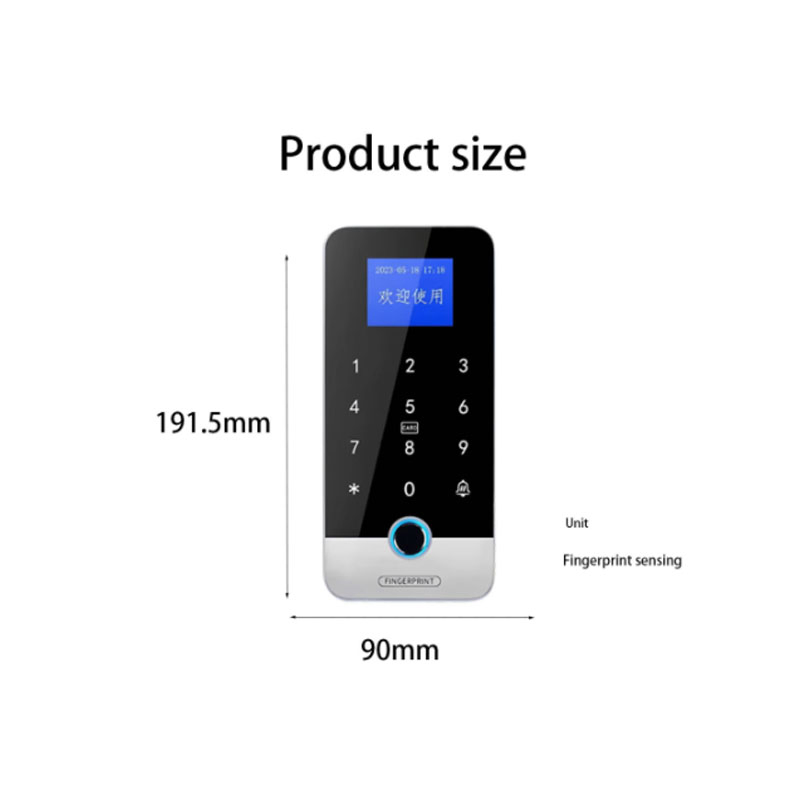

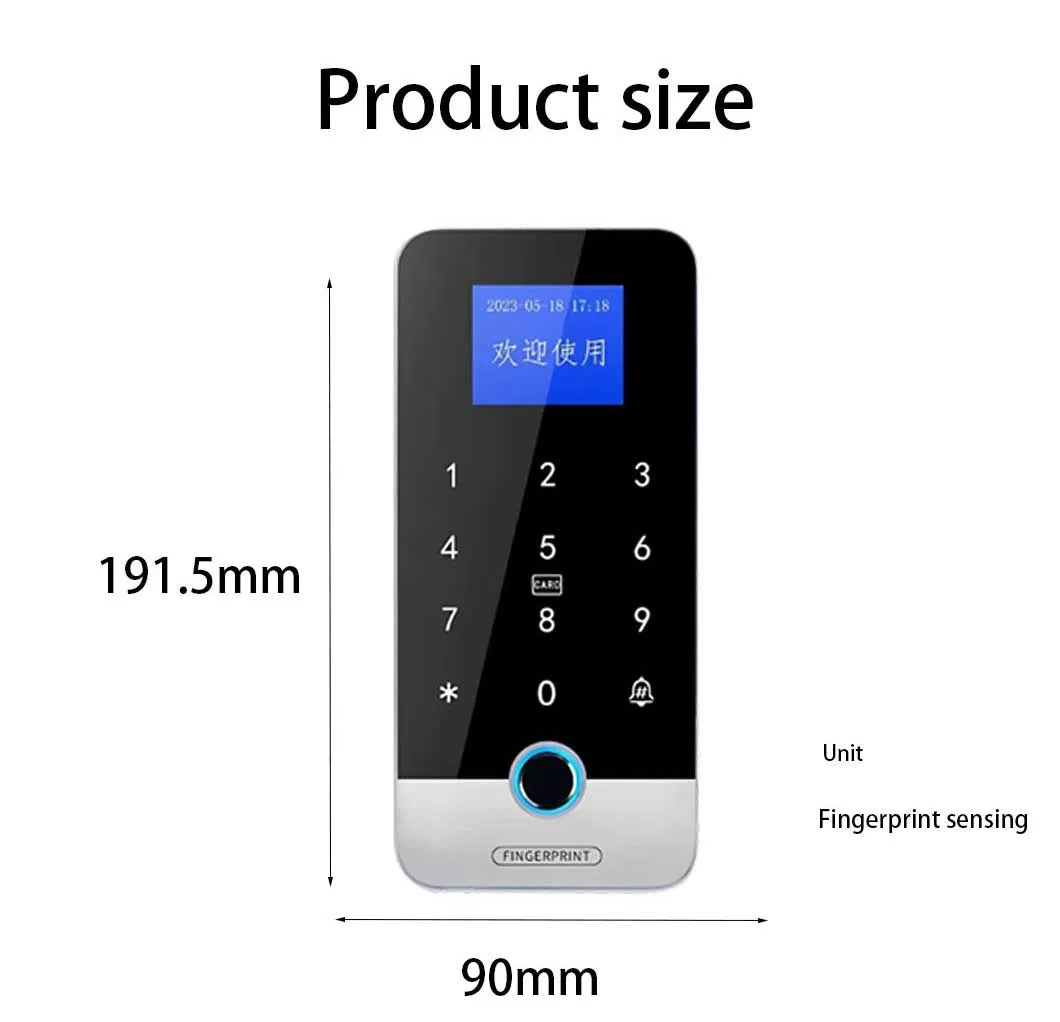

Specification
191mm*90mm

Packaging & Logistics

Package Size
19.00cm * 9.00cm * 5.00cm
Gross Weight
0.150kg
Lead Time
3 days (1 - 1 Sets)
Capacity
5000 sets / Month

Product Description

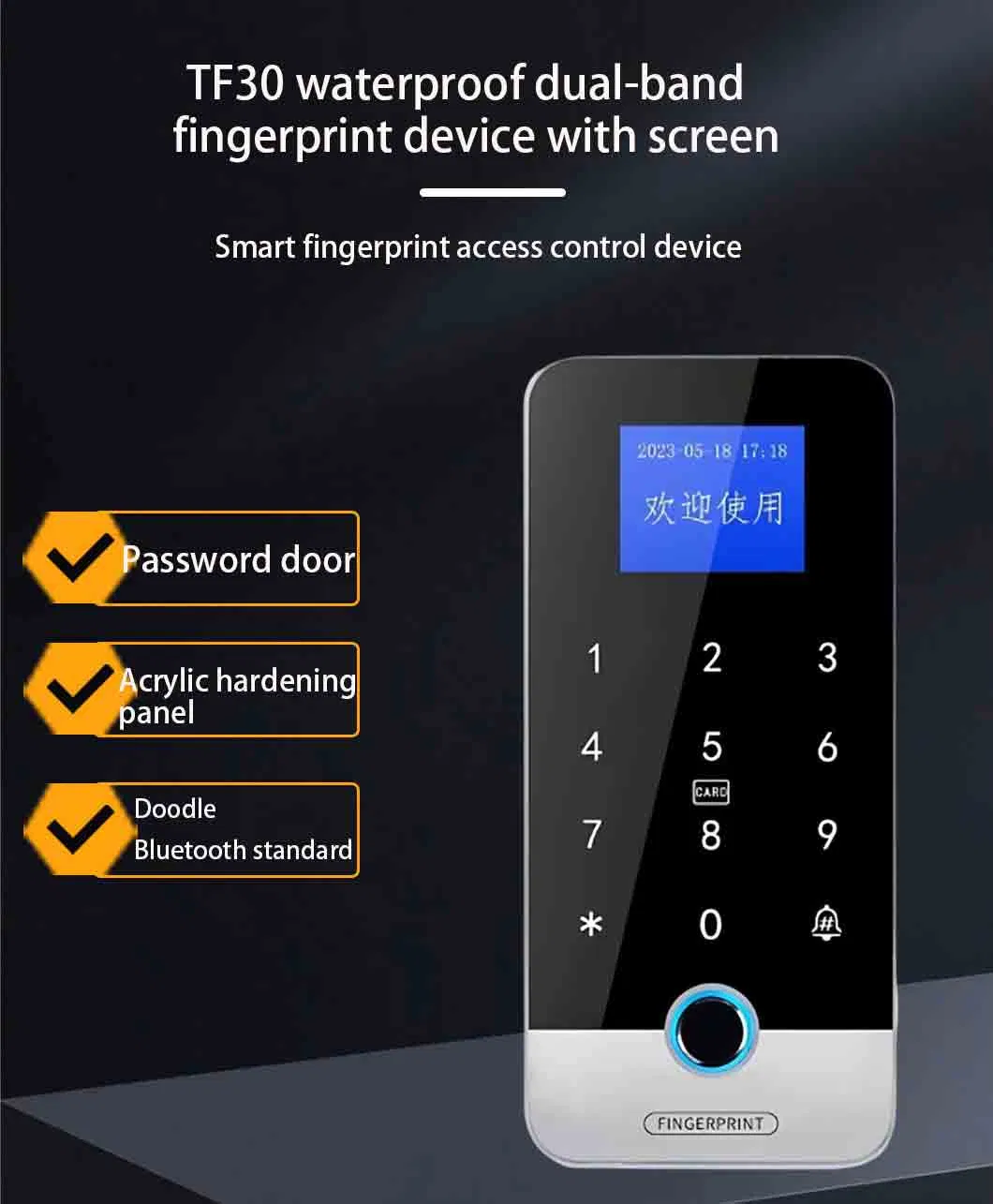

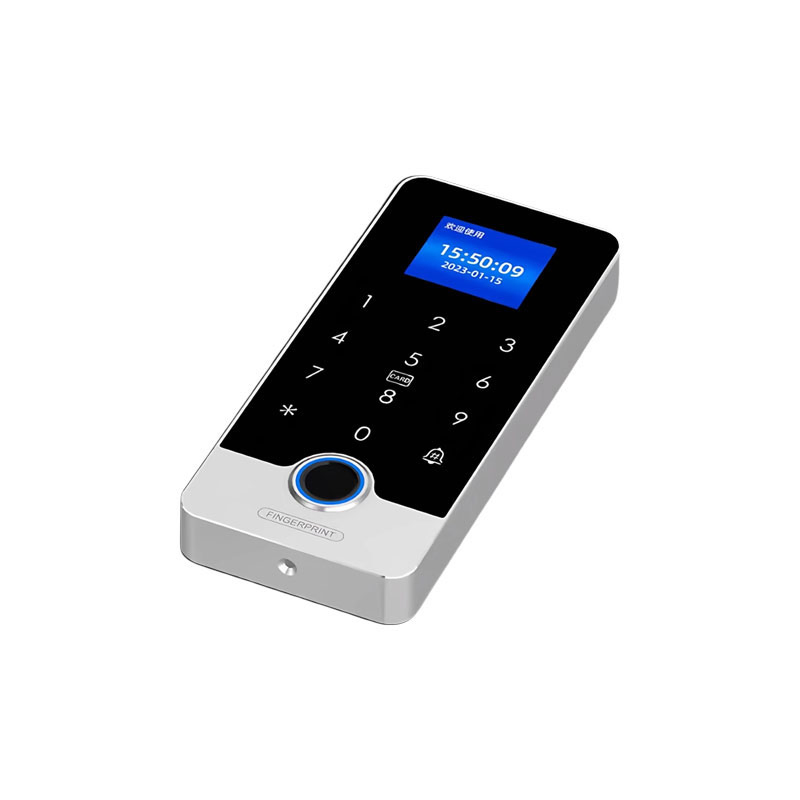

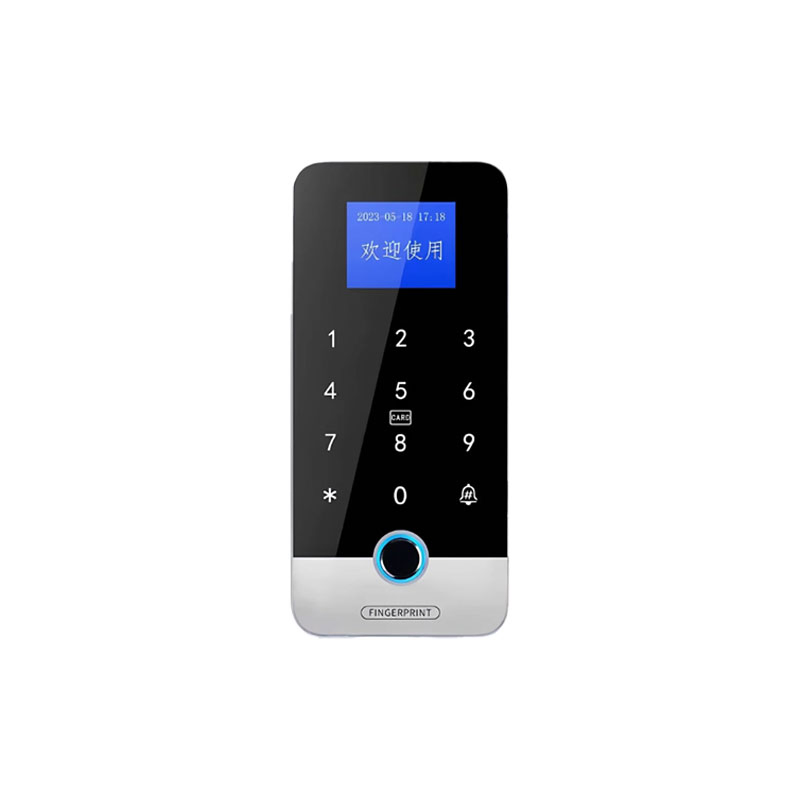

TF30 Access control waterproof dual-band fingerprint device with screen

The Smart Fingerprint Access Control Device features a high-performance real-time control operating system and a durable acrylic hardened panel. Designed for versatility and security, it supports multiple identification methods including live fingerprints, IC cards, and passwords.

  • 🔹 User Capacity: Fingerprints: 300, IC Cards: 1000, Passwords: 1000
  • 🔹 Power Supply: DC12V 1-2A (Standby 80mA / Operating 500mA)
  • 🔹 Communication: Tuya Bluetooth Standard
  • 🔹 Language Support: English, Spanish, French, German, Italian, Japanese, and more.
  • 🔹 Operating Temperature: -20°C to 50°C
Access Control System 1

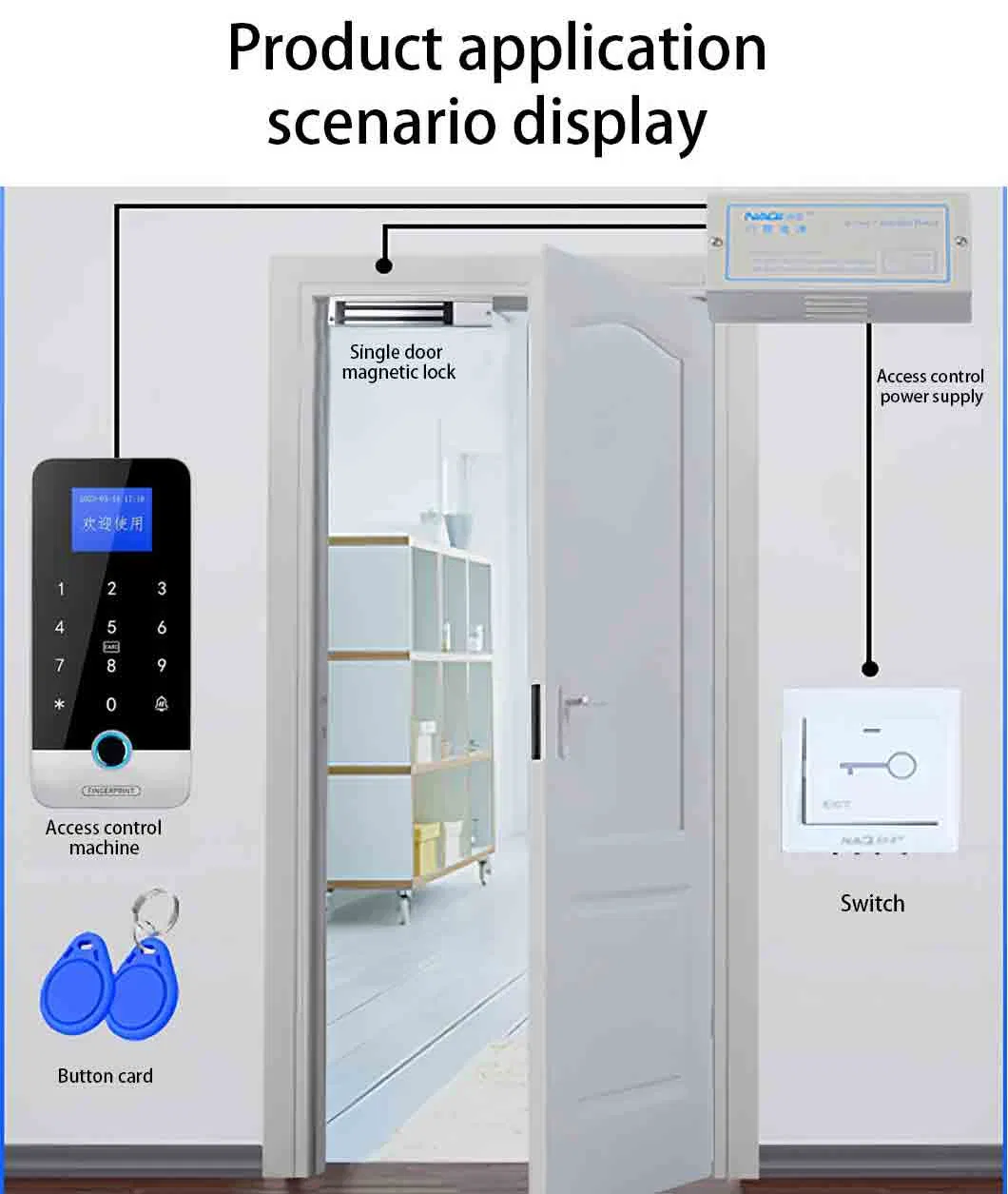

Access Control System 2
Access Control System 3
Access Control System 4

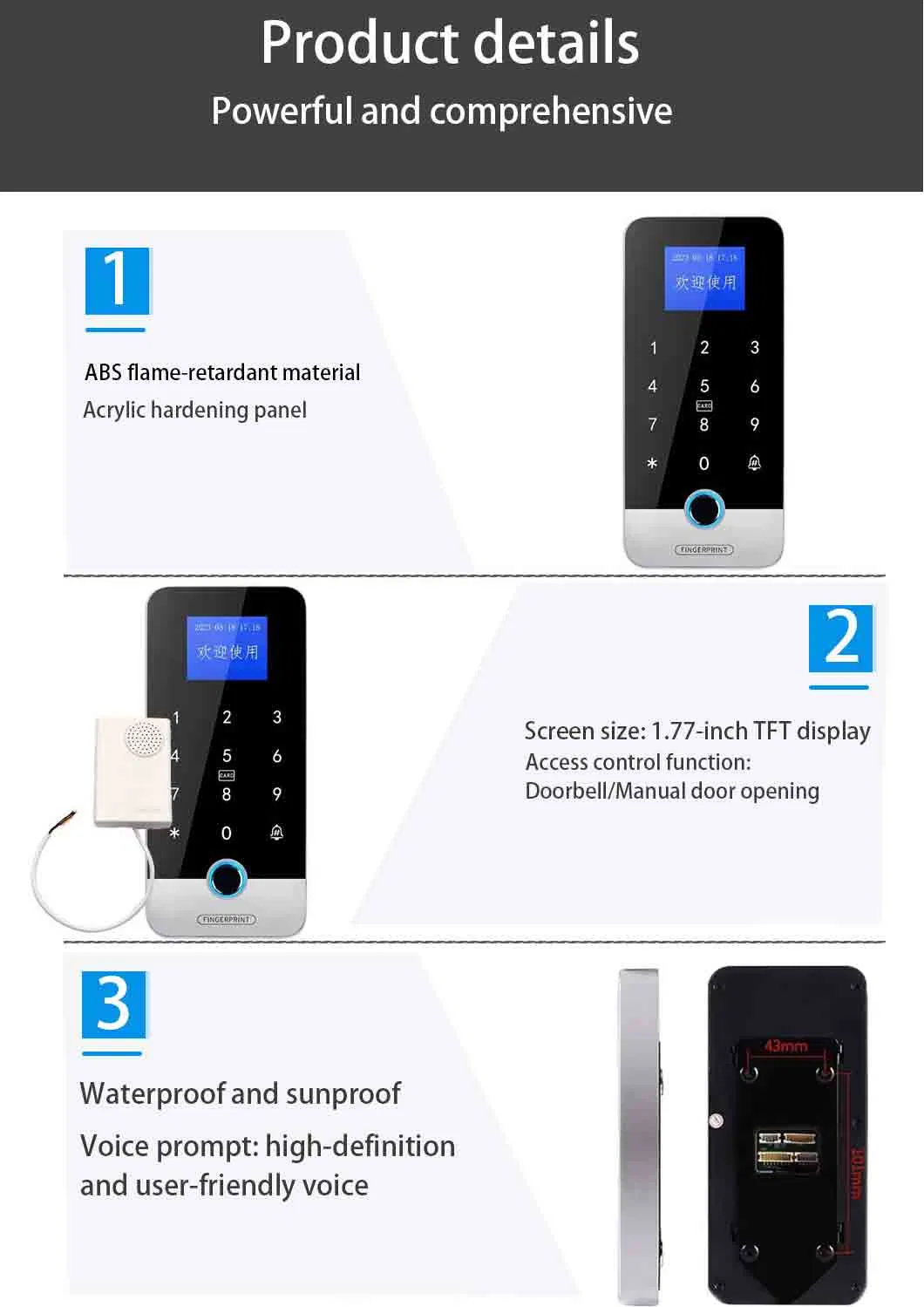

Access Control System 5

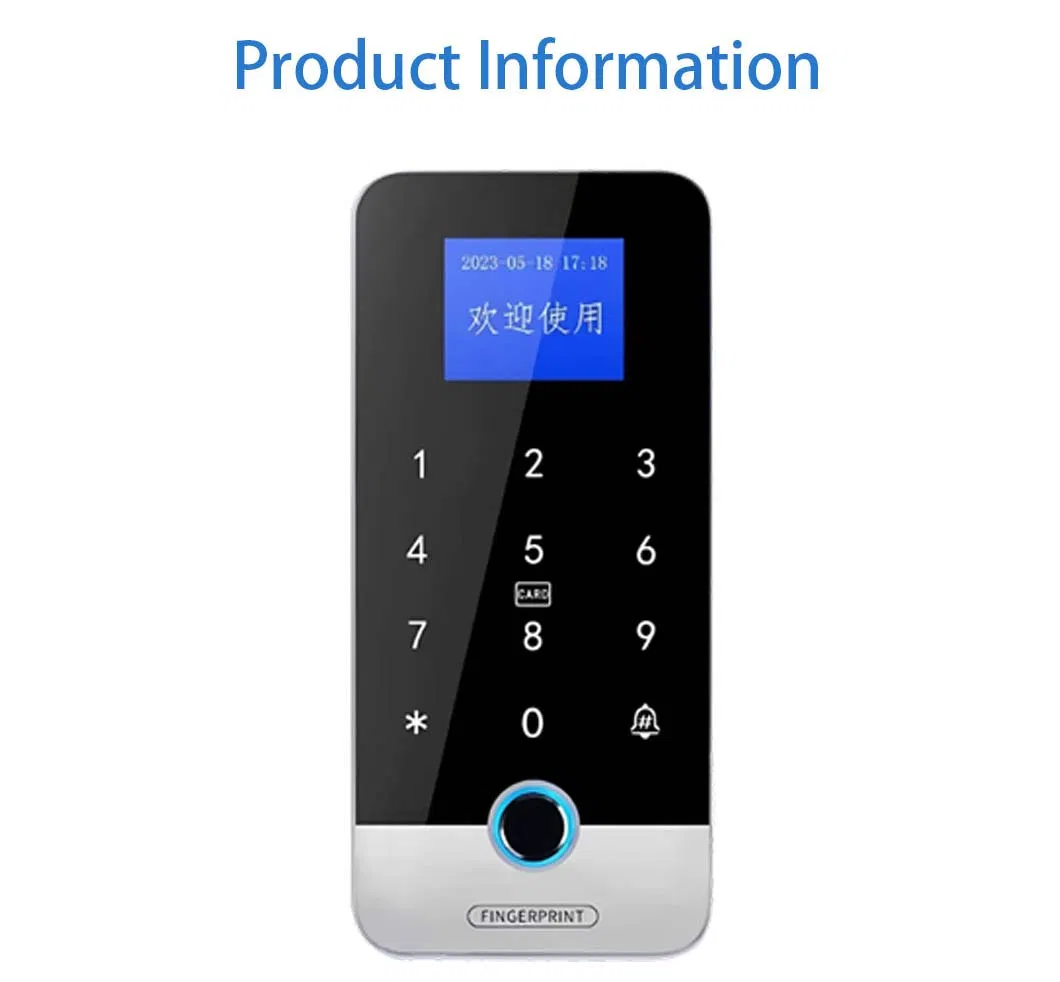

Access Control System 6

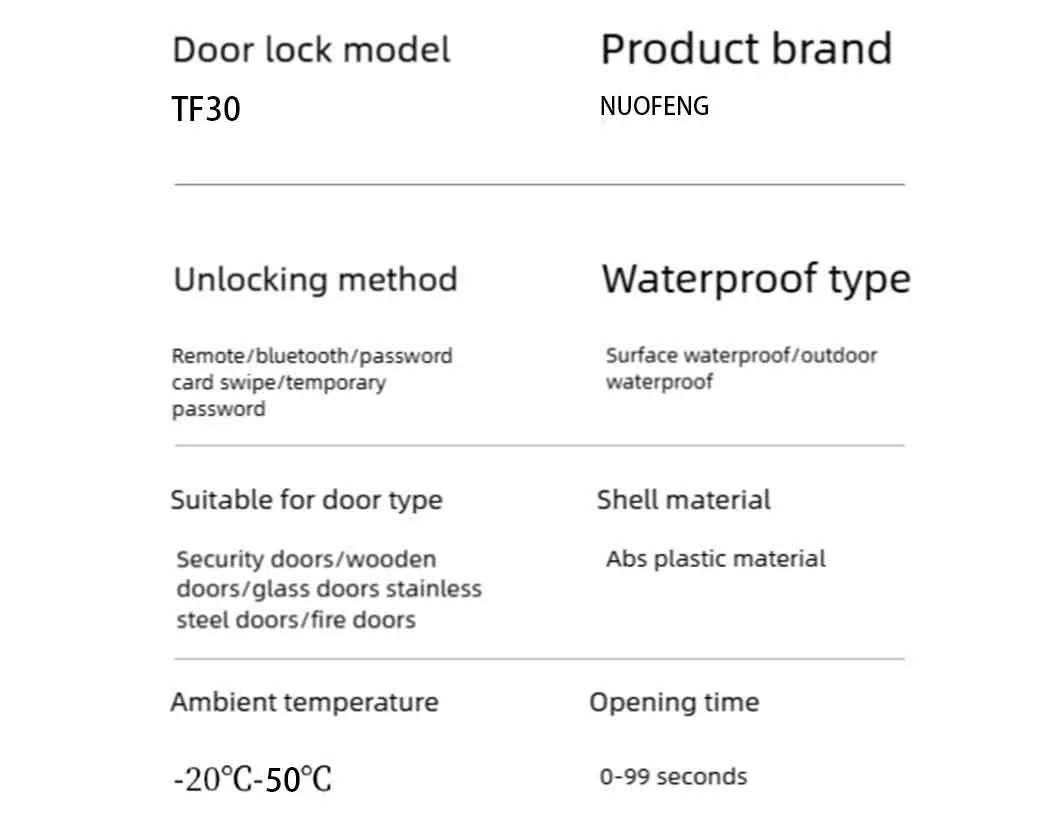

Access Control System 7
Access Control System 8

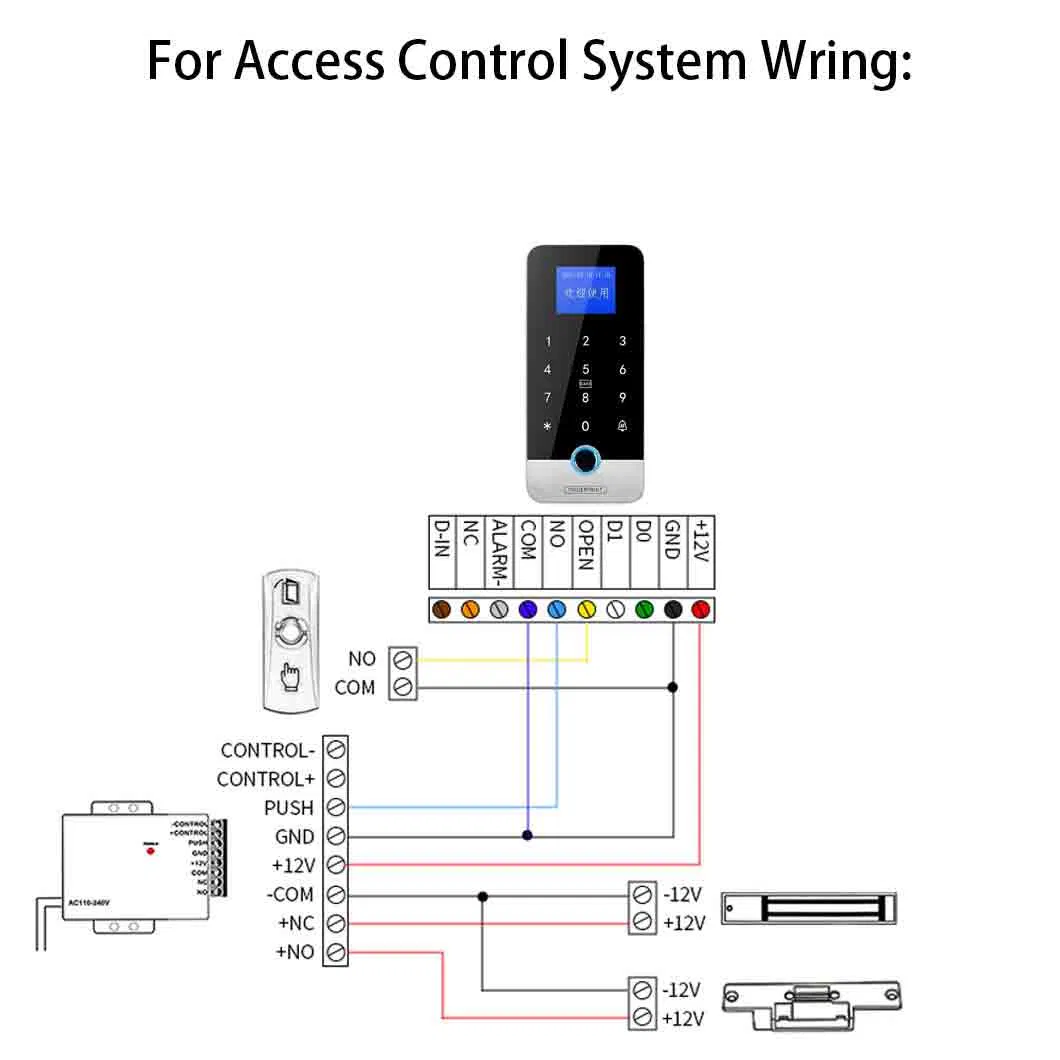

Access Control System 9

Frequently Asked Questions

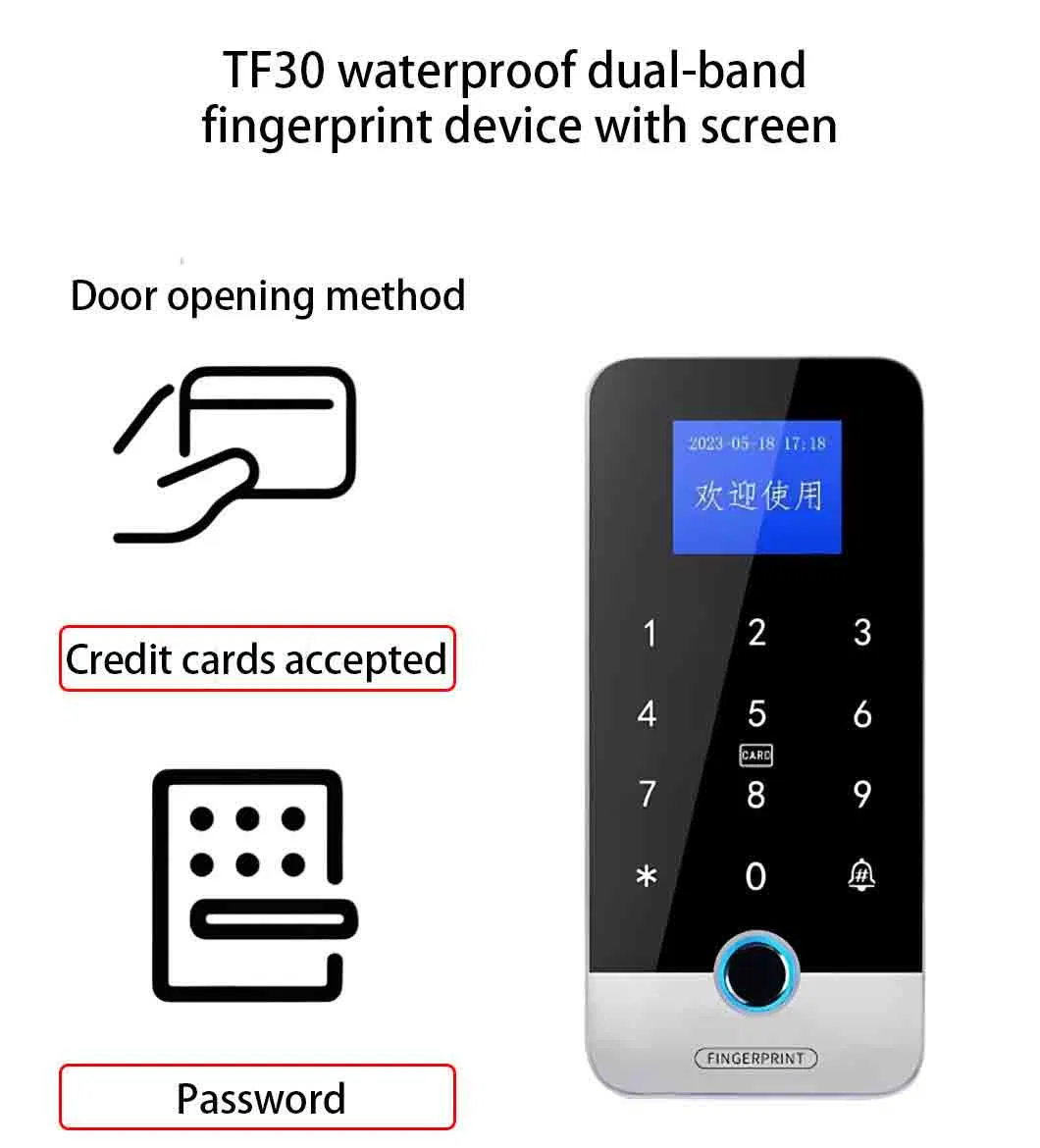

What identification methods does the NF-TF30 support?
The device supports three main identification methods: Live Fingerprint recognition, IC Card access, and Password entry.
Is this access control device suitable for outdoor environments?
Yes, the NF-TF30 is designed to operate in temperatures ranging from -20°C to 50°C and features a waterproof design suitable for various environments.
How many users can the system manage?
The system has a large capacity, supporting up to 300 fingerprints, 1000 IC cards, and 1000 individual passwords.
Does it support smartphone connectivity?
Yes, it uses Tuya Bluetooth as a standard communication method for easier management and integration.
What kind of display screen does it have?
It is equipped with a 1.77-inch TFT display screen that provides clear visual feedback and supports multiple languages.
What are the power requirements for installation?
The device requires a DC12V power supply with a current of 1-2A. The standby current is 80mA, while the operating current is 500mA.
