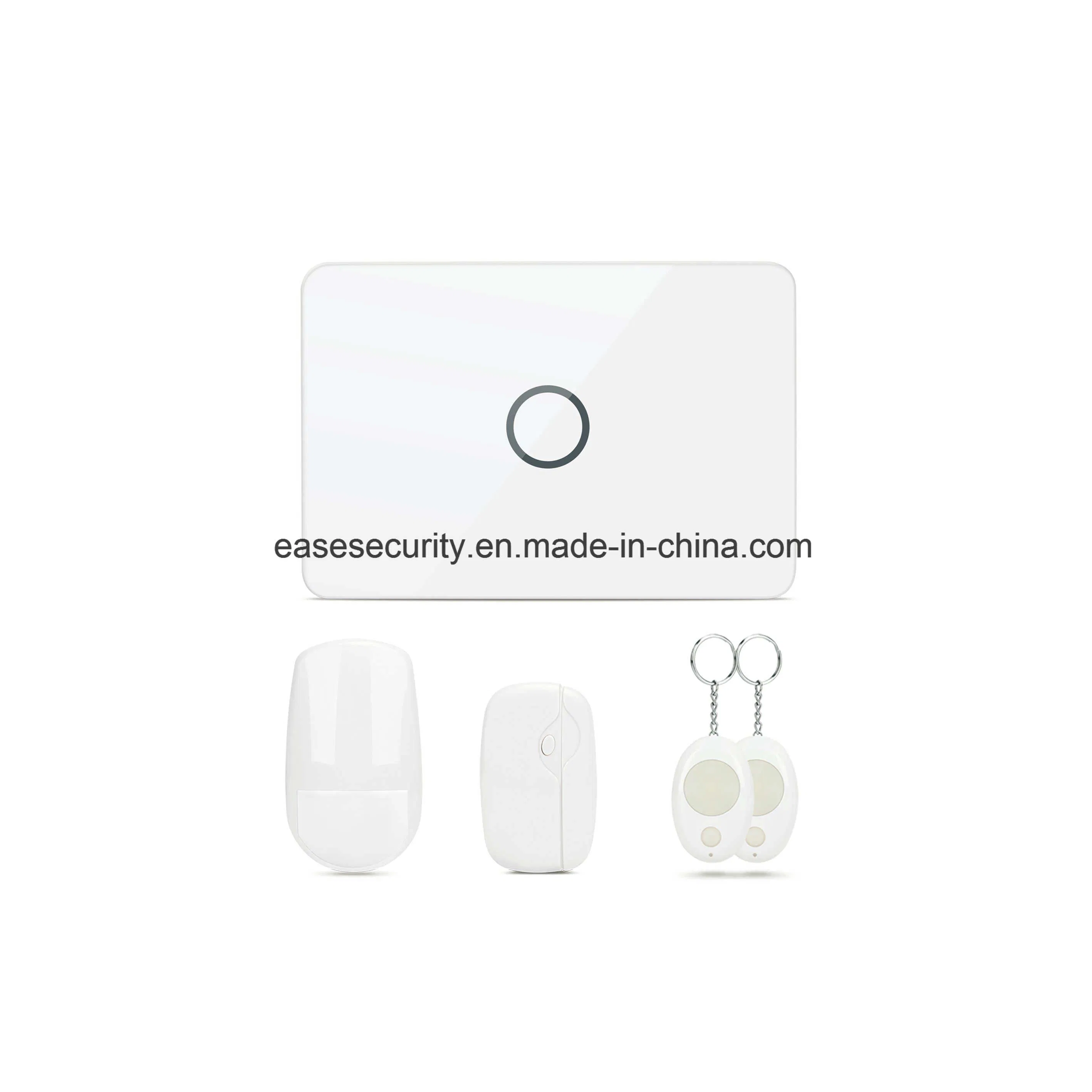

Smart Home Security Alarm System with 3G GSM & WiFi (ES-G3)
Smart Home Security Alarm System with 3G GSM & WiFi (ES-G3)
Smart Home Security Alarm System with 3G GSM & WiFi (ES-G3)
Smart Home Security Alarm System with 3G GSM & WiFi (ES-G3)
Smart Home Security Alarm System with 3G GSM & WiFi (ES-G3)
1 / 5
Smart Home Security Alarm System with 3G GSM & WiFi (ES-G3)
Smart Home Security Alarm System with 3G GSM & WiFi (ES-G3)
Smart Home Security Alarm System with 3G GSM & WiFi (ES-G3)
Smart Home Security Alarm System with 3G GSM & WiFi (ES-G3)
Smart Home Security Alarm System with 3G GSM & WiFi (ES-G3)

Smart Home Security Alarm System with 3G GSM & WiFi (ES-G3)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
ES-G3
Working Mode
Passive
Application
Indoor
Working Principle
GSM + WiFi Network
Transmission Mode
Wired & Wireless
Alarm Volume
≥110dB
Frequency
868MHz (433MHz Optional)
Languages
English, Russian, Spanish, Chinese
Battery Standby
>7 Hours
GSM Bands
850/900/1800/1900MHz
Production Capacity
500,000 Sets/Month
Certification
CE, RoHS, FCC, ISO, etc.
🛡️

Product Overview

The ES-G3 is a Smart Home Security Alarm System utilizing dual 3G GSM & WIFI networking. Operating on the 868MHZ frequency for minimal interference, it provides a comprehensive security shield with 100 wireless defense zones and smart home automation capabilities.

✓Dual Network: Works via WiFi; automatically switches to GSM/3G if WiFi is unavailable.
✓App Control: Full Android & iOS compatibility for easy remote management.
✓Home Automation: Controls up to 100 smart sockets/relays for appliances like lights and AC.
✓IP Camera Integration: Monitor your home directly through the alarm host app.
✓Voice Messaging: Support for 20-second remote message recording via App.
✓Smart Status: Self-checks windows/doors status when arming the system.
⚙️

Technical Parameters

Power SupplyAC 100 ~ 230V 50Hz/60Hz (Output: DC12V 1A)
Static Current< 70mA (Non-charging state)
Alarm Current< 200mA
Backup Battery3.7V 800mAh (7 hours standby)
WiFi Power1W
Wireless Distance> 100m (Open space)
Working ConditionTemp: -10ºC ~ 50ºC, Humidity: 5% ~ 80%
📷

Product Visuals

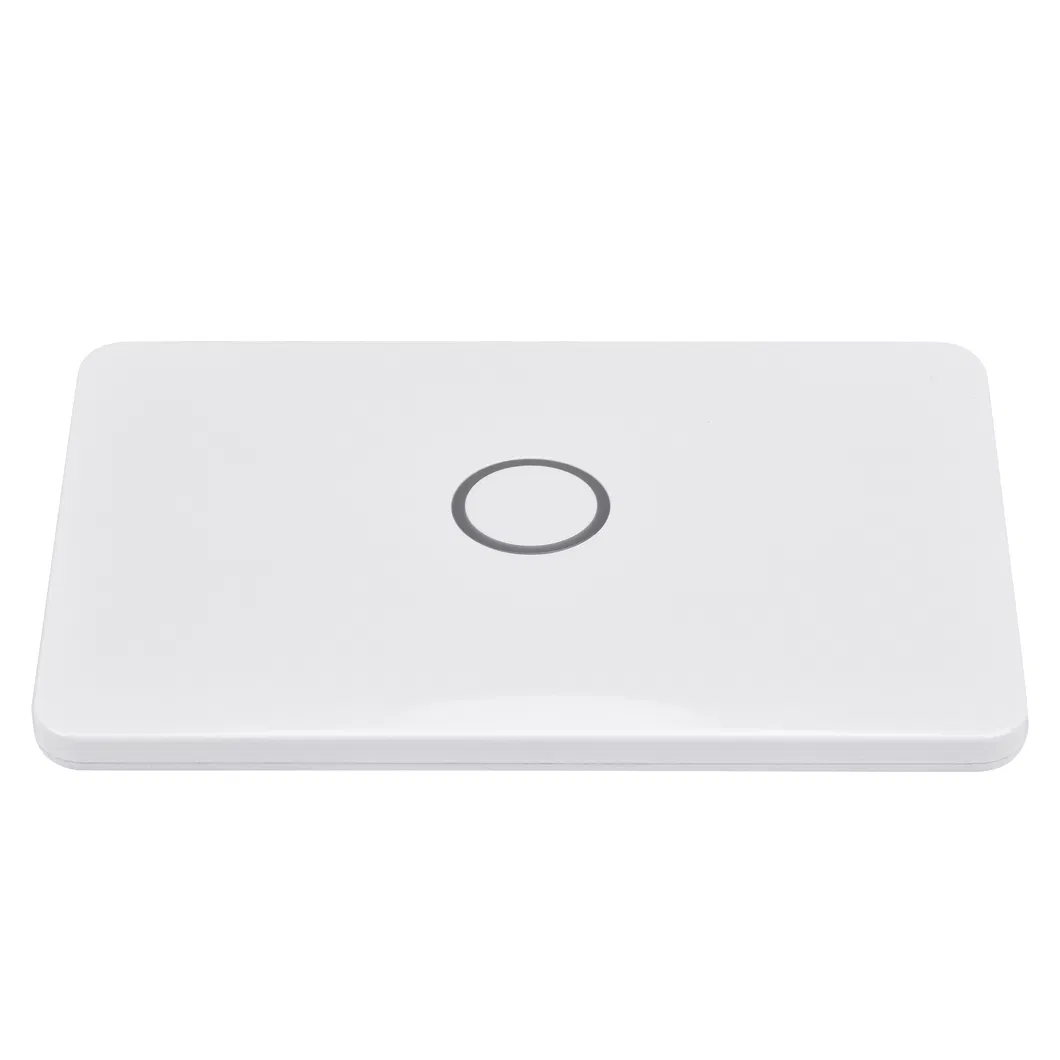

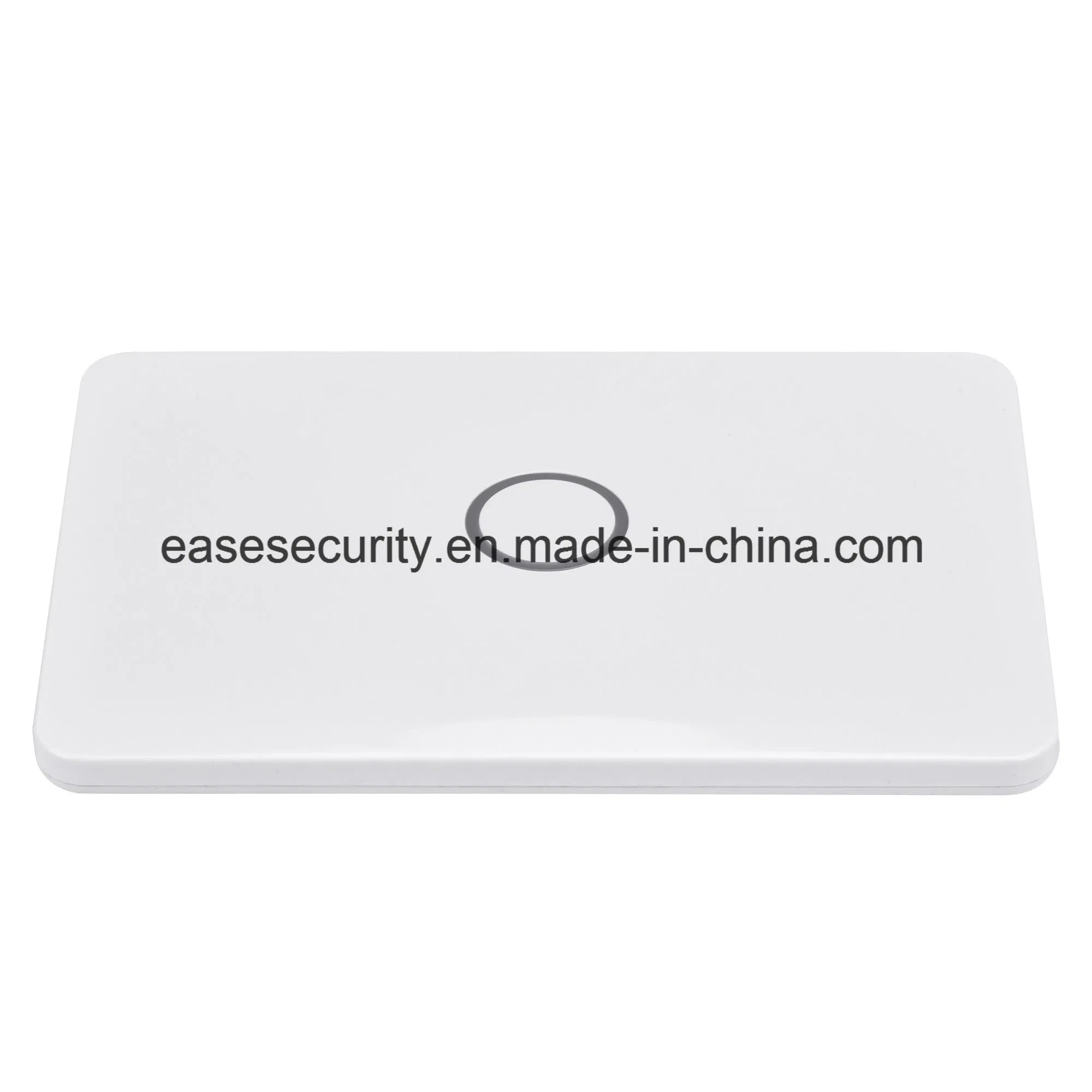

Panel Face

Alarm Panel Front View

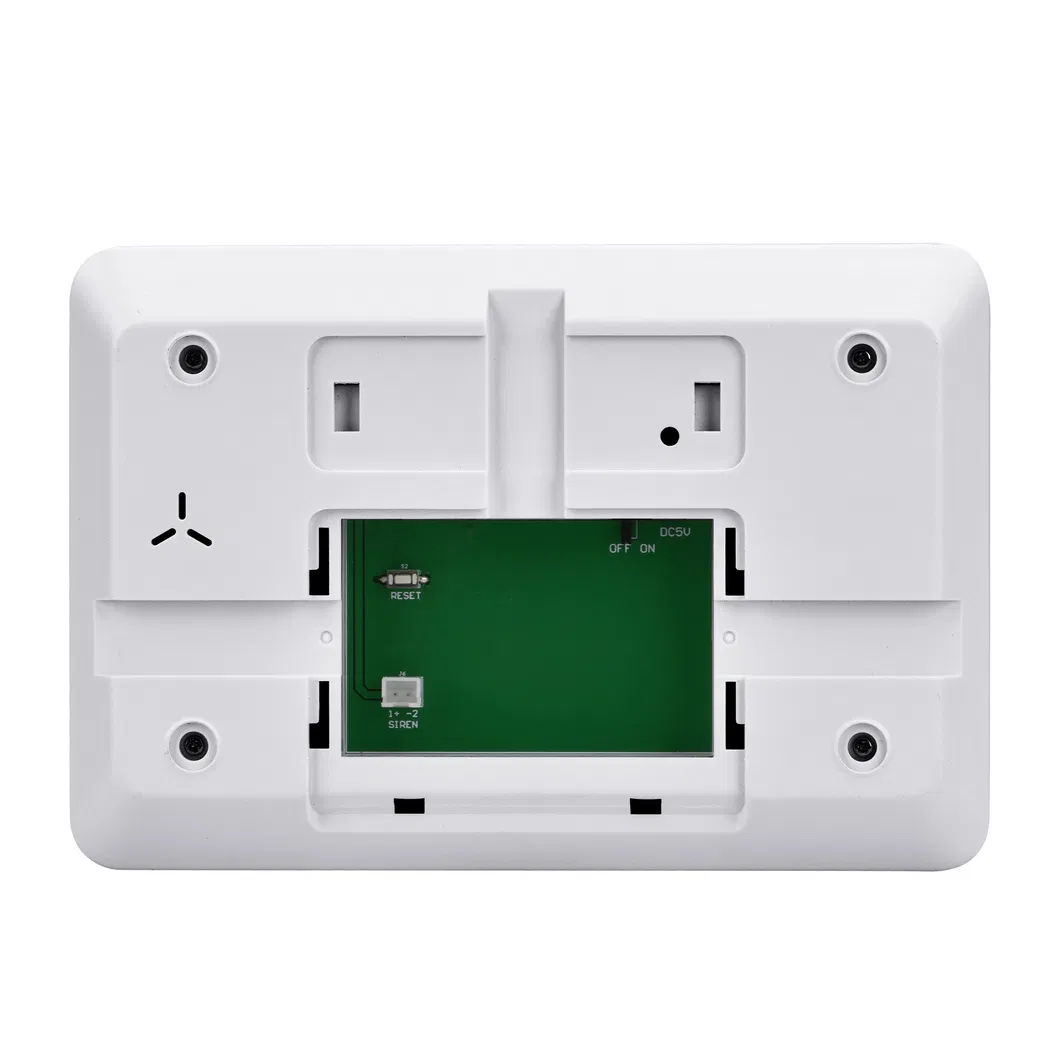

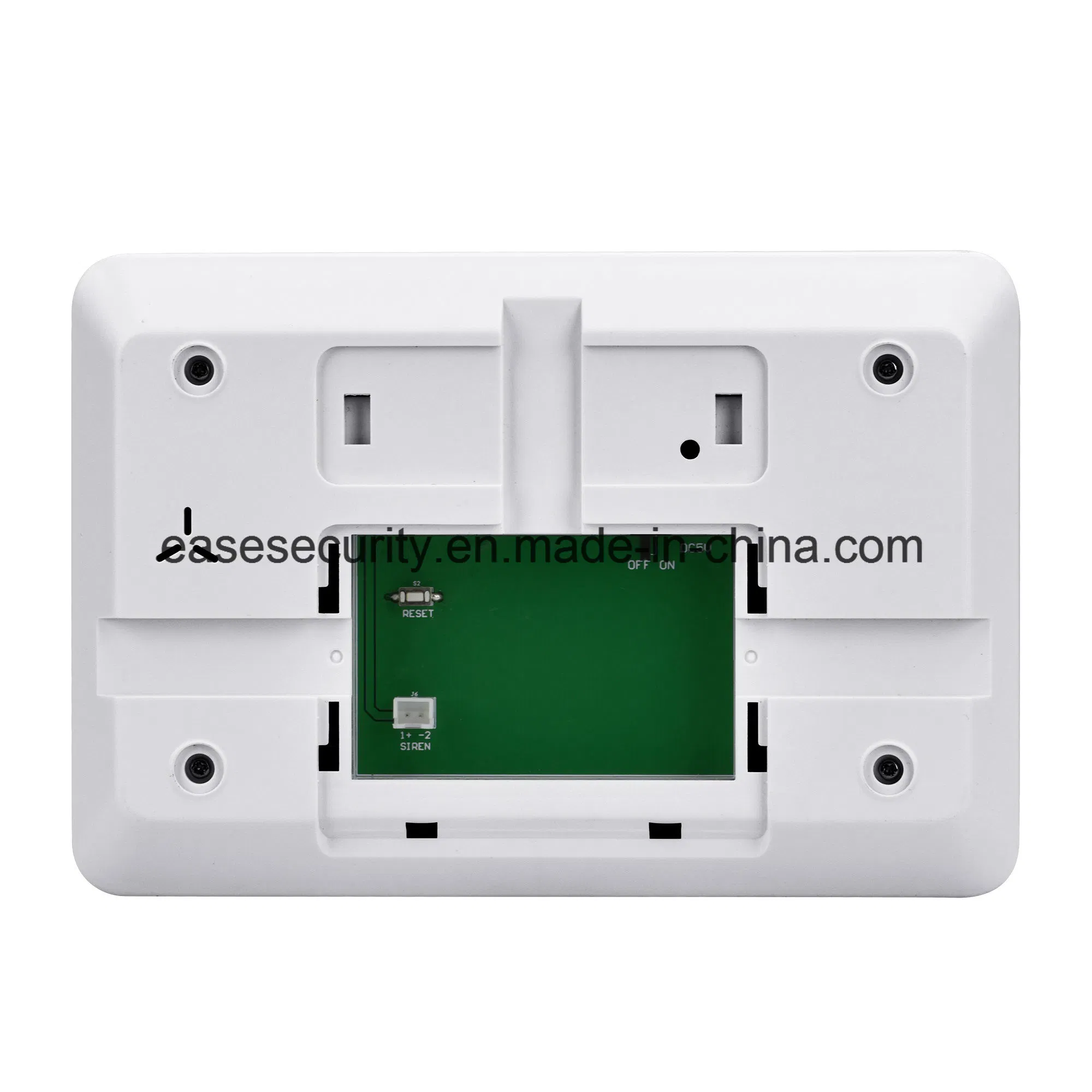

Panel Back

Alarm Panel Rear Interface

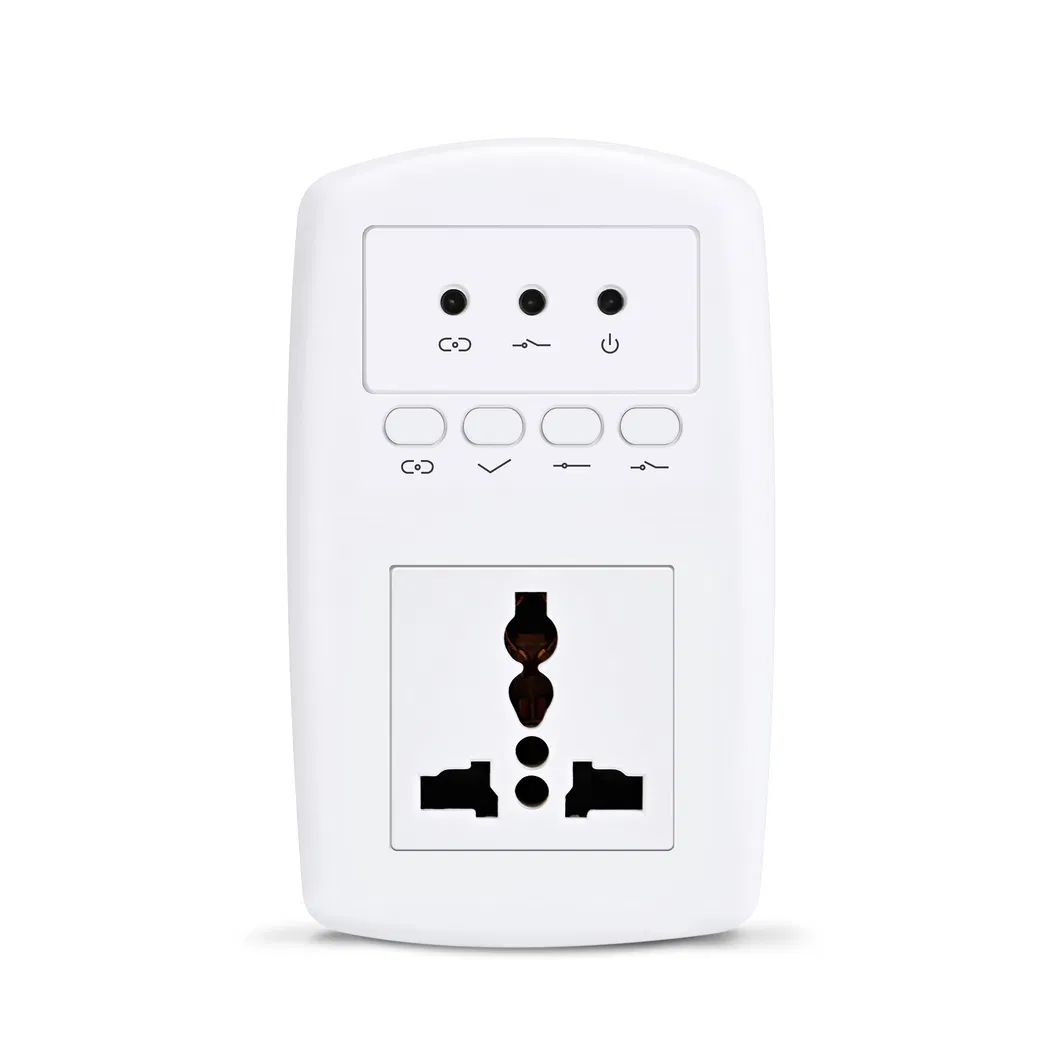

Smart Socket

Smart Socket Accessory

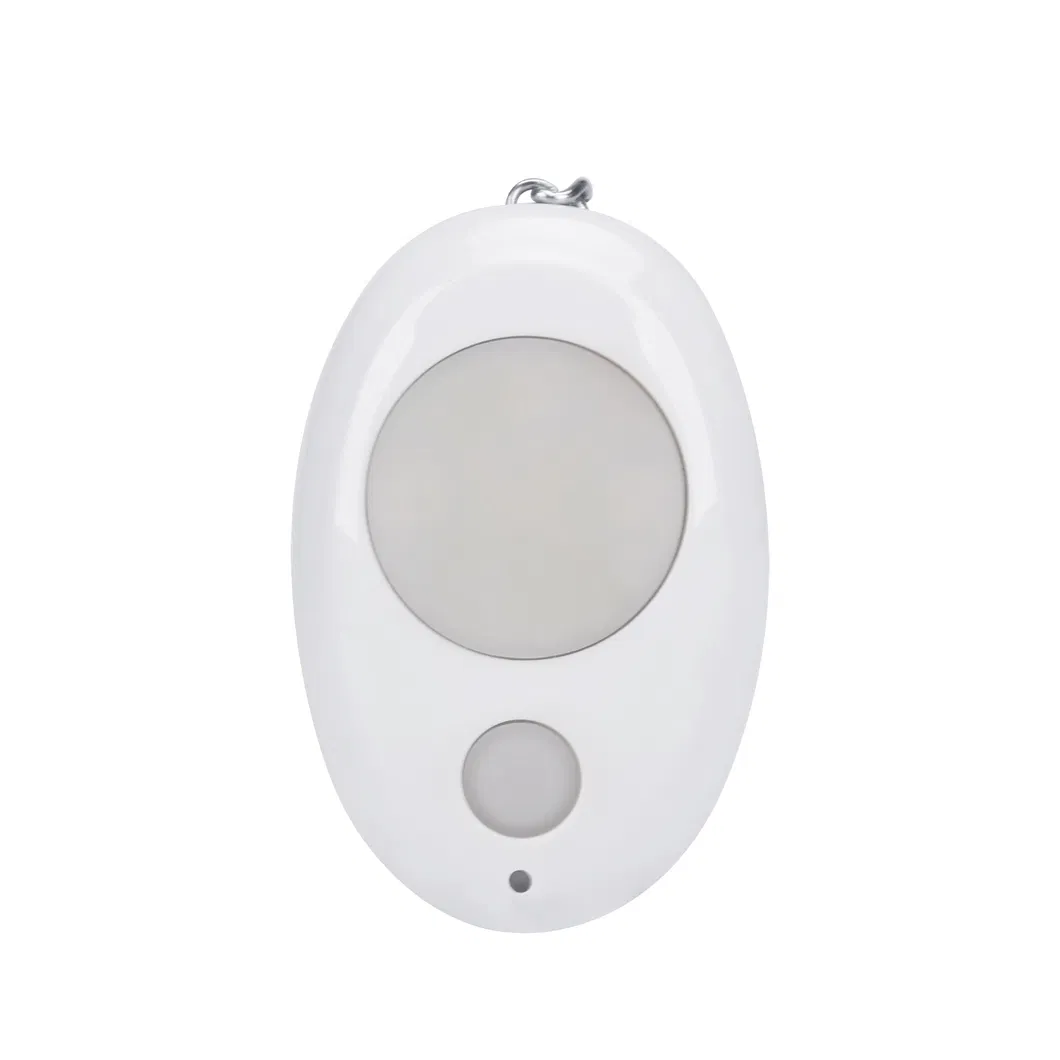

Remote Control

Wireless Remote Control

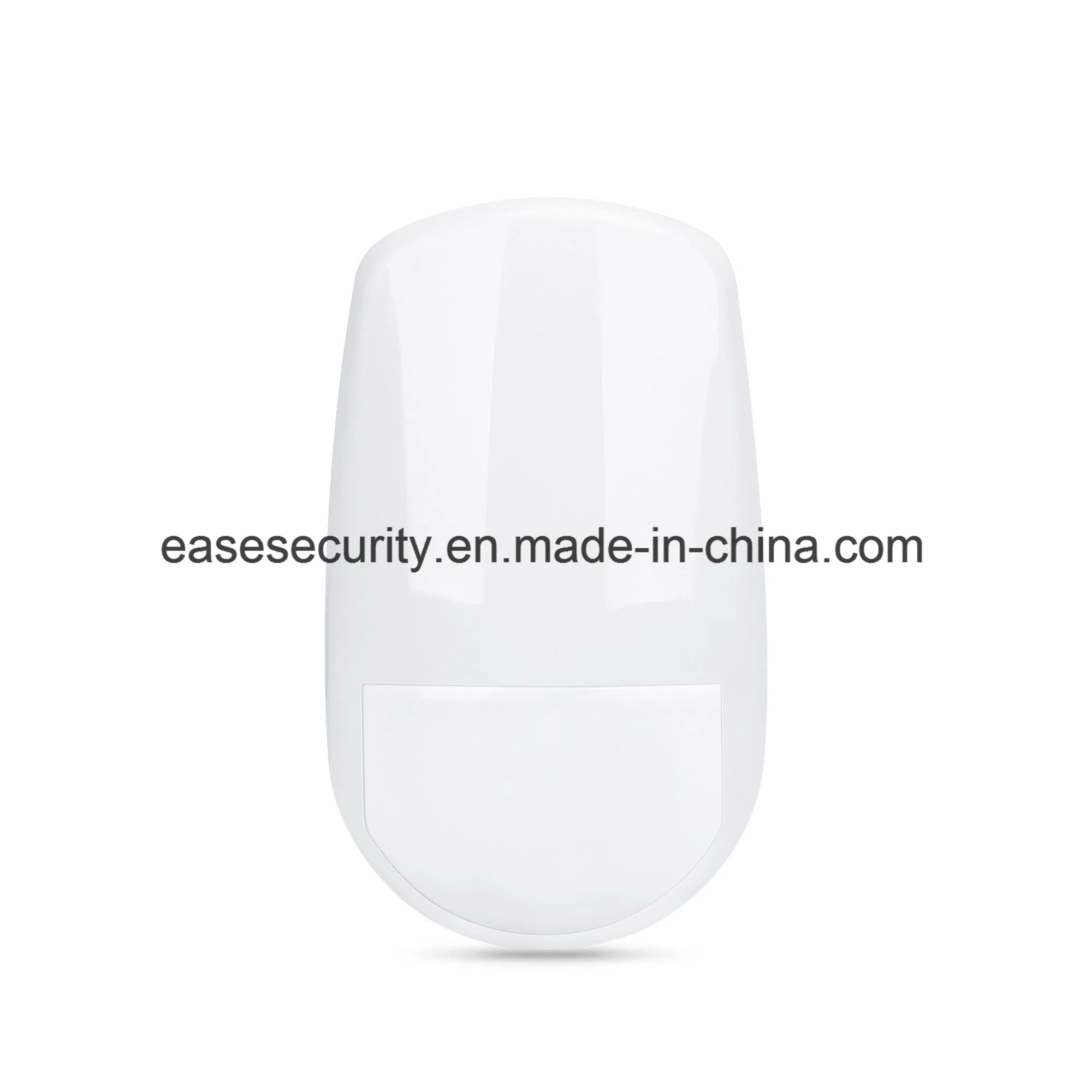

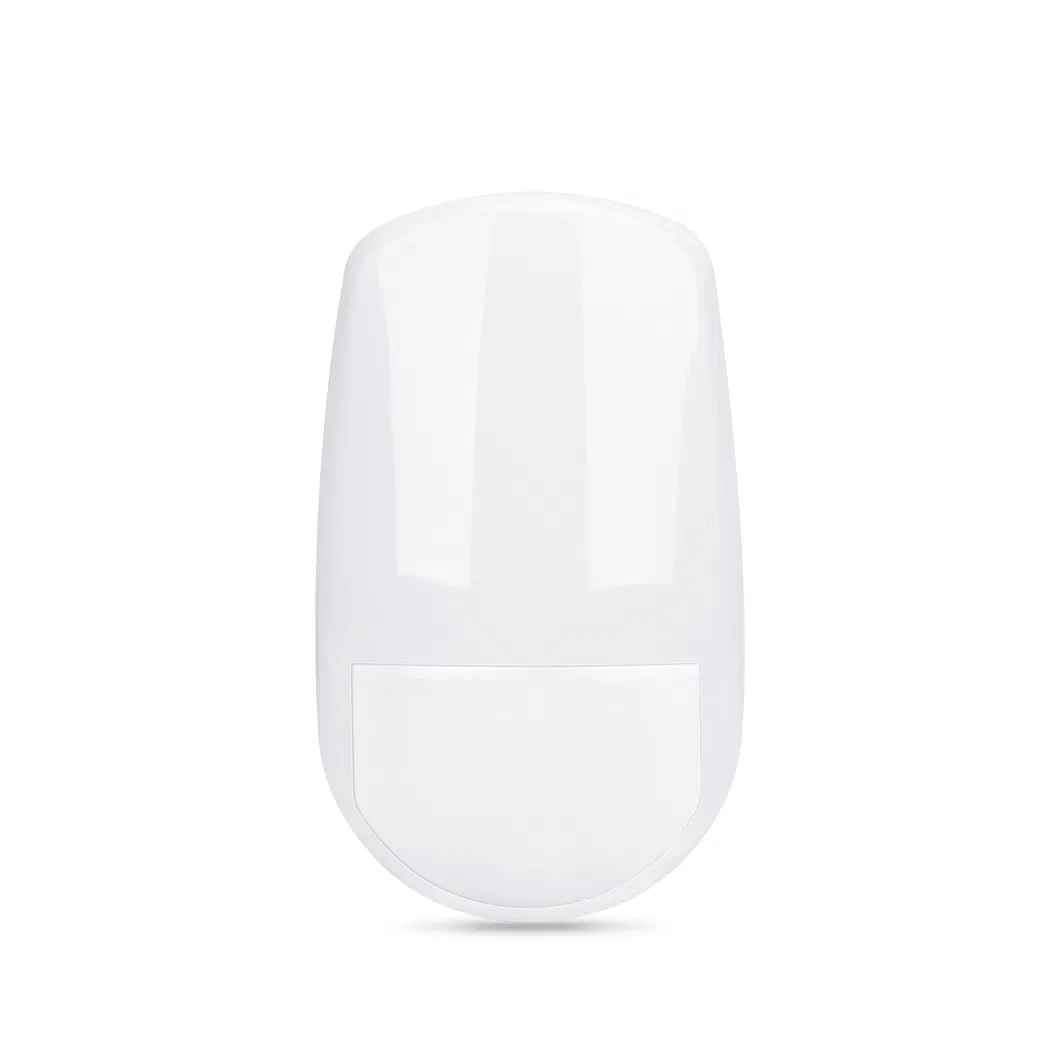

PIR Detector

PIR Motion Detector

❓

Frequently Asked Questions

How does the dual-network system work?
The system primarily uses WiFi for alerts and app control. If the WiFi network fails, it automatically switches to the 3G GSM network to send SMS and phone call alerts.
Can I control home appliances with this system?
Yes, it supports up to 100 smart sockets or wireless relay outputs, allowing you to control devices like air conditioners and lights remotely via the App.
What happens during a power outage?
The system includes a built-in 3.7V 800mAh rechargeable backup battery that provides over 7 hours of standby time and sends a notification when AC power is lost.
How many sensors can be connected?
The ES-G3 supports up to 100 wireless defense zones, allowing you to connect a wide variety of sensors including PIR, door/window, and smoke detectors.
Is the app available for both Android and iOS?
Yes, the system is fully compatible with both Android and iOS applications for easy authorization and remote monitoring.
Does it support two-way communication?
Yes, the host supports monitoring and a two-way intercom function, allowing you to communicate through the panel.
