Fail-Secure Sturdiness Door Smart Hotel Euro Security Cylinder Lock System with Emergency Key
Fail-Secure Sturdiness Door Smart Hotel Euro Security Cylinder Lock System with Emergency Key
Fail-Secure Sturdiness Door Smart Hotel Euro Security Cylinder Lock System with Emergency Key
Fail-Secure Sturdiness Door Smart Hotel Euro Security Cylinder Lock System with Emergency Key
Fail-Secure Sturdiness Door Smart Hotel Euro Security Cylinder Lock System with Emergency Key
1 / 5
Fail-Secure Sturdiness Door Smart Hotel Euro Security Cylinder Lock System with Emergency Key
Fail-Secure Sturdiness Door Smart Hotel Euro Security Cylinder Lock System with Emergency Key
Fail-Secure Sturdiness Door Smart Hotel Euro Security Cylinder Lock System with Emergency Key
Fail-Secure Sturdiness Door Smart Hotel Euro Security Cylinder Lock System with Emergency Key
Fail-Secure Sturdiness Door Smart Hotel Euro Security Cylinder Lock System with Emergency Key

Fail-Secure Sturdiness Door Smart Hotel Euro Security Cylinder Lock System with Emergency Key

Customization: Available
Material: Aluminum Alloy
Type: Electronic
Send Inquiry

Product Description

Fail-Secure Sturdiness Door Smart Hotel Euro Security Cylinder Lock System with Emergency Key
Basic Information
Model NO.:
NI-400T Euro Security Cylinder Lock
Style:
Modern
Shape:
Cuboid
Anti-theft Standard:
A
Part:
Lock
Backset:
No Size Limit
Door Thickness:
Unlimited
Cylinder Length:
16mm
Usage:
Household, Channel, Gate, Garage, Wooden Doors
HS Code:
123456
Specification:
260L*30W*48H(mm)
Production Capacity:
50000
Overview

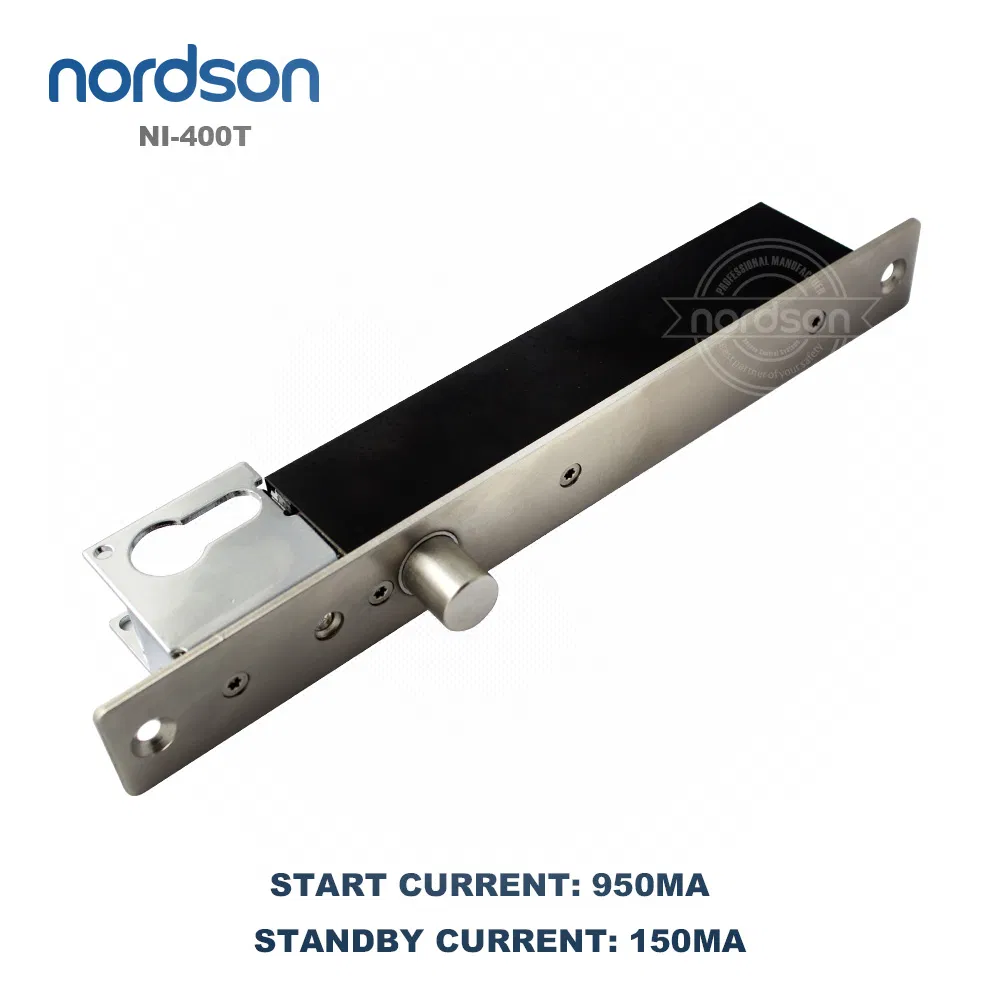

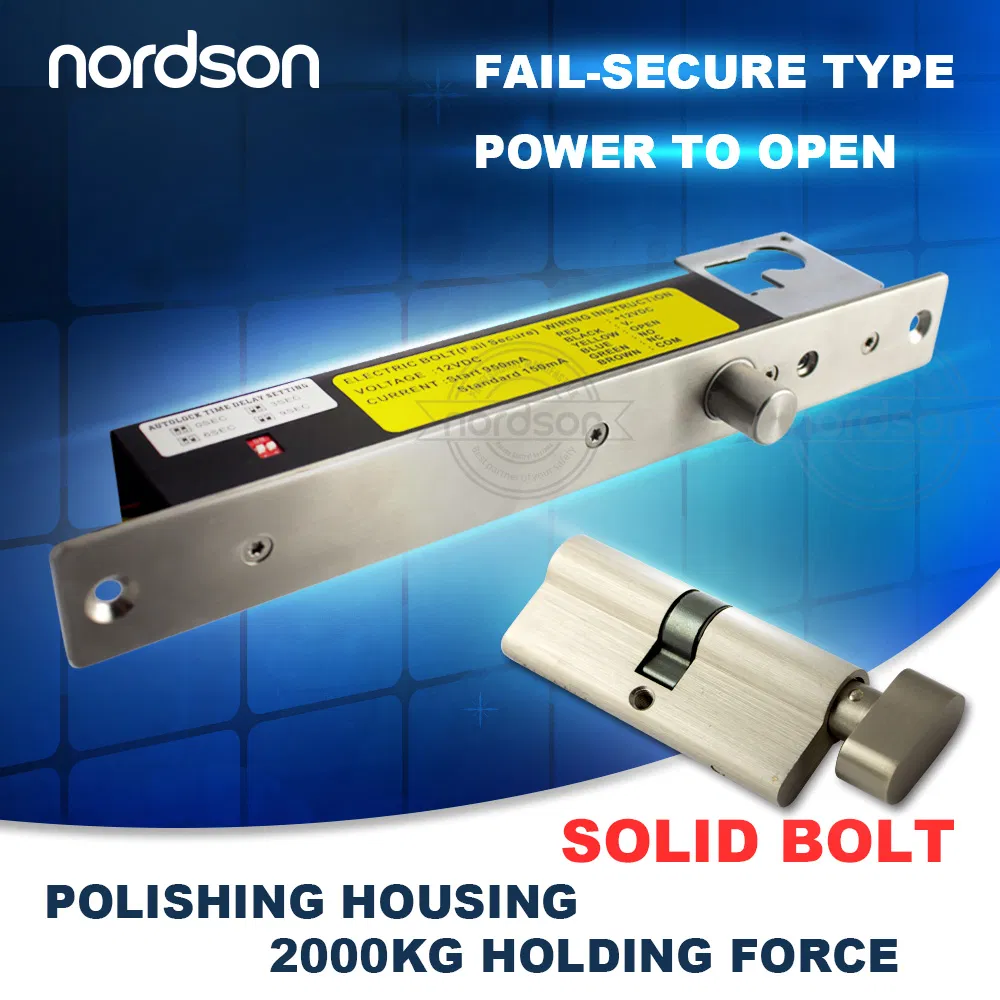

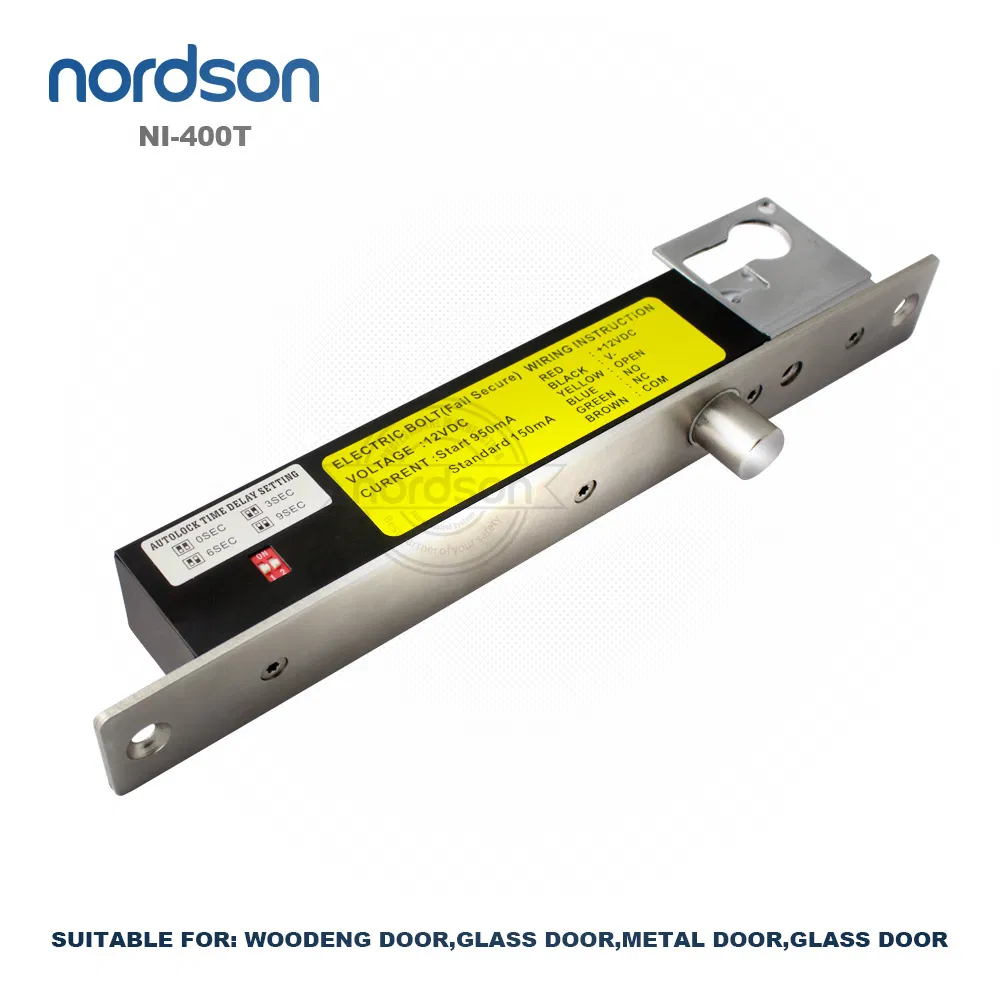

The NI-400T is a Fail Secure Sturdiness Electric bolt equipped with a Mechanical lock cylinder. Designed for high security, this system is suitable for framed glass doors, wooden doors, metal doors, and fire doors. The lock body is constructed from 304 high-hardness, corrosion-resistant stainless steel, capable of withstanding 4500 pounds of linear positive impact. It features a unique emergency mechanical lock for critical situations and utilizes photoelectric control for ultra-low temperature operation and energy efficiency.

Key Features
Narrow panel design specifically for narrow door frames.
Full solid stainless steel lock and body for maximum durability.
Ultra-low temperature design for safe and reliable performance.
Advanced photoelectric technology to reduce mechanical failure.
Intelligent single-chip configuration with built-in reverse current protection (MOV).
LED status indicator on the front panel and adjustable time delay (0/3/6/9 sec).
Technical Specifications
VersionFail locked (Locked when current is off)
Dead Bolt Diameterø16mm (Full solid stainless steel)

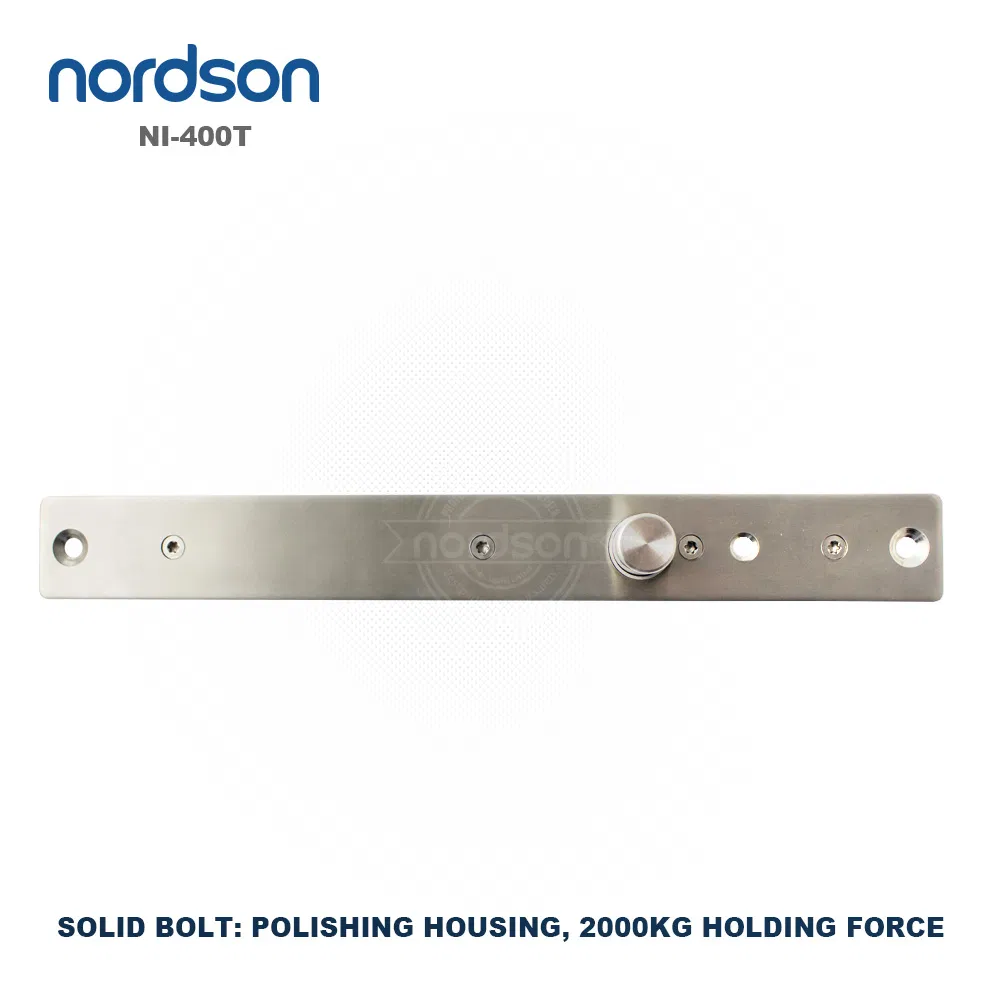

Shear Strength4000Lbs / 2000kg
Door Status SensorsDry contact NO, NC, COM
Relock Delay Timer0, 3, 6, 9 seconds adjustable
Operating VoltageDC 12V or 24V (Customizable)
Start / Standby Current1200mA / 2000mA
Face Plate MaterialHigh Aluminum
Ambient Temperature-10°C to +55°C
Suitable DoorsWooden, Aluminum, Glass, Fireproof, Metal
Dimensions260L x 30W x 48H (mm)
CertificationsCE, ROHS, MA
Product Presentation

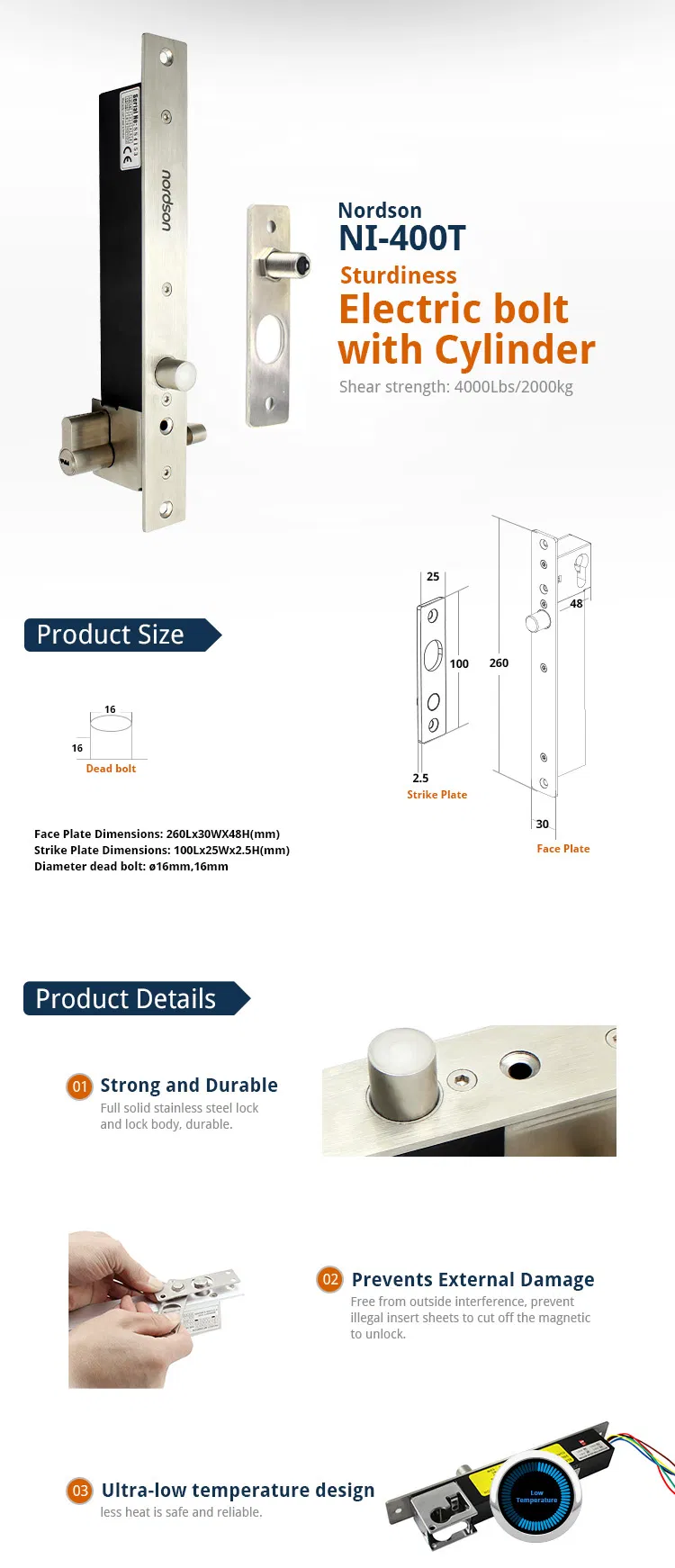

Security Lock Diagram

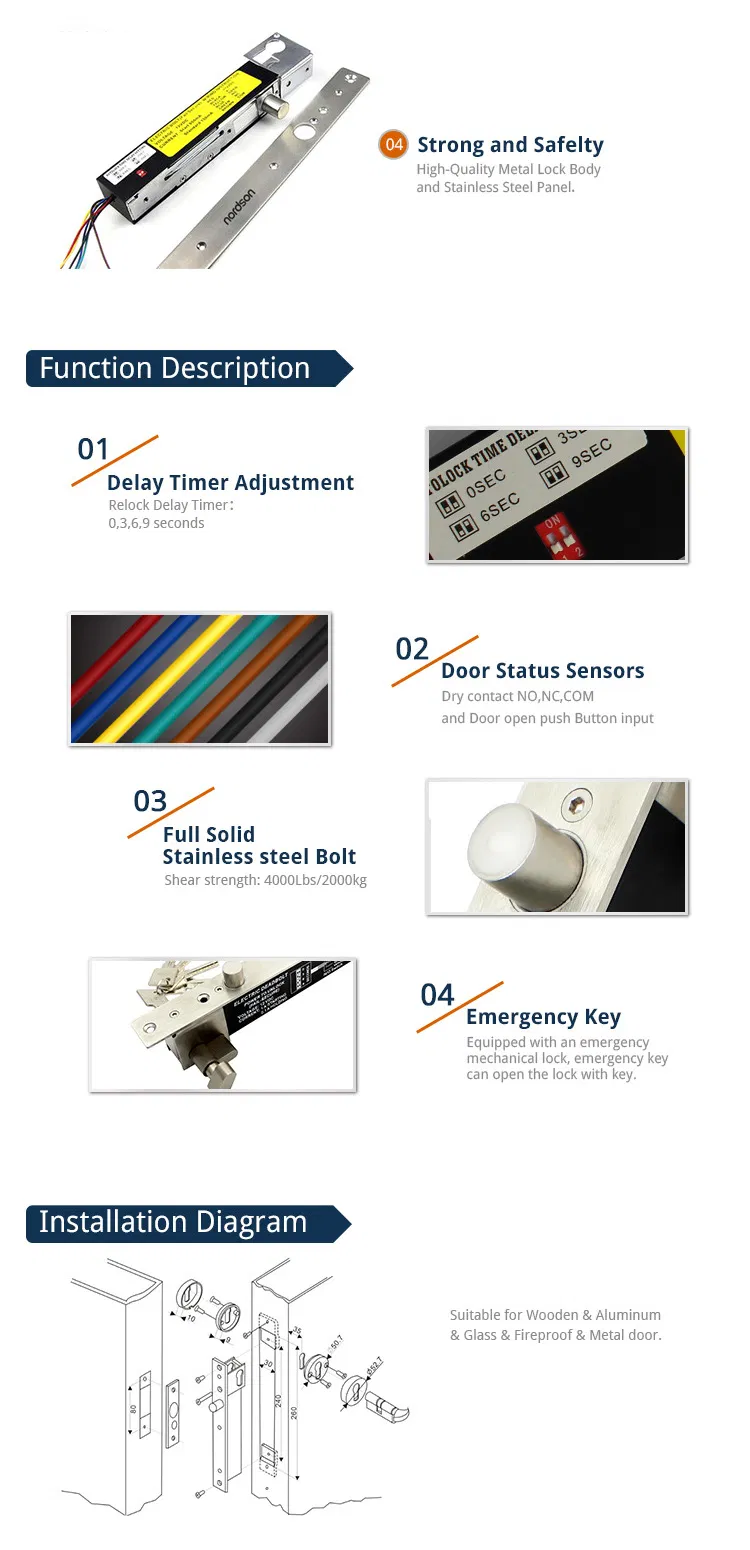

Installation View
Product Dimensions
Frequently Asked Questions
Q: What is the "Fail-Secure" function?
A: Fail-Secure means the bolt remains in the locked position when the power is disconnected, ensuring the door stays secured during power outages.
Q: What materials are used in the construction of the NI-400T?
A: The lock body is made of high-quality 304 stainless steel, providing high hardness and excellent corrosion resistance.
Q: Can I adjust the time it takes for the door to relock?
A: Yes, the lock includes an adjustable delay timer with settings for 0, 3, 6, or 9 seconds.
Q: What should I do if there is an electrical failure?
A: This model includes a mechanical lock cylinder, allowing for emergency manual override with a physical key.
Q: Is this lock suitable for thin door frames?
A: Yes, the narrow panel design is specifically engineered to fit into narrow door profiles and frames.
Q: Does the lock indicate its current status?
A: Yes, the front panel features a built-in LED light that displays the lock's status for easy monitoring.
