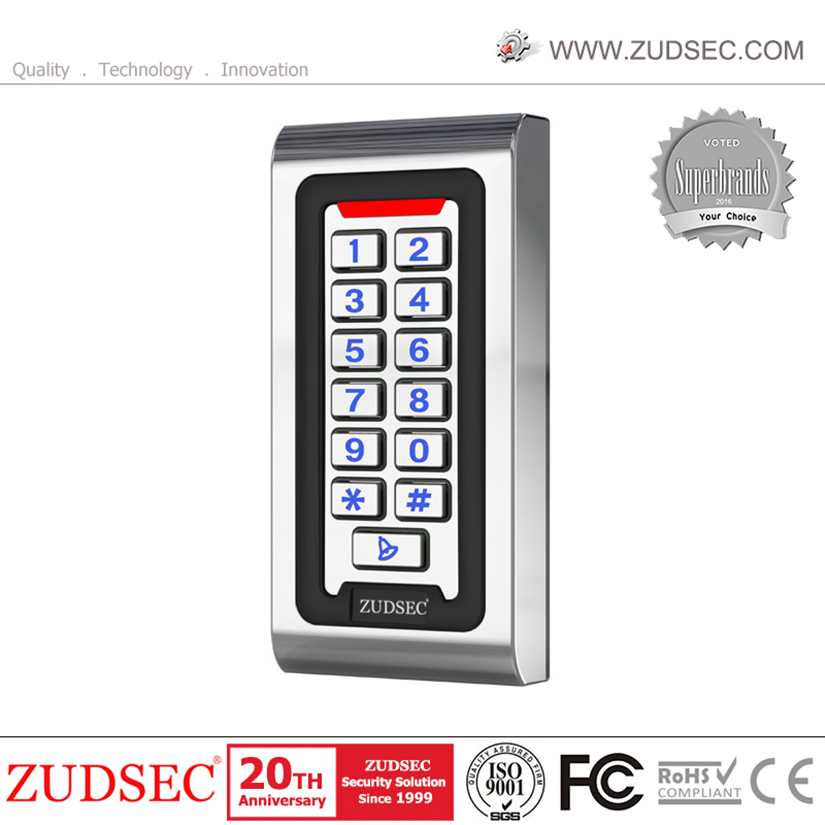

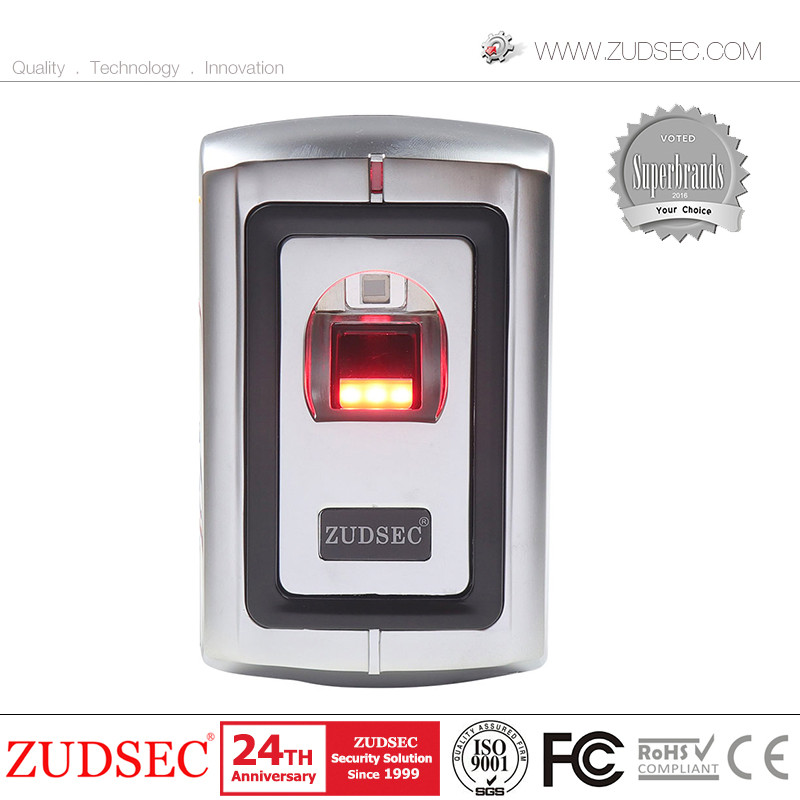

Tuya WiFi Smart Access Control Door Lock Waterproof Fingerprint Access Control System
Tuya WiFi Smart Access Control Door Lock Waterproof Fingerprint Access Control System
Tuya WiFi Smart Access Control Door Lock Waterproof Fingerprint Access Control System
Tuya WiFi Smart Access Control Door Lock Waterproof Fingerprint Access Control System
Tuya WiFi Smart Access Control Door Lock Waterproof Fingerprint Access Control System
1 / 5
Tuya WiFi Smart Access Control Door Lock Waterproof Fingerprint Access Control System
Tuya WiFi Smart Access Control Door Lock Waterproof Fingerprint Access Control System
Tuya WiFi Smart Access Control Door Lock Waterproof Fingerprint Access Control System
Tuya WiFi Smart Access Control Door Lock Waterproof Fingerprint Access Control System
Tuya WiFi Smart Access Control Door Lock Waterproof Fingerprint Access Control System

Tuya WiFi Smart Access Control Door Lock Waterproof Fingerprint Access Control System

Customization: Available
Card Reader Quantity: 2
Control Gates: One Gate
Send Inquiry

Product Description

Product Overview

Model NO.
ZDAC-2400W-WiFi
Technology
32-Bit Technology
Way of Control
Computer Control
Type
One-way Controller
Identification Way
Card, Pin, Card & Pin
Card Reading Distance
3-6cm
Type of ID Card
125kHz, Em
Operating Voltage
DC 12-24V
User Capacity
2000
Waterproof Design
IP68 / IP65
Material
Aluminum Alloy Case + Metal Keypad
Size
120* 58*20(mm)

Product Description

🛡️ Tuya WiFi Smart Access Control Door Lock

This aluminum alloy structure access control system is fully potted and waterproof (conforms to IP65/IP68). It supports 125KHz EM and HID cards. This multi-function device includes a 12P cable with a built-in door bell function and can operate as a slave reader, single door controller, or anti-pass back system. It is suitable for various high-security occasions.

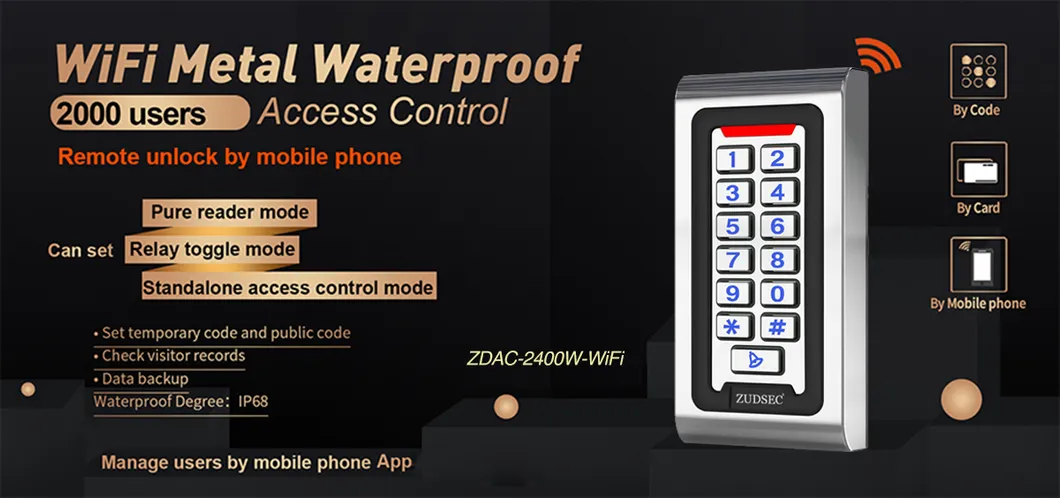

Smart Access Control System

Key Features

  • Durable Construction: Aluminium alloy case, waterproof, and fully potted to meet IP-65/IP-68 standards.
  • Backlit Keypad: Metal digital backlit keypad with adjustable settings (Normal ON, Normal OFF, or Human-Approach ON).
  • Built-in Functions: Integrated door bell and 125KHz card reader with Auto-Recognition.
  • High Capacity: Supports up to 2000 users, each with a card and a 4-6 digit password.
  • Flexible Access: Supports 2-10 cards for entry and includes a master card for easy management.
  • Output Formats: Wiegand 26-37 output card number and multiple button entry output formats.

Product Parameters

Technical Specifications
Operating VoltageDC 12-24V; Operating Current ≤35mA
Reading Distance3-6CM
Keypad Format4-6 digits key press, 4 bits or 8 bits data
Card Type125KHz, EM / HID
TransmissionWiegand 26-37
Temperature-40ºC to 60ºC
Humidity0~95% (non-condensing)
Dimensions158.6L x 43W x 21.7D (mm)

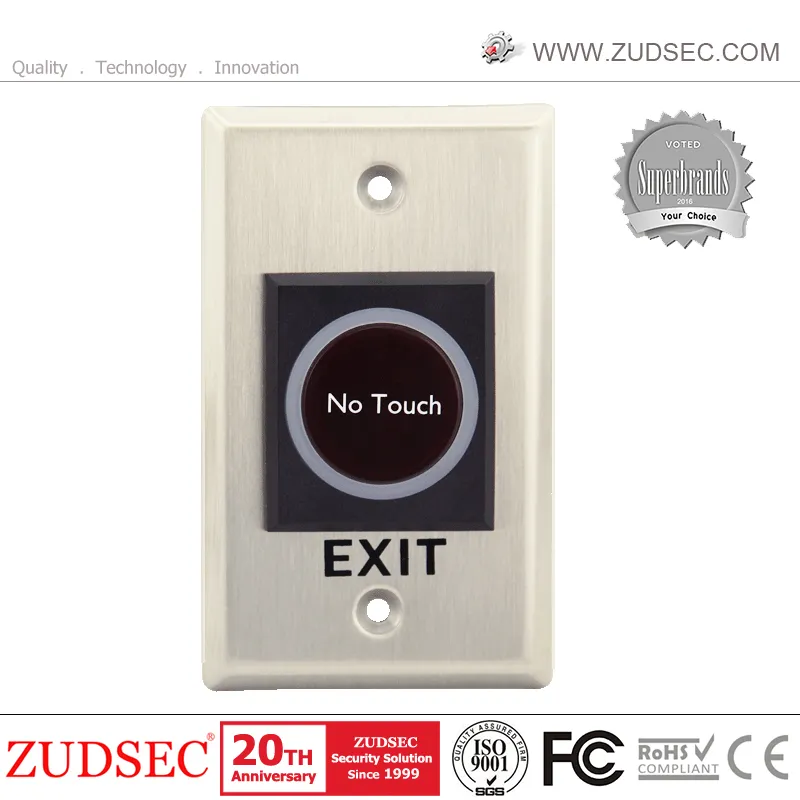

Access Control Detail 1

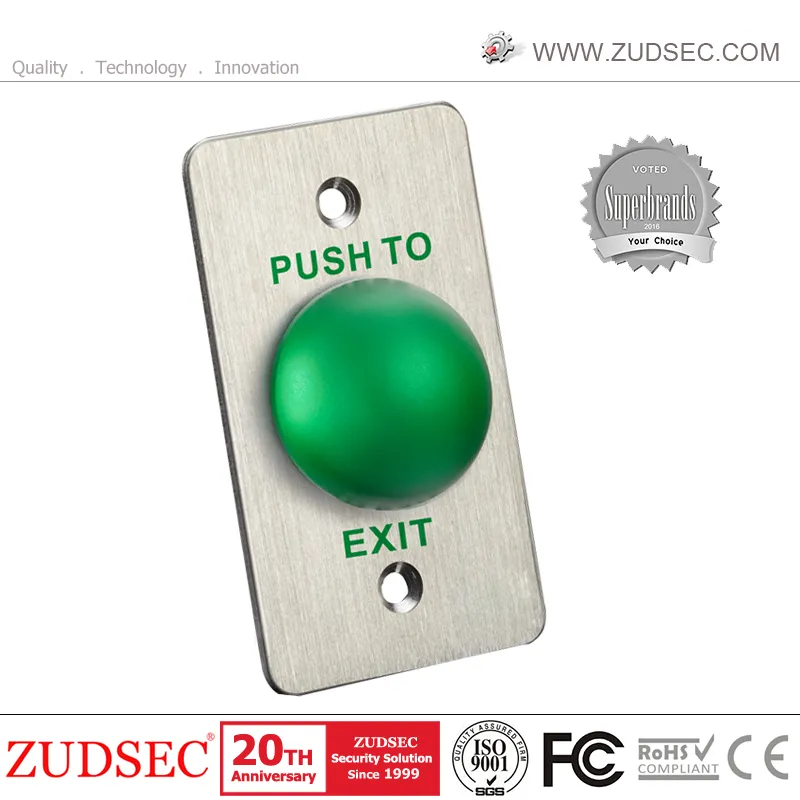

Access Control Detail 2

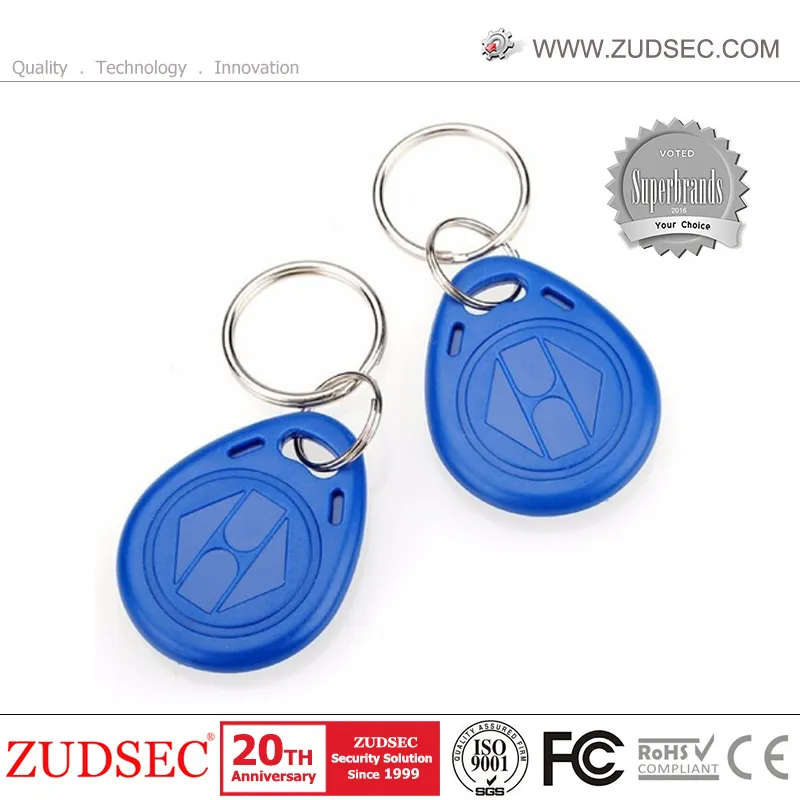

Access Control Detail 3

Related Products

Related Product 1
Related Product 2
Related Product 3

Frequently Asked Questions

❓ How many users can this system support?
The system supports up to 2,000 users, each capable of having their own card and a 4-6 digit password.
❓ Is this access control system waterproof for outdoor use?
Yes, it features an aluminum alloy case and is fully potted, meeting IP65/IP68 waterproof standards, making it ideal for outdoor installations.
❓ What types of cards are compatible with the reader?
The device is compatible with 125KHz EM cards and HID cards (optional), with a reading distance of 3-6cm.
❓ What is the required operating voltage?
The system operates on a wide range of DC 12V to 24V, providing flexibility for different power supply setups.
❓ Can it be connected to a computer?
This model supports computer control for management, though it can also function as a standalone single-door controller.
❓ Does it have a doorbell function?
Yes, the keypad includes a dedicated doorbell key and the wiring supports a built-in doorbell function.
