| Basic Information | |
|---|---|
| Model NO. | LD503 |
| Usage | Commercial, Outdoor, Household, Sports, Intelligent Office Buildings |
| Function | Waterproof, Soundproof, Thermal Insulation |

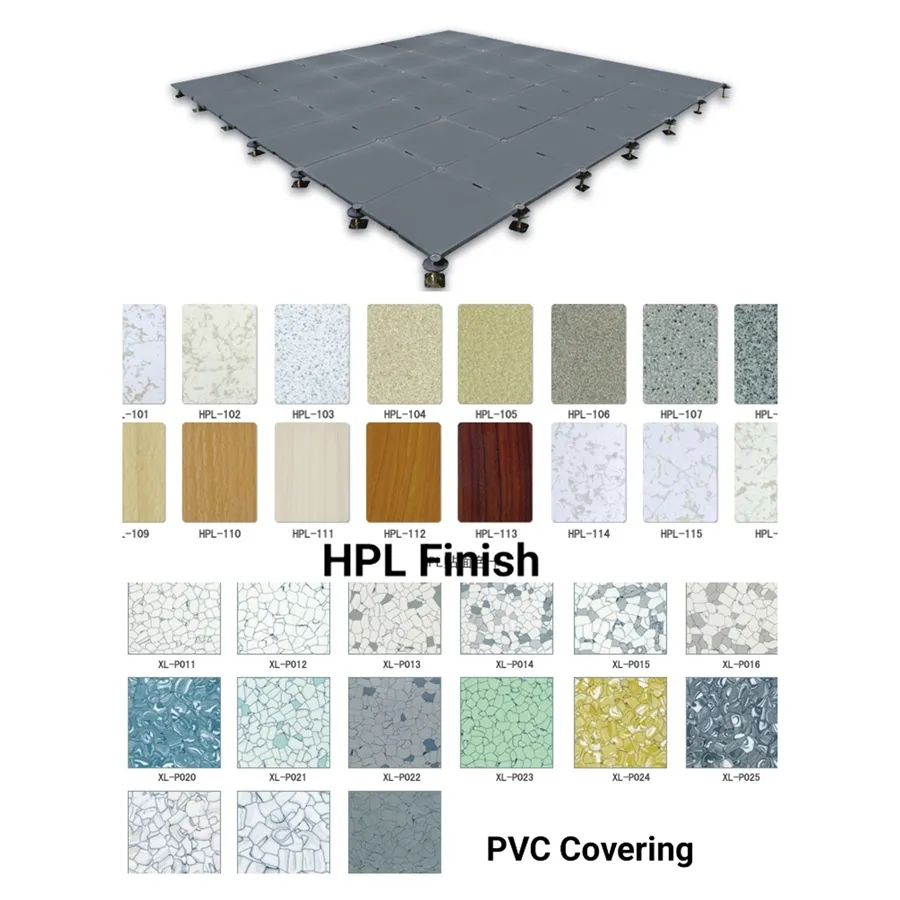

| Finish | 2mm PVC |
| Ventilation Rate | 50%-70% |
| Antistatic | Aluminum |
| Package Size | 62.00cm * 62.00cm * 42.00cm |
| Production Capacity | 111111 pieces/Year |

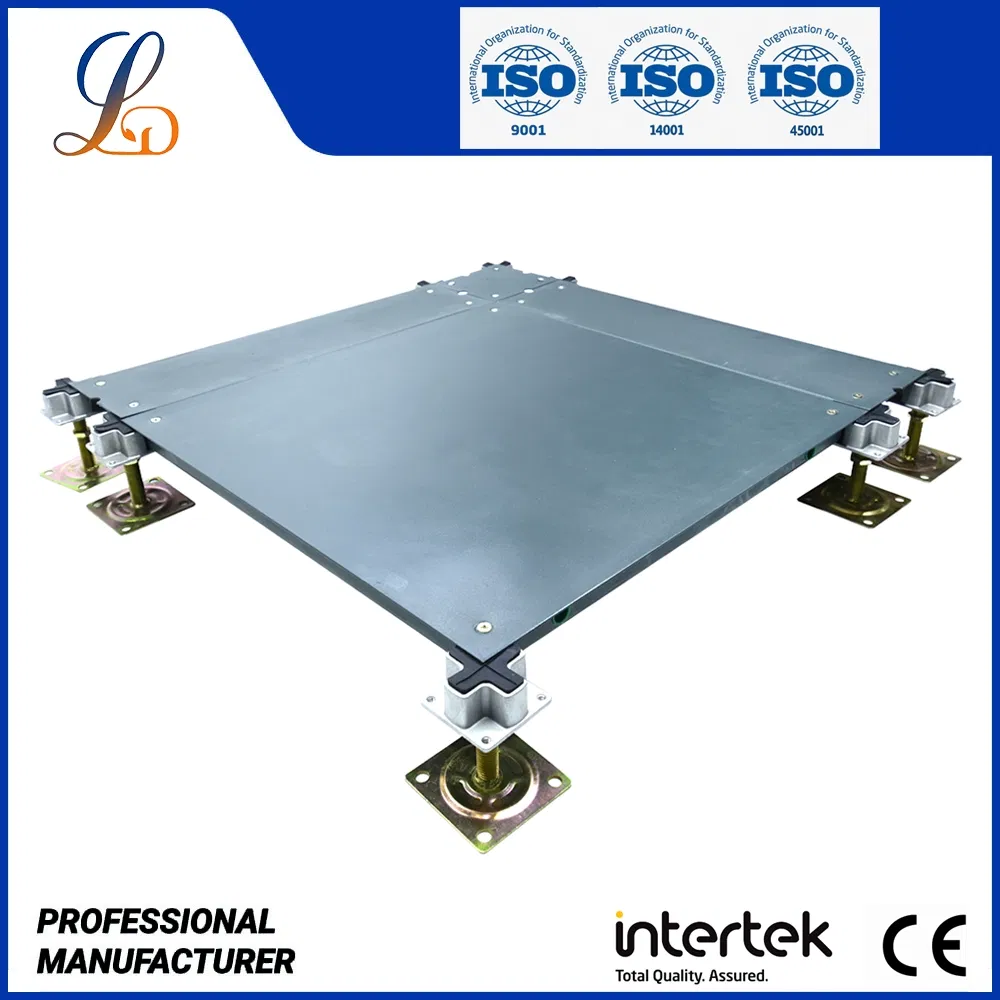

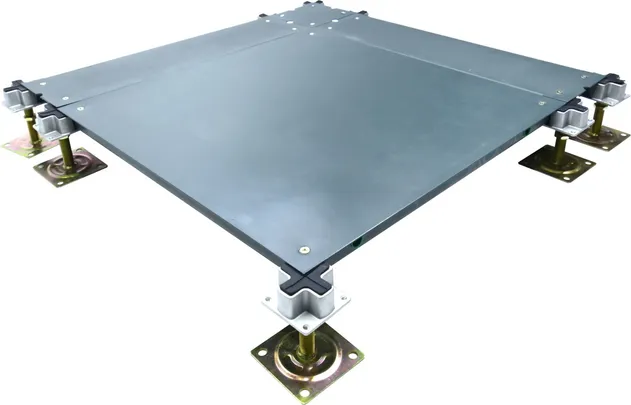

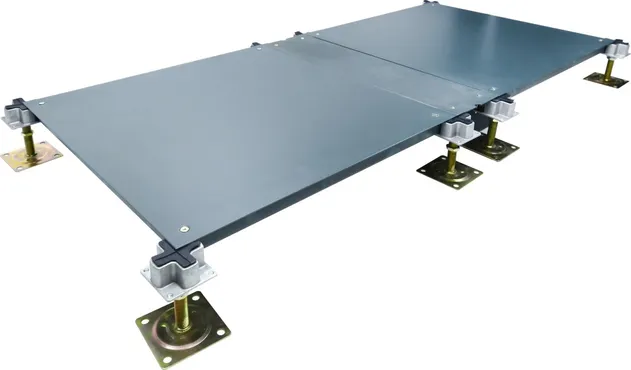

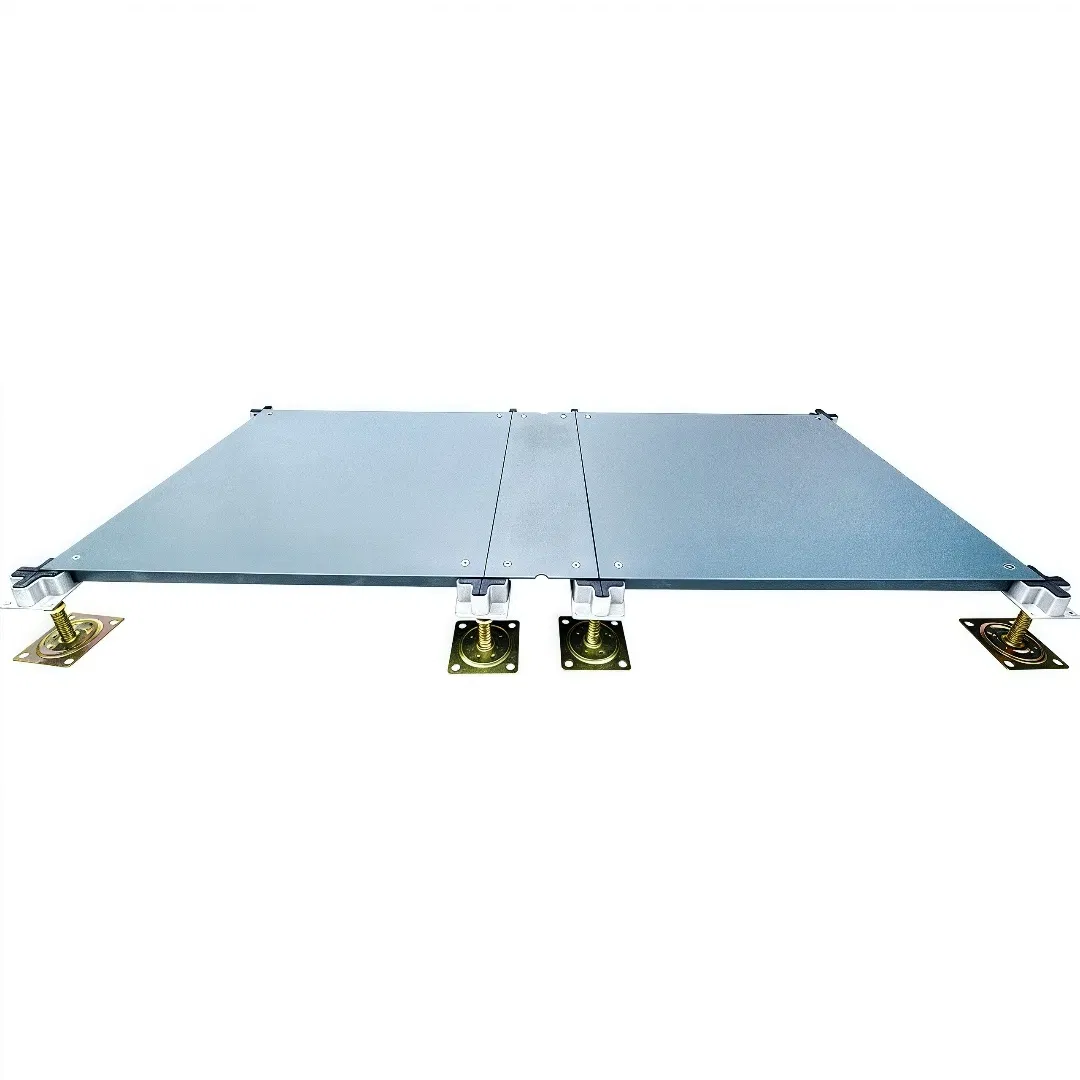

Made of high-quality steel plate stretched and welded to form a steel shell. The cavity is filled with foamed cement and dried and maintained. The floor surface is phosphated and sprayed, which is corrosion-resistant and scratch-resistant.

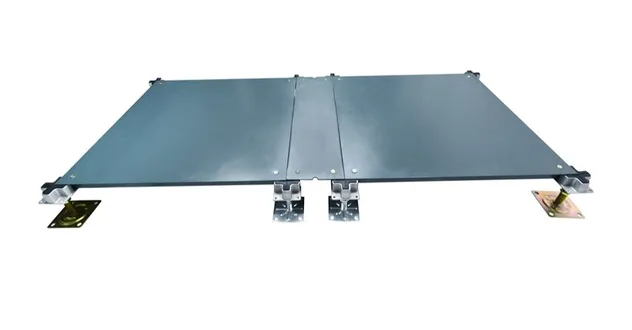

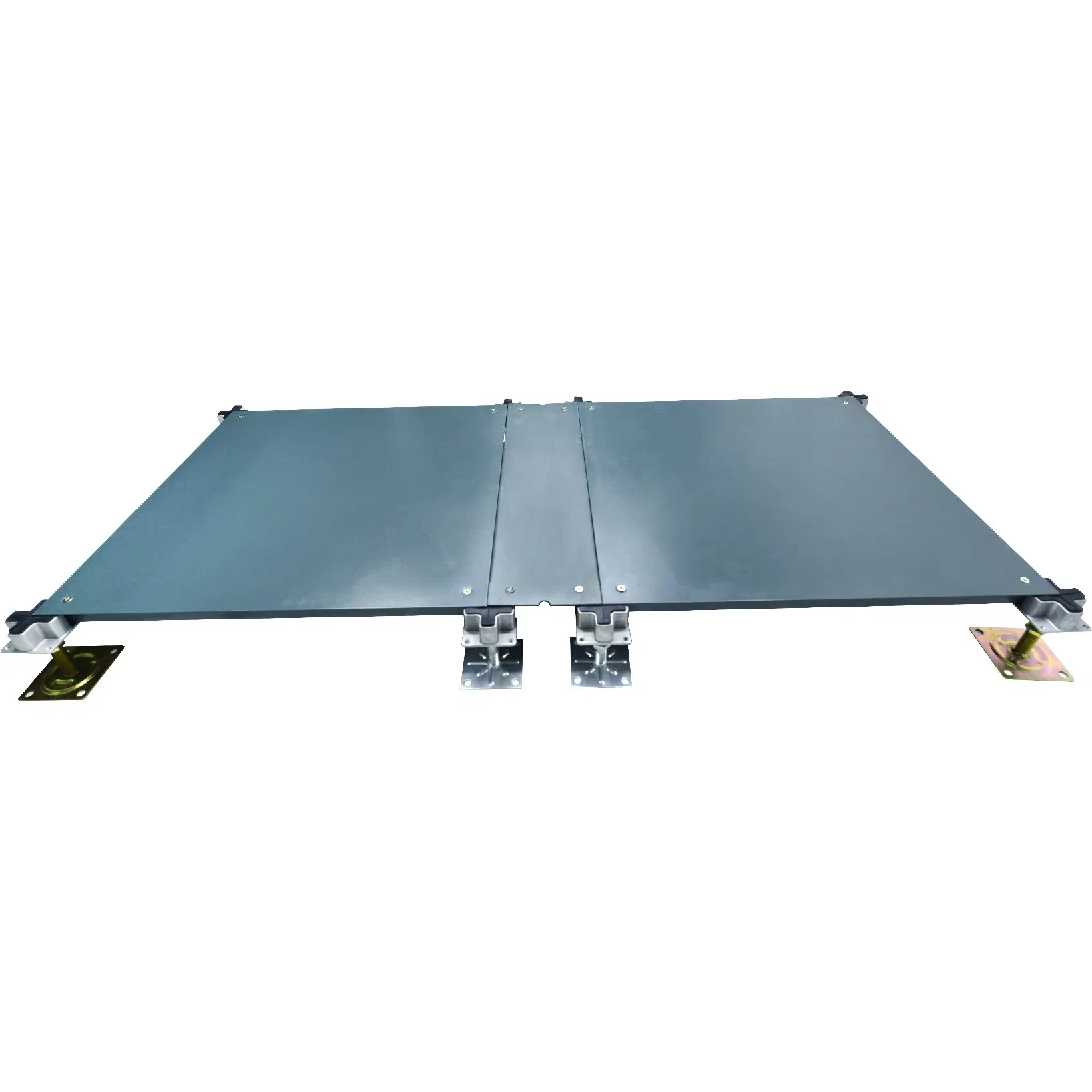

Installation Height: 50mm (Ideal for buildings without reserved overhead height or renovations).
| Technical Parameters | |
|---|---|

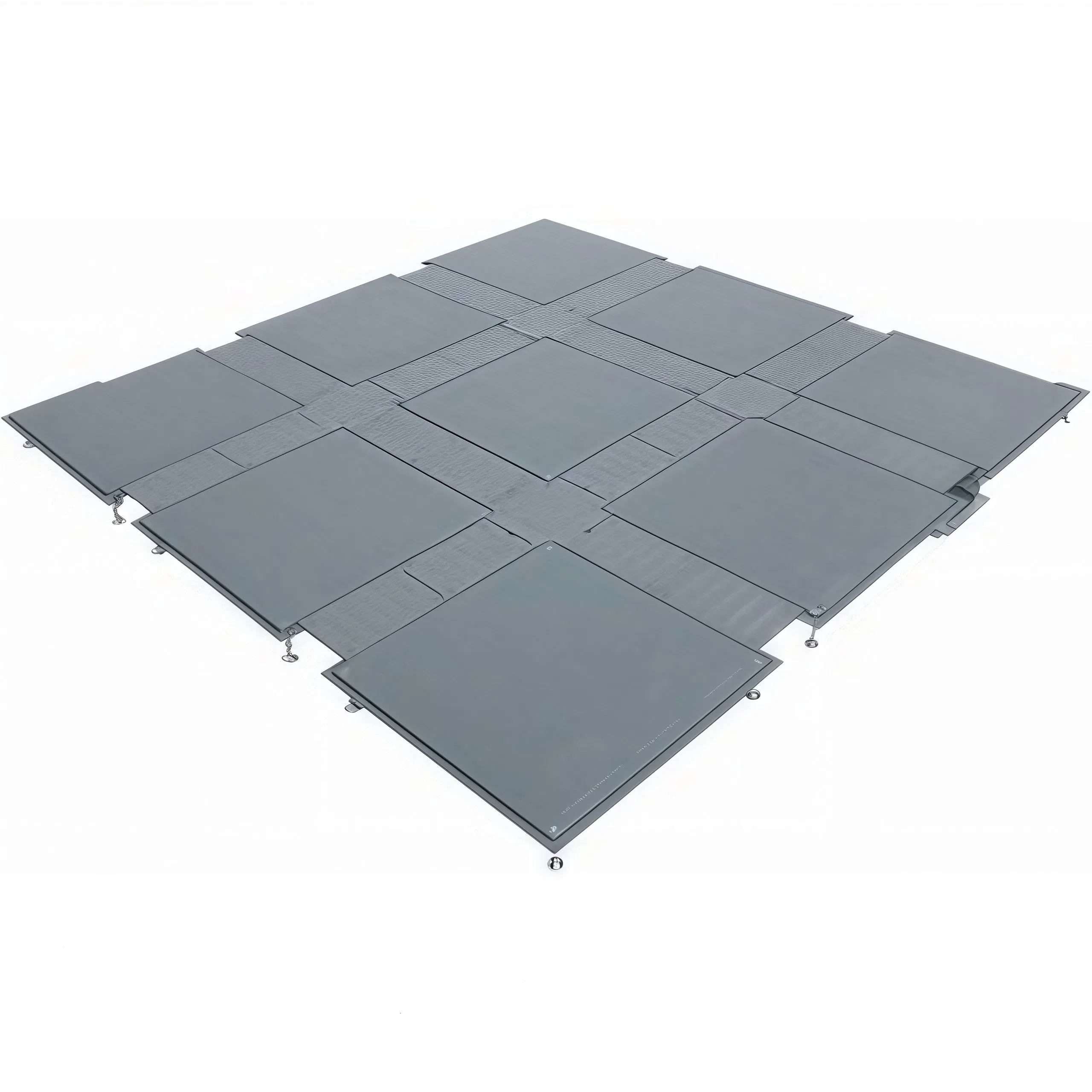

| Product Name | Cable Duct Steel Low-Profile Access Floor |
| Size | 500*500 mm |
| Thickness | 25mm |
| Function | Cabling Management, Easy Maintenance |
| Core Material | Lightweight Foamed Cement |
| Metal Type | Galvanized Steel |
| Concentrated Load | 200KG / 301KG / 450KG / 567KG |
| Fire Classification | A1 |
| Type | Size (mm) | Concentrated Load (KG) | Uniform Load (N/M2) | Fire Resistance |
|---|---|---|---|---|
| LD503 | 500*500*25 | 301 | ≥12500 | A1 |
Our floor systems are ideal for:
