Basic Info
Interface
Serial Port, 4G, TCP/IP, RS485, Weigand
Application
Parking, Hospital, Library, Company, Bank, Store
Product
4G TCP/IP Access Control Terminal
Display
3.5" Touch Screen Display
Identification
RFID, NFC, BLE, Pin Code
RFID
MIFARE Plus, MIFARE, DESFire EV1/EV2, Em 125kHz
Mobile Credential
ISO18092 NFC, BLE (Bluetooth Low Energy)
Work Mode
Standalone & Network Mode
IP Protection
Waterproof Outdoor Use

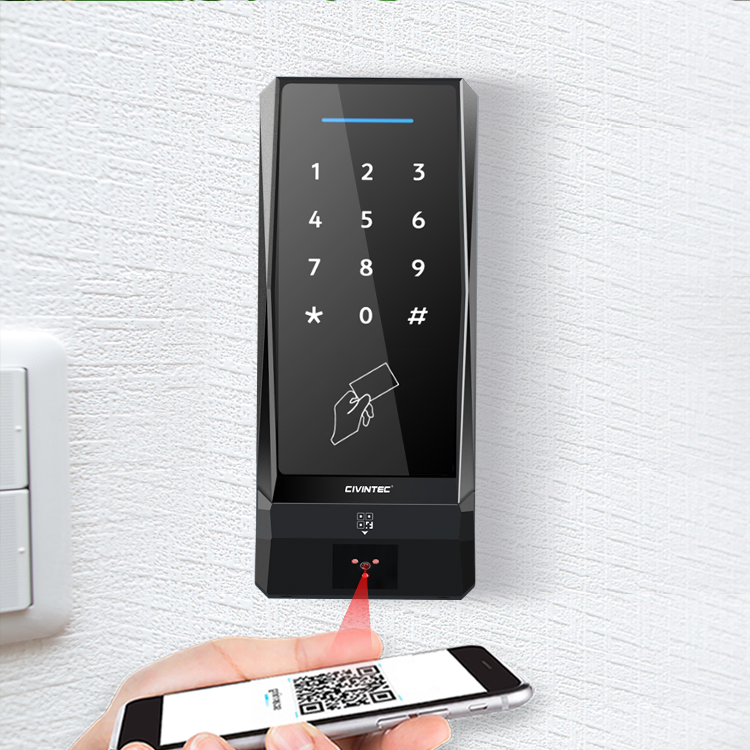

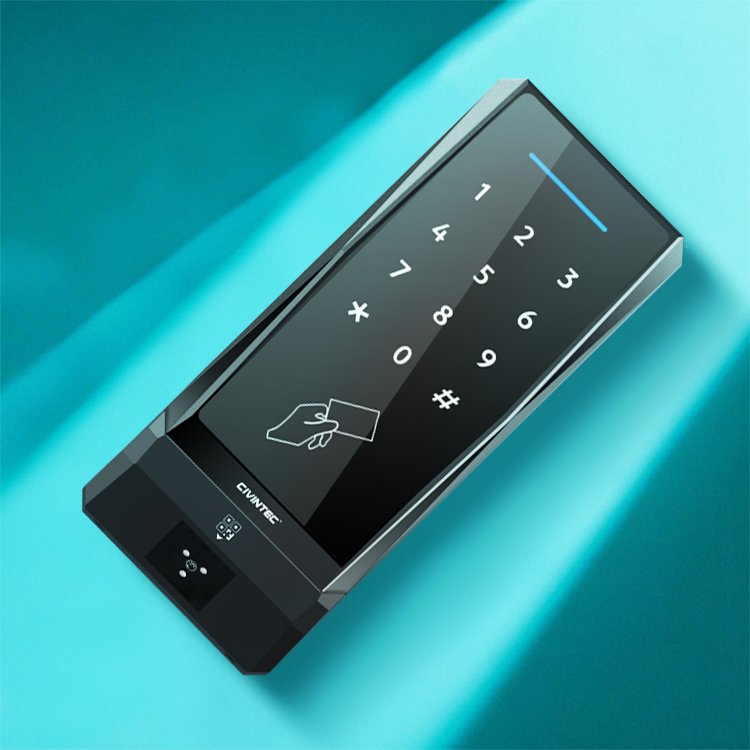

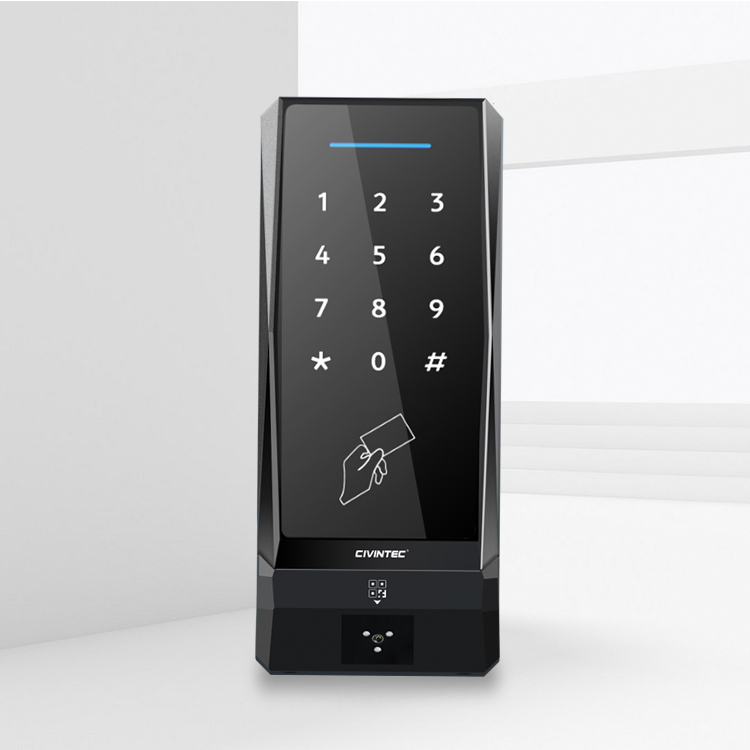

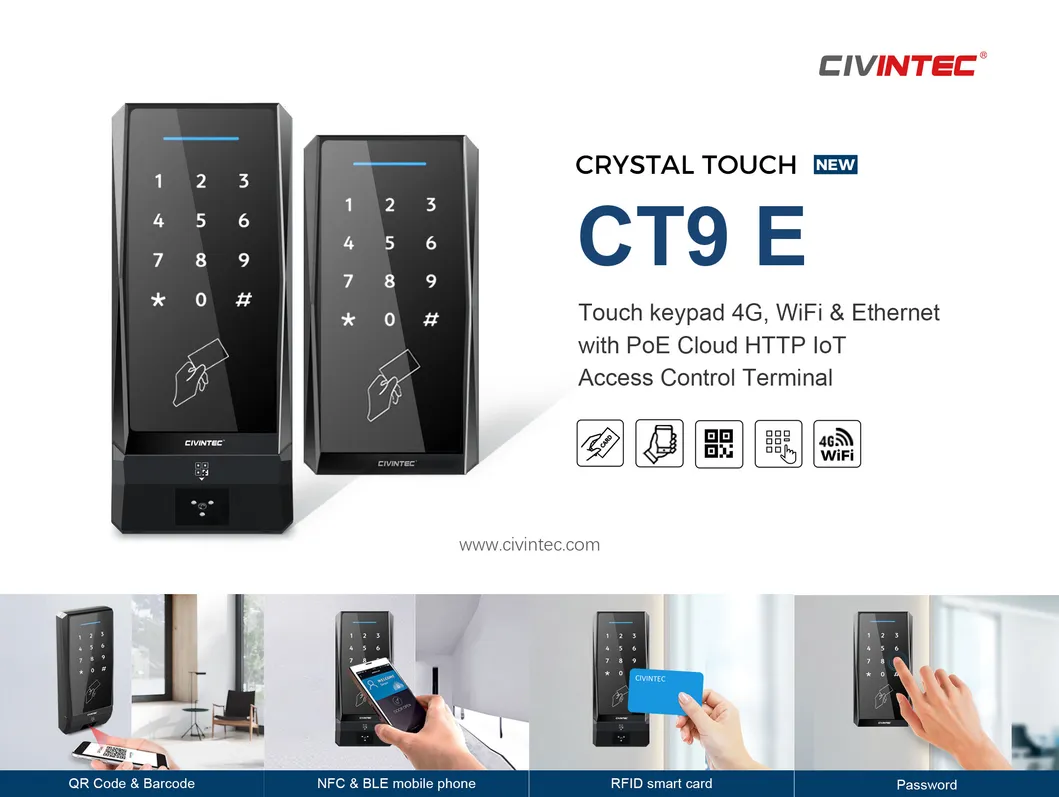

Product Overview
CT9 E is a Linux-based HTTP/HTTPs server centralized terminal equipped with wireless WiFi, 4G, and TCP/IP Ethernet. It is perfectly suited for both LAN and Internet cloud server software communication. It features an embedded relay to build versatile IoT and security solutions.
🌐
Centralized Control: Supports HTTP/HTTPs Server Centralized Access Control & IOT System with RFID / QR CODE / Mobile ID Reader.
Technical Specifications
| Category |
Feature Details (CT9 E) |
| Identification |
125KHz Proximity/EM, 13.56MHz MIFARE Classic, Plus, DESFire EV1/EV2/EV3, NFC tags |
| Mobile Access |
BLE (2.4GHz), NFC |
| QR/Barcode |
1D & 2D QR Code, Micro QR, PDF417, Code 128, etc. |
| Communication |
TCP/IP (RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand Input |
| OS & Display |
Linux OS | 12-digit Touch keypad with backlit |
| Capacity |
10,000 users / 50,000 logs (Standalone mode) |
| Power & Rating |
12~24V DC or PoE (IEEE 802.3af) | IP65 Weather Resistant |
Product Features
🔑

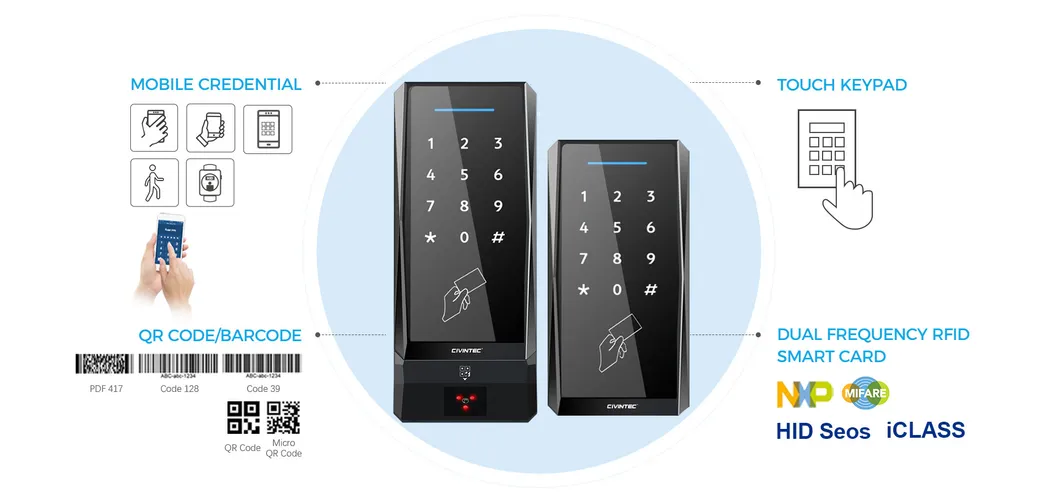

Multiple Access Credentials: 5-in-1 technology incorporating touch keypad, dual-frequency RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR code/barcode scanning.
☁️

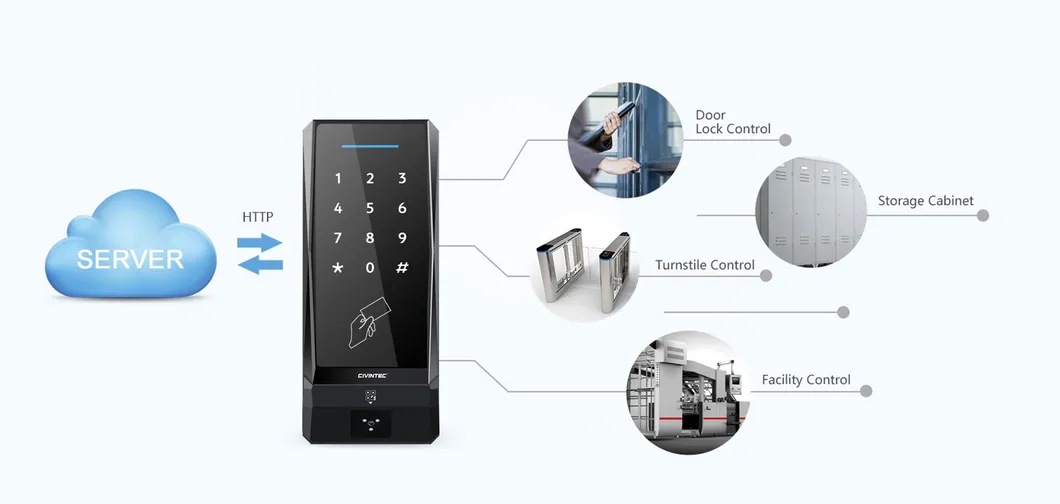

Cloud Server Remote Control: Bidirectional communication via standard HTTP & HTTPs for remote management of door locks and IoT facilities.
🛡️

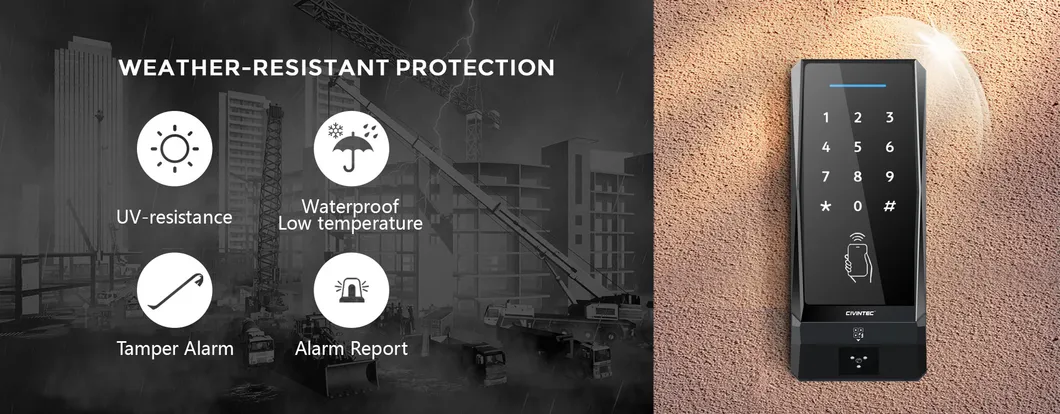

Weather-Resistant Protection: IP65 rated, resistant to rain, dust, and strong sunlight. Ideal for outdoor and rugged environments.

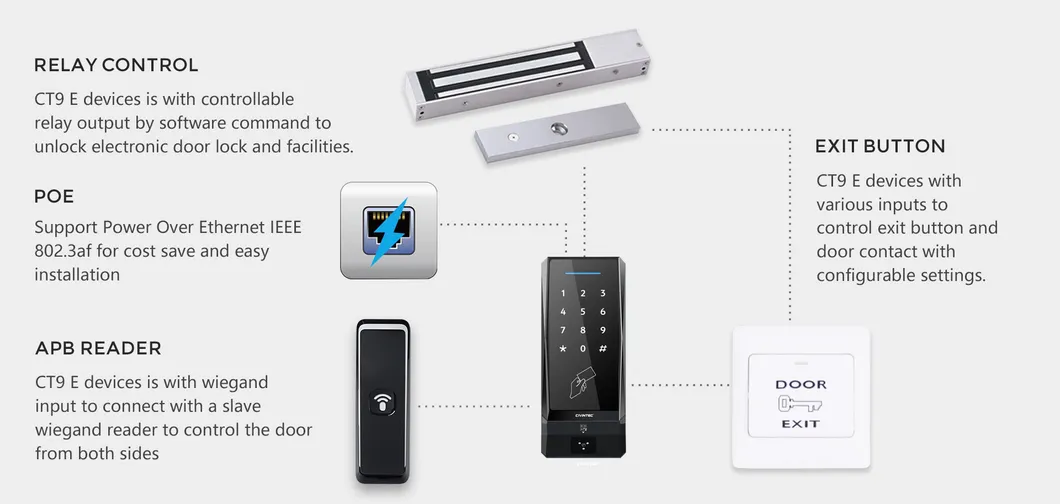

System Configuration
Services & Customization
Offering ODM customization on hardware, housing, firmware, and software. Users can program and display custom logos on the 3.5" touch screen. OEM logo printing is also available for the reader body.
Frequently Asked Questions
What types of credentials does the CT9 E support?
The terminal supports 5-in-1 identification: RFID (125KHz and 13.56MHz), Mobile Access (NFC and BLE), QR codes/barcodes, and a touch pincode.
Is the device suitable for outdoor installation?
Yes, it features an IP65 protection rating, making it waterproof and resistant to UV rays, dust, and extreme temperatures.
How many users and logs can the system store offline?
In offline mode, it can store up to 10,000 users and 50,000 event logs. Higher capacities are available upon request.
Does the CT9 E support Power over Ethernet (PoE)?
Yes, it supports PoE (IEEE 802.3af), allowing for both power and data transmission over a single Ethernet cable.
What communication interfaces are available for server connection?
It supports multiple communication options including TCP/IP (Ethernet), wireless WiFi (2.4GHz), and 4G mobile networks.
Can the 3.5" touch screen be customized?
Yes, the Linux-based system allows for UI customization, including the ability to display your own brand logo on the screen.
