Customization: Available
After-sales Service: Technical Support & Customization Service
Warranty: 1
Send Inquiry

Product Description

Basic Information
Model NO.CM3
MaterialAluminum Alloy
TypeCombination Lock
StyleEuropean
ShapeMortise Door Lock
Anti-theft StandardA
Backset70mm
UsageHousehold Door Locks, Bedroom, Channel Lock
RFIDMIFARE Plus, MIFARE, DESFire EV1/EV2, ISO14443b
CommunicationWiFi, BLE 5.3, USB
Power3V, 4 * Battery
Product Overview

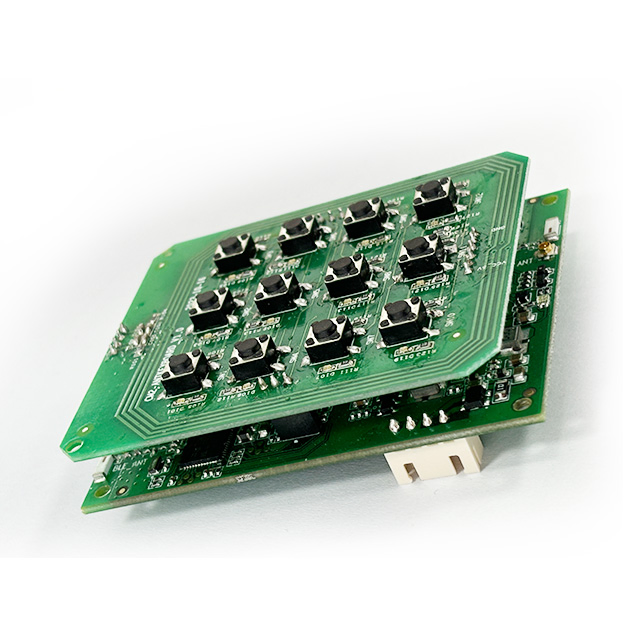

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi-technology platform. It provides an ultra-low battery-operated power consumption design, which contains the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking, and different handheld applications.

Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including DESFire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile applications. Together with supporting Arm® TrustZone® and securable I/Os features, it meets high-security application requirements.

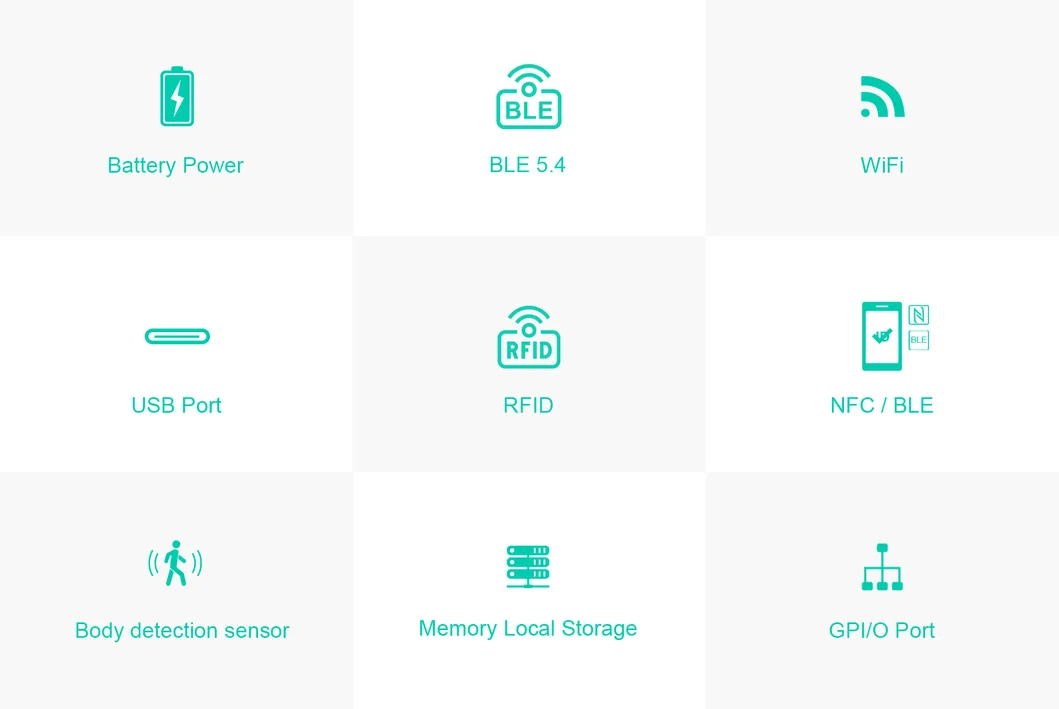

Smart CM3 Overview
Product Features

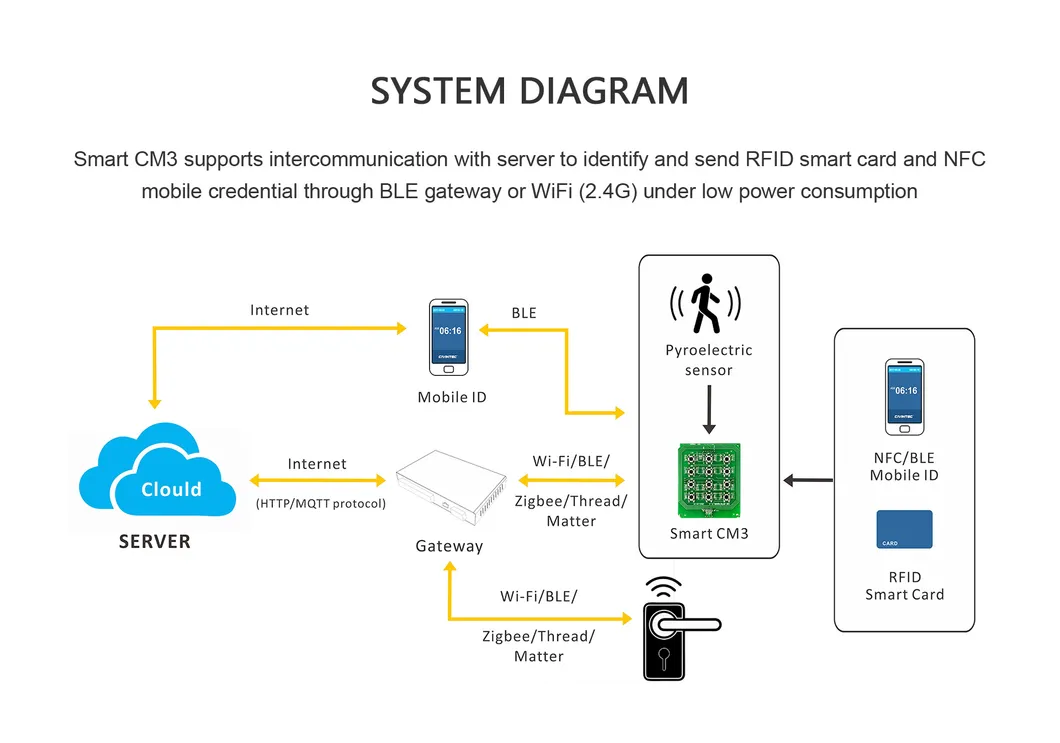

Feature 1 Feature 2 Feature 3
Key Advantages
✔
Support 13.56MHz DESFire EV1/EV2/EV3 and NFC for versatile connectivity.
🛡️
Support Arm® TrustZone® for enhanced high-security performance.
🔌
Rich I/O ports specifically designed for electric lock control.
🔋
Economic solution with ultra-low power consumption for battery operations.
🌐
Supports BLE 5.4, Zigbee, Thread, Matter, and MQTT protocols.
👤
Advanced body detection function integrated.

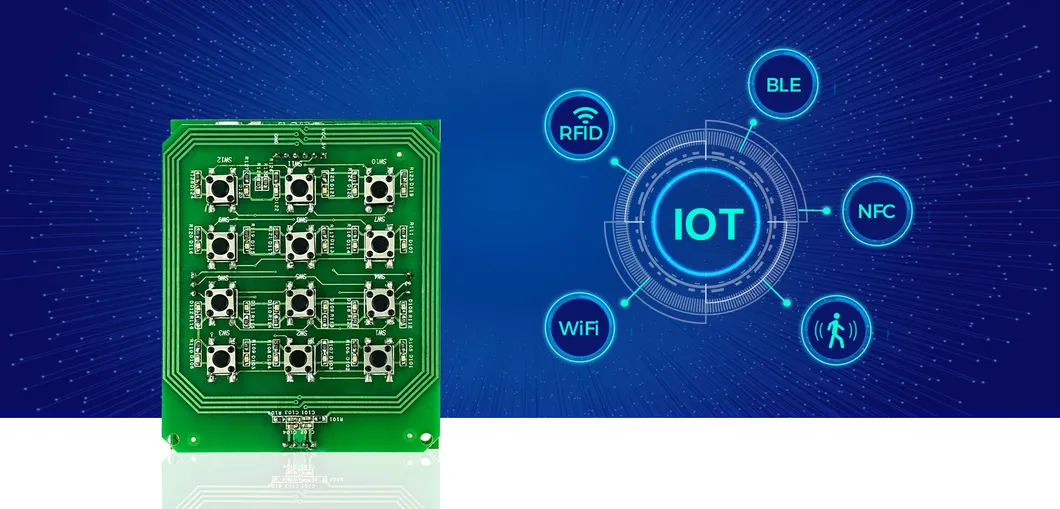

Smart CM3 Advantages
Specifications
Memory 4M BYTE
Power Supply USB / 3V (4 * Battery)
RFID Standards 13.56MHz ISO14443A, ISO15693, ISO18092; Mifare Classic, DESFire EV1/EV2/EV3, Ultralight C, NFC Tag, HID iCLASS CSN
Secure Interface Optional SAM slot ISO7816; SAM AV2 support; Secure IC EAL5+ Level
Mobile Comm. NFC, BLE 5.3
Keypad 12 Digit Mechanical Keypad
Interface WiFi, BLE 5.3 (Master & Slave, Beacon, Zigbee, Mesh), USB
Operating Temp -20ºC ~ 60ºC
Quality & Support
Support and Quality
Frequently Asked Questions
1. What is the primary use of the Smart CM3 platform? It is designed for high-performance wireless access control, electric locks, and asset tracking applications with ultra-low power needs.
2. Which RFID technologies are supported? It supports a wide range of 13.56MHz technologies including Mifare Classic, DESFire EV1/EV2/EV3, and NFC tags.
3. Does it work with mobile phones? Yes, it supports both NFC and BLE 5.3 for mobile credential identification and communication.
4. How is the device powered? The device can be powered via a USB connection or by using a 3V battery setup (4 batteries).
5. What security features are integrated? It features Arm® TrustZone®, optional SAM slots with EAL5+ encryption, and secure IC for MCU protection.
6. Can the software be customized? Yes, the platform supports embedded software development and both hardware/software customization for specific project needs.
