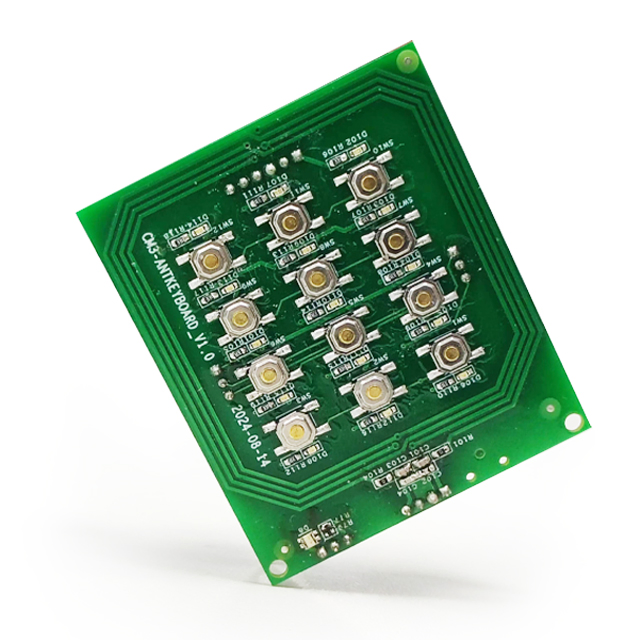

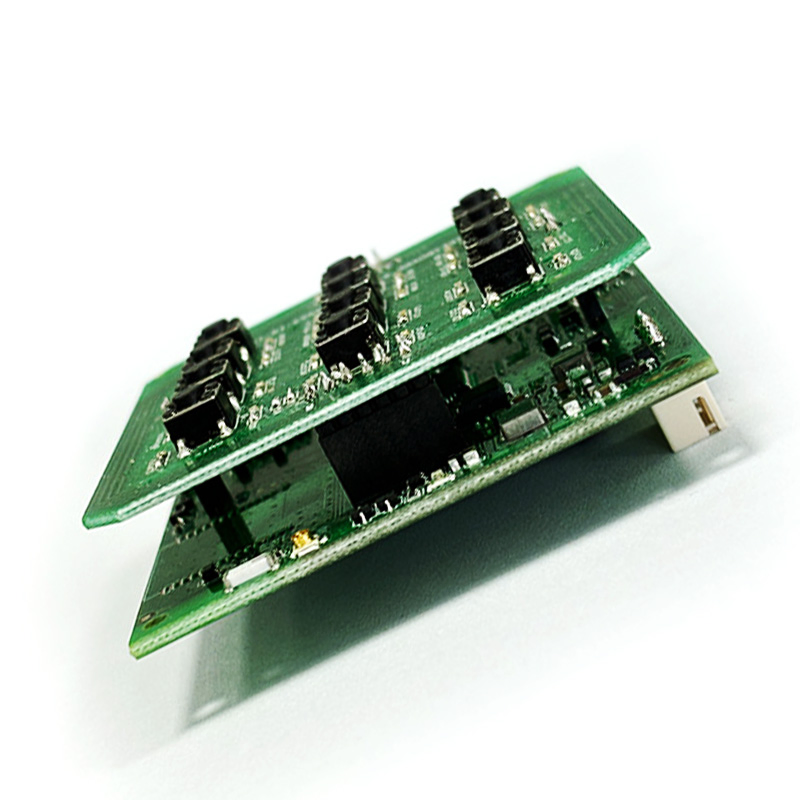

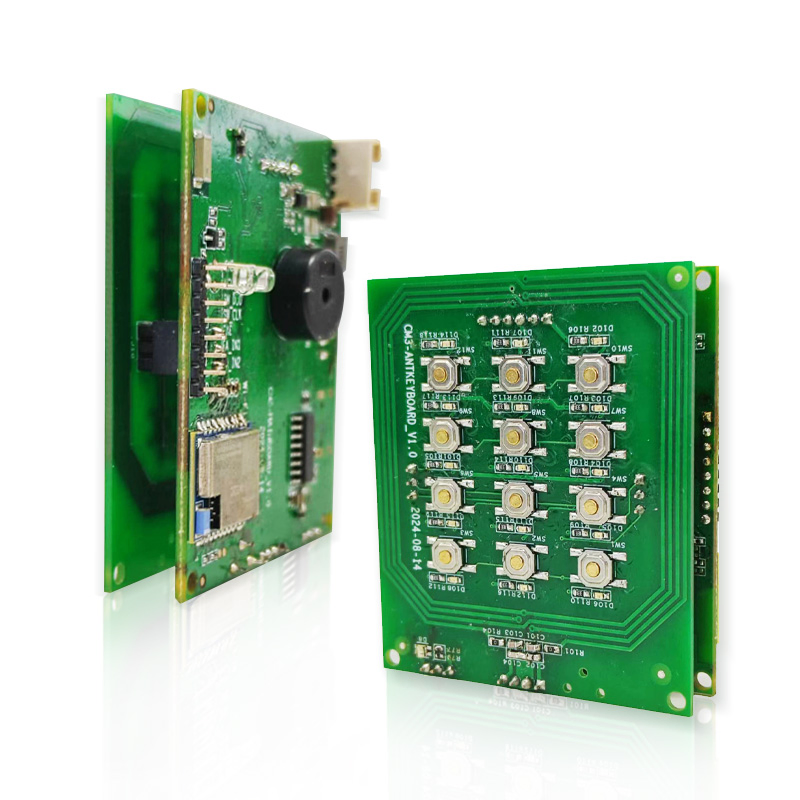

Cloud Based Network Access Control WiFi Door Access Control Wiegand Access Control System
Cloud Based Network Access Control WiFi Door Access Control Wiegand Access Control System
Cloud Based Network Access Control WiFi Door Access Control Wiegand Access Control System
Cloud Based Network Access Control WiFi Door Access Control Wiegand Access Control System
Cloud Based Network Access Control WiFi Door Access Control Wiegand Access Control System
1 / 5
Cloud Based Network Access Control WiFi Door Access Control Wiegand Access Control System
Cloud Based Network Access Control WiFi Door Access Control Wiegand Access Control System
Cloud Based Network Access Control WiFi Door Access Control Wiegand Access Control System
Cloud Based Network Access Control WiFi Door Access Control Wiegand Access Control System
Cloud Based Network Access Control WiFi Door Access Control Wiegand Access Control System

Cloud Based Network Access Control WiFi Door Access Control Wiegand Access Control System

Customization: Available
After-sales Service: Technical Support & Customization Service
Warranty: 1
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.
CM3
Material
Aluminum Alloy
Type
Combination Lock
Style
European
Shape
Mortise Door Lock
Backset
70mm
Usage
Household, Bedroom, Channel
RFID
MIFARE Plus, DESFire EV1/EV2/EV3, ISO14443b
BLE
BLE 5.3 Master & Slave, Zigbee
Interface
WiFi, BLE 5.3, USB
Keypad
12 Digit Keypad
Power
3V (4 * Battery)
🌐

Product Overview

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi-technology platform. It provides an ultra-low battery-operated power consumption design, containing the latest wireless interfacing and multiple identification technologies for customized designs of access control, wireless electric locks, and asset tracking.

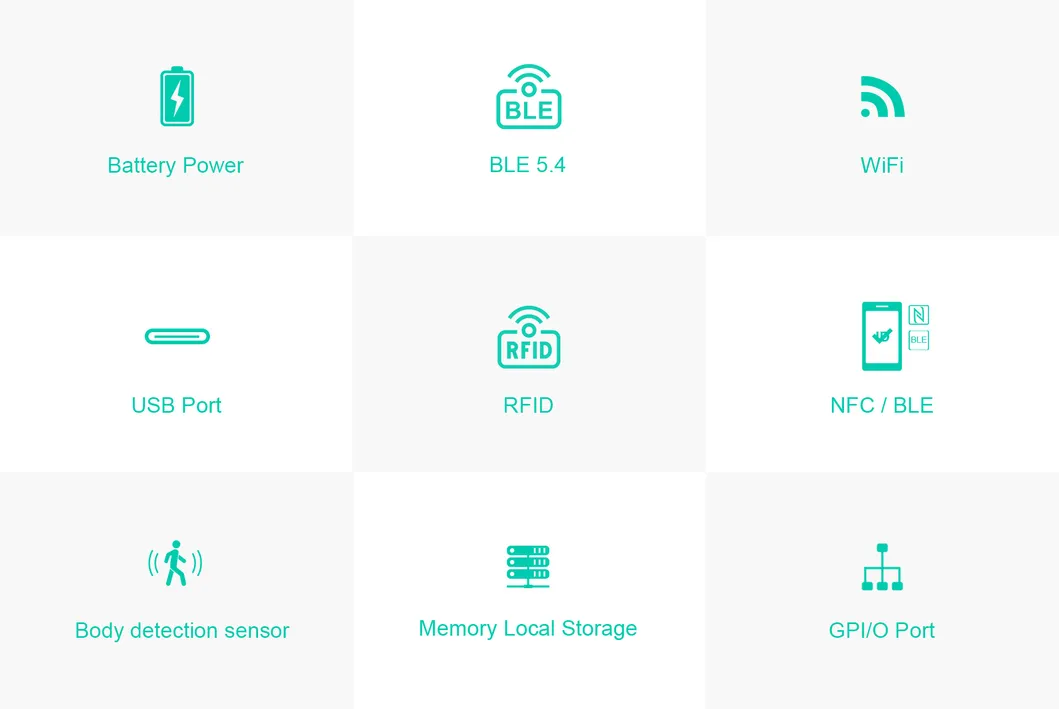

Smart CM3 Overview
Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including DESFire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile applications. Coupled with Arm® TrustZone® and securable I/Os, it meets the highest security standards for hardware and software customization.
⭐

Product Features

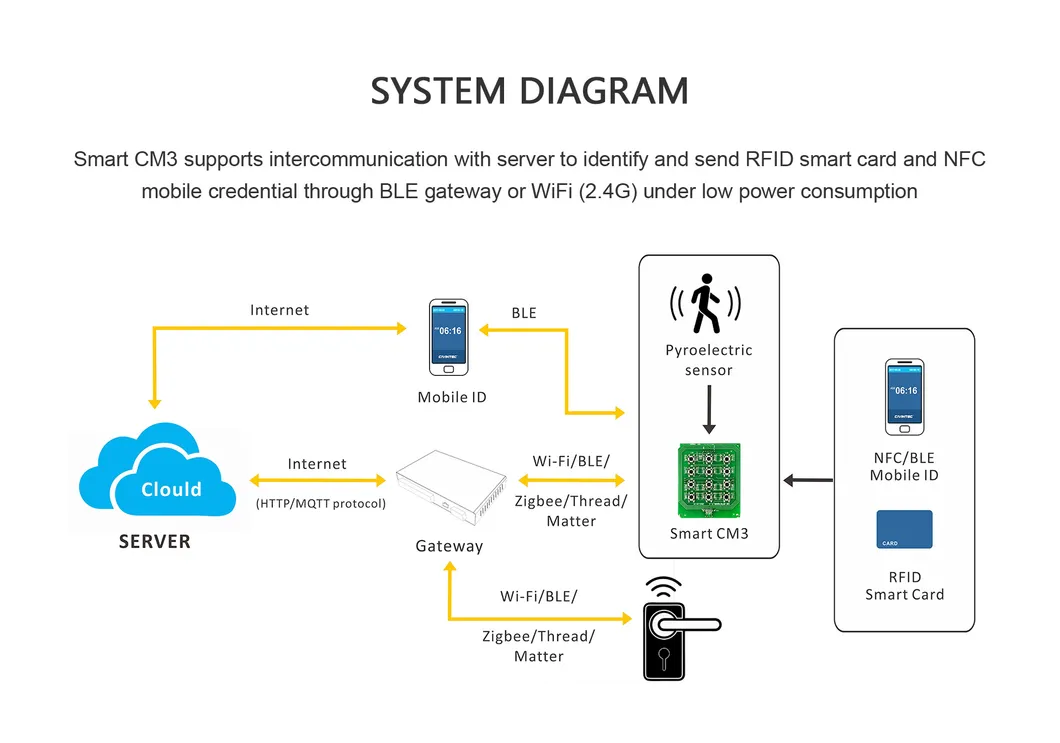

Feature 1
Feature 2
Feature 3
🚀

Core Advantages

  • Support 13.56MHz Desfire EV1/EV2/EV3 and NFC
  • Support Arm® TrustZone® for high-level security
  • Rich I/O port for versatile electric lock control
  • Integrated memory for local data storage
  • Ultra-low power consumption for battery longevity
  • Supports BLE 5.4, Zigbee, and Thread/Matter protocols
  • Embedded software development ready
  • Built-in Body detection function
Advantages Diagram
📊

Specifications

Memory4M BYTE
Power SupplyUSB or 3V (4 * battery)
RFID Standards13.56MHz ISO14443A, ISO15693, ISO18092; Mifare Classic, DESfire EV1/EV2/EV3, NFC Tag, HID iCLASS CSN
Secure InterfaceOptional SAM slot ISO7816; SAM AV2 encryption; Secure IC EAL5+ Level
Mobile CommunicationNFC & BLE 5.3
Wireless InterfacesWiFi, BLE 5.3 (Master/Slave, Beacon, Thread, Zigbee, Mesh)
IndicatorsBuzzer and Bio-color LED
Operating Temp.-20ºC ~ 60ºC
🏢

Global Expertise

Manufacturing and Solutions
❓

Frequently Asked Questions

Q1: Which wireless technologies does the Smart CM3 support? A: It supports BLE 5.4, WiFi, Zigbee, Thread, Matter, and Mesh protocols for comprehensive connectivity.
Q2: Can I use my mobile phone to unlock the device? A: Yes, it fully supports NFC and BLE mobile credentials for secure mobile application access.
Q3: What makes the CM3 secure for high-end applications? A: The platform utilizes Arm® TrustZone®, SAM AV2 encryption, and Secure IC EAL5+ Level protection to ensure maximum data safety.
Q4: Is the Smart CM3 energy efficient? A: Absolutely. It is specifically designed with an ultra-low power consumption architecture, making it ideal for battery-operated readers.
Q5: What is the storage capacity for local data? A: The device comes equipped with a 4M BYTE memory module for local data storage and offline operation.
Q6: What are the environmental operating limits? A: The Smart CM3 is built to operate reliably in temperatures ranging from -20ºC to 60ºC.
