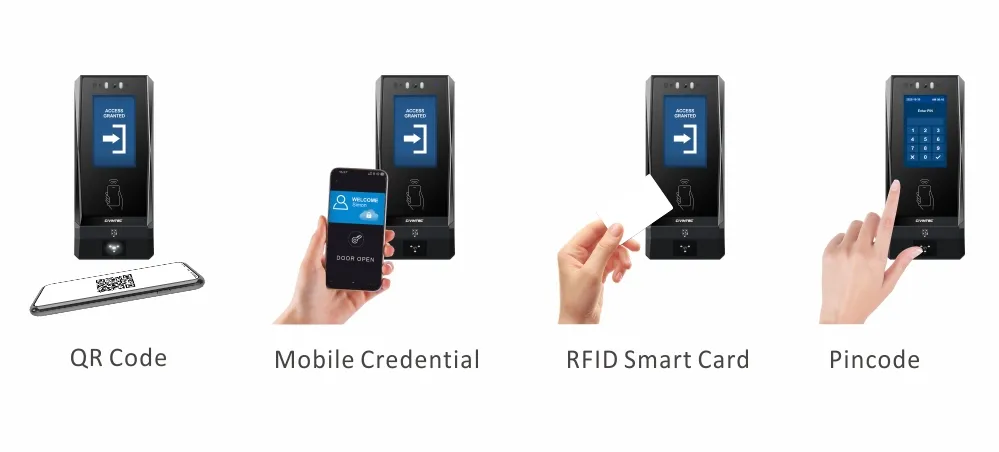

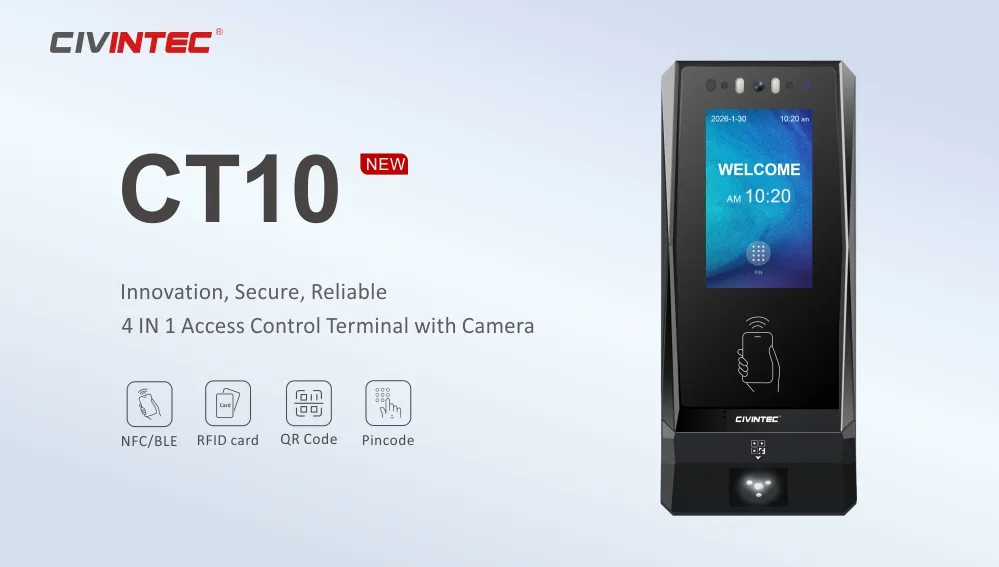

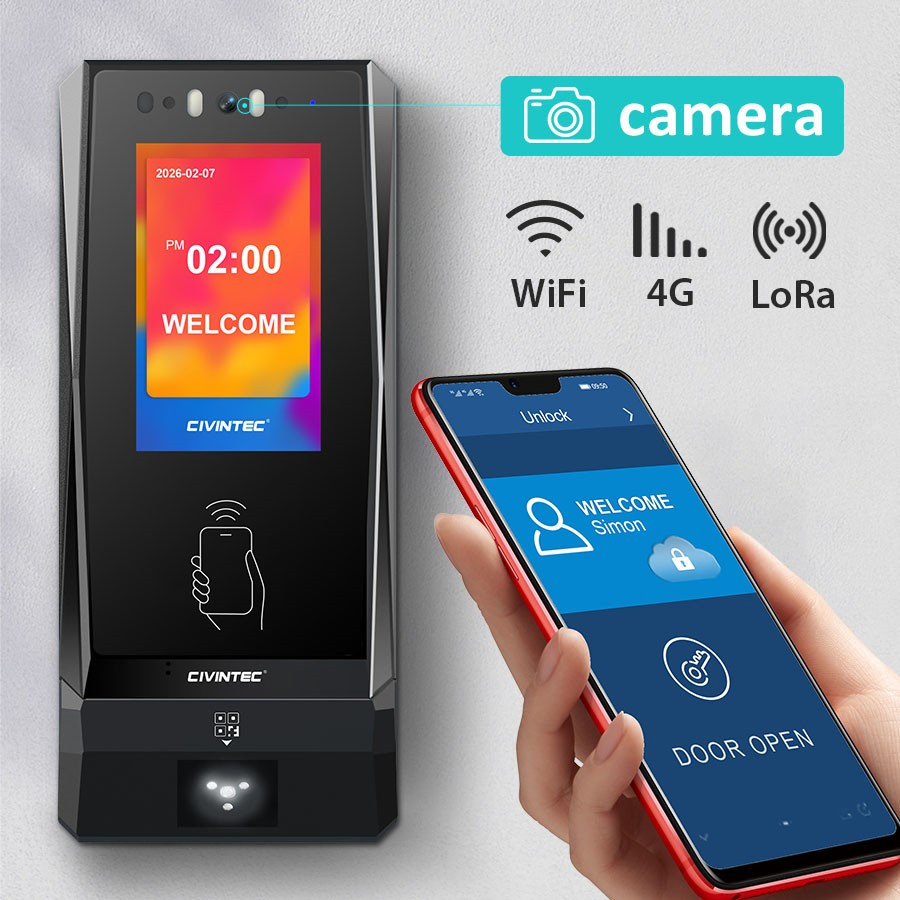

CT10 is an advanced access control terminal featuring a built-in camera and four distinct authentication methods: mobile credentials (BLE/NFC), RFID cards, QR code scanning, and keypad input. Equipped with a 3.5-inch touch interface and running on an embedded Linux OS, it supports flexible connectivity including Ethernet (PoE), 4G, WiFi, and LoRaWAN. This makes it ideal for real-time cloud-based or standalone operations in corporate, industrial, and smart building environments.
| System Configuration (Model: CT10) | |
|---|---|
| Identification | RFID (125KHz HID® PROX™, EM; 13.56MHz Mifare® Classic/DESFire®), BLE, NFC, QR Code, Keypad |
| Operating System | Linux OS |
| Display | 3.5" UV-resistant touch screen |
| Camera | Autofocus with LED Flash |
| Audio | High-quality sound effect Speaker |
| Communication | TCP/IP(RJ45), WiFi, LoRaWAN, 4G, RS485, Wiegand |
| I/O Ports | Door contact, Door exit, Tamper alarm, Relay Control |
| Capacity | 100,000 Local Users / 200,000 Logs (Unlimited Online) |
| Power Supply | DC 12~24V / PoE IEEE802.3af |

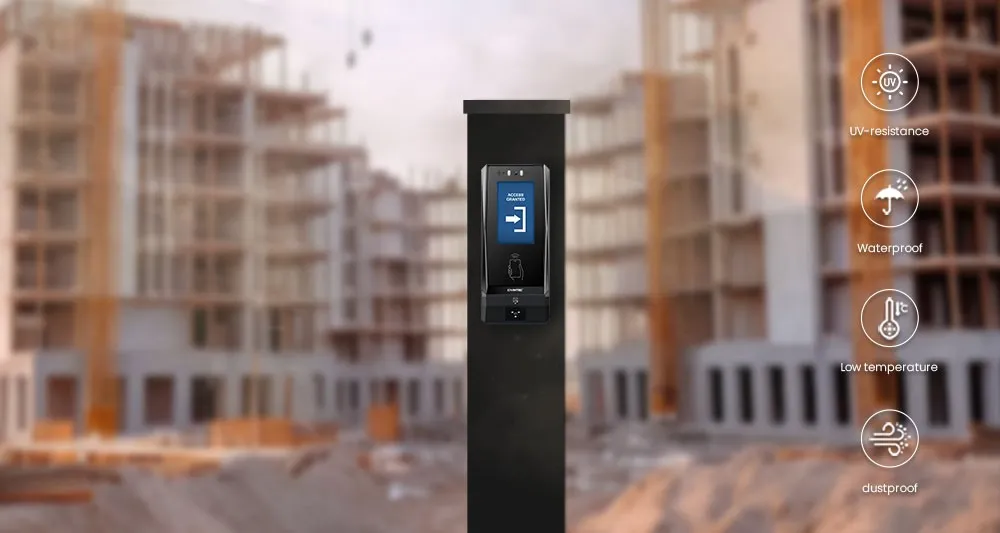

| Protection | IP65 Rated, Waterproof and UV-resistant |
| Dimensions | 198mm(H) x 82.6mm(W) x 46mm(D) |
Supports various access options secured by advanced encryption. Security can be further enhanced with 4-factor authentication combining mobile Apps with digital credentials.
Enables centralized remote control of door locks, turnstiles, and facility access. Communication is secured via bi-directional encrypted HTTP/HTTPS protocols (GET/POST) over multiple network options.

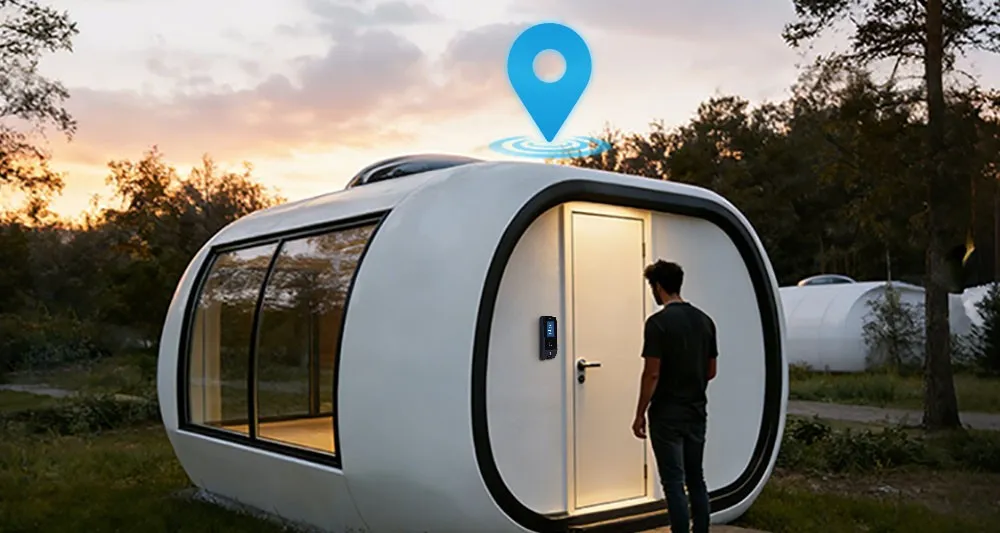

Equipped with 4G LTE and GPS for outdoor and mobile applications. Dependency on WiFi or cables is eliminated, providing location verification for construction sites and remote facilities.
Implements AES encryption for digital credentials to prevent cloning and ensures data security through encrypted HTTPS communication.

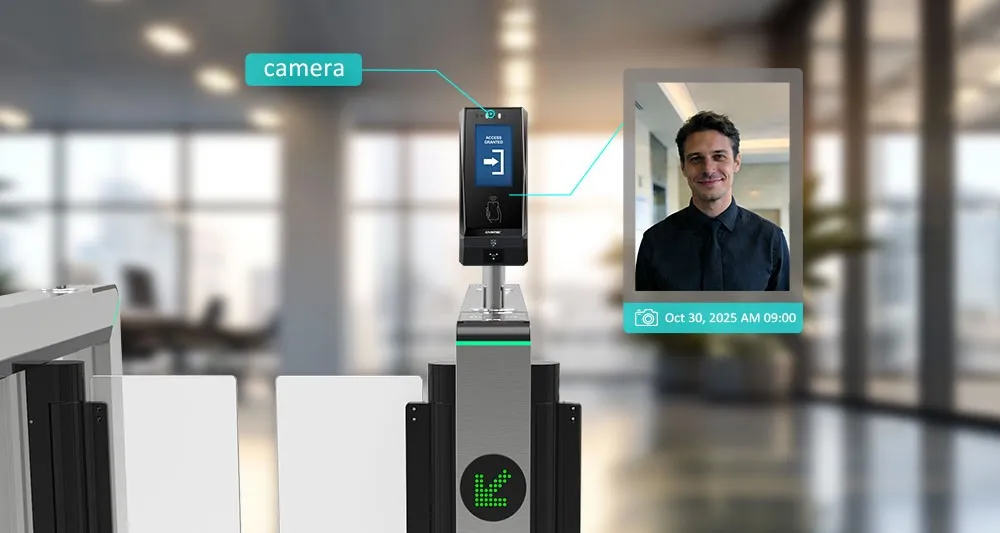

The CT10 automatically takes snapshots upon access attempts. These snapshots are synced to the server or saved locally to provide a clear security audit trail.

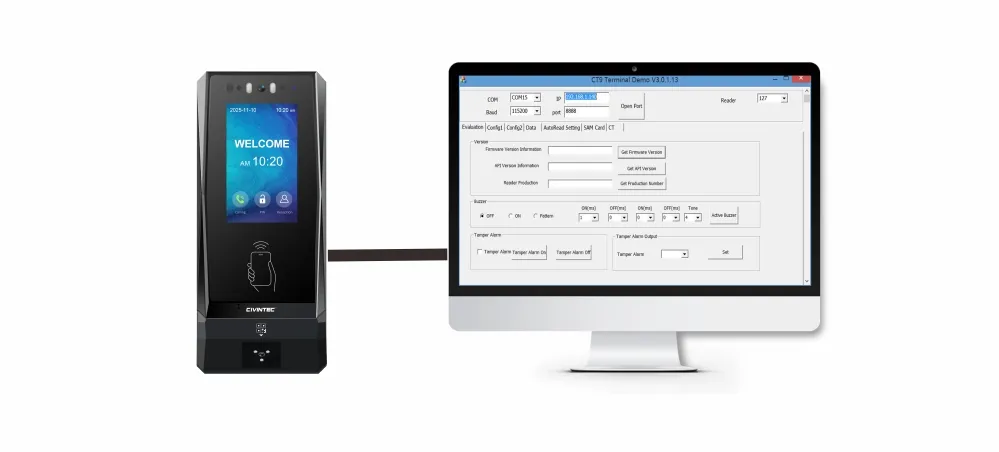

A robust SDK and demo software are available for seamless third-party server integration. The hardware testing package includes all necessary accessories and software tools to establish a full testing environment for rapid development, configuration, and firmware upgrades.
