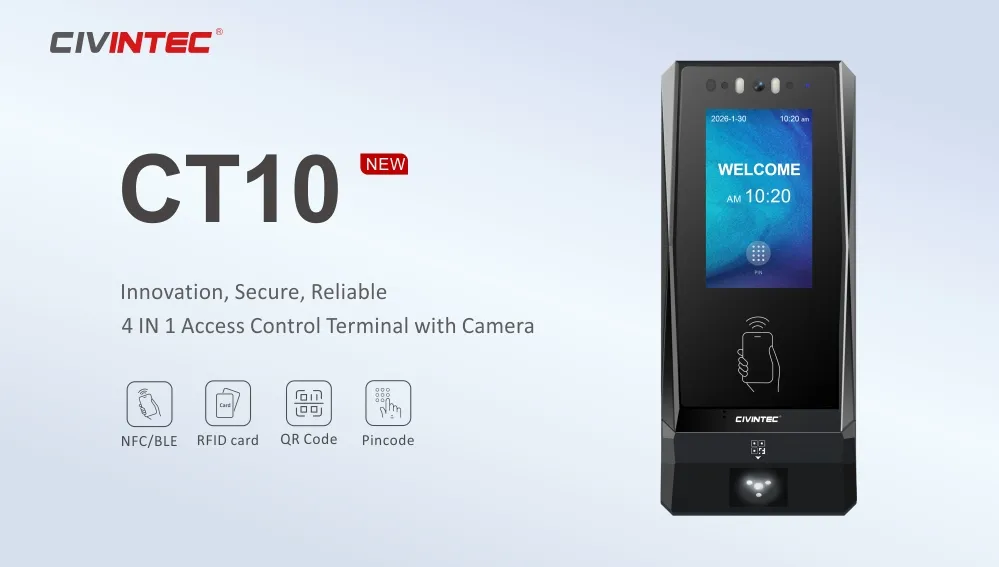

CT10 is an advanced access control terminal featuring a camera and four authentication methods: mobile credentials (BLE/NFC), RFID cards, QR scanning, and keypad input. It supports flexible connectivity via Ethernet, 4G, WiFi, and LoRaWAN for real-time or standalone operation.
| IDENTIFICATION | |
|---|---|
| RFID | 125KHz HID® PROX™, EM; 13.56MHz Mifare® Classic, Ultralight®, Plus, DESFire® EV1/EV2/EV3, NFC tags |

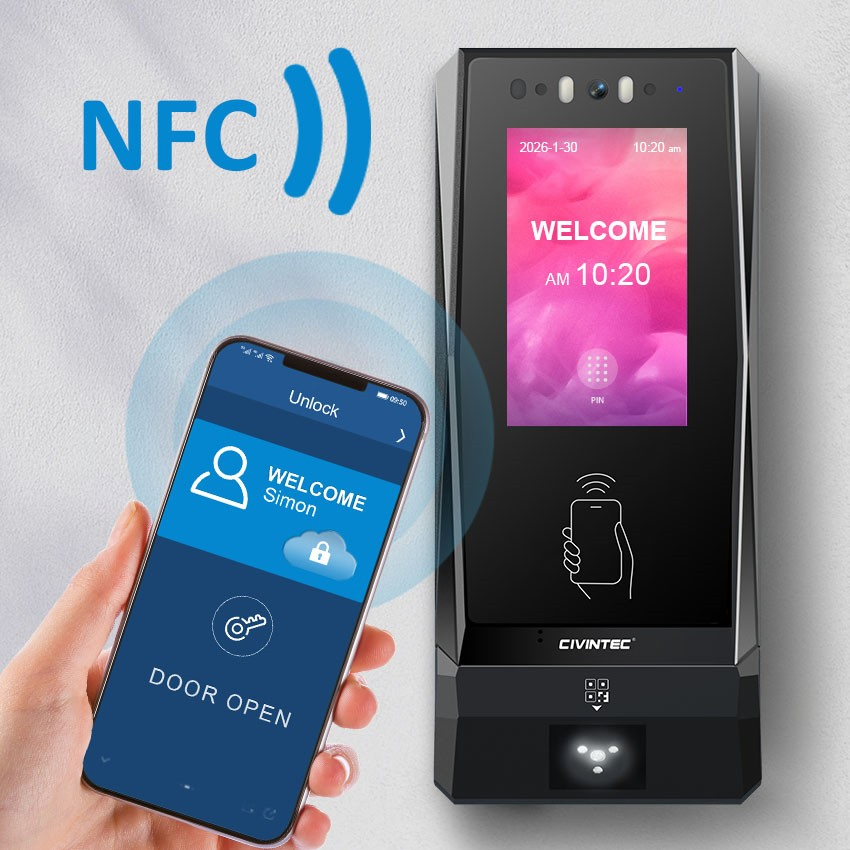

| Mobile Credential | BLE, NFC, QR Code |
| Keypad | Supported via Touch Screen |
| GENERAL | |
| Display | 3.5" touch screen (UV resistant) |

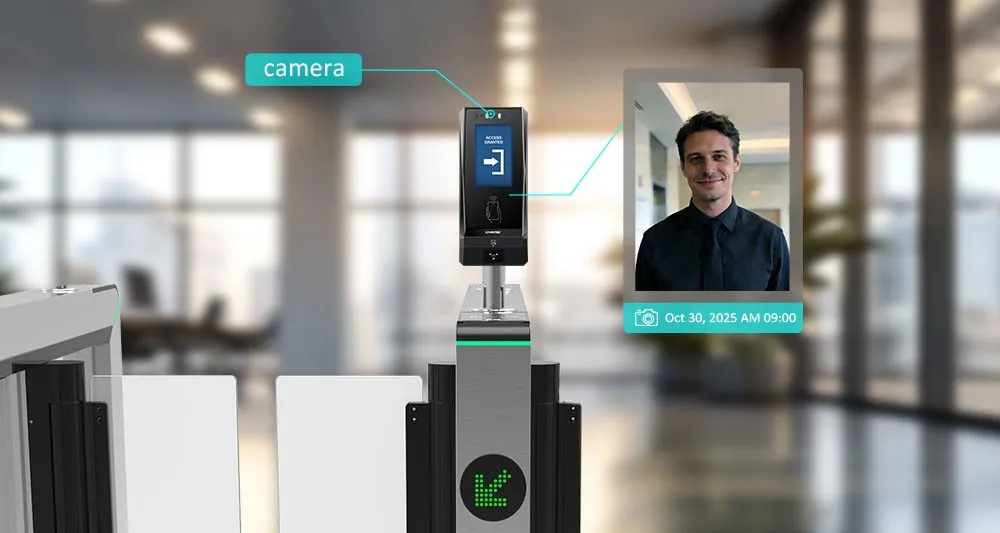

| Camera | Autofocus with LED Flash |
| Audio | High-quality sound effect Speaker |
| INTERFACE & CAPACITY | |
| Communication | TCP/IP(RJ45), WiFi, LoRaWAN, 4G, RS485, Wiegand |
| Max. Users | Local: 100,000 | Online: Unlimited |
| Max. Logs | Logs: 200,000 | Images: 7,000 |
| INSTALLATION | |
| Power | DC 12~24V or PoE IEEE802.3af |
| Environment | IP65 Rated, -20~60ºC Operation |

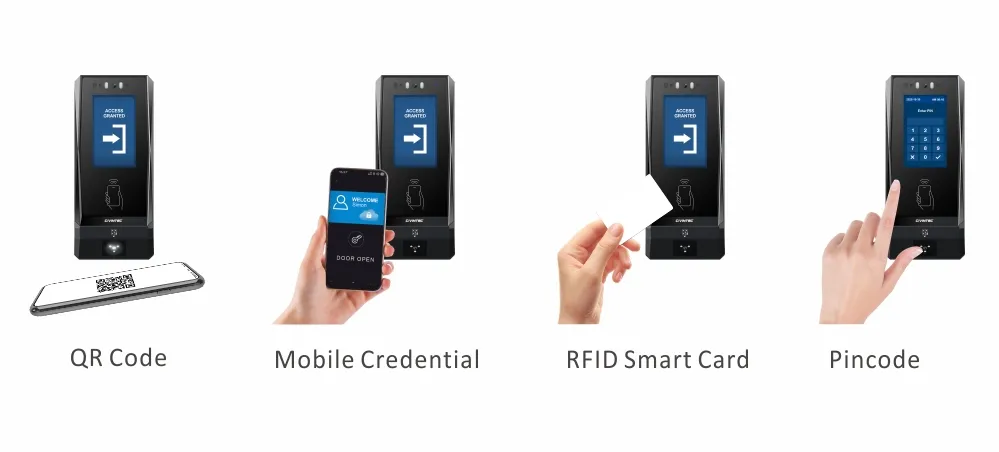

Multiple Authentication Technologies: Supports diverse credentials secured by advanced encryption. Security is enhanced with 4-factor authentication by combining mobile Apps with digital credentials.
Real-Time Cloud Management: Enables remote control of door locks and facilities via centralized cloud platforms using encrypted HTTP/HTTPS requests.

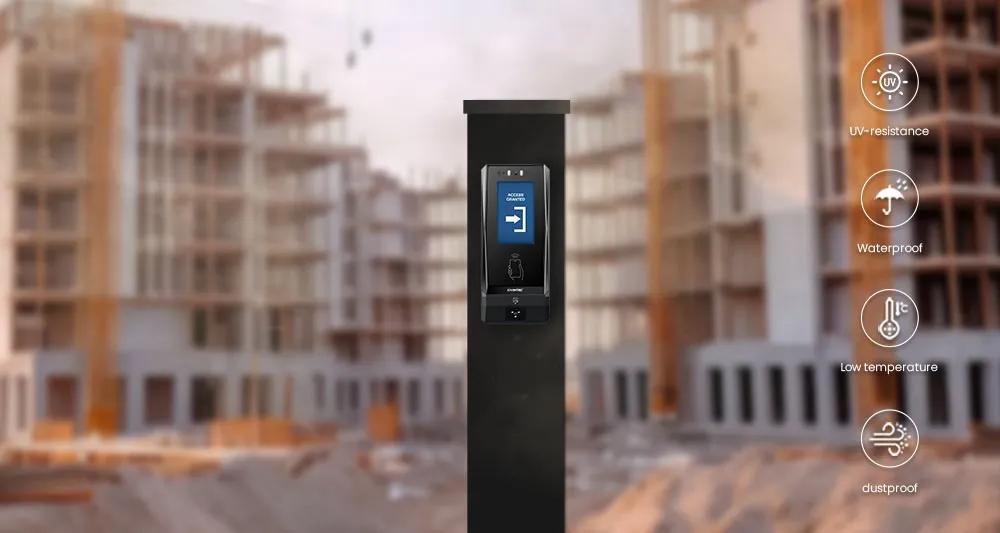

Outdoor Reliability: Features embedded 4G LTE and GPS technology. Rugged IP65-rated housing ensures continuous connectivity without dependency on local wiring.
Secure Encryption: Implements AES encryption for digital credentials and personal information, protecting data from cloning and unauthorized access.

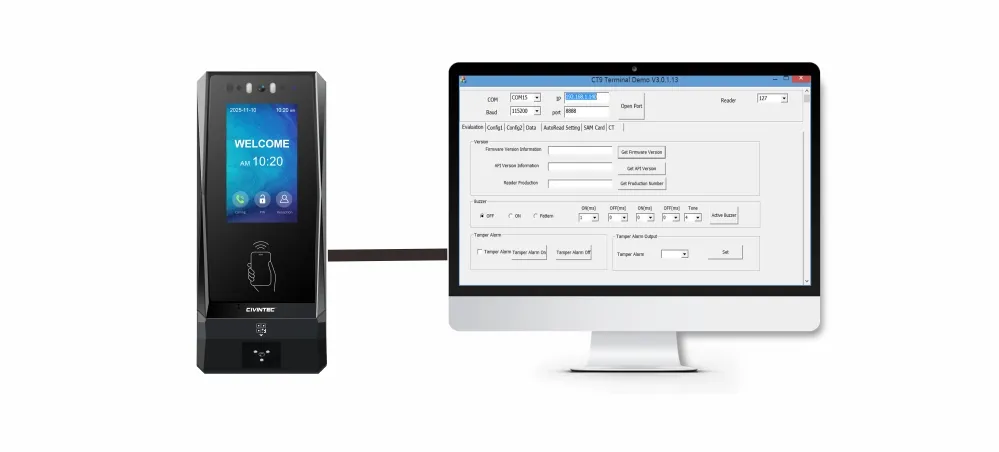

Robust SDK with demo software is offered for third-party integration. The package includes all necessary accessories and software tools for testing, configuration, and rapid development.
