HTTP Server Centralized Access Control System with RFID / QR Code / Mobile Credential Reader

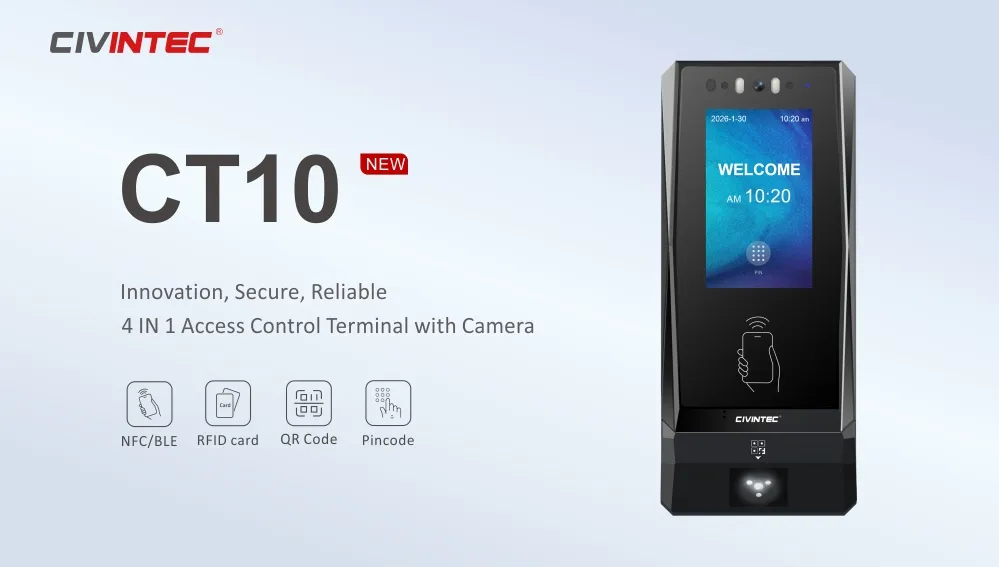

CT10 is an advanced access control terminal with a camera and four authentication methods, including mobile credentials (BLE/NFC), RFID cards, QR scanning, and keypad input. It supports flexible connectivity via Ethernet, 4G, WiFi, and LoRaWAN for real-time or standalone operation. With an open SDK and customizable 3.5-inch touch interface, it enables tailored integration across corporate, industrial, and smart building applications.
| Identification | |
| RFID | 125KHz HID® PROX™, EM; 13.56MHz Mifare® Classic, Ultralight®, Plus, DESFire® EV1/EV2/EV3, NFC tags |
| Mobile Credential | BLE, NFC, QR Code |
| Keypad | Supported |
| General | |
| Operating System | LINUX OS |
| Display | 3.5" touch screen (Resistant to UV ray) |
| Camera | Camera with Autofocus and LED Flash |
| Audio | High-quality sound effect Speaker |
| Interface | |
| Communication | TCP/IP(RJ45), WiFi, LoRaWAN, 4G, RS485, Wiegand |
| I/O Port | Door contact, Exit button, Buzzer control, Tamper alarm |
| Physical & Environment | |
| Dimensions | 198mm(H) x 82.6mm(W) x 46mm(D) |
| Temperature | -20 ~ 60ºC |
| Protection | IP65 electric epoxy potted, UV resistant |
Supports multiple access control options secured by advanced encryption. Security can be further enhanced with 4-factor authentication by combining mobile apps with digital credentials.
Enables real-time remote control via centralized cloud platforms using encrypted HTTP/HTTPS (GET/POST) requests over WiFi, 4G, or Ethernet.
Embedded 4G LTE and GPS technology designed for mobile assets and remote construction sites, ensuring location verification and constant connectivity.

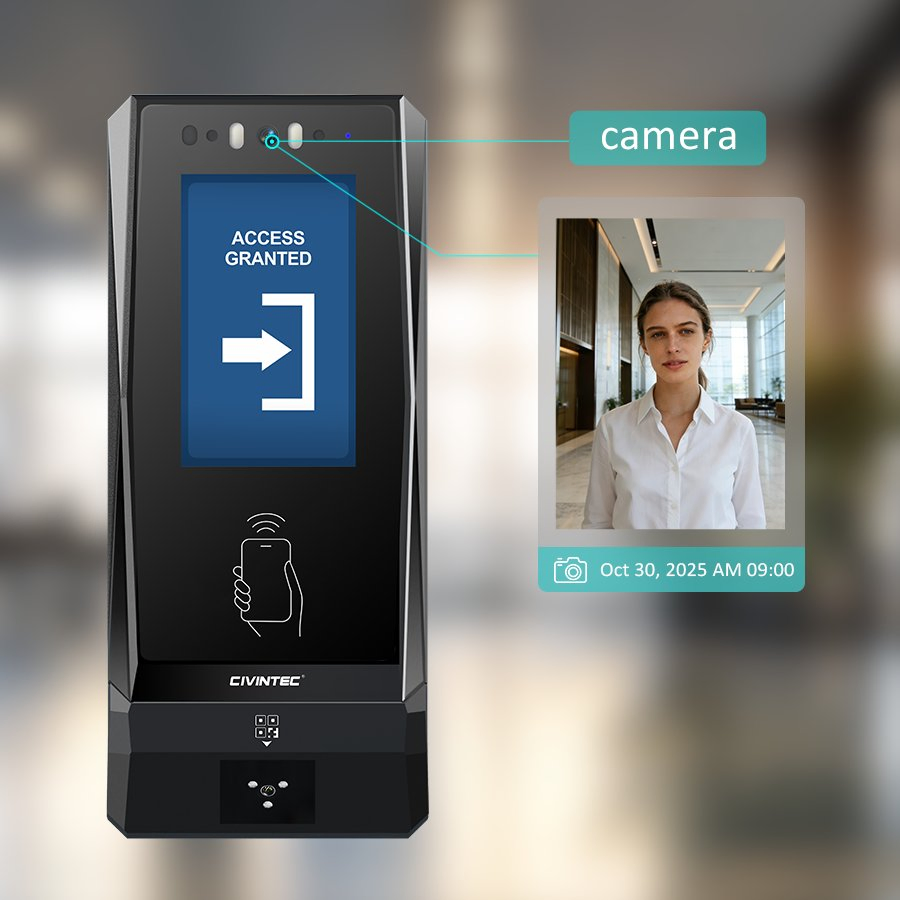

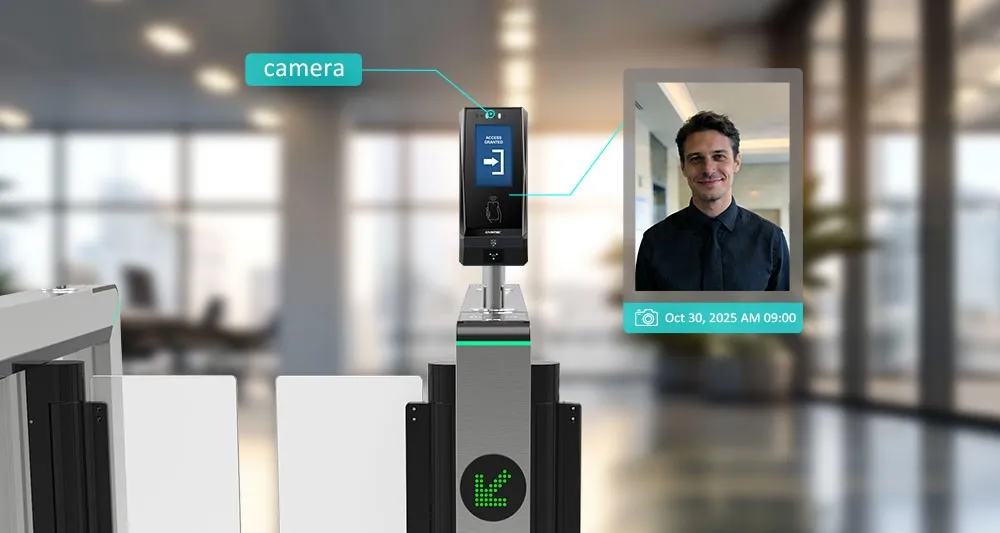

Automatically takes a snapshot upon access. Visual records are synced to the server in real-time, providing a clear audit trail for simplified management.

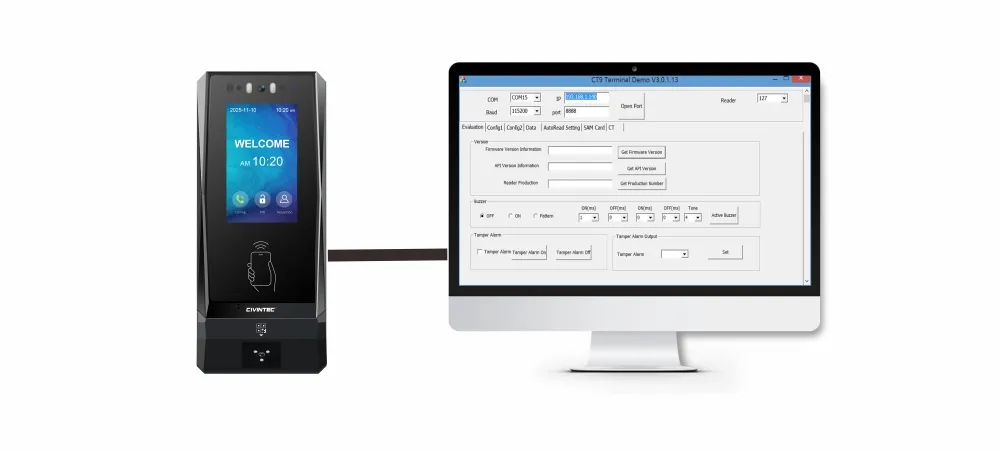

A robust SDK with demo software is offered for third-party server integration. The plug-and-play testing package includes all necessary accessories and software tools for easy configuration, fast development, and firmware upgrades.
We offer ODM customization on hardware, housing design, firmware, and software integration to meet specific project requirements.

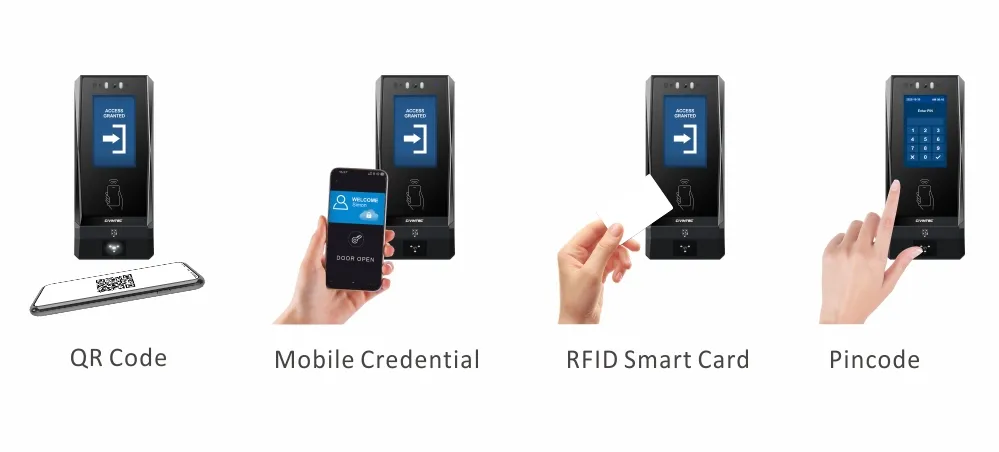

The CT10 supports RFID cards (125KHz & 13.56MHz), mobile credentials via BLE and NFC, QR codes, and digital keypad input.
Yes, it features an IP65 protection rating with electric epoxy potting and UV resistance, making it durable for rain, dust, and sunlight.
CT10 offers versatile connectivity including TCP/IP Ethernet (PoE), WiFi, 4G LTE, and LoRaWAN.
In local mode, it supports up to 100,000 users. In online mode, the capacity is unlimited as it communicates directly with the server.
Yes, the integrated camera takes an automatic snapshot during access events, which can be stored locally or synced to your server.
Absolutely. We provide a robust SDK and demo software specifically for third-party server integration and fast custom development.
