Basic Information
Product Overview
CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet, suitable for both LAN and Internet cloud server software communication. It includes embedded reply capabilities to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, featuring a touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.
| Display | 3.5" capacitive touch screen |

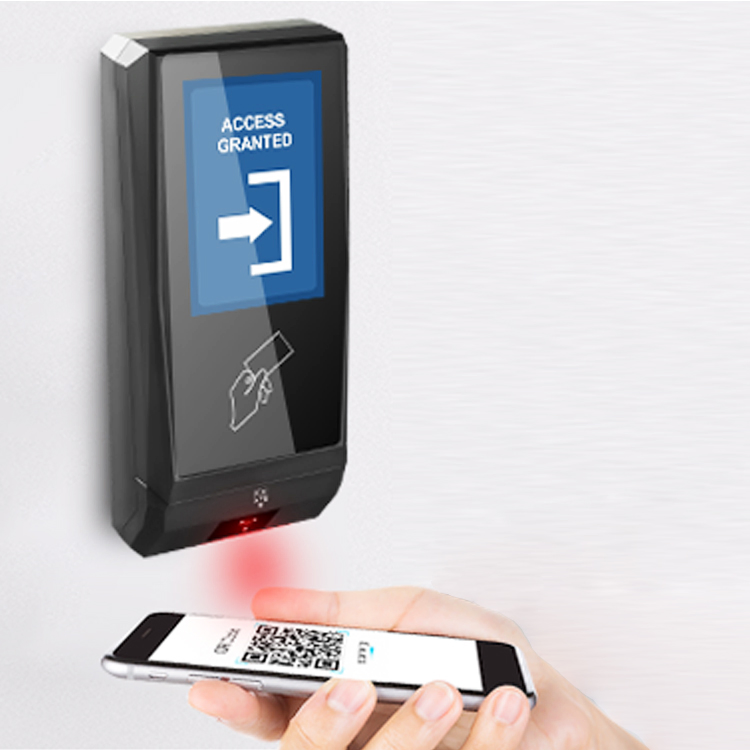

| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE, NFC |

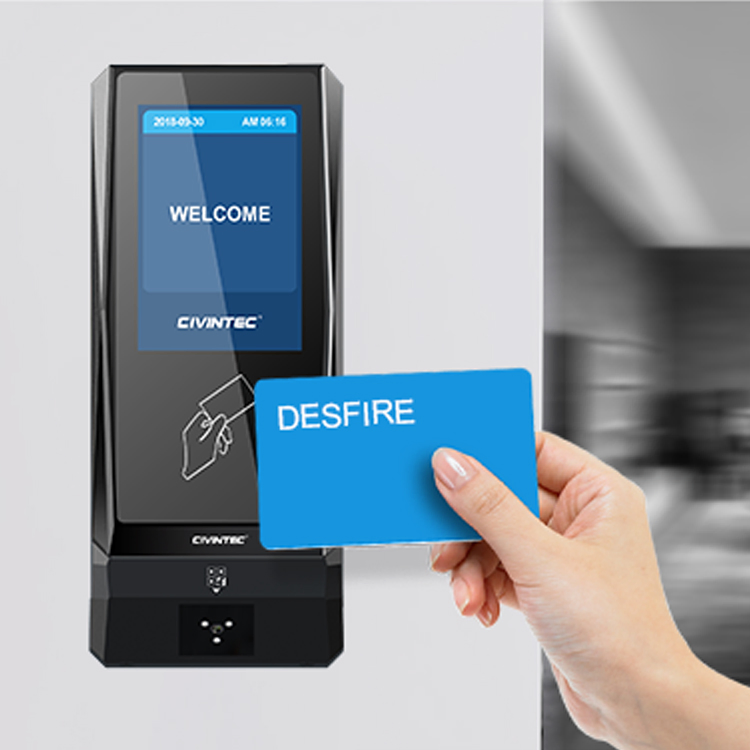

| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare Classic, Plus, DESFire EV1/EV2, NFC tags, ISO14443B |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| IP protection | IP65 Waterproof |
Product Features

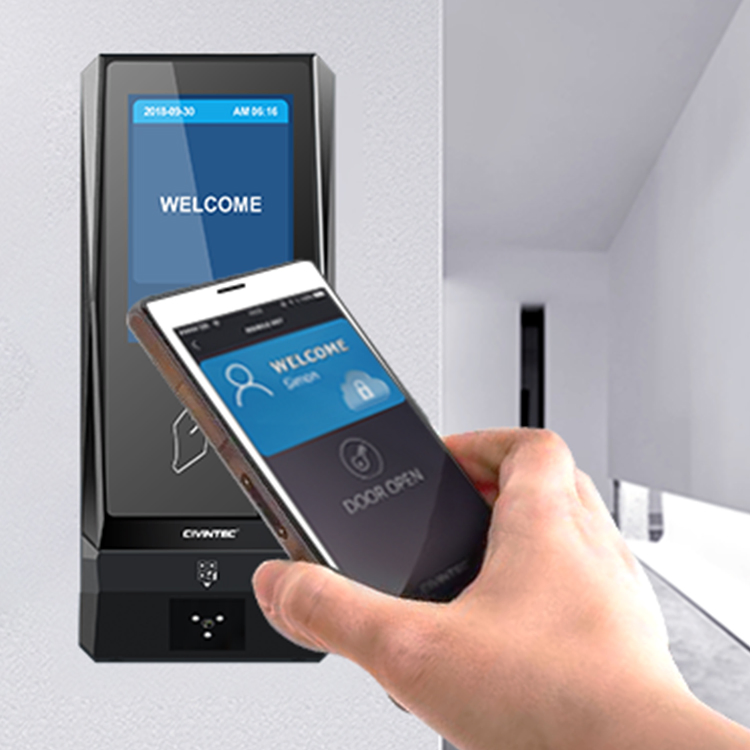

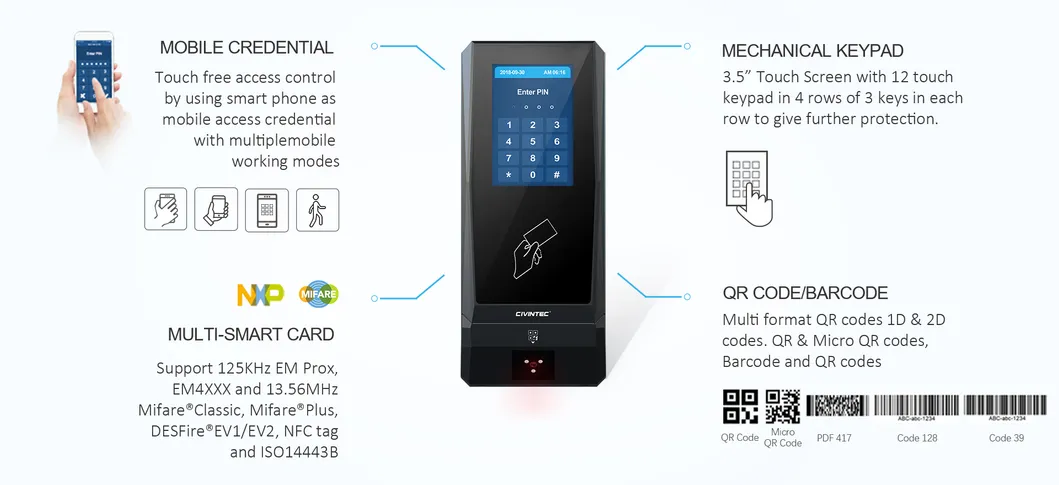

CT9 Pro incorporates 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode for comprehensive visitor access control management.
Bi-directional communication via standard HTTP & HTTPs between the terminal and server allows for remote control of door locks and various IoT facility management tasks.

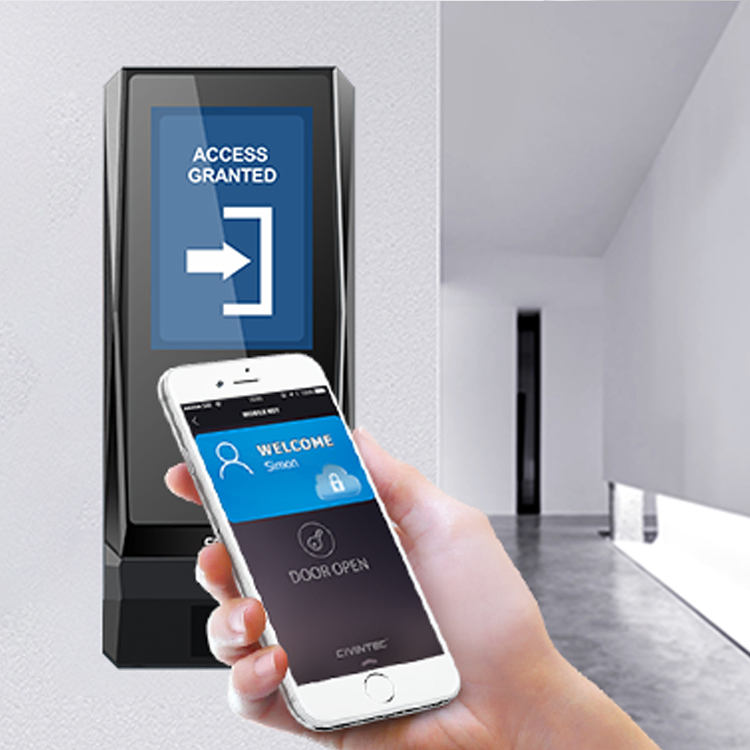

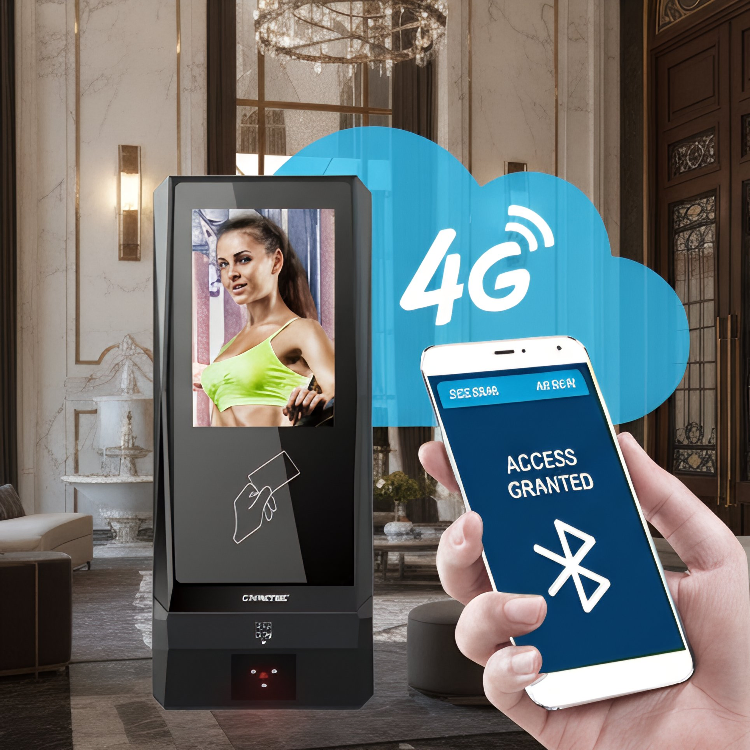

Crystal Touch CT9 is an IP access control door reader remotely controlled by cloud web-based software in real-time. With its embedded relay output, it can manage access (GRANTED/DENIED) and control facilities for IoT solutions.
System Configuration
Professional Services
As a leading designer and manufacturer of access control devices, we offer ODM customization on hardware, reader housing, firmware, and software design services.
Users can program and display their own LOGO on the 3.5" touch screen. We also offer OEM LOGO printing on the reader body.
