| Model NO. | CT9 PRO |
| Reading Distance | 10cm-15m |
| Application | Parking, Hospital, Library, Company, Bank, Store, Office, Factory, School, Data Center, Airport, Gym |
| Product | Access Control Terminal with Reader |
| Operating System | Linux OS |
| Display | 3.5" Touch Screen Display |
| Identification | RFID, NFC, BLE, Pin Code, Optional Qr Code |
| RFID Card | 13.56MHz 125kHz |
| Mobile Credential | NFC, BLE |
| Qr Code | Qr Code, Barcode |
| Interfaces | 4G, WiFi, TCP/IP, RS485 Osdp, Wiegand |
| IP Protection | IP65 Waterproof, UV Resistance |
| Certification | CE, FCC |

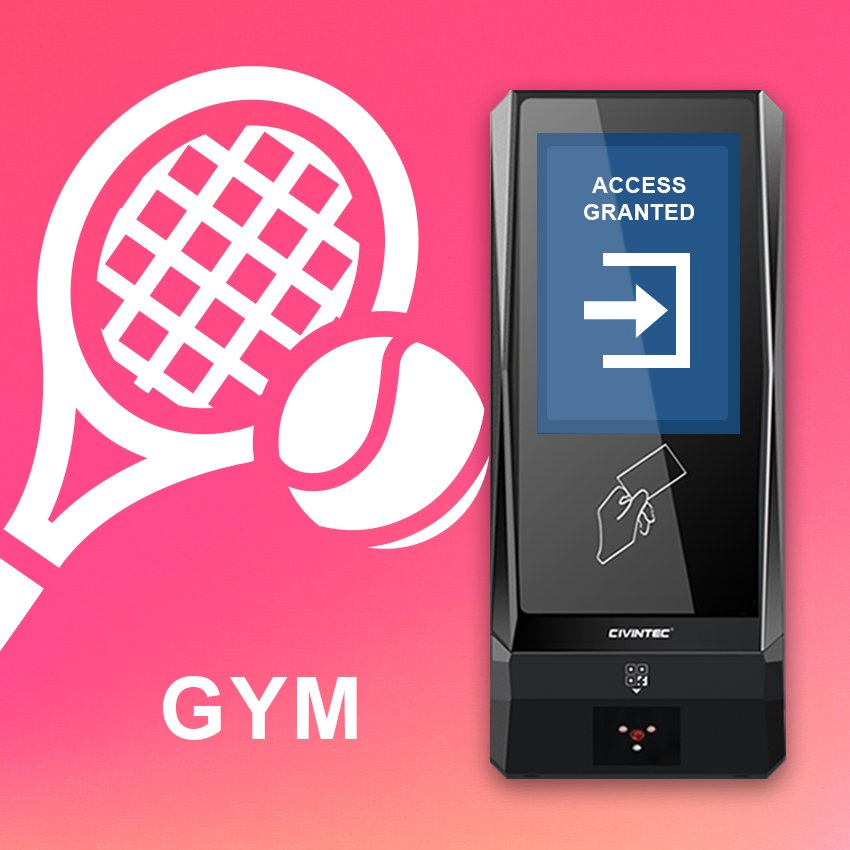

CT9 Pro is a Linux-based HTTP/HTTPS server centralized terminal with wireless 4G and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, featuring an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE / barcode recognition via mobile phones.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D): QR Code, Micro QR, PDF417, Code 128, etc. |
| Mobile ID | BLE, NFC (iOS/Android supported) |
| RFID Card | EM 125KHz, 13.56MHz ISO14443A/B, Mifare, DESFire EV1/EV2/EV3, Seos |
| Comm. Interface | 4G, WiFi, TCP/IP, Wiegand, RS485 OSDP |
| I/O Port | 1~2 relay outputs, Tamper alarm, Door contact, Exit button |
| Offline Capacity | 10,000 users / 50,000 logs |

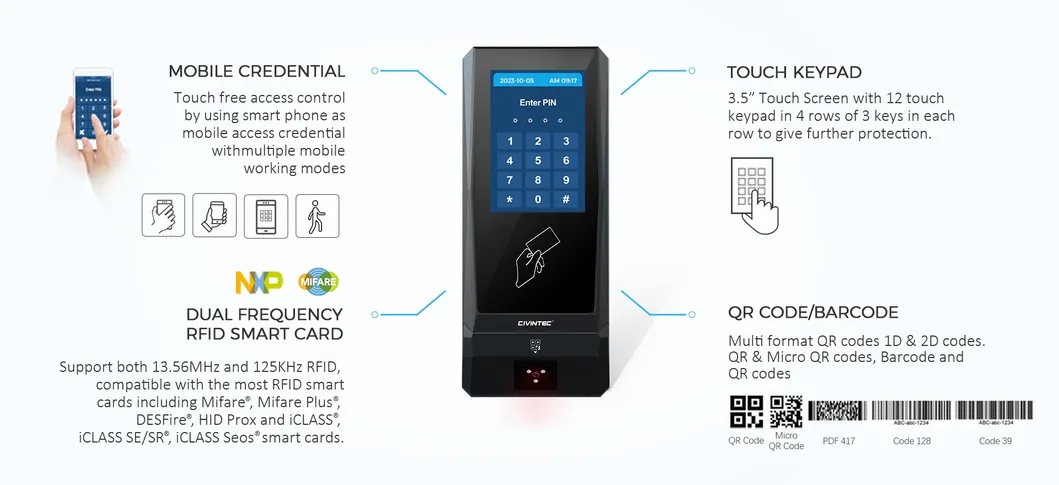

Incorporates 5-in-1 technologies: touch keypad, dual-frequency RFID, BLE, NFC, and QR code for comprehensive visitor and access management.
Bidirectional communication via standard HTTP/HTTPS protocols ensures secure remote control of door locks and IoT facilities.
Functions as an IP access control reader managed in real-time by web software. Embedded relays manage entry authorization and facility operations.
With an IP65 rating, the terminal is resistant to rain, dust, and sunlight, making it ideal for outdoor use and rugged environments.
We provide ODM customization across hardware, housing, firmware, and software design. Users can program and display custom logos on the 3.5" touch screen.
CT9 PRO supports 5-in-1 access methods including touch PIN code, RFID smart cards (125KHz & 13.56MHz), BLE, NFC mobile access, and 1D/2D QR codes.
Yes, it features an IP65 waterproof rating and UV resistance, making it suitable for outdoor environments and extreme weather conditions.
The terminal uses standard HTTP and HTTPS protocols for secure, bidirectional communication between the device and the cloud or local server.
Yes, it supports PoE IEEE 802.3af, allowing for both power and data to be delivered through a single Ethernet cable.
The terminal can store up to 10,000 offline card users and 50,000 event logs by default, with more available upon request.
Yes, the 3.5" touch screen is fully programmable, allowing users to display custom logos and unique user interfaces.
