Server Real-Time Remote Controlled All-in-One RFID NFC BLE Qr Code Access Control System WiFi Lorawan with Https Mqtt Sdk
Server Real-Time Remote Controlled All-in-One RFID NFC BLE Qr Code Access Control System WiFi Lorawan with Https Mqtt Sdk
Server Real-Time Remote Controlled All-in-One RFID NFC BLE Qr Code Access Control System WiFi Lorawan with Https Mqtt Sdk
Server Real-Time Remote Controlled All-in-One RFID NFC BLE Qr Code Access Control System WiFi Lorawan with Https Mqtt Sdk
Server Real-Time Remote Controlled All-in-One RFID NFC BLE Qr Code Access Control System WiFi Lorawan with Https Mqtt Sdk
1 / 5
Server Real-Time Remote Controlled All-in-One RFID NFC BLE Qr Code Access Control System WiFi Lorawan with Https Mqtt Sdk
Server Real-Time Remote Controlled All-in-One RFID NFC BLE Qr Code Access Control System WiFi Lorawan with Https Mqtt Sdk
Server Real-Time Remote Controlled All-in-One RFID NFC BLE Qr Code Access Control System WiFi Lorawan with Https Mqtt Sdk
Server Real-Time Remote Controlled All-in-One RFID NFC BLE Qr Code Access Control System WiFi Lorawan with Https Mqtt Sdk
Server Real-Time Remote Controlled All-in-One RFID NFC BLE Qr Code Access Control System WiFi Lorawan with Https Mqtt Sdk

Server Real-Time Remote Controlled All-in-One RFID NFC BLE Qr Code Access Control System WiFi Lorawan with Https Mqtt Sdk

Customization: Available
Type: Access Control System
Card Type: CPU, Mifare, EM, DESFire EV1/EV2/EV3, MIFARE Plus
Send Inquiry

Product Description

Basic Information
Model NO.
CT9 PRO
Reading Distance
10cm-15m
Application
Parking, Hospital, Library, Company, Bank, Store, Office, Factory, School, Data Center, Airport, Gym
Product
Access Control Terminal with Reader
Operating System
Linux OS
Display
3.5" Touch Screen Display
Identification
RFID, NFC, BLE, Pin Code, Optional Qr Code
RFID
MIFARE Plus, MIFARE, DESFire EV1/EV2/EV3, 125kHz
Mobile Credential
NFC, BLE
Qr Code
Qr Code, Barcode
Interfaces
4G, WiFi, TCP/IP, RS485 Osdp, Wiegand
IP Protection
IP65 Waterproof, UV Resistance
Certification
CE, FCC
Origin
China
Product Overview
Product Overview

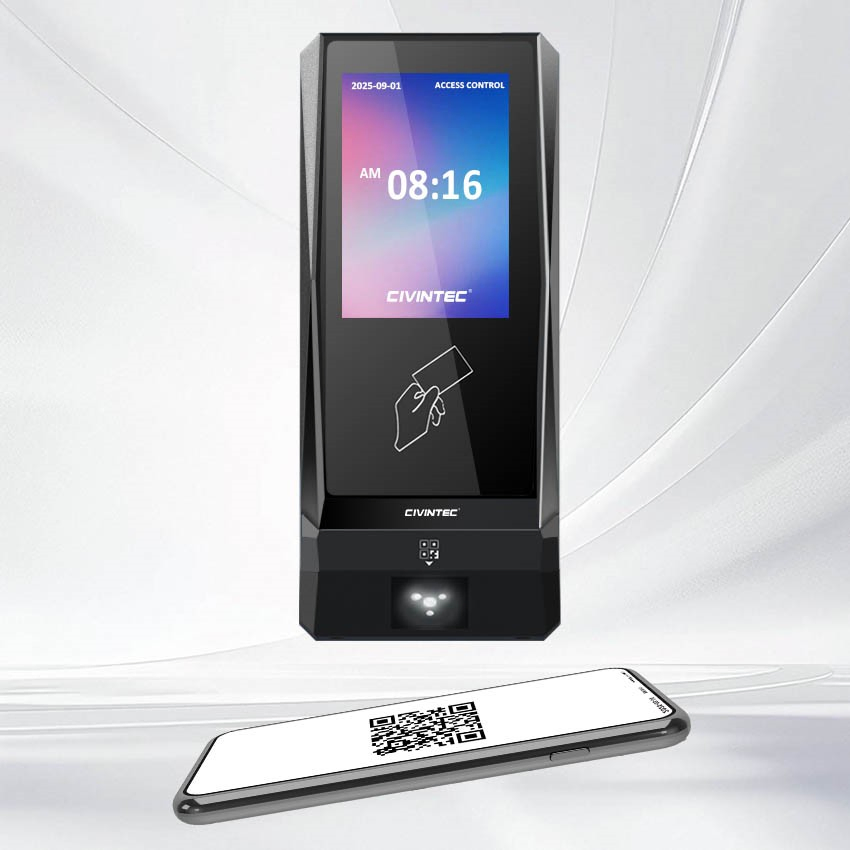

CT9 Pro is Linux based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE / barcode by using mobile phone.
CT9 Pro Display Access Credential
Display3.5" capacitive touch screen
QR codeMultiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes.
Mobile IDBLE, NFC (Support BLE in iOS, and NFC/BLE in Android)
RFID smart card- EM 125KHz, 13.56MHz ISO14443A Mifare Classic, Mifare Plus, DESFire EV1, EV2, EV3, NFC tags (T2T, T4T), ISO14443B
- CLASS SE/SR iCLASS Seos smart cards
SAM slotISO7816(T=0,T=1) 1 SAM module, more on request
Communication4G, WiFi, TCP/IP, Wiegand, RS485 protocol OSDP 1&2
Power Supply12-24V DC; PoE IEEE 802.3af
IP protectionIP65 outdoor/indoor use, UV-resistance
Product Features

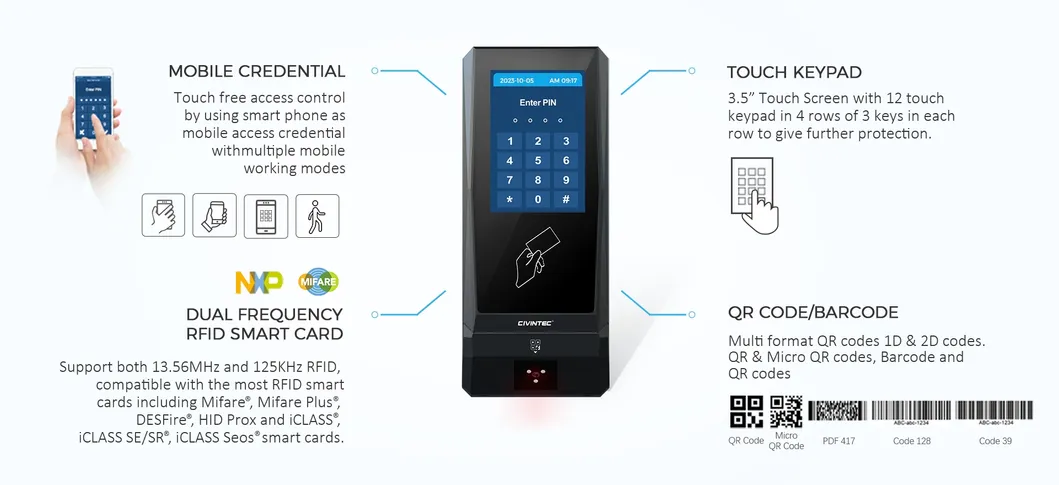

Multiple Access Credential
Incorporates 5-in-1 multiple access credential technologies including touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning for comprehensive visitor management.
Multiple Credential
Cloud Server Remote Control
Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door locks and various IoT facility management systems.
Cloud Remote Control
Multiple Application Solutions
Remotely controlled by cloud web based software in real time. Embedded relay output controls door locks as ACCESS DENIED or ACCESS GRANTED, building versatile IoT solutions.
Application Solutions
Weather-Resistant Protection
With IP65 ratings, CT9 PRO is weather resistant to rain, dust, and strong sunlight, ideal for outdoor use and various rugged working environments.
IP65 Protection
System Configuration
System Configuration
Customization Services
We offer ODM customization on hardware, reader housing, firmware and software design services. Users can program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.
Design Service Logo Customization
Related Products
Product Series 1 Product Series 2 Product Series 3
Product Detail 1 Product Detail 2 Product Detail 3
Frequently Asked Questions
Q1: What identification technologies does CT9 PRO support? A: CT9 PRO supports 5-in-1 technologies: RFID (125KHz & 13.56MHz), BLE, NFC, Touch Pin Code, and QR Code/Barcode scanning.
Q2: Can CT9 PRO be used outdoors? A: Yes, it features an IP65 waterproof rating and UV resistance, making it suitable for outdoor environments and various weather conditions.
Q3: How does the terminal communicate with the server? A: It uses standard HTTP/HTTPs protocols for real-time bi-directional communication via 4G, WiFi, or TCP/IP Ethernet.
Q4: Does the device support Power over Ethernet (PoE)? A: Yes, CT9 PRO supports PoE IEEE 802.3af as well as 12-24V DC power supply.
Q5: Can I display my company logo on the screen? A: Absolutely. The 3.5" touch screen is fully programmable, allowing users to display custom logos and interfaces.
Q6: What is the maximum log capacity for offline use? A: The standard configuration supports up to 10,000 users and 50,000 event logs offline, with more available upon request.
