Basic Specifications
Technology
32-Bit Technology
Way of Control
Computer Control
Type
Electro Magnetic Lock
Communication Protocol
HTTP, TCP/IP, UDP
Extension Interface
RS485, RS232
Card Read Protocol
Wiegand26, 34
Power Supply Output
USB Port and 5V
Door Open Method
Card, Software, QR, Fingerprint
Production Capacity
10000/PCS
Packaging & Delivery
Package Size
28.00cm * 18.00cm * 25.00cm
Package Gross Weight
1.000kg
Product Description

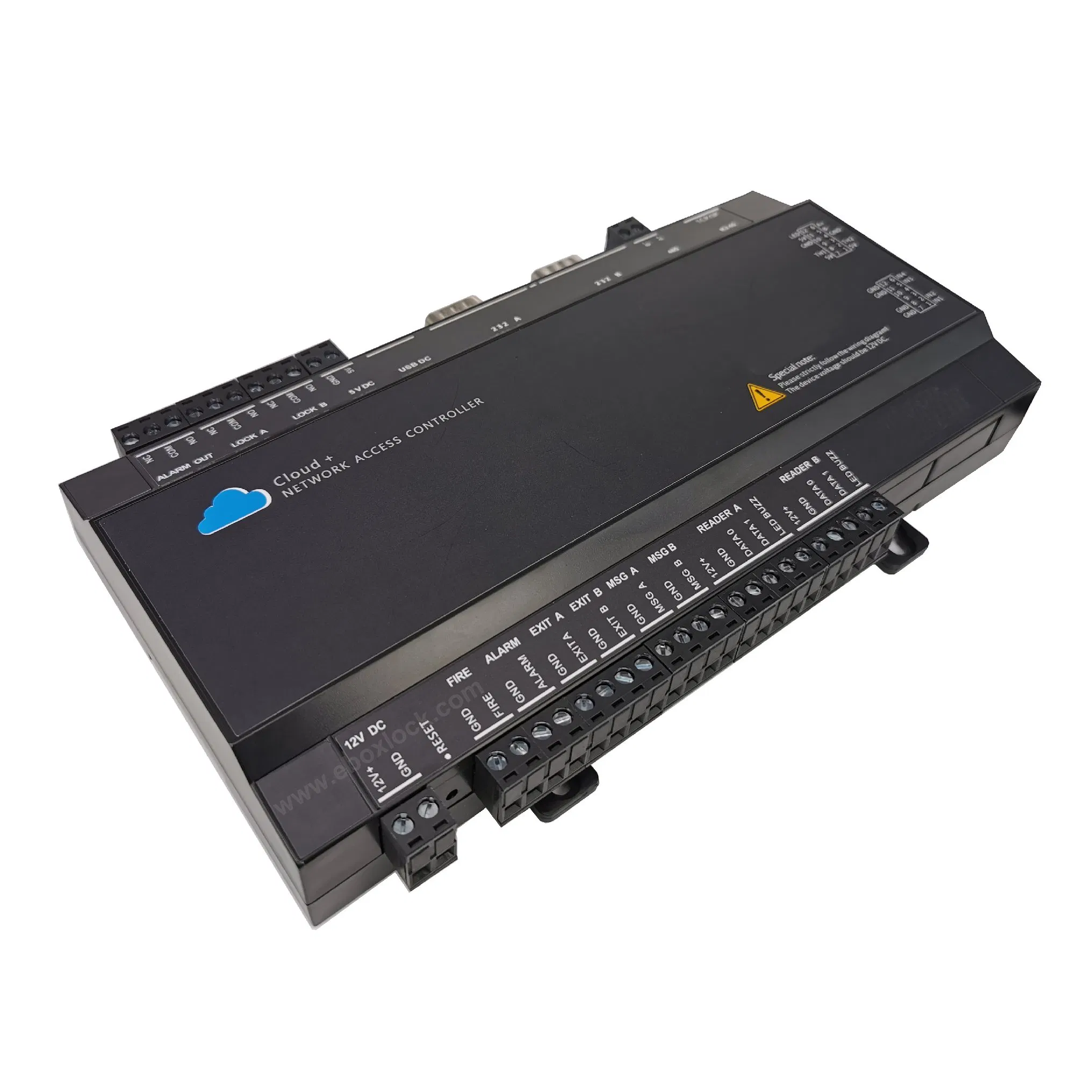

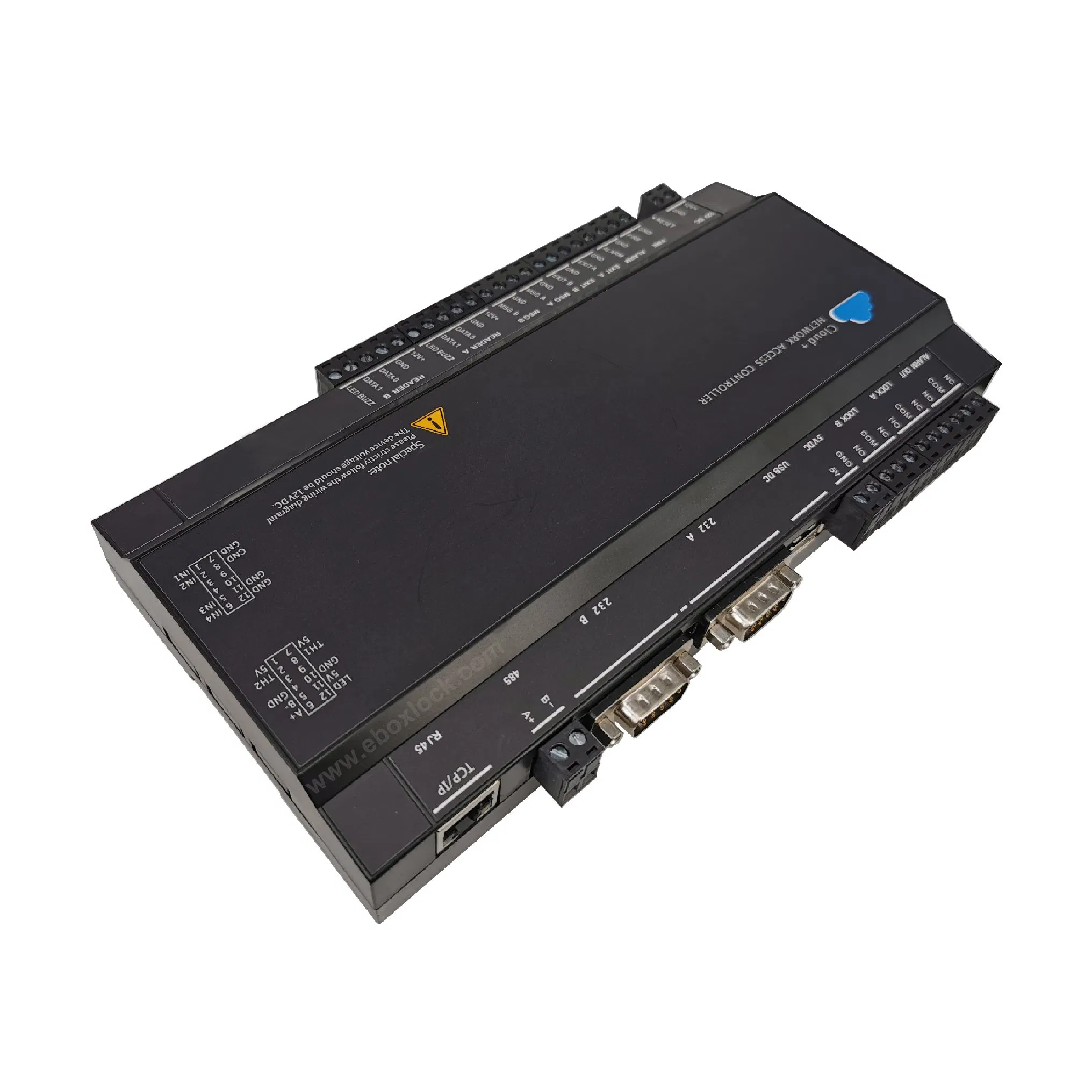

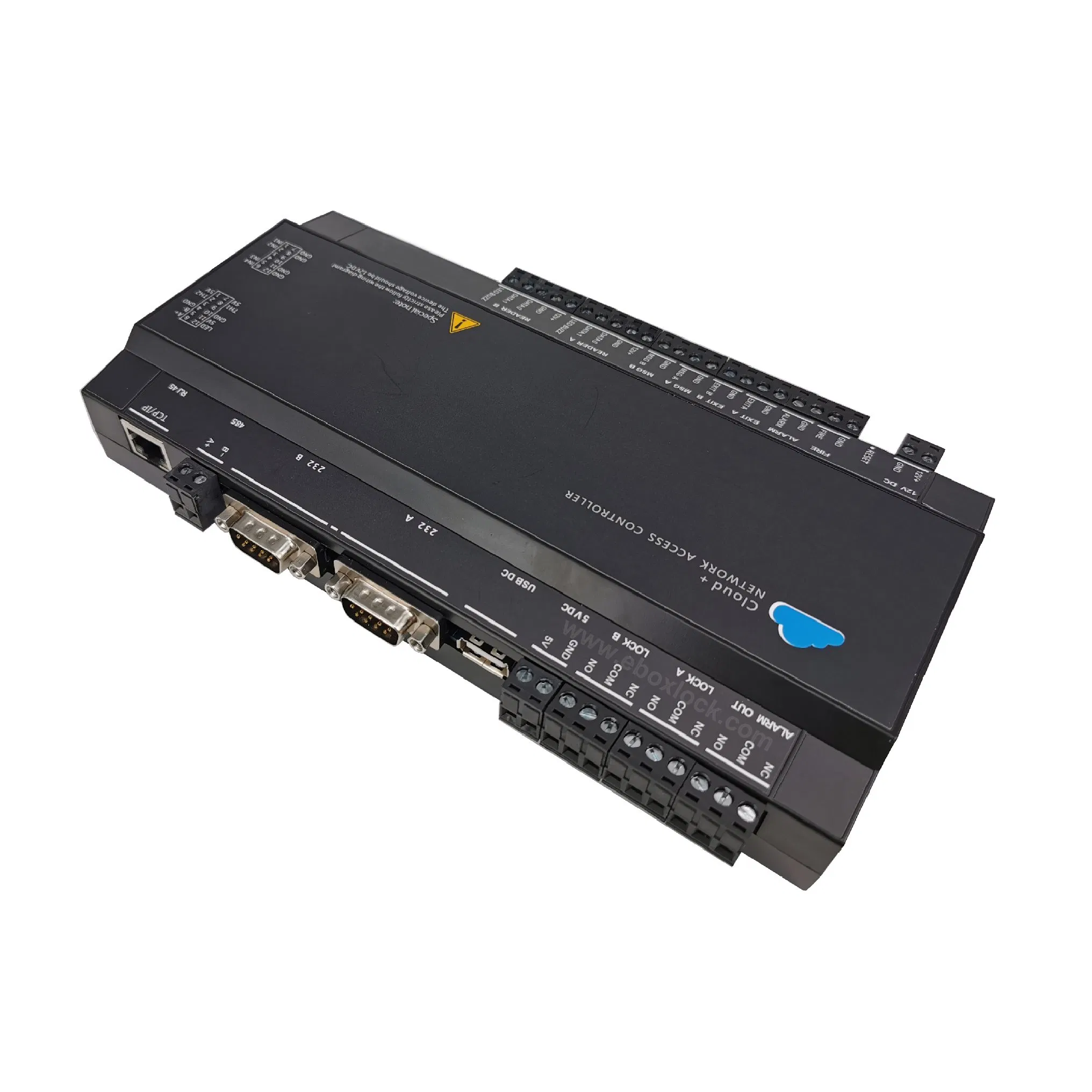

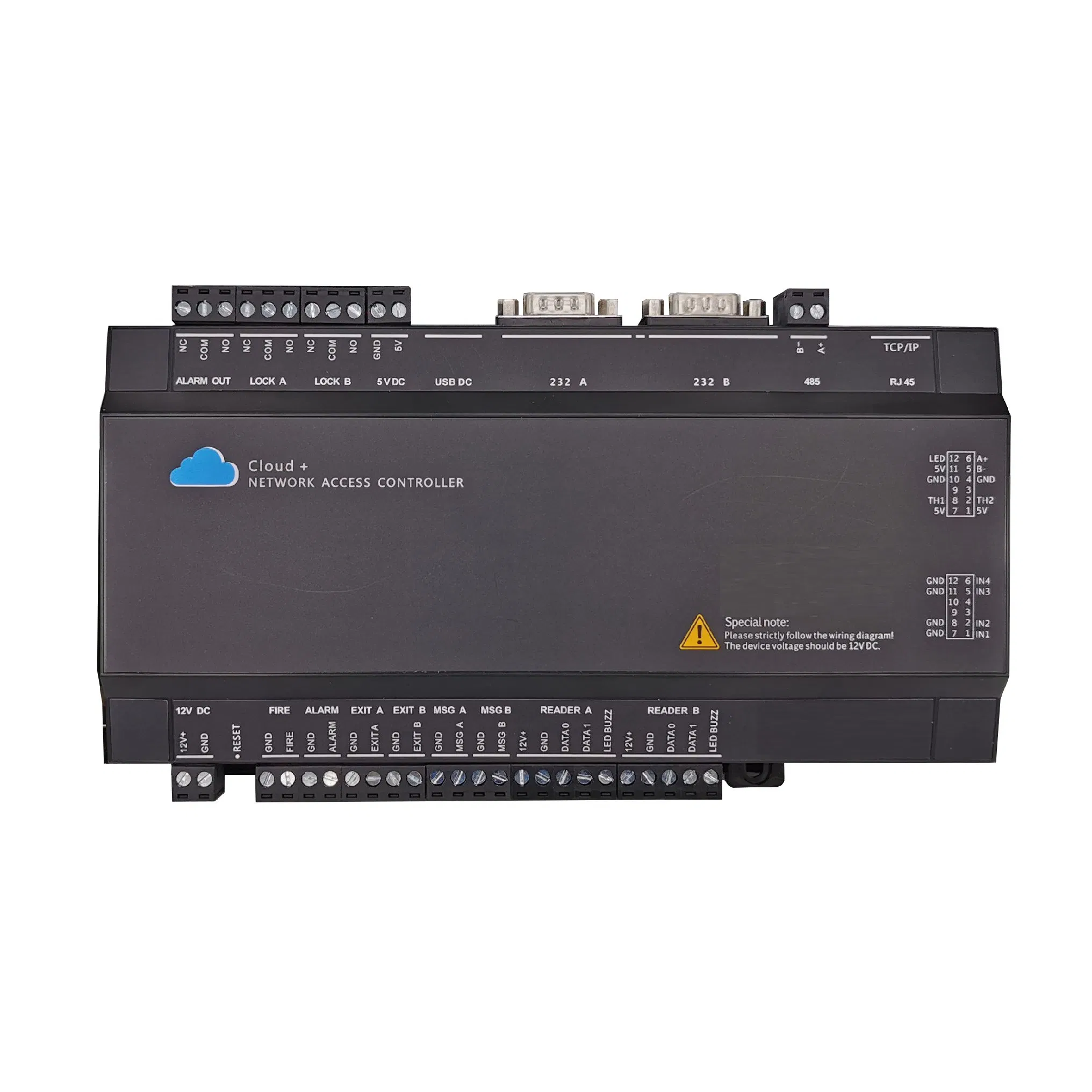

The cloud access controller is designed with two robust relays provide door lock and auxiliary output control while multiple supervised inputs are used to monitor door status, REX, power supply, battery, tamper, and general-purpose inputs status, all supporting analog-to-digital conversion. The access controller provides a flexible, open architecture, IP-enabled platform for deploying a broad range of access control systems. OEM partners can achieve the most robust access control to deliver total security beyond the door.
Key Features
Supports multi-door interlocking, anti-passback, and multi-card functions.
Supports WG26, WG34 protocols, configurable via WEB interface.
Online upgrade capability and remote control of doors.
Advanced alarm event upload including tamper-proof, forced entry, and invalid swiping attempts.
LCD screen support for real-time field display.
Comprehensive protocol support: TCP/IP, UDP, and HTTP.
Custom URL paths for seamless cloud application development.
Data security via AES128 encryption and custom passwords.
DHCP support for automatic IP address acquisition and simplified installation.
SDK development kit and Demo code provided.
Technical Parameters
| Working Voltage | 12V |
| Working Current | <80mA |
| Rated Power | <5W |
| Door Open Method | Card, PSW, double card, software remote, QR code, fingerprint |
| Working Temperature | <60 C |
| Humidity | 10%--95%R.H |
| Panel Size | 210*125*22mm |
| Shell Size | 214*105*37mm |
| Metal Box Size | 320*270*75mm |
| Data Protection | 10 years without power supply |

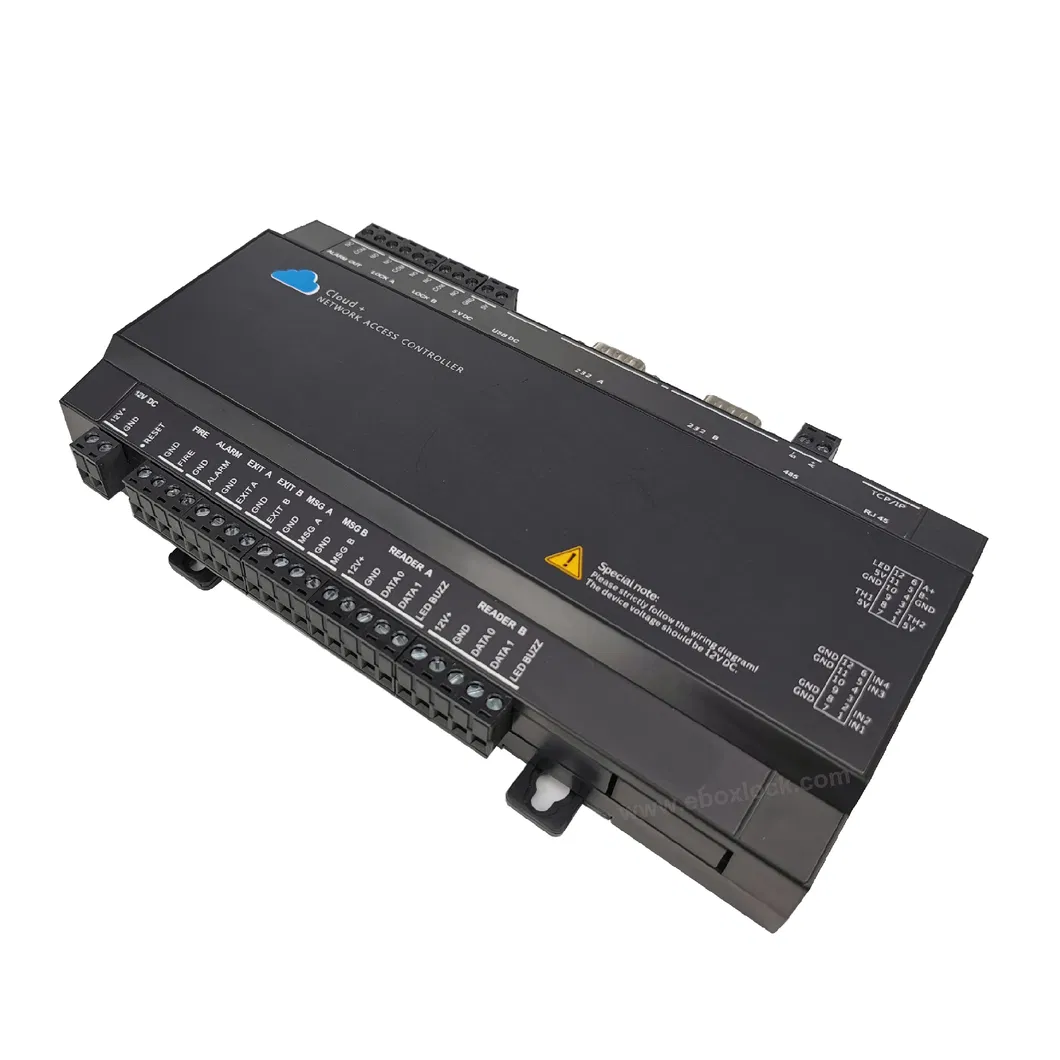

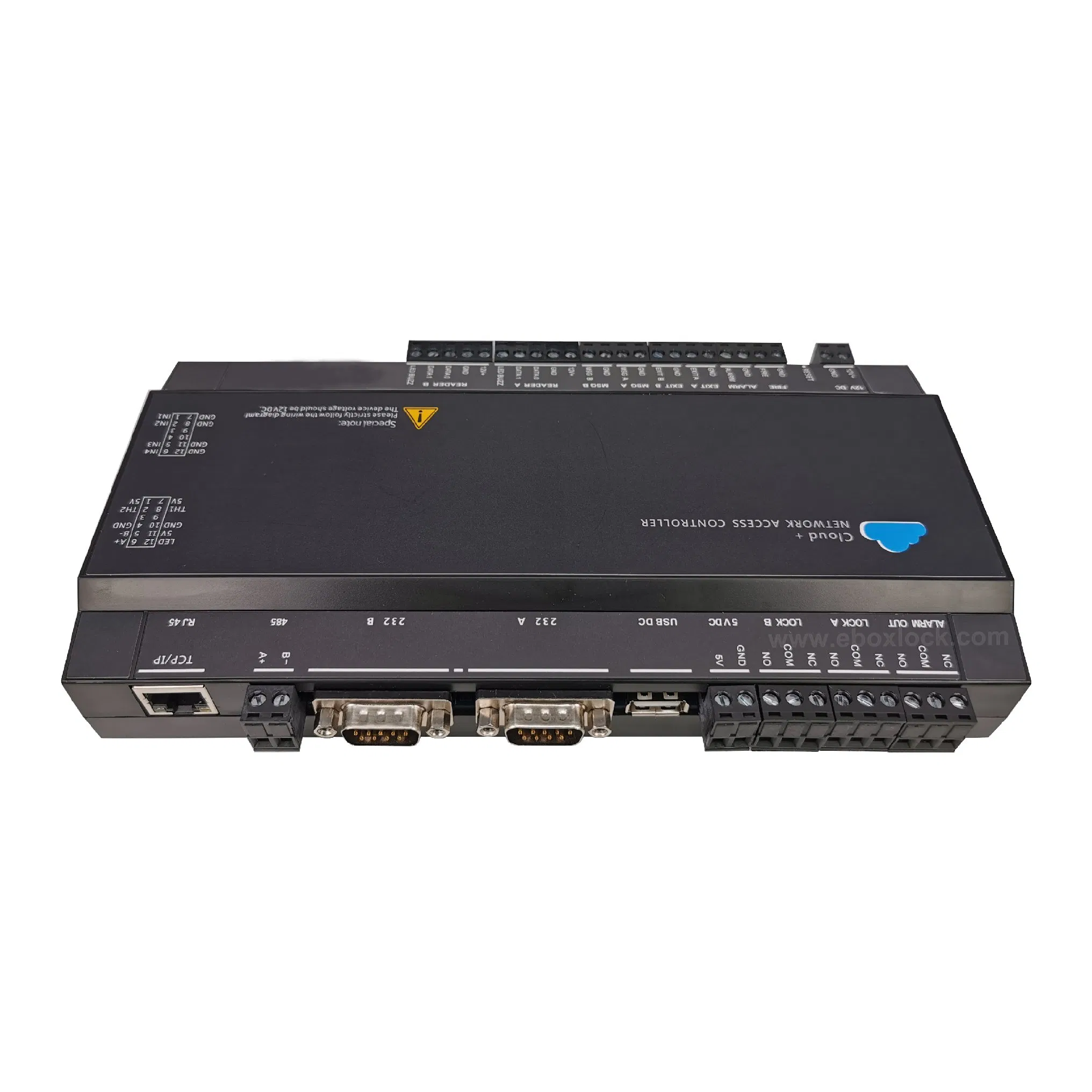

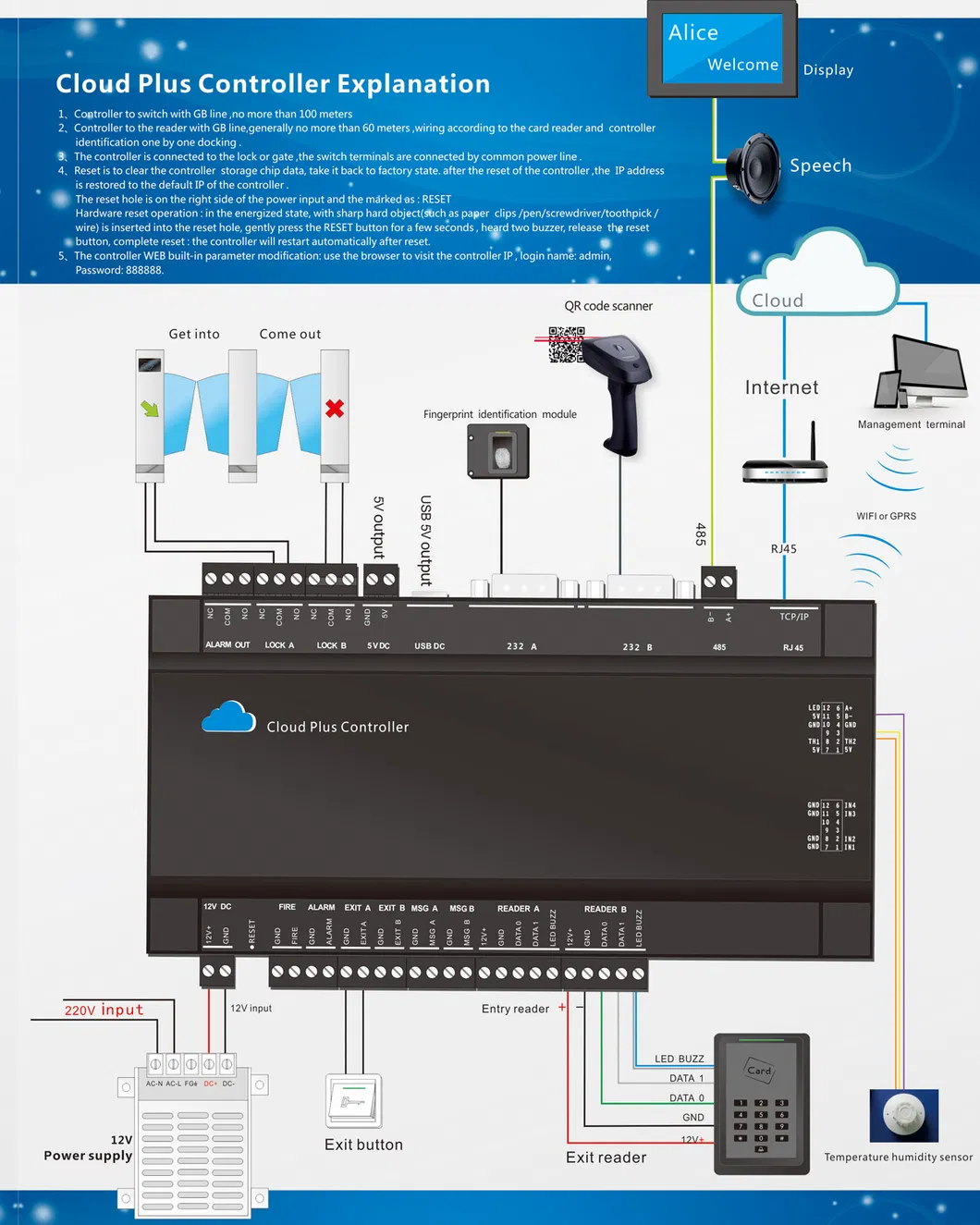

Standard Interface
| WG Card Reader | 2 | Alarm Output | 1 |
| Button Input | 2 | Control Output | 2 |
| Door Sensor Input | 2 | RJ45 Port | 1 |
| RS485 Interface | 1 | RS232 Interface | 2 |
| Fire Alarm Input | 1 | Alarm Input | 1 |
| Humidity Detection | 2 | Temperature Detection | 2 |
| USB Power Supply | 1 | 5V Power Supply | 1 |
Locking Solutions
Specializing in electrified locking solutions for lockers, cabinets, and kiosks. Whether for size-restricted enclosures or heavy-duty metal cabinets, customized designs are available to meet specific security requirements. Our range covers electronic cabinet locks, smart parcel locker control systems, vending machine control systems, and IoT hardware. Professional security control solutions are ideal for parcel lockers, smart lockers, vending units, cash drawers, post mailboxes, and archive cabinets.
Frequently Asked Questions
What communication protocols does this controller support?
The controller supports HTTP, TCP/IP, and UDP protocols, making it highly adaptable for cloud-based and network applications.
How can I open the door using this system?
Multiple methods are supported, including RFID cards, software remote control, QR codes, fingerprints, and password entry.
Is there a development kit available for integration?
Yes, we provide a full SDK development kit along with Demo code to assist OEM partners in system deployment.
Does the controller support security encryption?
Yes, it supports AES128 encryption and custom passwords to ensure data transmission remains secure.
What happens to the data if the power supply fails?
The device features data protection that can preserve information for up to 10 years without a power supply.
Can it be used in different environmental conditions?
It operates effectively in temperatures up to 60°C and humidity levels between 10% and 95% R.H.
