Advanced Skid-Mounted Batching Control System for Streamlined Monitoring
Advanced Skid-Mounted Batching Control System for Streamlined Monitoring
Advanced Skid-Mounted Batching Control System for Streamlined Monitoring
Advanced Skid-Mounted Batching Control System for Streamlined Monitoring
Advanced Skid-Mounted Batching Control System for Streamlined Monitoring
1 / 5
Advanced Skid-Mounted Batching Control System for Streamlined Monitoring
Advanced Skid-Mounted Batching Control System for Streamlined Monitoring
Advanced Skid-Mounted Batching Control System for Streamlined Monitoring
Advanced Skid-Mounted Batching Control System for Streamlined Monitoring
Advanced Skid-Mounted Batching Control System for Streamlined Monitoring

Advanced Skid-Mounted Batching Control System for Streamlined Monitoring

Customization: Available
After-sales Service: 12-Month Warranty
Warranty: 12-Month Warranty
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.
OM-SLBCS
Accuracy
±0.5%
Main Application
New Energy Ternary Precursor, Pharmaceutical Dosing
Sensor
PLC, Multiple Sensor Integration
Measuring Media
Liquid
Certification
ISO9001, Explosion-Proof, ATEX
Protection
IP65
Temperature
-40℃~70℃
Pressure Rating
0.6-4.0MPa
Materials
Carbon Steel, 304/316SS, Rubber/PTFE Liner
📋 Product Description
Advanced Skid-Mounted Batching Control System
🚀 Advanced Skid-Mounted Batching Control System

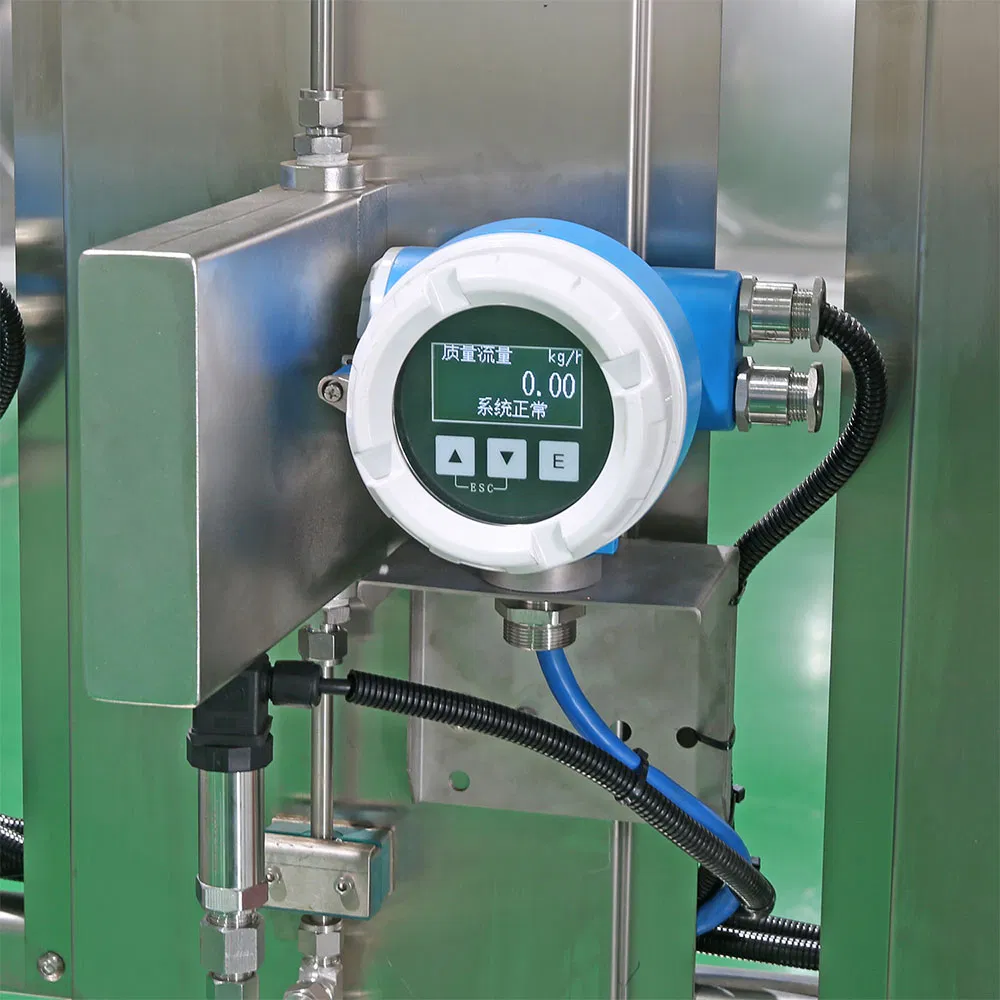

This system adopts a modular design concept, highly integrating flowmeters, temperature transmitters, pressure transmitters, control valves, and PLC equipment on a unified skid platform to achieve comprehensive measurement and control functions.

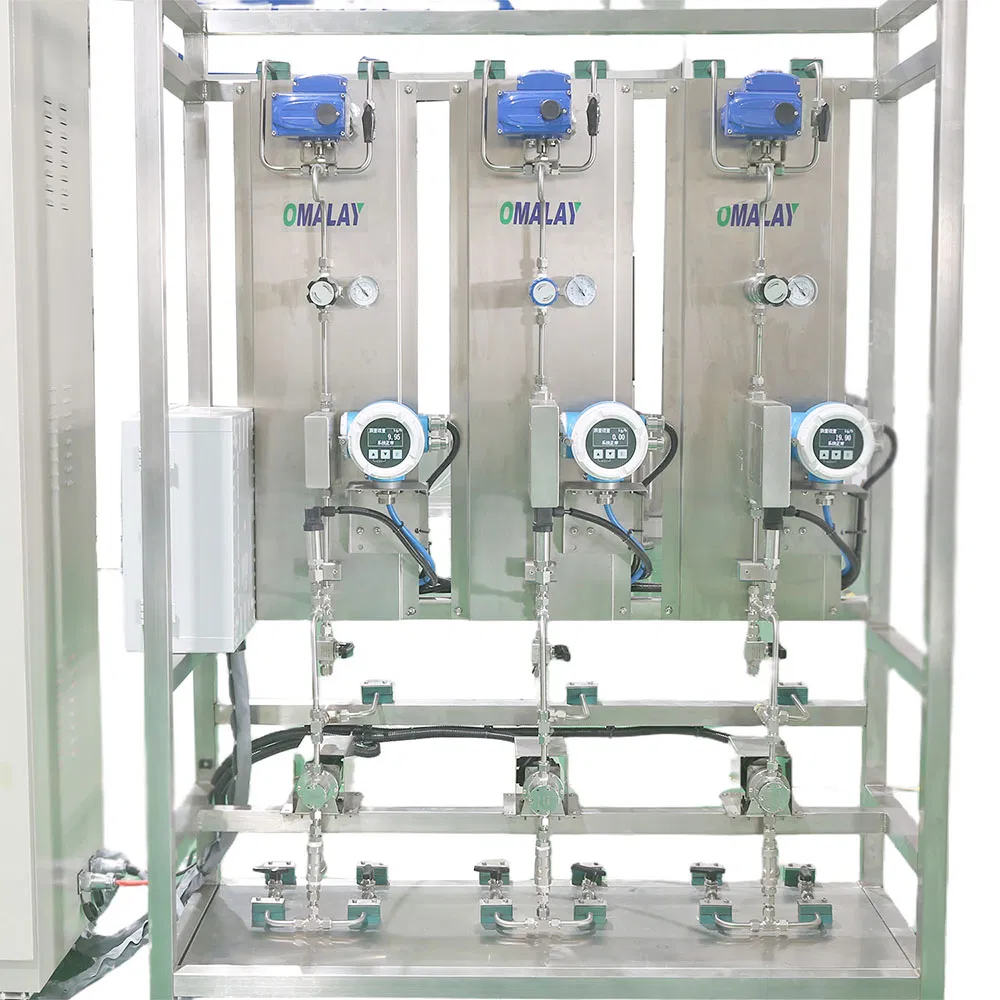

Control System Detail 1

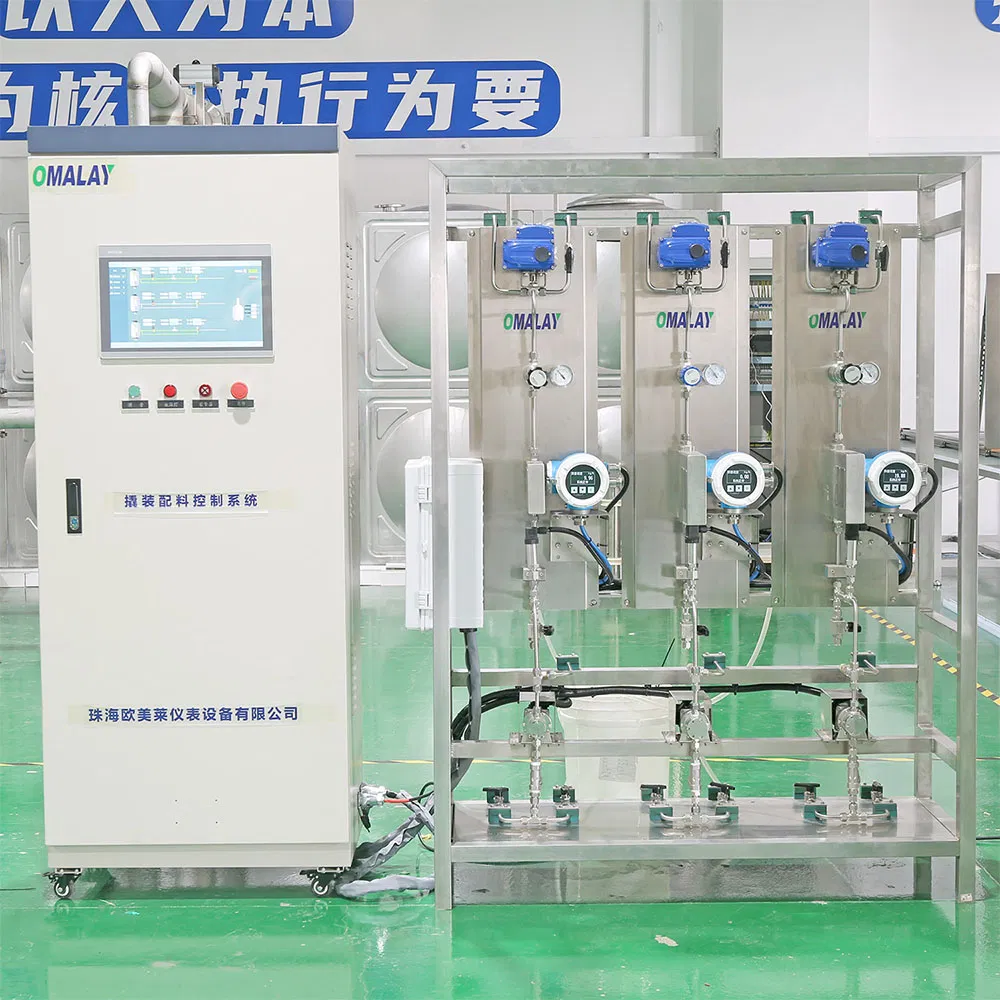

Control System Detail 2
Key System Features

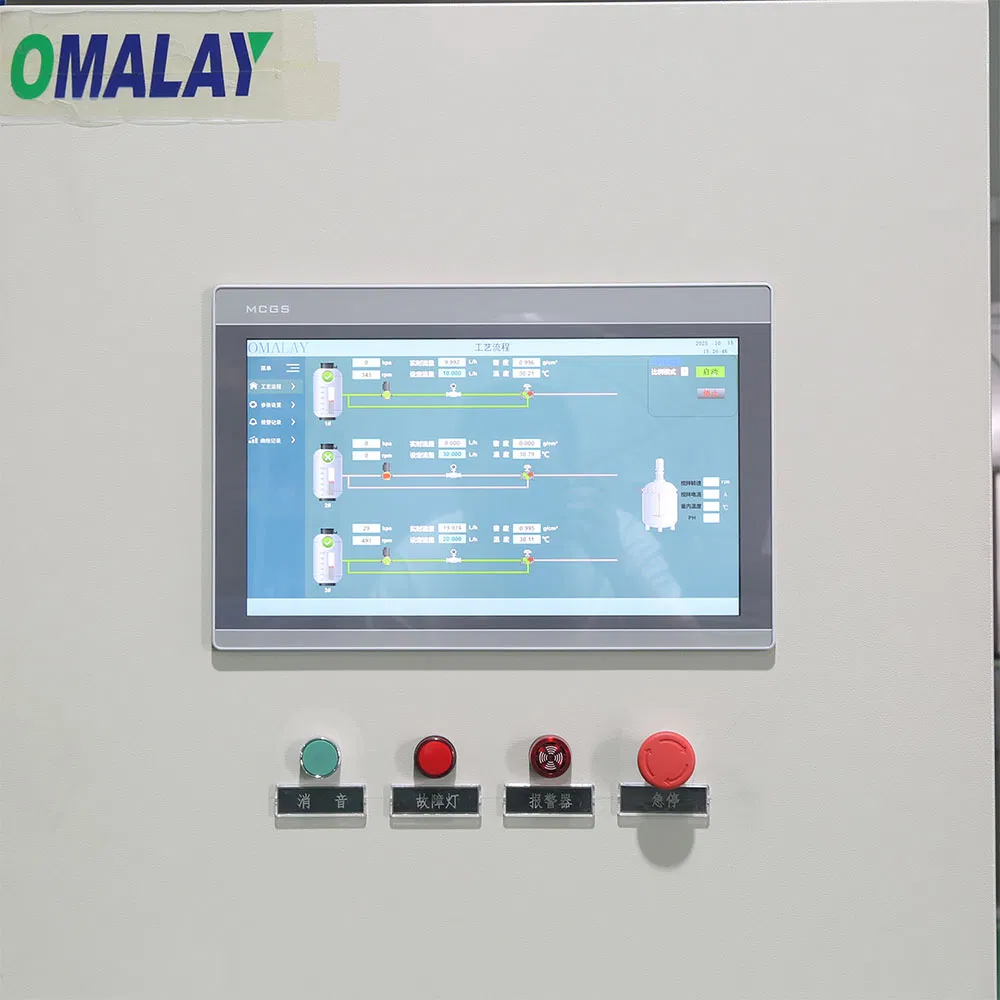

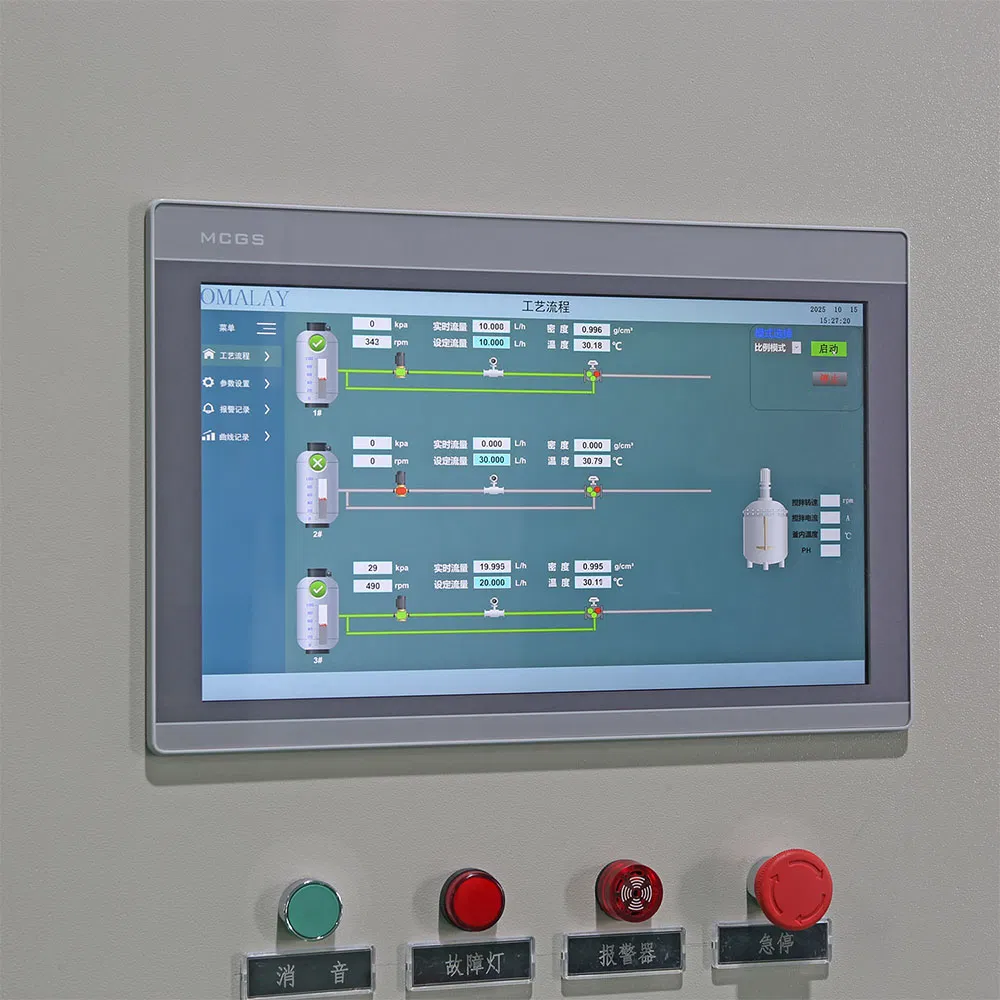

  • Control Core: Equipped with Siemens or Rockwell PLCs and industrial touch screens. Supports MODBUS, PROFIBUS, and Ethernet protocols.
  • Protection Design: Robust carbon steel or stainless steel construction with anti-corrosion treatment. Rated IP54/IP65 for outdoor reliability.
  • Customization: Fully tailored solutions including process design, equipment selection, and control logic programming.
  • Rapid Deployment: Factory pre-fabrication reduces site installation time by up to 70%.
Typical Applications
Typical Applications
  • Natural gas measurement & distribution
  • Petrochemical process control
  • Water treatment dosing systems
  • Energy management systems
Key Advantages
Key Advantages
  • High Reliability: 50% improvement in stability
  • Flexible Expansion: Easy future modification
  • Intelligent Management: Remote monitoring
  • Safety Assurance: International standards compliance
📊 Technical Specifications
Category Technical Specification Optional Configuration Compliance
System Architecture Modular skid design, IP54/IP65 Carbon steel/SS frame ASME B31.3
Control Core PLC: Siemens/Rockwell, Sampling: ≤100ms Dual/Quad Processor, 8GB Memory IEC 61131
Power System 220VAC/24VDC, UPS backup: 2-8h Solar power/Diesel generator IEC 60364
Accuracy Flow: ±0.5%~±1.0%, Pressure: ±0.075% Coriolis/Ultrasonic flowmeter API MPMS
Communication Ethernet, RS485, 4G/5G/LoRa Fiber optic / Satellite IEEE 802.3
🏭 Manufacturing & Quality

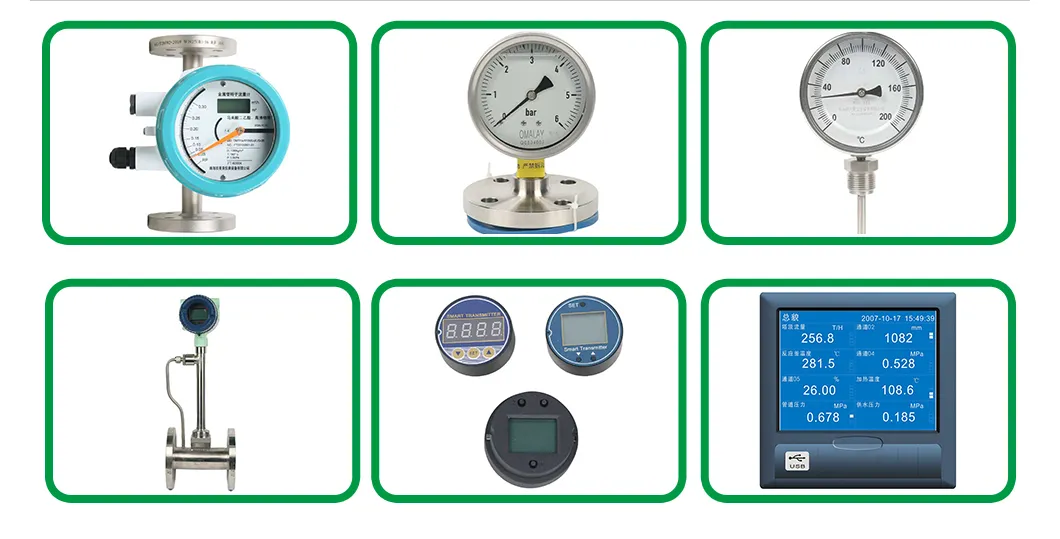

Main Product Line

Founded with 20 years of experience in the automation industry, we operate as a high-tech enterprise dedicated to industrial process measurement. With major production bases covering 8,000 square meters, we integrate R&D, production, and sales into a complete industrial chain.

Factory Overview

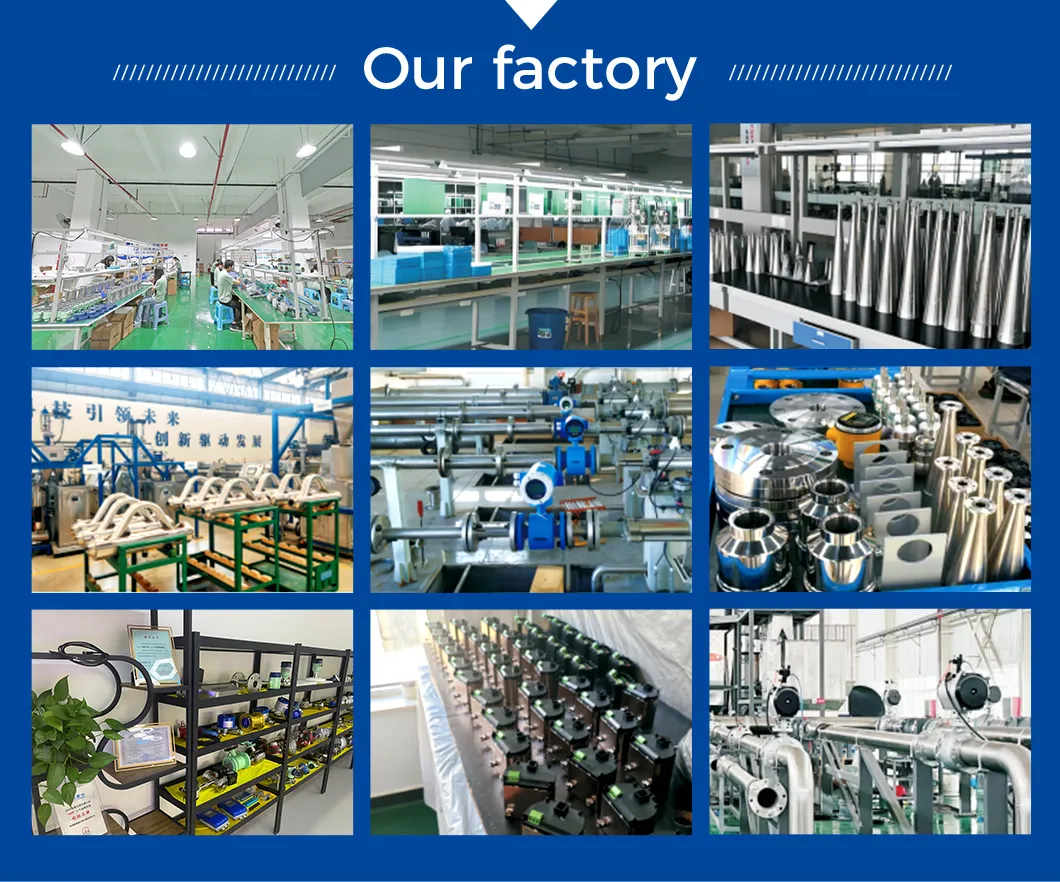

R&D Center
Certifications & Exhibitions
Certifications
Exhibitions
Factory Process & Packaging

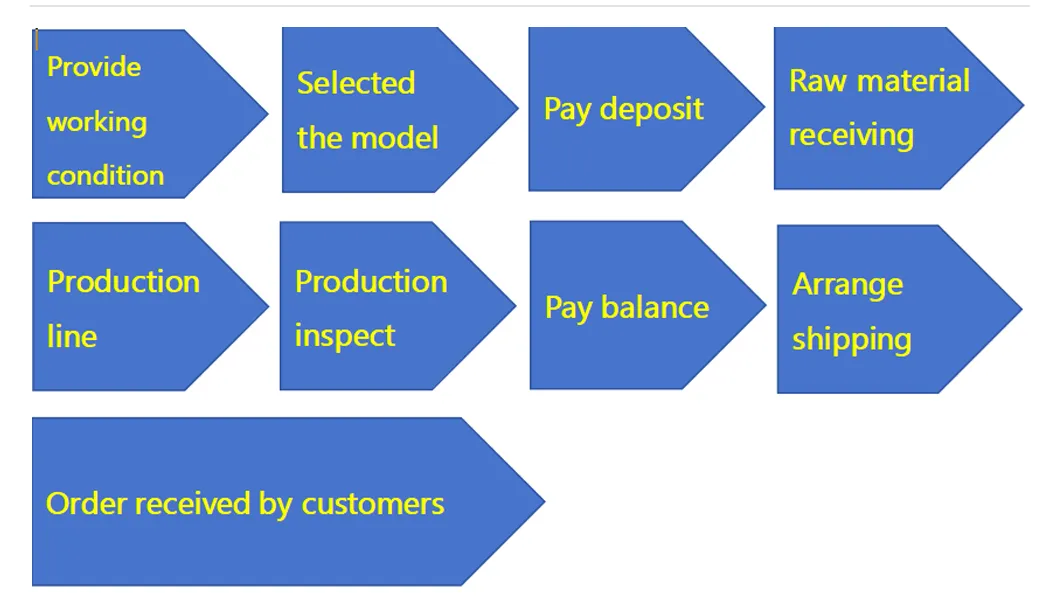

Production Process
Packaging & Shipping
❓ Frequently Asked Questions
Q: What is the typical accuracy of your measurement meters?
A: Our meters offer high measurement accuracy, typically up to ±5mm for level measurement and ±0.5% for flow, designed for various industrial storage and process applications.
Q: Are your products suitable for hazardous areas?
A: Yes. Our systems and flowmeters are ATEX/Explosion-proof certified for use in potentially explosive atmospheres.
Q: What are your standard payment terms?
A: We commonly accept T/T (30% deposit, 70% before shipment). Other terms are negotiable based on order value.
Q: What is the lead time for customized systems?
A: Lead time is approximately 15-30 days for standard instruments and 30-60 days for fully customized skid-mounted systems.
Q: Do you offer OEM/ODM services?
A: Absolutely. We provide extensive OEM and ODM services, including custom branding, range adjustment, and special function integration.
Q: How are the products packed for international shipping?
A: We use inner foam packing with outer cartons and waterproof stretch wrap. Heavy products and skid systems are secured in professional wooden crates.
