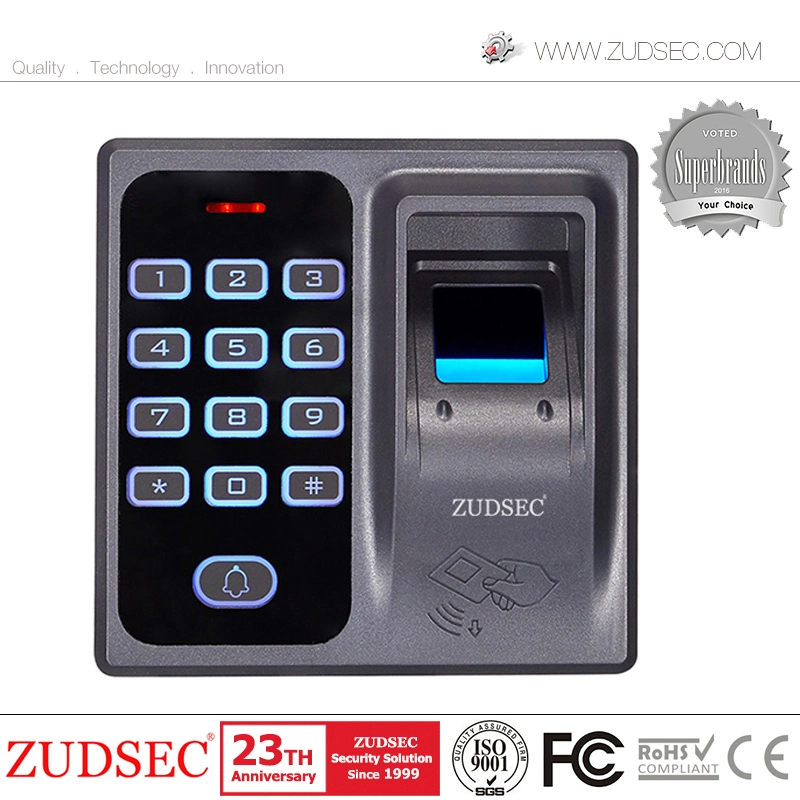

Integrated RFID & Fingerprint Access Control System
Integrated RFID & Fingerprint Access Control System
Integrated RFID & Fingerprint Access Control System
Integrated RFID & Fingerprint Access Control System
Integrated RFID & Fingerprint Access Control System
1 / 5
Integrated RFID & Fingerprint Access Control System
Integrated RFID & Fingerprint Access Control System
Integrated RFID & Fingerprint Access Control System
Integrated RFID & Fingerprint Access Control System
Integrated RFID & Fingerprint Access Control System

Integrated RFID & Fingerprint Access Control System

Customization: Available
Card Reader Quantity: 2
Control Gates: One Gate
Send Inquiry

Product Description

Basic Information
Model NO.
ZDAC-F2-ADV
Technology
32-Bit Technology
Way of Control
Computer Control
Communication
not Networked
Type
One-way Controller
Product Name
RFID & Fingerprint Access Control System
Capacity
500 Fingerprint/Card
ID Card Type
125kHz, Em
Reading Distance
3-6cm
Format
Wiegand 26-37
Working Way
Off-Line
Recognition Speed
≤0.6s
Material
ABS
Size
160×65×35mm
Specification
CE, RoHS
Product Description

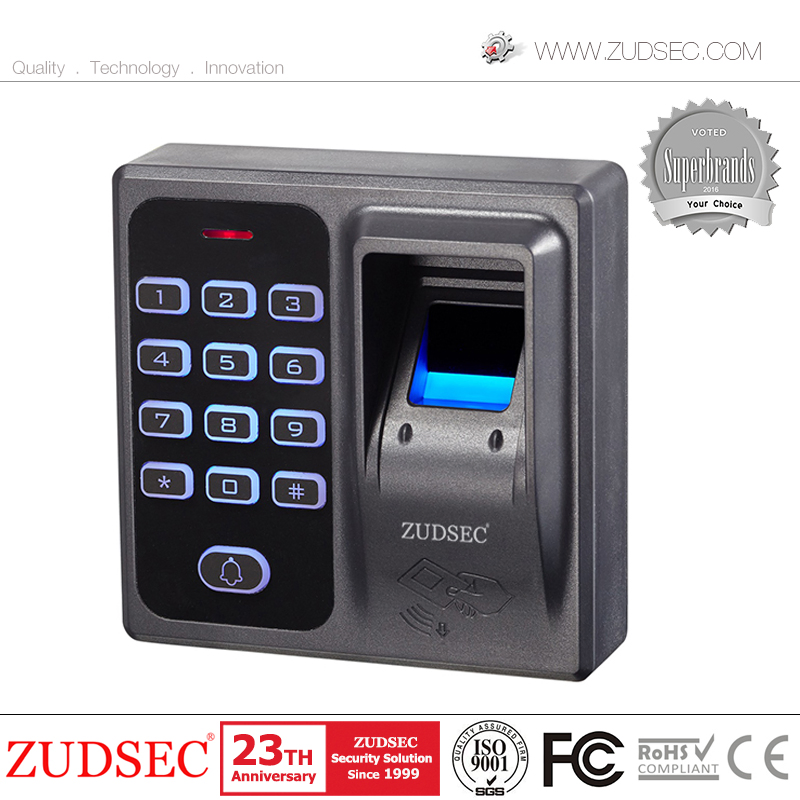

Integrated RFID & Fingerprint Access Control System

Unique design Standalone Fingerprint access control, supports fingerprint & RFID card (125KHZ EM card). The high security and more powerful feature make it an ideal choice for simple door access. User capacity 500 Fingerprint/Card. No need software and network, easy to operate. Supporting fingerprint, ID card and password. Independent doorbell keypad with luminous background is convenient for punching in the darkness. Suitable for middle and small-sized enterprises.

Key Features
⭐
Support Fingerprint & EM card, Built-in 125KHz card reader, Auto-Recognition.
⭐
Standalone operation: No need for software or network connection.
⭐
Luminous background keypad: Convenient for use in dark environments.
⭐
High Capacity: 500 (Fingerprint/Card) users available.
⭐
Multiple verification: Supporting fingerprint, ID card, and password.
⭐
Integrated tamper alarm and external wired doorbell connection.
Integrated RFID & Fingerprint Access Control System
Technical Parameters
ModelZDAC-F2
Fingerprint/Card Capacity500
LCD ScreenNo
ScannerHigh precision total reflection optics scanner
Effective Collecting Area16*14MM
Recognition Speed≤0.6s
FAR≤0.0001%
FRR≤0.01%
Standard FunctionU disk, USB, ID card
Alarm FunctionTamper alarm
DoorbellExternal connection wired doorbell
Machine Size160×65×35MM
Product Gallery
Access Control Detail 1

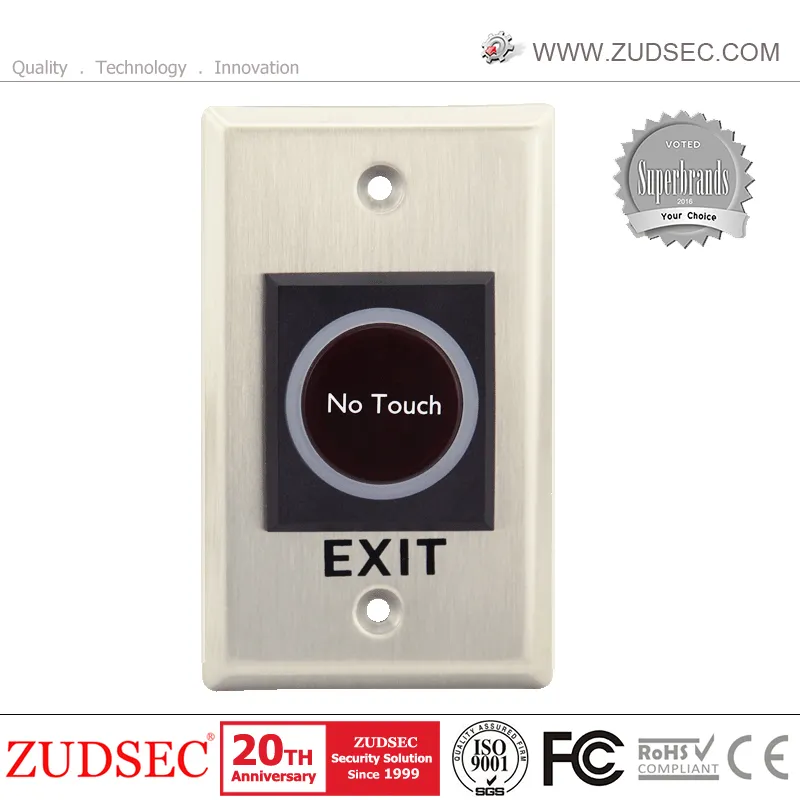

Access Control Detail 2

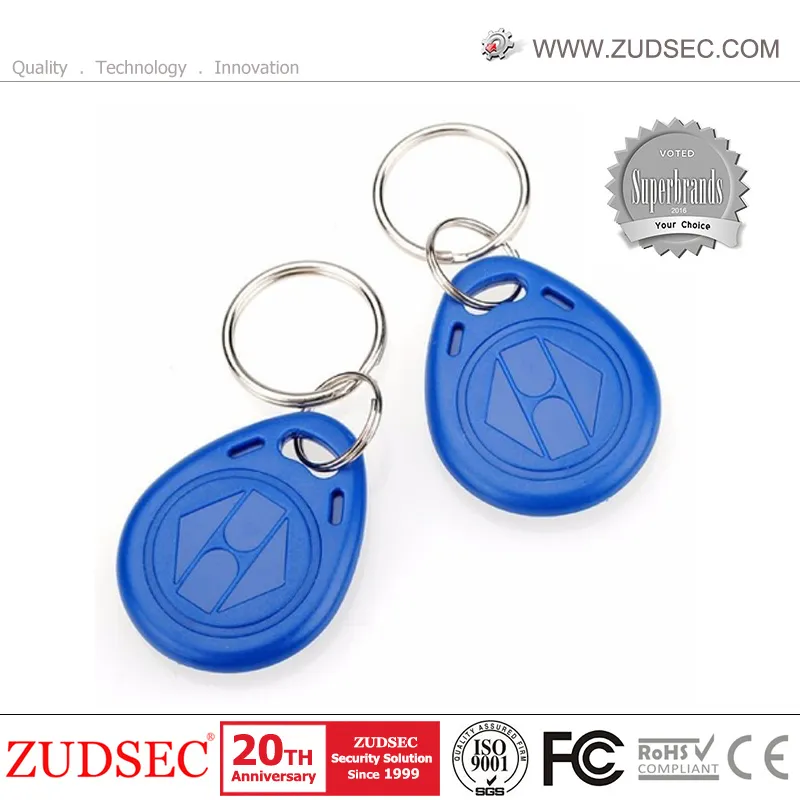

Access Control Detail 3

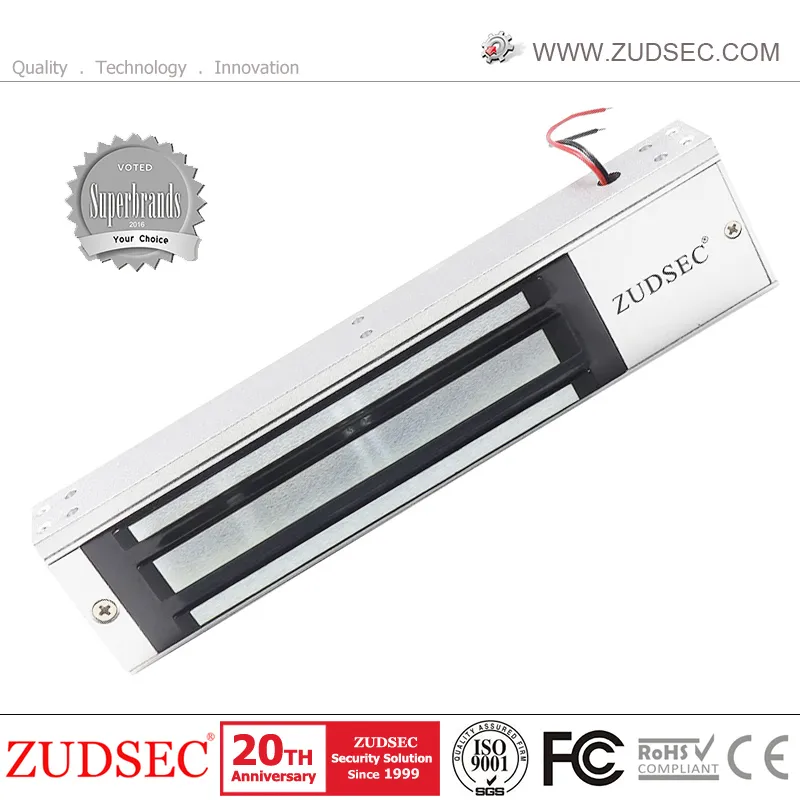

Access Control Detail 4

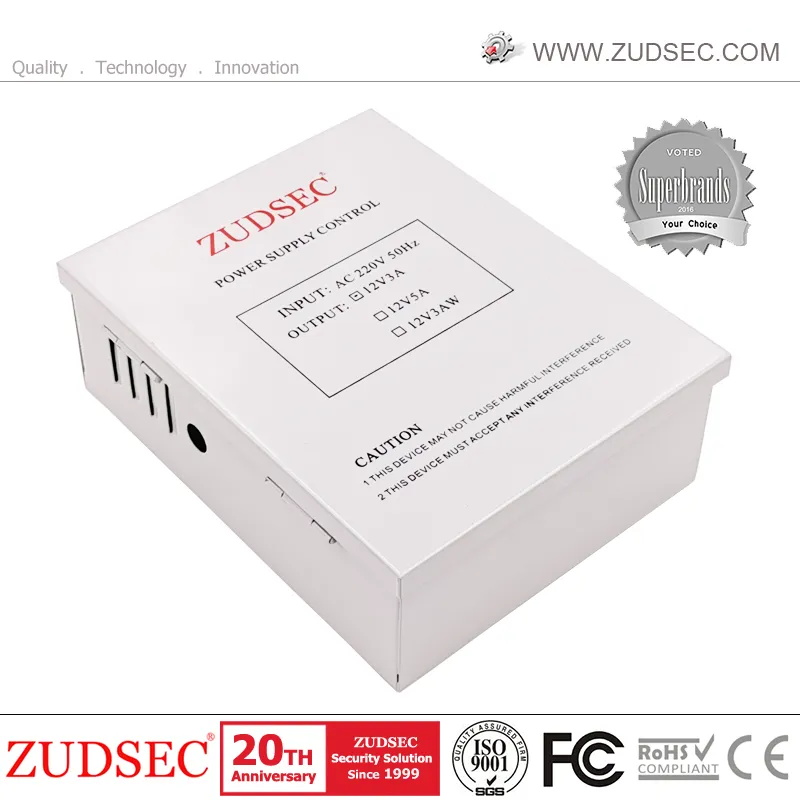

Access Control Detail 5
Related Products
Related Product 1
Related Product 2
Related Product 3
Related Product 4
Related Product 5
Related Product 6
System Connection Diagram
Frequently Asked Questions
How many users does this system support?
The system supports up to 500 users, including both fingerprints and RFID card capacities.
Does this device require a PC or software to function?
No, this is a standalone access control system. It works off-line and does not require any additional software or network connection for basic operation.
What types of cards are compatible with the reader?
The built-in card reader is compatible with standard 125KHz EM ID cards.
Is the keypad visible at night?
Yes, the keypad features a luminous background, making it easy to operate and enter passwords in dark or low-light conditions.
What security features are included against tampering?
The device is equipped with a built-in tamper alarm function to alert security in case of unauthorized physical interference.
How fast can the system recognize a fingerprint?
The system uses 32-bit technology and a high-precision optics scanner, achieving a recognition speed of ≤0.6 seconds.
