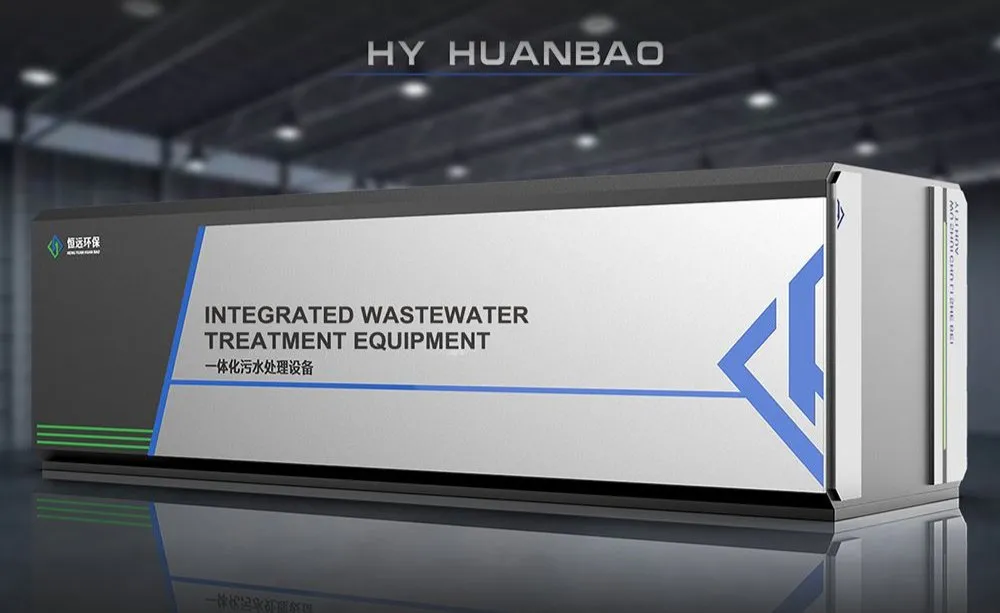

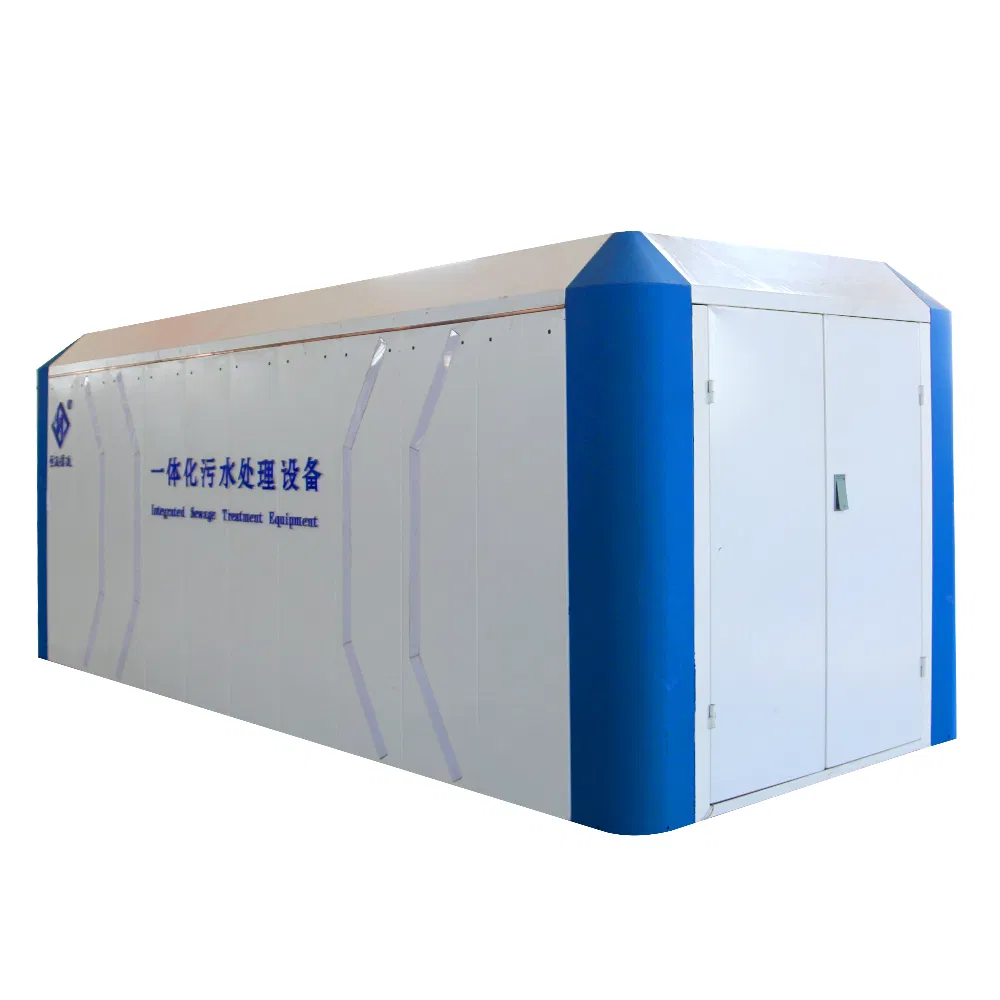

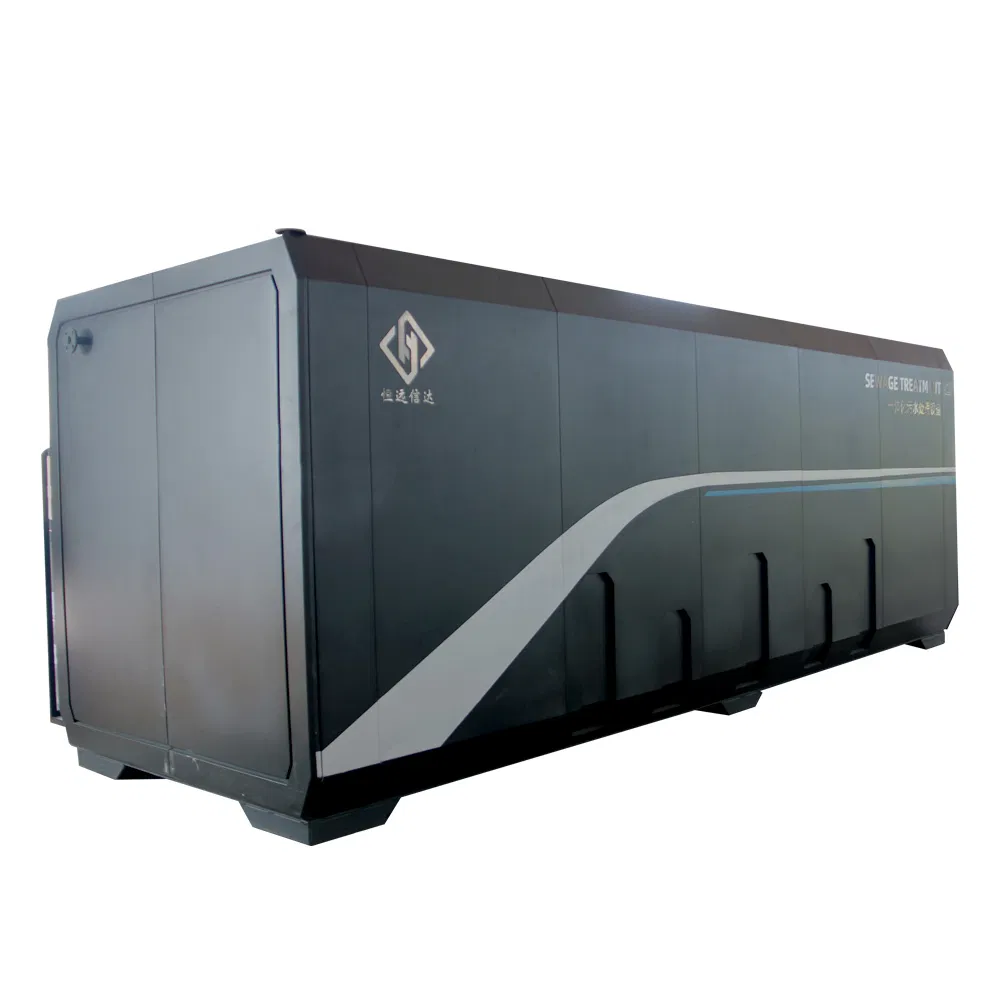

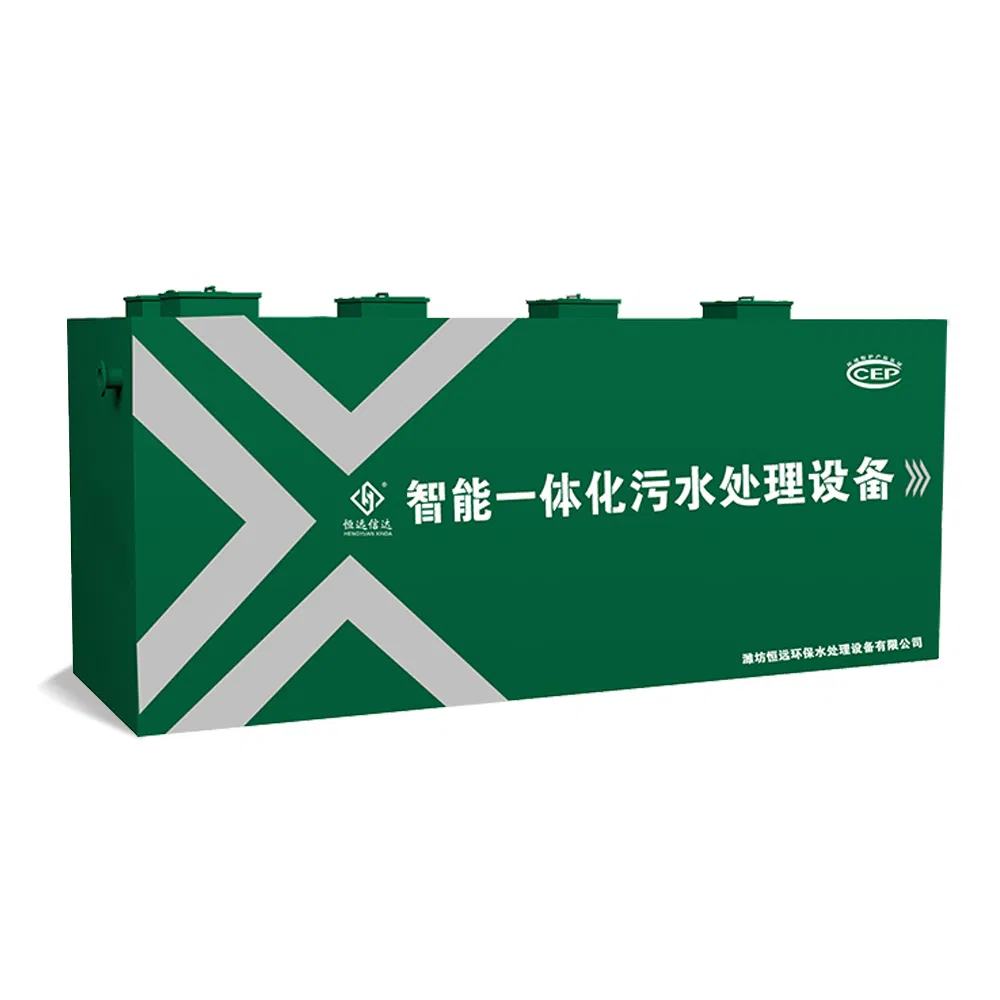

Automatic Control Wastewater Unit Integrated Sewage Treatment System with Remote Monitoring

After-sales Service:	1year
Warranty:	1year
Type:	Sewage Treatment Equipment

Basic Information

Model NO.

HY

Method

Biological Treatment

Usage

Industrial, Home, Agriculture, Hospital, Domestic Sewage

Appearance

Customized

Certification

CE, ISO

Painting

Epoxy Painting

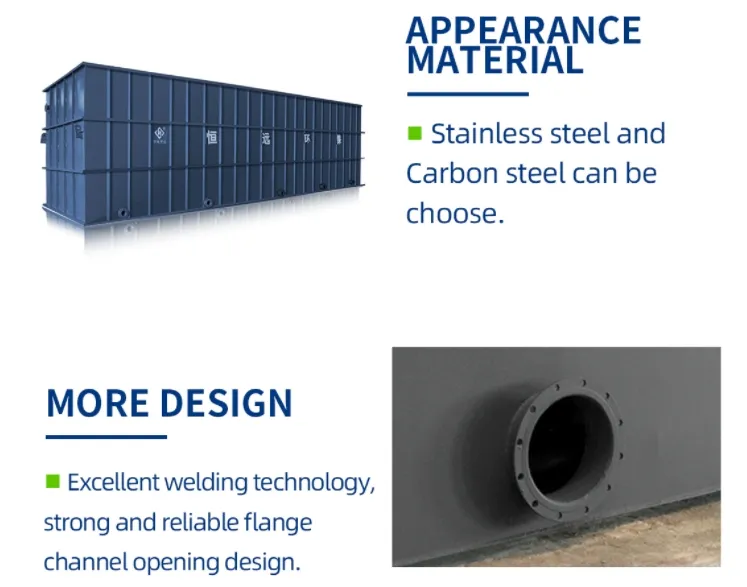

Material

Carbon Steel & Stainless Steel

Flow Rate

Customized

Production Capacity

8000sets/ Year

Origin

China

Packaging & Delivery

Package Size

110.00cm * 220.00cm * 240.00cm

Gross Weight

600.000kg

Lead Time

15 days (1 - 1 Pieces); To be negotiated (> 1 Pieces)

Product Description

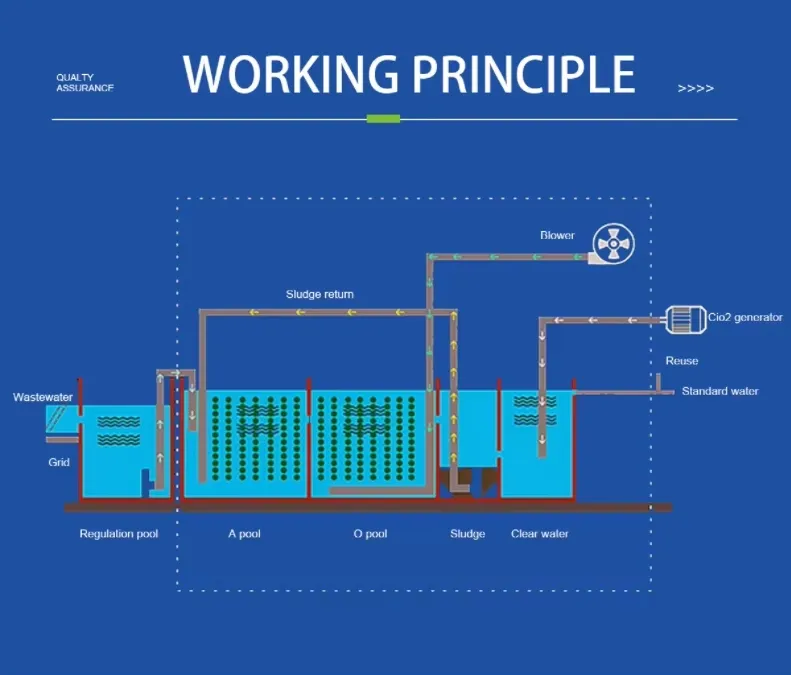

Integrated sewage treatment equipment can effectively remove organic pollutants in water. Combined with water quality and quantity comprehensive design, commonly used processes include AO, MBR, MBBR, SBR, FMBR, anaerobic tower, Fenton, etc. The effluent water quality is stable, easy to operate, with a high degree of automation. Appearance style can be customized according to customer needs.

Applications:

Hotels, inns, sanatoriums, hospitals
Residential communities, villages, towns
Stations, airports, seaport terminals, ships
Factories, mines, tourist attractions
Various industrial organic wastewater

Key Advantages

Compact design, easy to transport.
Integrated device, no construction needed, easy installation.
Full Automatic machine, easy to operate and maintain.

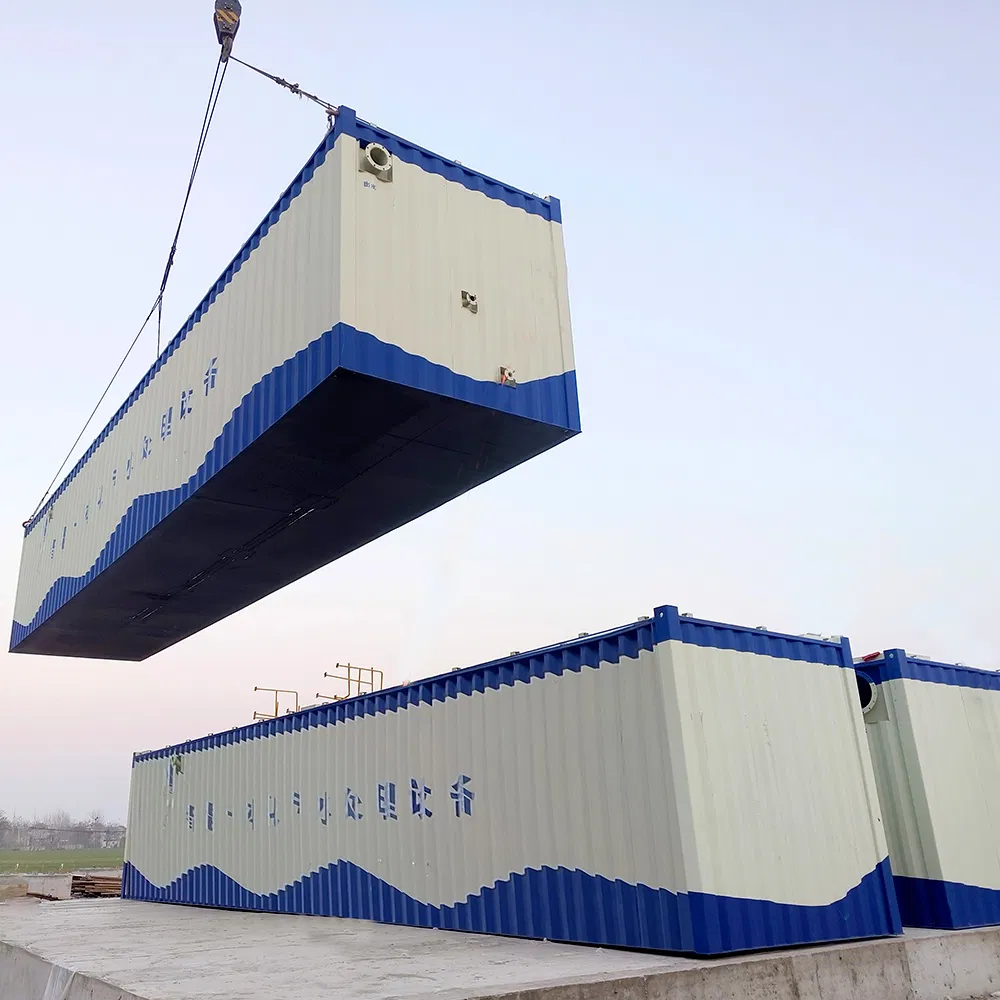

Can be fixed underground to save room and earth.
No additional construction needed, low total cost.

Technical Specifications

Water Capacity (m3/d)	External Dimensions (LWH mm)	Weight (t)	Operating Power (kw)
5	2500x1000x1500	0.97	2.72
10	2500x1500x2000	1.65	2.72
20	5000x1500x2000	2.5	3.1
30	5000x2000x2000	2.9	3.85
40	6500x2000x2000	4.36	3.85
50	6500x2000x2500	5.07	3.85

* Designs are customizable according to water sources, quality, flow rate, and ground area.

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team provides tailored designs to meet specific project requirements.

Support & Service

7×24-Hour Response Service

Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.

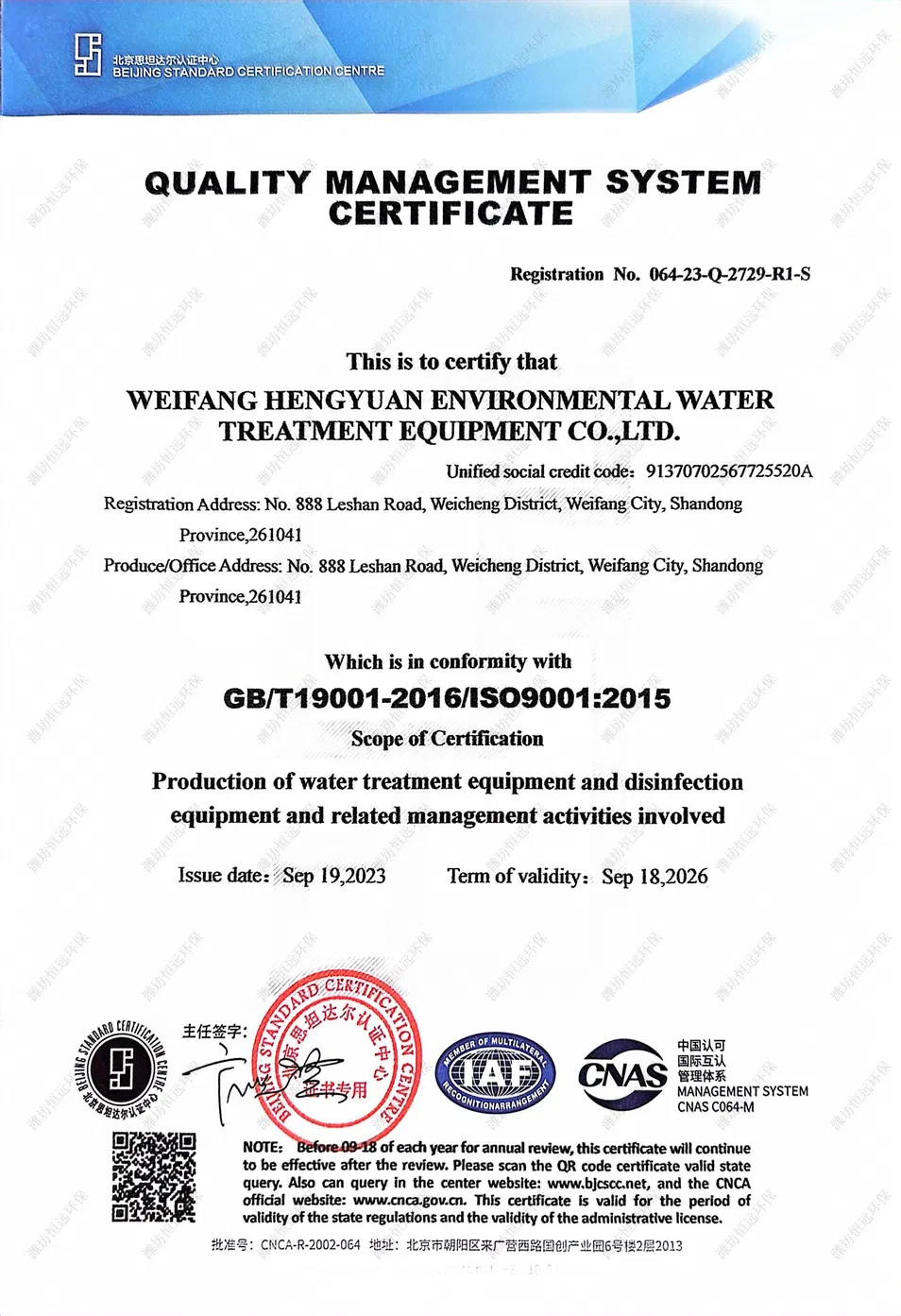

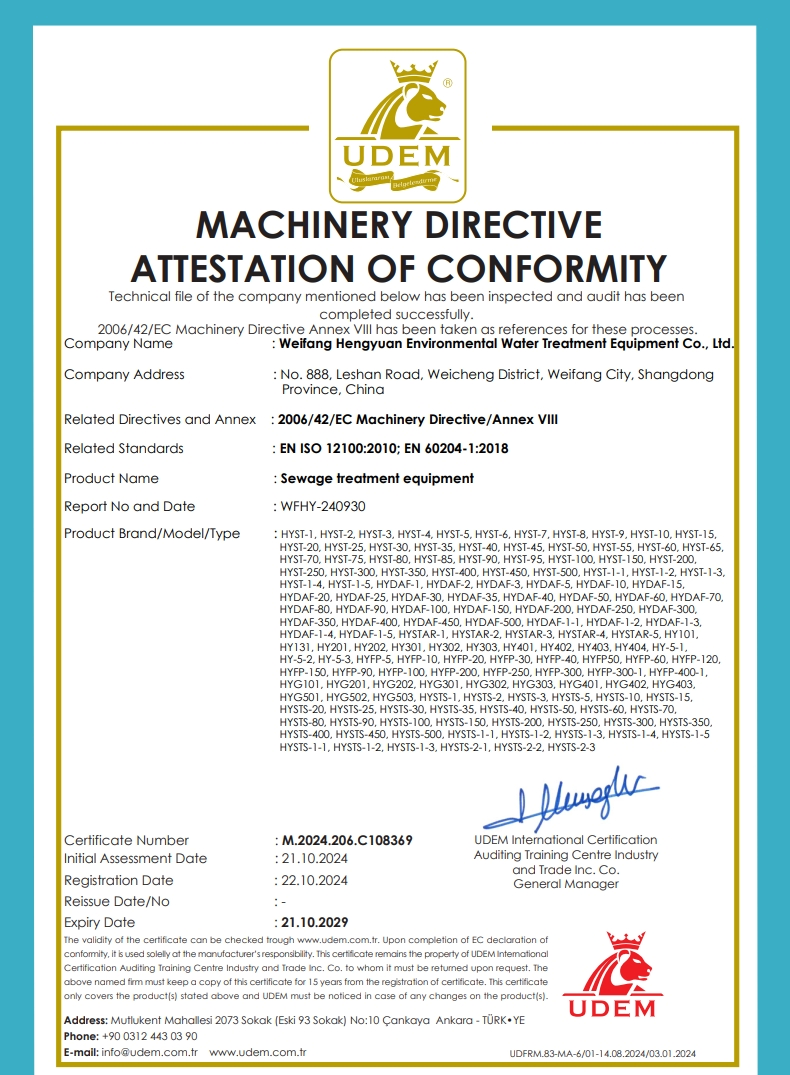

Certifications

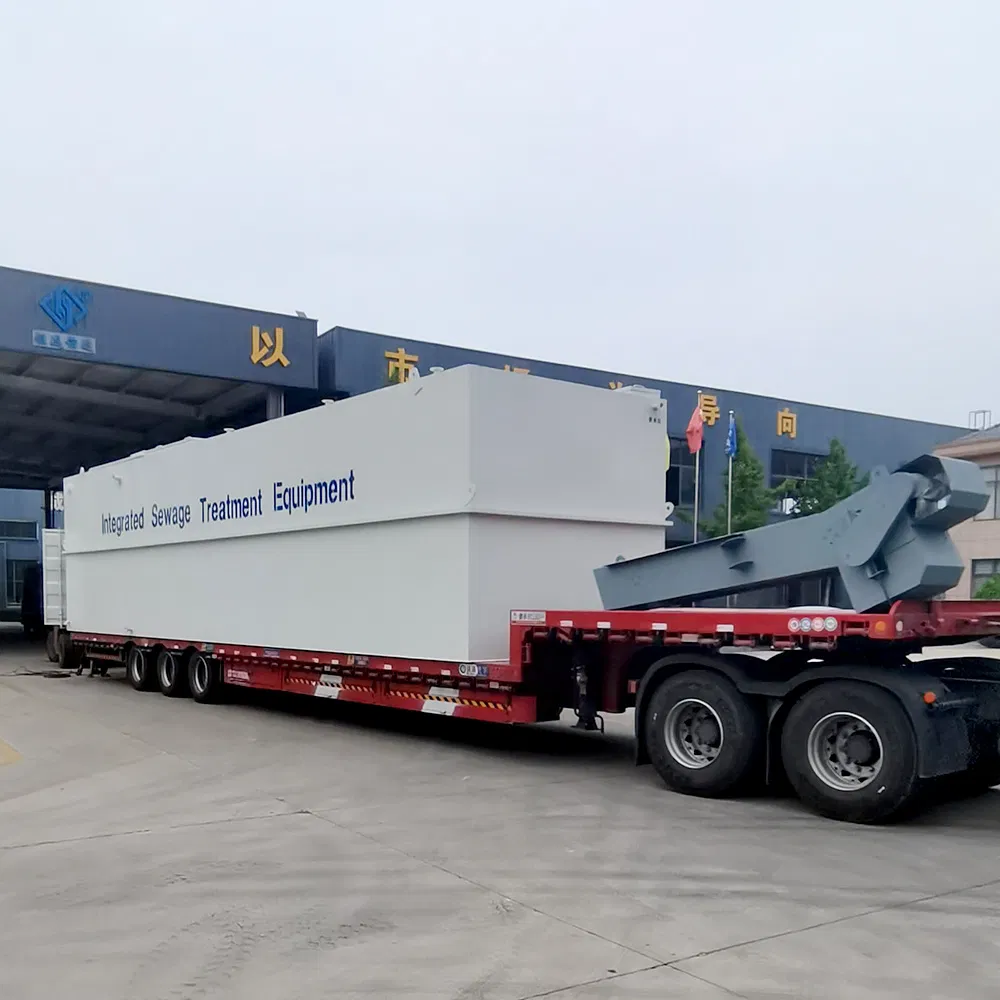

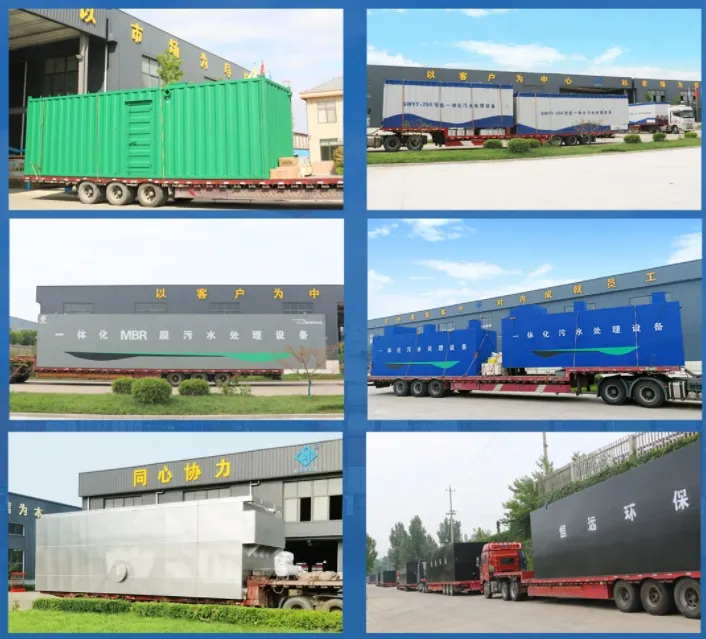

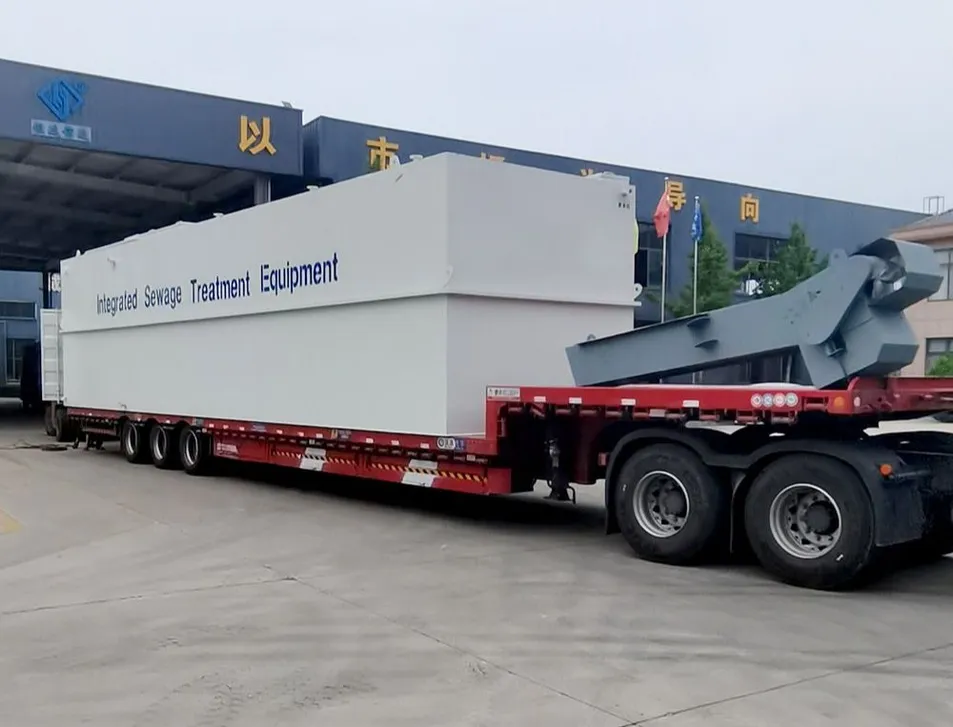

Packaging & Shipping

Frequently Asked Questions

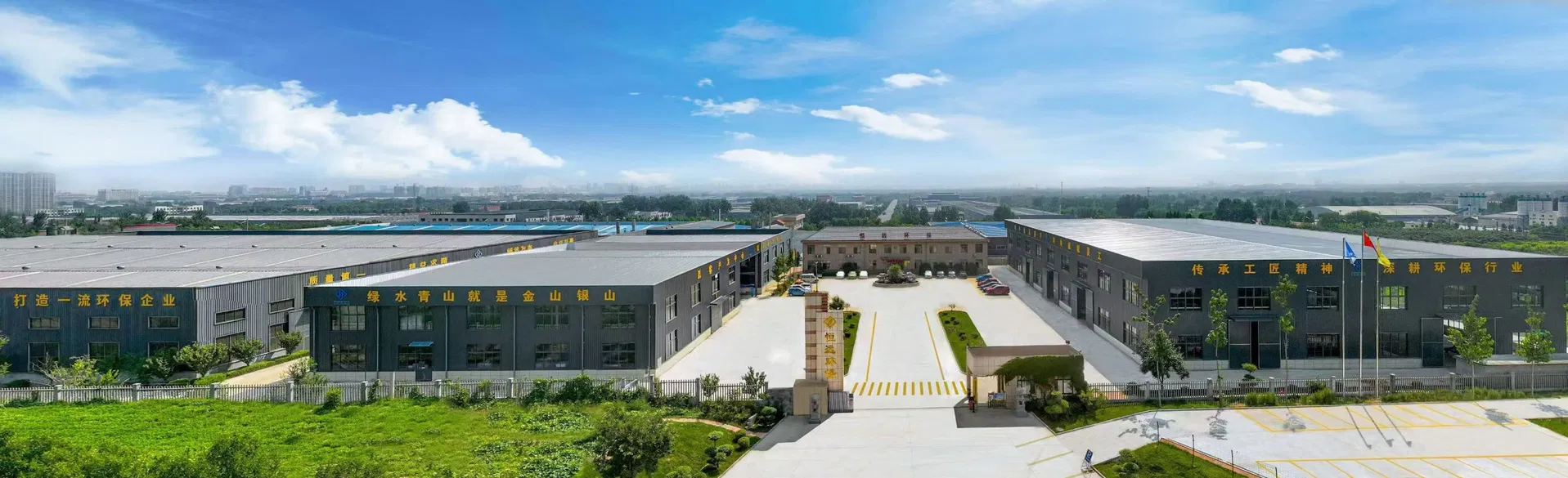

Q1: Are you a factory or a trading company? A: We are a direct factory with over 14 years of rich experience in manufacturing water treatment plants.

Q2: Can you meet special requirements for my products? A: Yes, we have a professional design team. Drawings can be provided according to your specific requirements.

Q3: What is the typical delivery time? A: It largely depends on the order quantity and specific item. Generally, delivery time is within 4 to 6 weeks.

Q4: How do you pack the products for shipping? A: We use standard export packaging. If you have special packaging requirements, we can accommodate them as required.

Q5: What payment methods do you accept? A: T/T and L/C are acceptable. Generally, a 30% deposit is required via T/T, with the 70% balance paid before shipment.

Q6: How is the equipment installed after arrival? A: Detailed installation drawings will be provided. If necessary, we can send technicians to assist with the installation process.
