Product Description

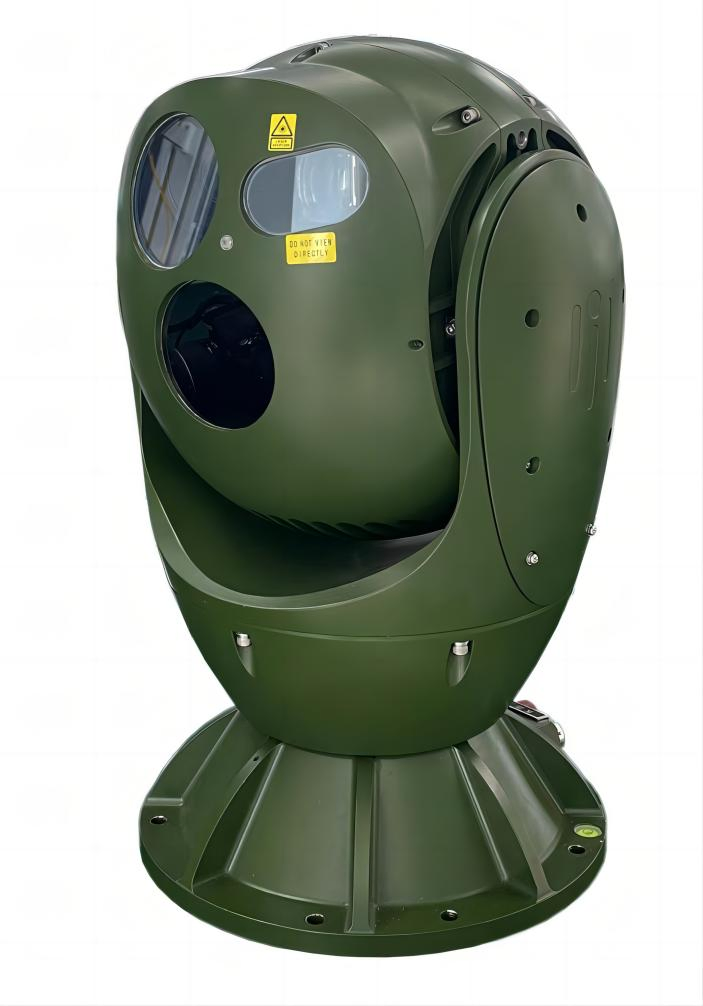

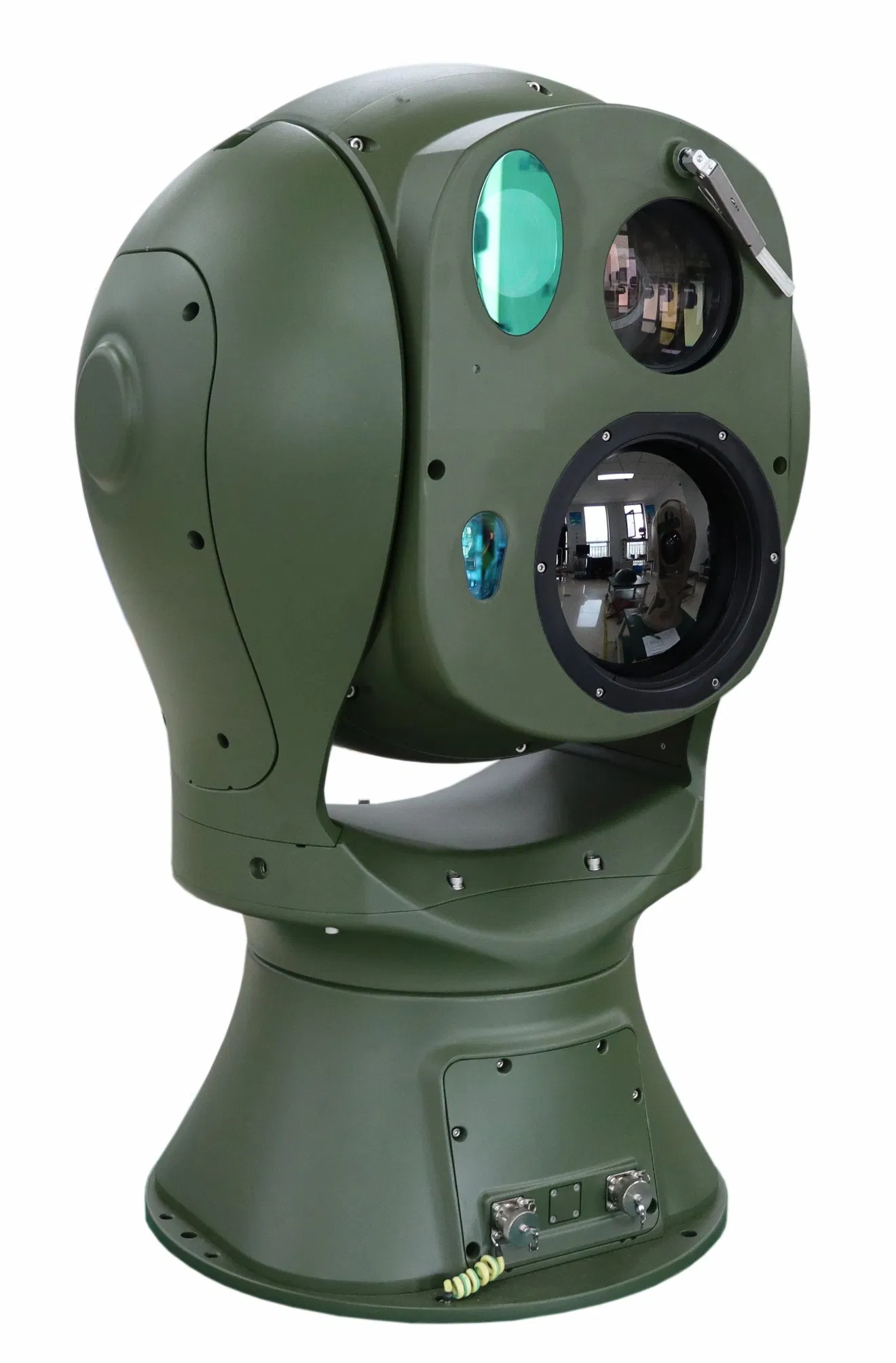

The YT-GD02S optical-electronic turret is designed for low-altitude security in key locations such as military bases, nuclear and biochemical facilities, border defense, conference centers, office buildings, prisons, and airports. It integrates optical-electronic detection and tracking systems, featuring high-definition visible cameras and uncooled thermal imaging modules across multiple spectra.
With intelligent target detection and tracking modules, it effectively detects, tracks, identifies, and alerts civilian small to medium-sized consumer-grade rotary and fixed-wing drones. It ensures low-altitude security for key locations day and night, under all weather conditions.

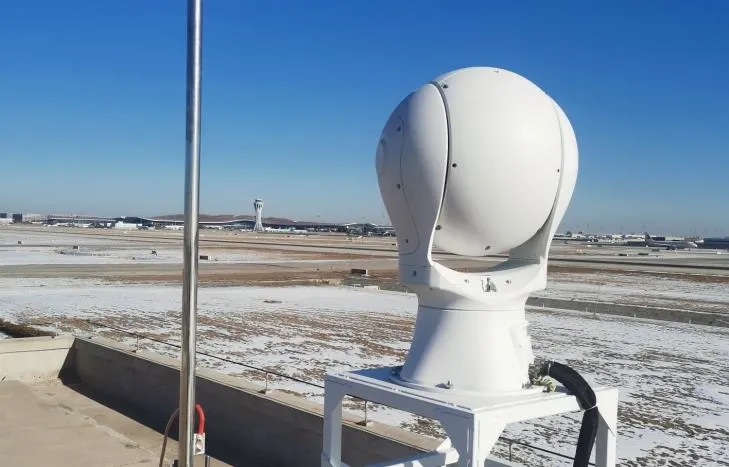

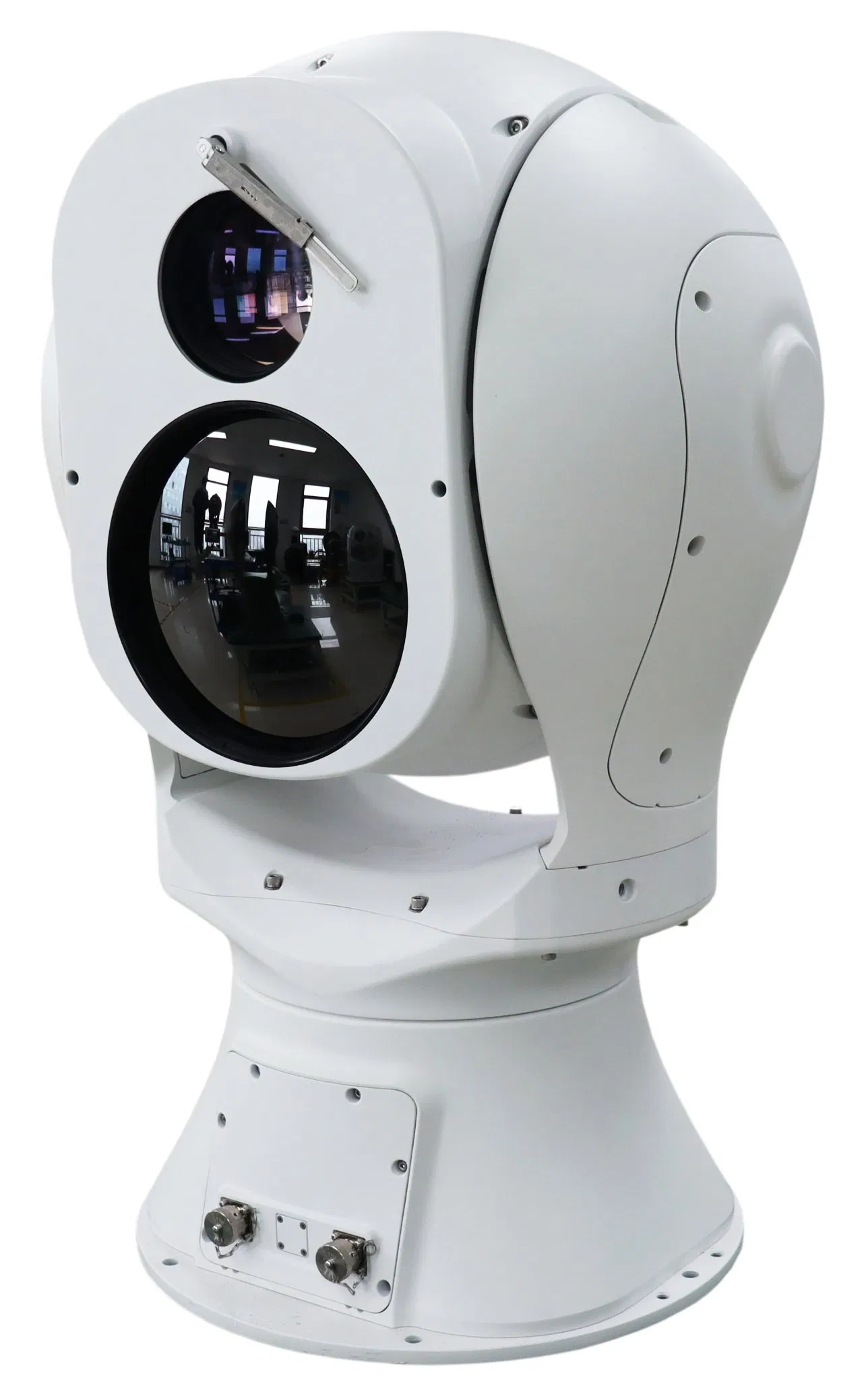

This product adopts a spherical design, resistant to strong winds, with low jitter and stable, clear imaging. The upper and lower split design allows for independent packaging and transportation, dispersing the weight and enhancing transportability in complex terrain.
Key Features
Strong Load CapacityAccommodates high-magnification visible light cameras and large-aperture thermal imagers for long-range observation.
Wide Detection SpectrumIntegrates dual-band detection (visible & thermal) for all-day and all-weather monitoring.
Fast Turnaround SpeedRotation speed up to 120°/s and acceleration up to 150°/s² for rapid target capture.
Broad CoverageHorizontal 360° and vertical -90° to +90° rotation, achieving zero blind spots.
High Control PrecisionPrecision angle encoders and closed-loop servo systems achieve 0.005° accuracy.
Superior TrackingAdvanced algorithms ensure stable tracking (±0.5mrad accuracy) even during fast flight.
Application Cases
Counter Unmanned Aerial Systems (CUAS) History
2019: Chengdu Shuangliu International Airport Security
2020: Hong Kong & Beijing Daxing International Airports
2021: Civil Air Defense CUAS in Hefei
2022: Low-altitude Security Support for Beijing Units

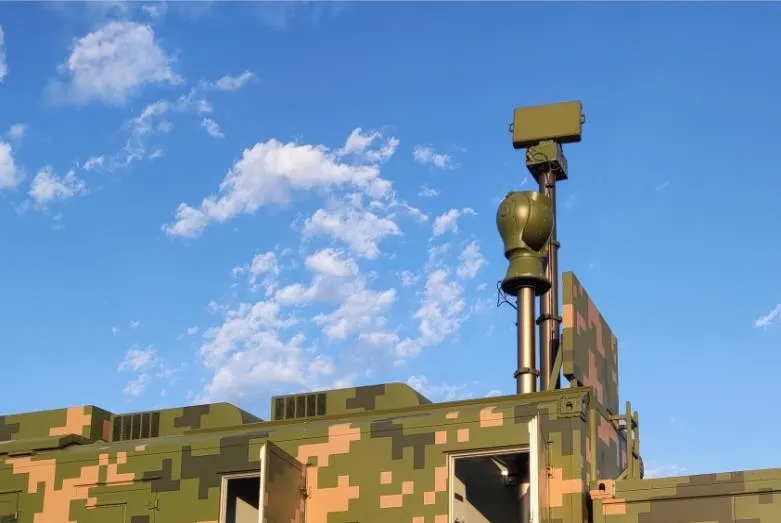

2023: Vehicle-mounted CUAS in Azerbaijan & Australia
Software Platform

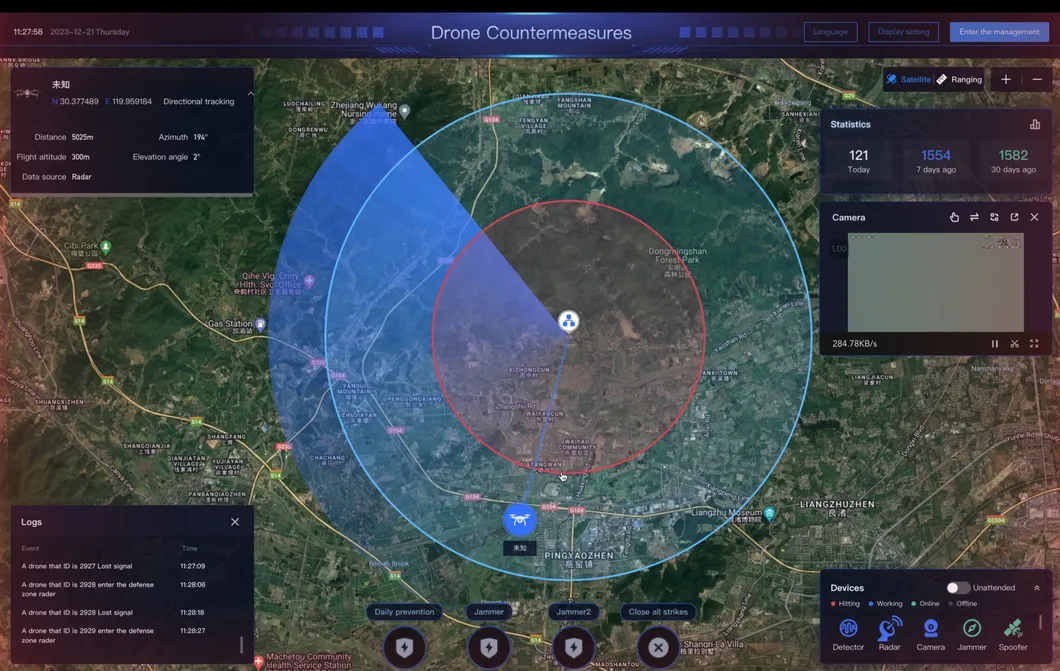

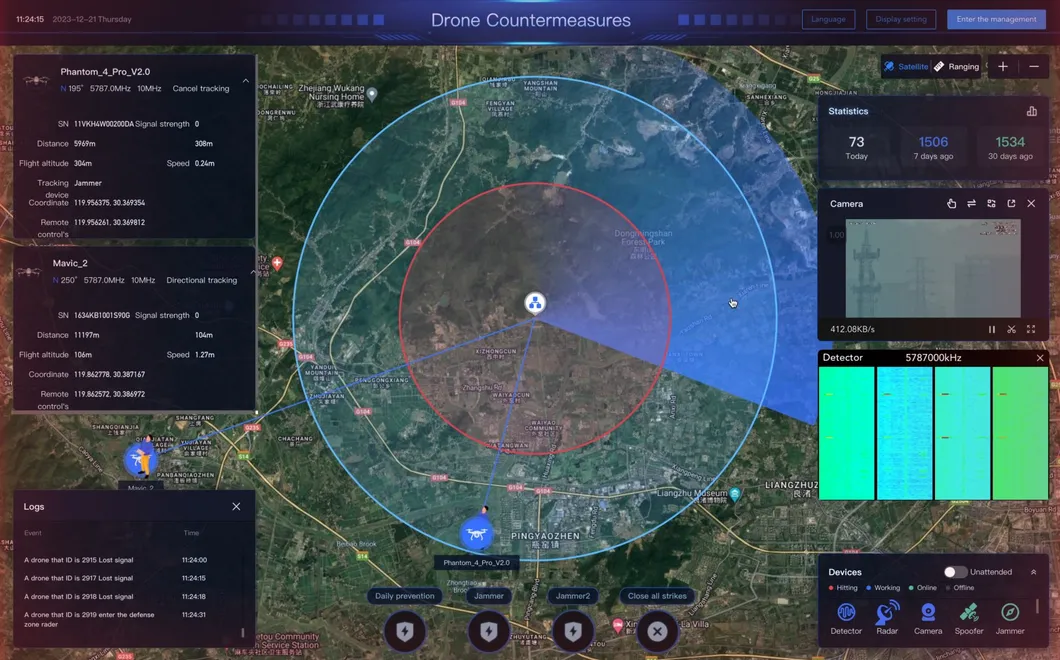

Our smart software allows for unlimited coverage by combining multiple devices into an integrated sensor network. The platform features advanced analytics and reporting, hotspot alarms, area intrusion detection, and radar linkage to ensure 24/7 protection.
Frequently Asked Questions
What is the maximum detection range of the YT-GD02S?
The system can detect targets at a distance of ≥3km using visible light and ≥1.5km using thermal imaging.
Can this system operate in extreme weather conditions?
Yes, with an IP67 protection rating and an operating temperature range of -40°C to 60°C, it is designed for harsh outdoor environments, including rain, snow, and fog.
Does the turret support automatic tracking?
Absolutely. It features intelligent target capture and tracking algorithms with a positioning accuracy of 0.005°.
What types of drones can it identify?
It is specifically designed to detect and track civilian small to medium-sized consumer-grade rotary and fixed-wing drones.
Is the system compatible with radar equipment?
Yes, the optical-electronic turret can be integrated with radar, passive spectrum detection, and radio interference equipment to form a comprehensive defense system.
How is the device protected against corrosion?
The unit utilizes integrated die-casting processes, nitrogen-filled sealing, and high-performance corrosion-resistant coatings to ensure long-term durability.
