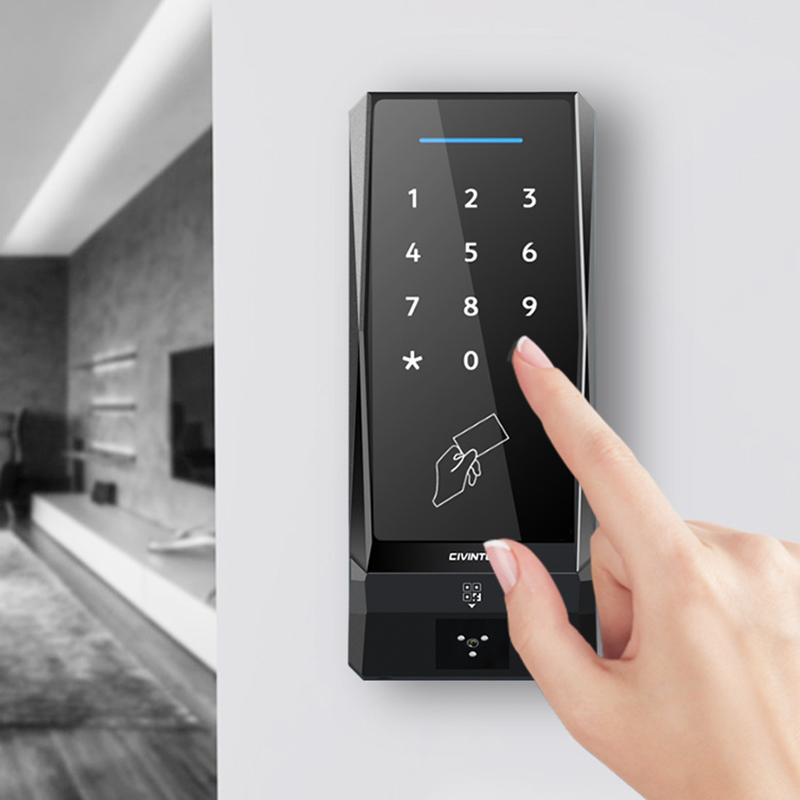

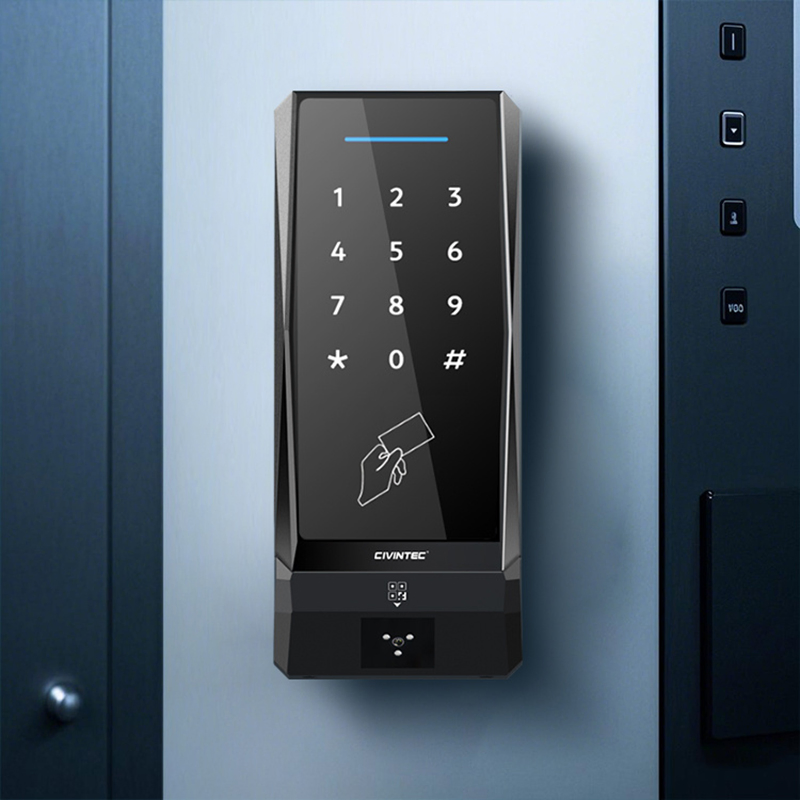

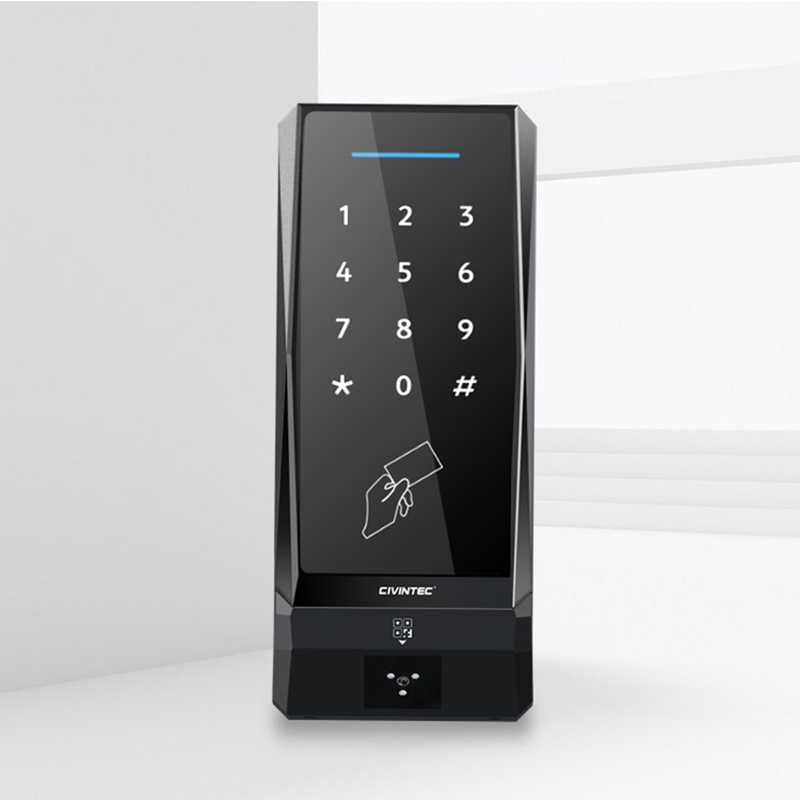

CT9 E Wireless Keypad Access Control System with Blue-Tooth Mobile APP Remote Control Mqtt HTTP API Integration
CT9 E Wireless Keypad Access Control System with Blue-Tooth Mobile APP Remote Control Mqtt HTTP API Integration
CT9 E Wireless Keypad Access Control System with Blue-Tooth Mobile APP Remote Control Mqtt HTTP API Integration
CT9 E Wireless Keypad Access Control System with Blue-Tooth Mobile APP Remote Control Mqtt HTTP API Integration
CT9 E Wireless Keypad Access Control System with Blue-Tooth Mobile APP Remote Control Mqtt HTTP API Integration
1 / 5
CT9 E Wireless Keypad Access Control System with Blue-Tooth Mobile APP Remote Control Mqtt HTTP API Integration
CT9 E Wireless Keypad Access Control System with Blue-Tooth Mobile APP Remote Control Mqtt HTTP API Integration
CT9 E Wireless Keypad Access Control System with Blue-Tooth Mobile APP Remote Control Mqtt HTTP API Integration
CT9 E Wireless Keypad Access Control System with Blue-Tooth Mobile APP Remote Control Mqtt HTTP API Integration
CT9 E Wireless Keypad Access Control System with Blue-Tooth Mobile APP Remote Control Mqtt HTTP API Integration

CT9 E Wireless Keypad Access Control System with Blue-Tooth Mobile APP Remote Control Mqtt HTTP API Integration

Customization: Available
Type: Access Control System
Card Type: CPU, EM, DESFire EV1/EV2/EV3
Send Inquiry

Product Description

Basic Specifications
Model NO.
CT9 E
Reading Distance
10cm-15m
Application
Parking, Hospital, Library, Company, Bank, Store
Operating System
Linux OS
Identification
RFID, NFC, BLE, Pin Code
Mobile Credential
NFC, BLE, QR Code
Interfaces
4G, WiFi, TCP/IP, RS485 Osdp, Wiegand
Power
12-24V DC; Poe IEEE 802.3af
IP Protection
IP65 Waterproof, UV Resistance
Origin
China
Product Overview

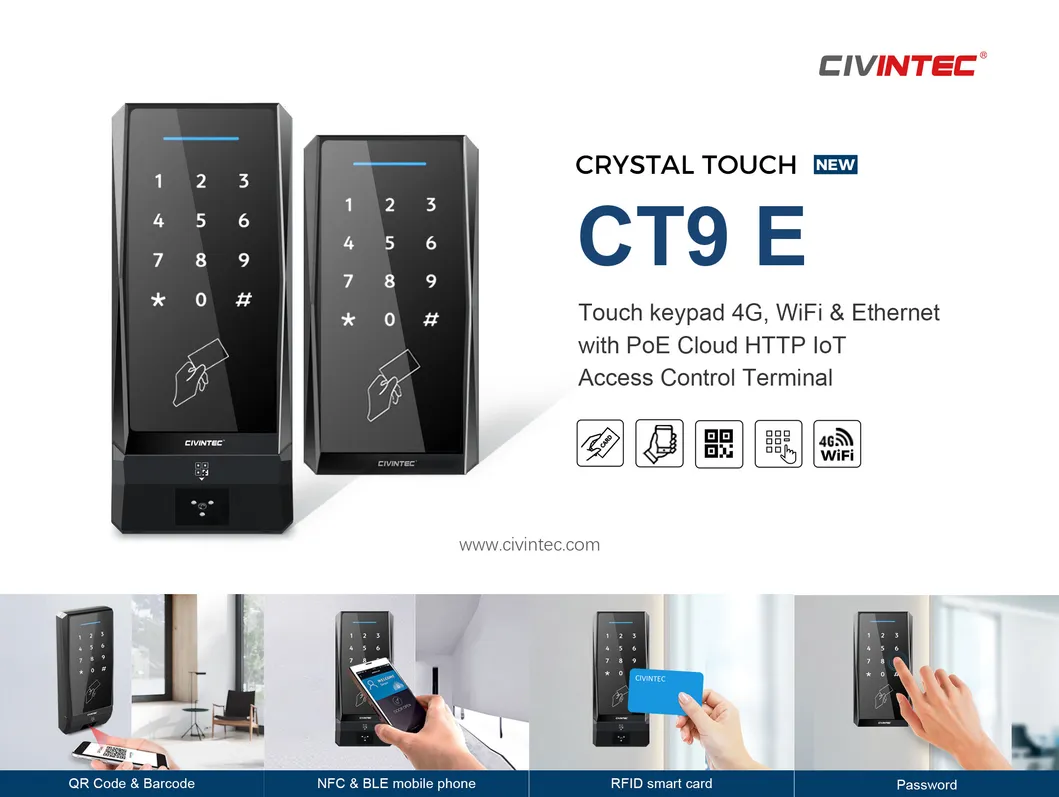

Access Control Terminal

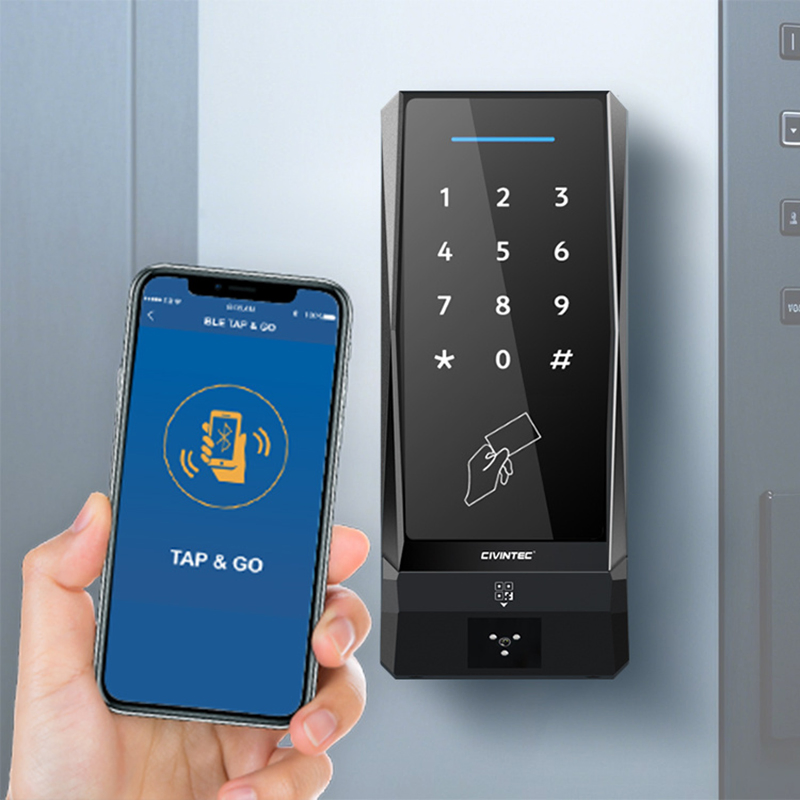

CT9 E is a Linux-based HTTP/HTTPs server centralized terminal. Featuring wireless WiFi, 4G, and TCP/IP Ethernet, it is suitable for both LAN and Internet cloud server software communication. With an embedded relay, it facilitates the building of versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, dual-frequency RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning.

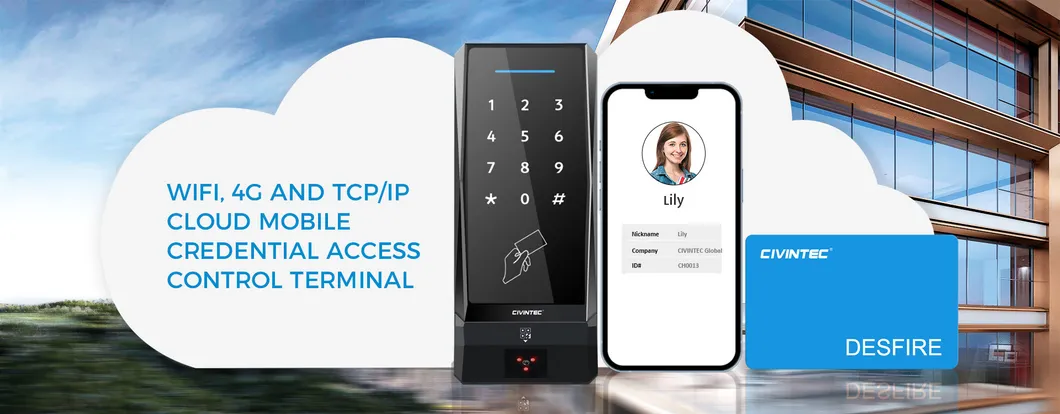

CT9 E Features
Product Features
1

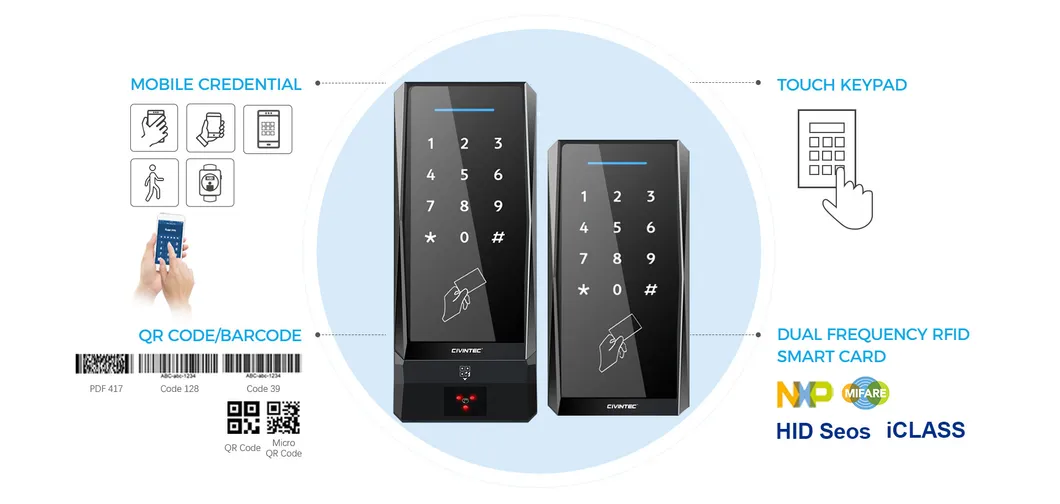

Multiple Access Credentials: CT9 E incorporates 5-in-1 technology including touch keypad, RFID smart cards, BLE & NFC mobile access, and QR code scanning for comprehensive visitor management.
Access Credentials
2

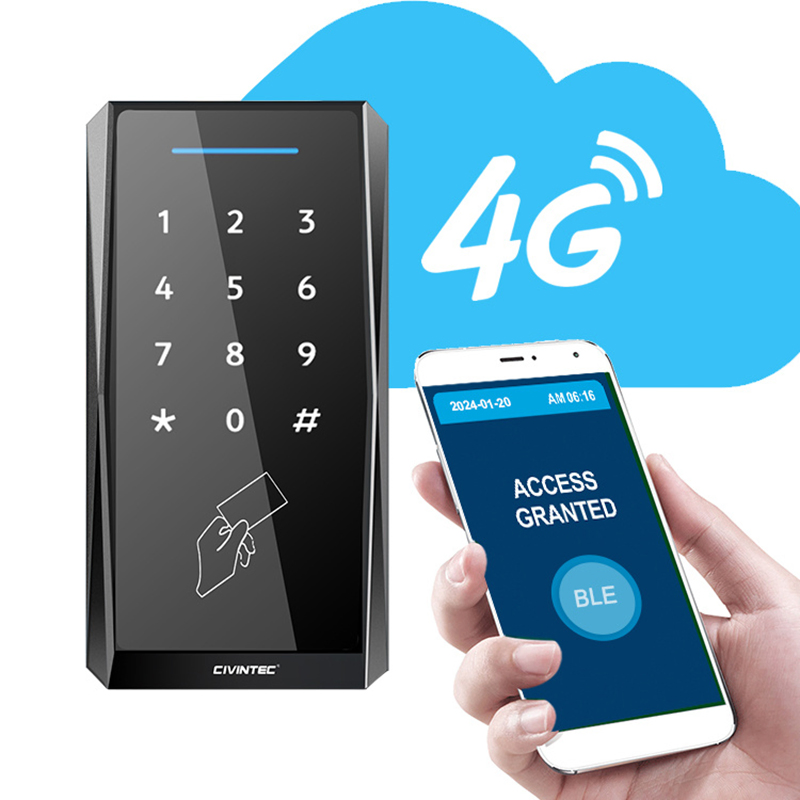

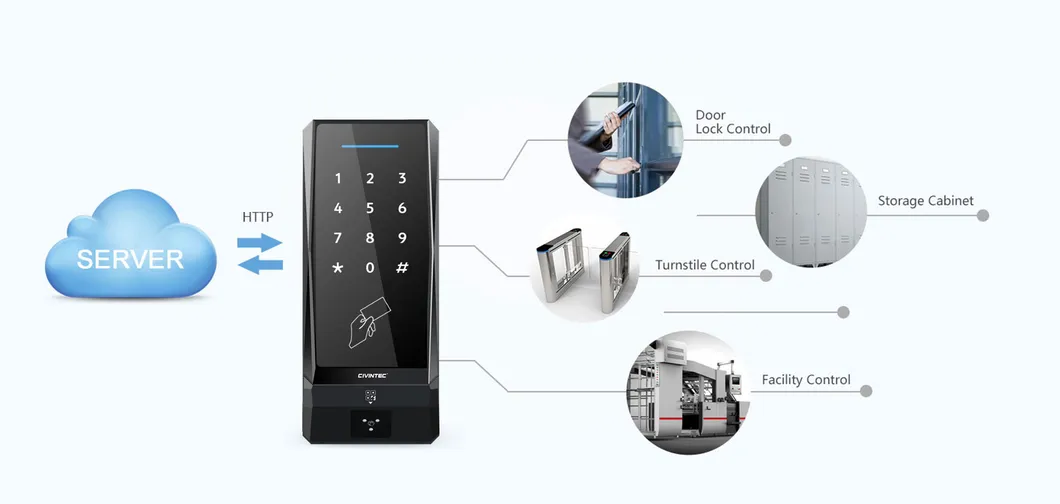

Cloud Server Remote Control: Bi-direction communication via standard HTTP & HTTPs between CT9 E and the server allows for remote control of door locks and various IoT facilities.
Cloud Integration
3

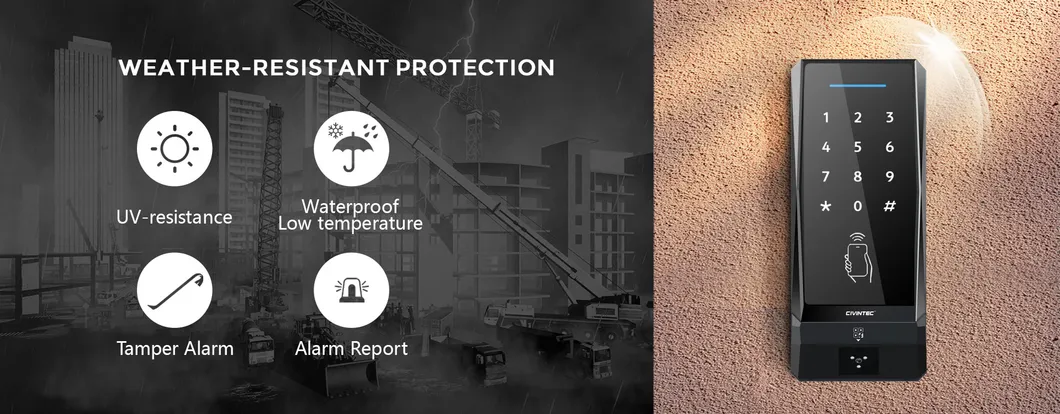

Weather-Resistant Protection: With an IP65 rating, the terminal is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.
IP65 Protection
Detailed Specifications
Category CT9 E Specification
RFID Technology 125KHz PROx/EM; 13.56MHz Mifare Classic, DESFire EV1/EV2/EV3, NFC
Mobile Access BLE (2.4GHz), NFC
Barcode/QR Scanner 1D & 2D QR Code, Micro QR, PDF417, Code 128, Code 39
Communication TCP/IP (RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand Input
Operating System Embedded LINUX
Keypad 12-digit Touch keypad with backlit
User Capacity 10,000 Offline users / Unlimited Online users
Power Supply 12~24V DC / PoE IEEE 802.3af
System Configuration & Customization

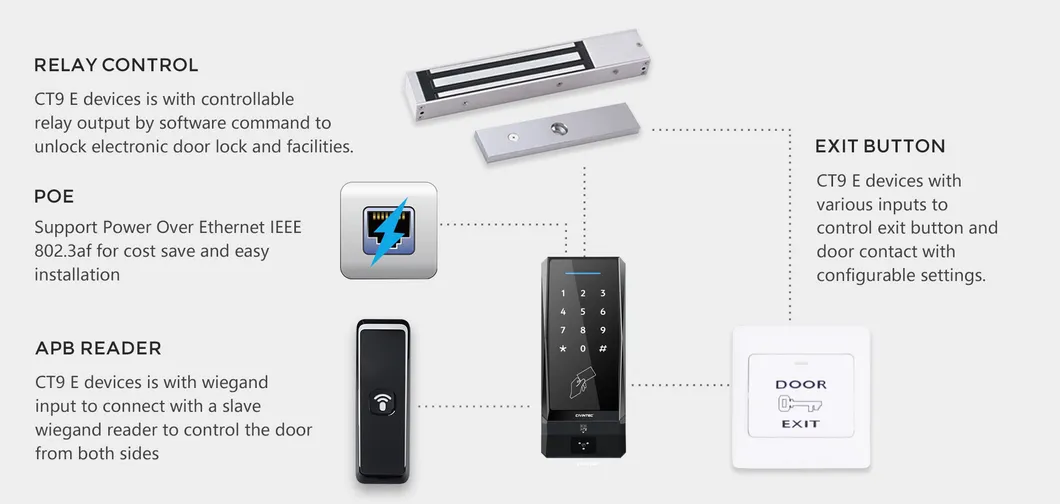

System Configuration

We offer extensive ODM customization on hardware, reader housing, firmware, and software. Users can freely program and display their own logos on the touch screen interface.

Customization Service
Product Gallery
Related Product
Technical Drawing
Product Detail
Product Specs
Product Usage
Frequently Asked Questions
Q1: What types of credentials does the CT9 E support? A: The CT9 E supports 5-in-1 identification: Touch Pincode, RFID (125KHz & 13.56MHz), BLE, NFC, and QR Code/Barcode scanning.
Q2: Can this device be used outdoors? A: Yes, it is IP65 rated, which means it is waterproof and resistant to UV rays, making it suitable for outdoor installation.
Q3: How does the terminal communicate with a server? A: It uses standard HTTP/HTTPs protocols and can connect via 4G, WiFi, or TCP/IP Ethernet.
Q4: Does the CT9 E support Power over Ethernet (PoE)? A: Yes, it supports PoE IEEE 802.3af, allowing for both power and data over a single cable.
Q5: What is the maximum user capacity in offline mode? A: The device can store up to 10,000 card users and 50,000 event logs locally. Capacity can be expanded upon request.
Q6: Is customization available for the interface? A: Yes, we provide ODM services that allow users to program the interface and display custom logos on the 3.5" touch screen.
