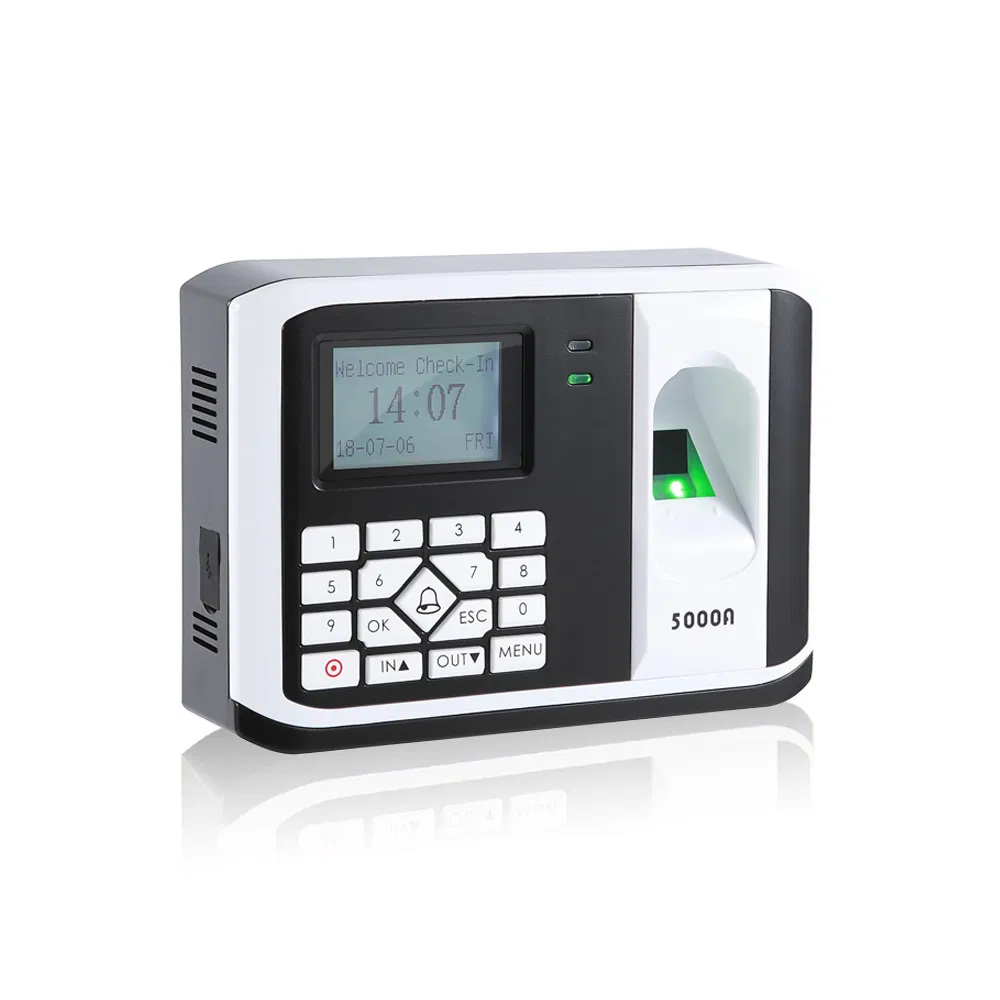

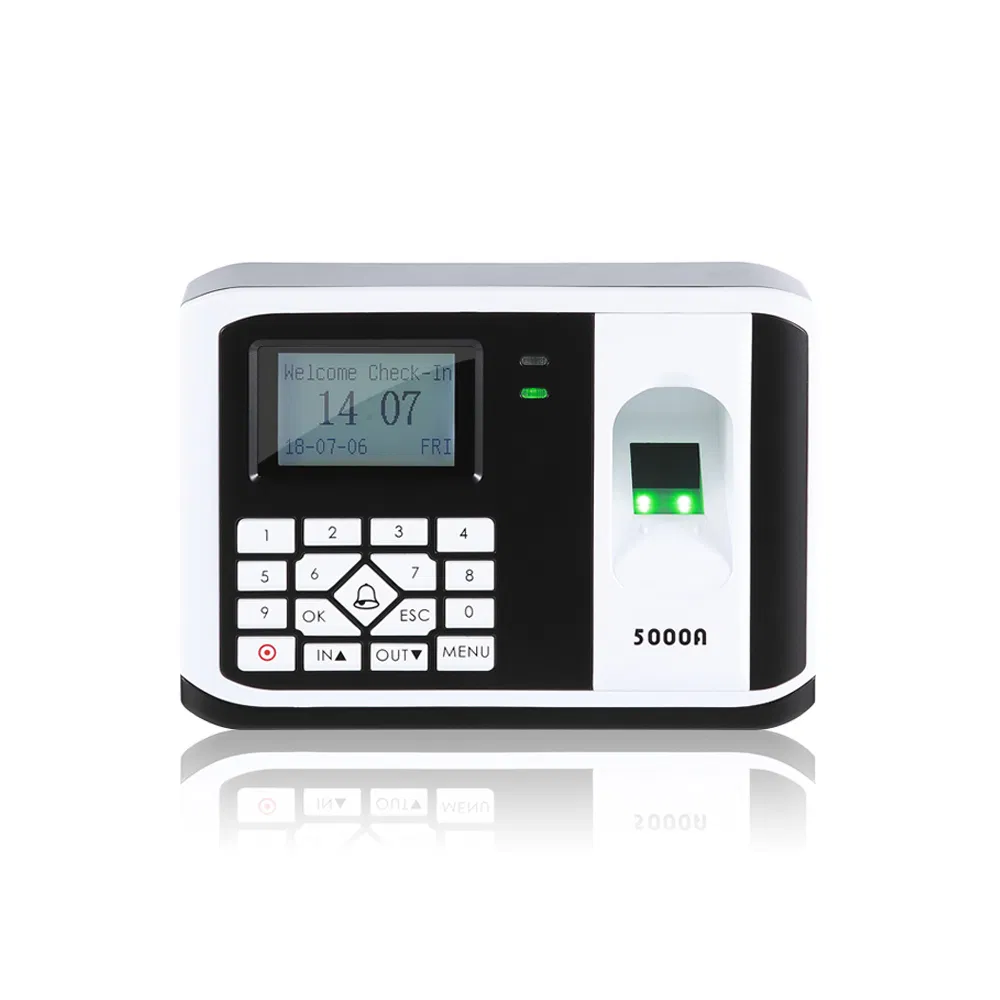

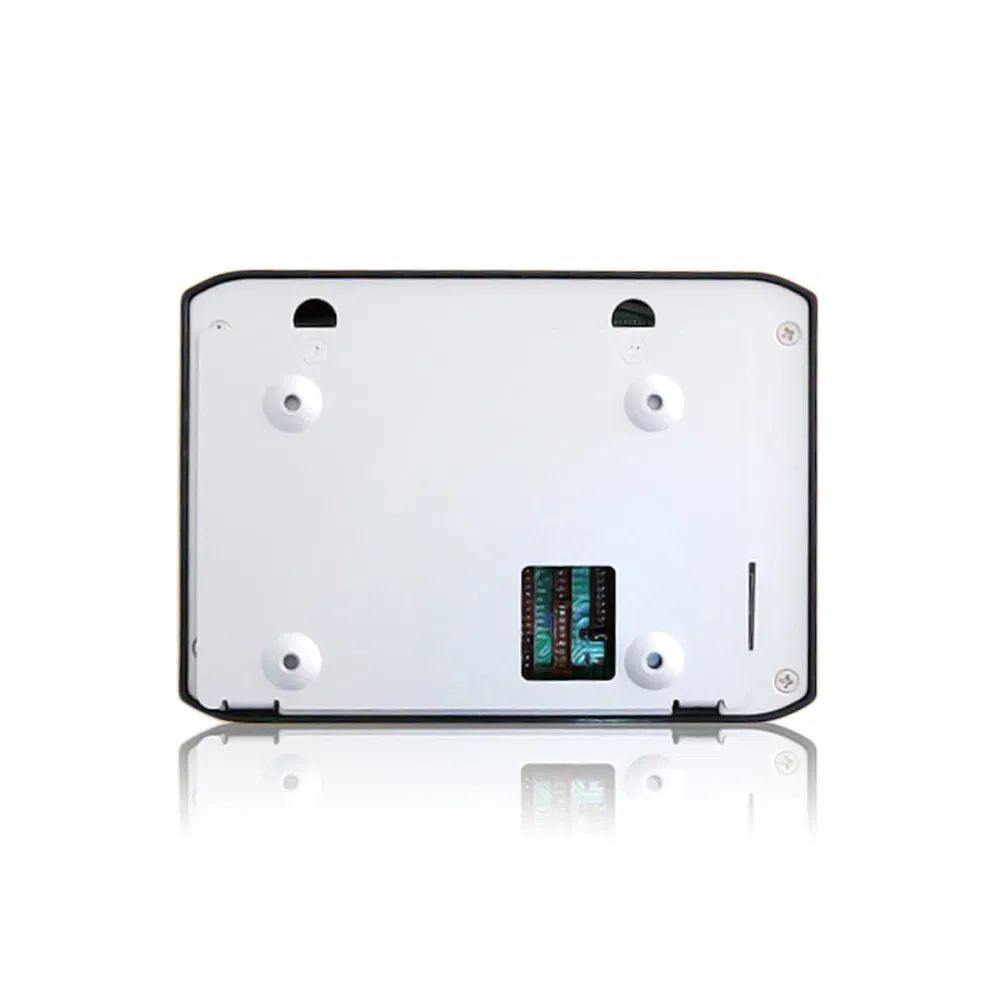

Linux TCP / IP Fingerprint Access Control System with Wired Door Bell Connection, Metal Keypad (5000A)
Linux TCP / IP Fingerprint Access Control System with Wired Door Bell Connection, Metal Keypad (5000A)
Linux TCP / IP Fingerprint Access Control System with Wired Door Bell Connection, Metal Keypad (5000A)
Linux TCP / IP Fingerprint Access Control System with Wired Door Bell Connection, Metal Keypad (5000A)
Linux TCP / IP Fingerprint Access Control System with Wired Door Bell Connection, Metal Keypad (5000A)
1 / 5
Linux TCP / IP Fingerprint Access Control System with Wired Door Bell Connection, Metal Keypad (5000A)
Linux TCP / IP Fingerprint Access Control System with Wired Door Bell Connection, Metal Keypad (5000A)
Linux TCP / IP Fingerprint Access Control System with Wired Door Bell Connection, Metal Keypad (5000A)
Linux TCP / IP Fingerprint Access Control System with Wired Door Bell Connection, Metal Keypad (5000A)
Linux TCP / IP Fingerprint Access Control System with Wired Door Bell Connection, Metal Keypad (5000A)

Linux TCP / IP Fingerprint Access Control System with Wired Door Bell Connection, Metal Keypad (5000A)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
5000A
Screen
Black and White Screen
Communication
RS485, RS232, USB, TCP/IP
Fingerprint Capacity
4,000
Log Capacity
100,000
Attendance Status
Check in, Check out
Dimensions
155(L)*110(W)*38(H)mm
Certification
CE, FCC, RoHS, ISO
Production Capacity
30,000 PCS/Month
Product Overview

5000A: Linux System Fingerprint Access Control System With Wiegand Function

The 5000A is a professional access control product combined with high-precision fingerprint recognition algorithms, optical sensors, embedded design technology, and specialized software applications. Designed for maximum security and value, it has become a highly popular solution for secure environment management.

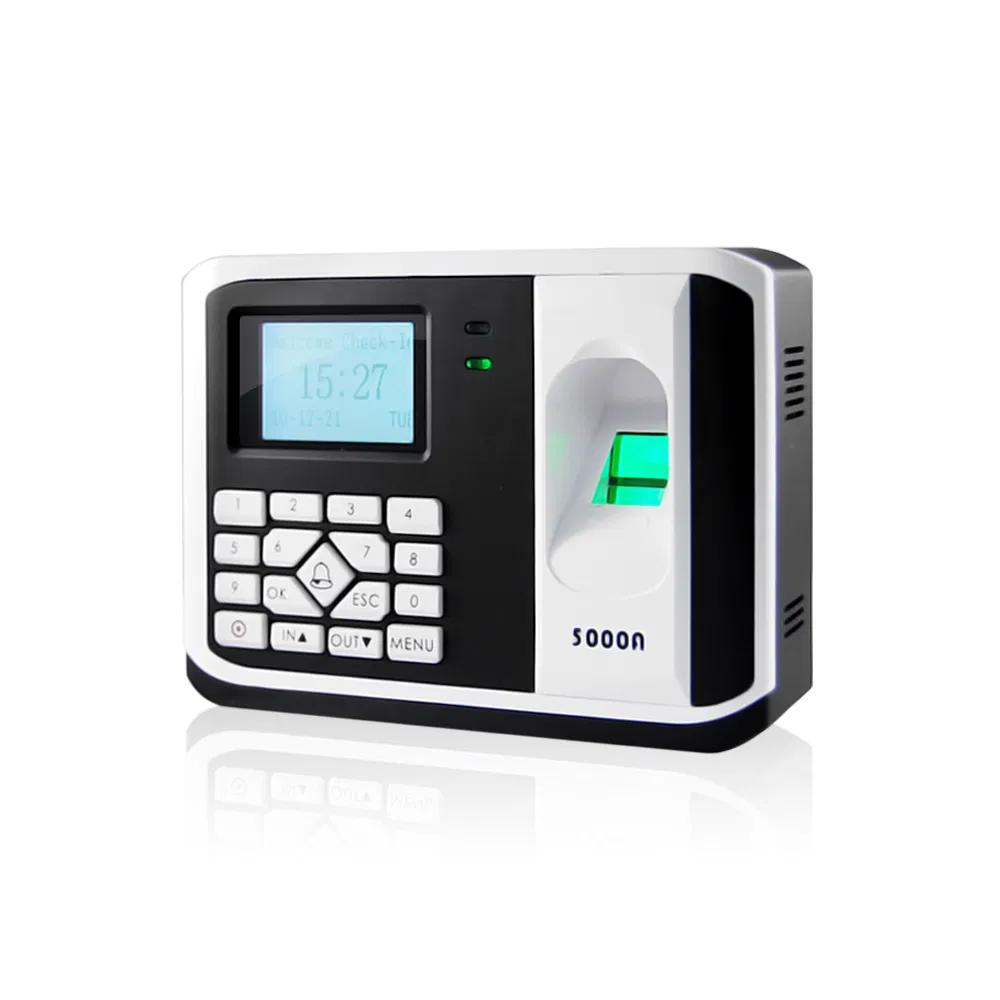

Fingerprint Access Control System 5000A
Key Features
  • Composite algorithm system with high-speed operating
  • Embedded LINUX system, easy to integrate
  • Standalone or network environment support
  • Built-in controller: 99 time zones, 5 groups
  • 24 hours continuous operation available
  • Automatic data saving during power outages
  • Multiple alarm alert support for enhanced security
Technical Specifications
Category Details
Display/SpeakerLCD: 4 lines white LCD 128*64; Speaker: Voice Prompt
LanguageEnglish, French, Spanish, Arabic, and more (40+ languages)
CapacityFingerprints: 4,000; Logs: 100,000
Verification Speed1:1 ≤0.5s; 1:N ≤1s
AccuracyFRR ≤0.01%; FAR ≤0.0001%
EnvironmentTemp: 0°C ~ 45°C; Humidity: 20% ~ 80%
Power Supply110/220VAC ~ 12VDC
CommunicationTCP/IP, RS232/485, USB Host/Client, Wiegand in/out
Standard FunctionsProfessional access control, 50 time zones, Dismantlement alarm, Scheduled bell, SMS
Optional Functions9-PIN ID, ID/MIFARE reader, Webserver, Anti-passback
Order Numbers
Model Number Description
5000AFingerprint access control
5000A+IDFingerprint access control system built-in ID reader
5000A+MFFingerprint access control system built-in M1 reader
Connection Diagram & Details

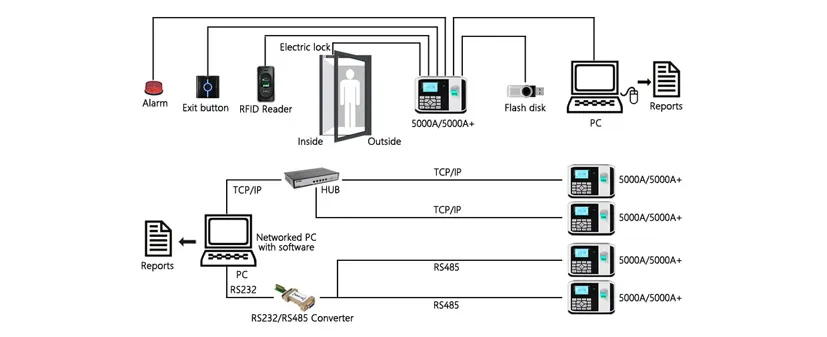

Connection Diagram
Detail 1
Detail 2
Detail 3

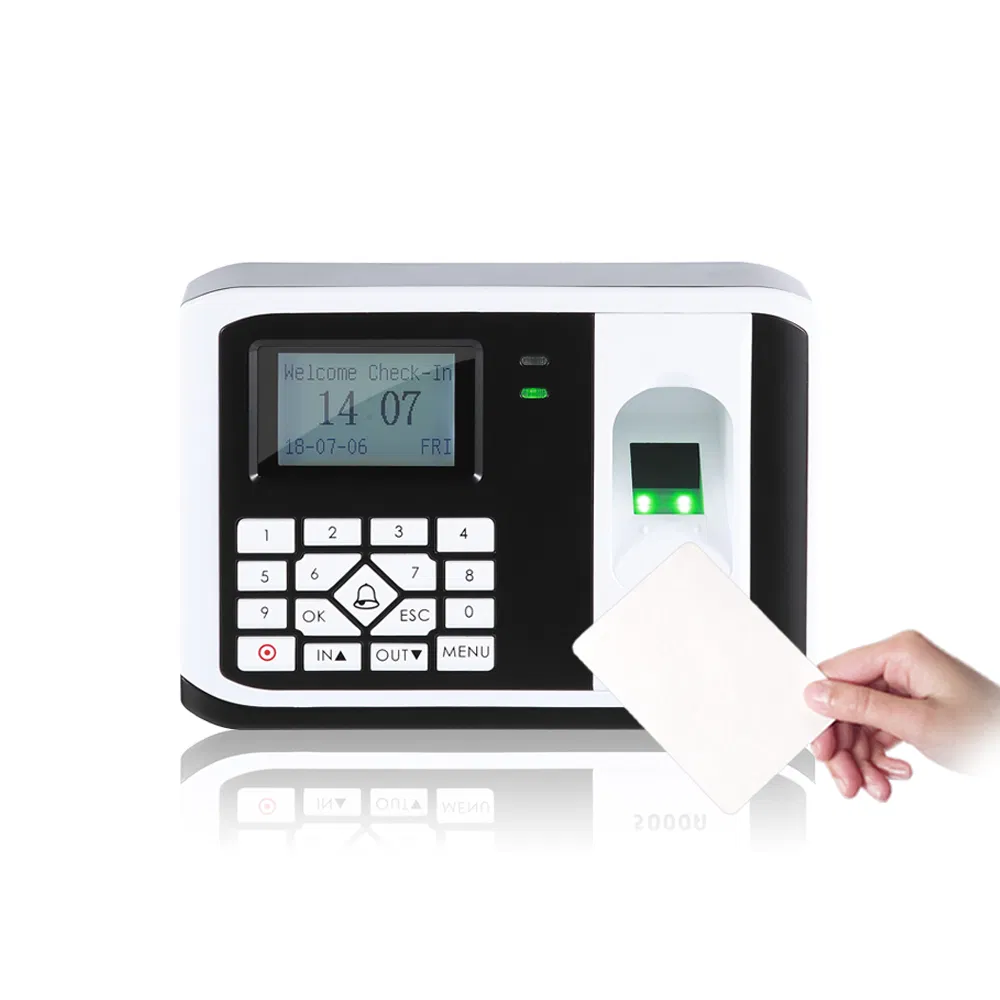

Detail 4
Frequently Asked Questions
What is the fingerprint and log capacity of the 5000A?
The system supports up to 4,000 fingerprint templates and can store up to 100,000 transaction logs.
Which communication interfaces are available?
The 5000A supports multiple communication methods including TCP/IP, RS232/485, and USB Host/Client for flexible networking.
Does the system work during a power outage?
While it requires a power source for operation, the system is designed to save all data automatically during power outages to prevent data loss.
Can the 5000A be used for attendance tracking?
Yes, it features attendance status tracking such as Check in, Check out, Break in/out, and OT in/out.
Does it support external readers?
Yes, it includes Wiegand in/out ports and can be customized to support ID, MIFARE, or slave readers.
What operating system is used in this device?
The 5000A uses an embedded Linux system, which ensures stability and easy integration into various security environments.
