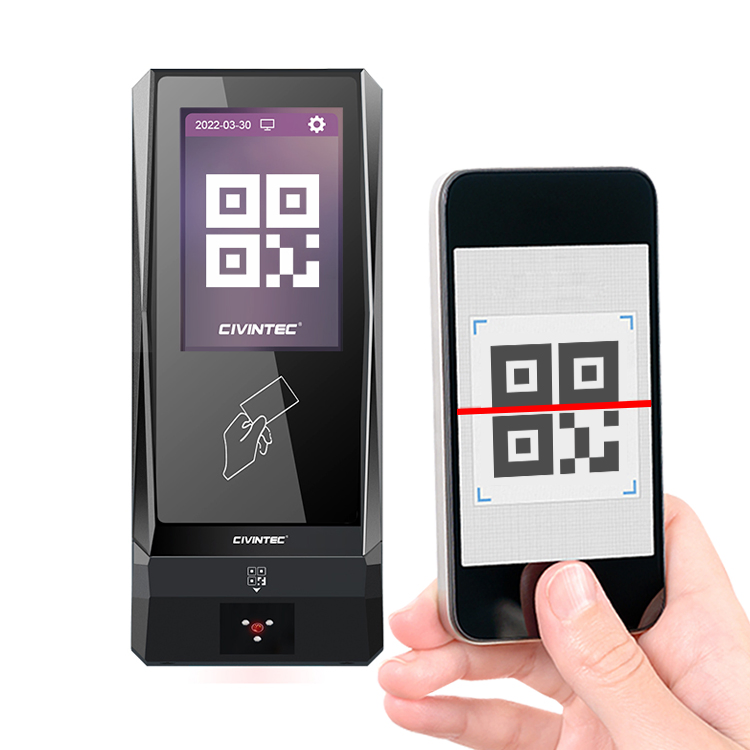

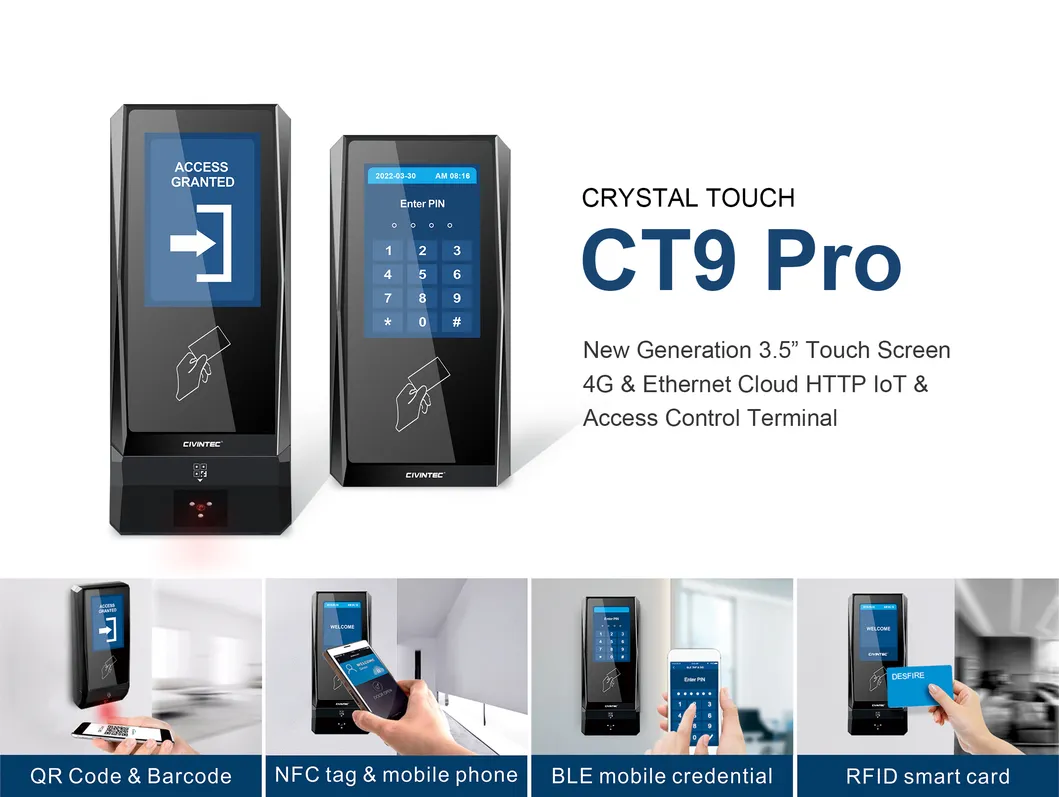

CT9 Pro is a Linux-based HTTP/HTTPS server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats (1D & 2D): QR Code, Micro QR code, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE, NFC |

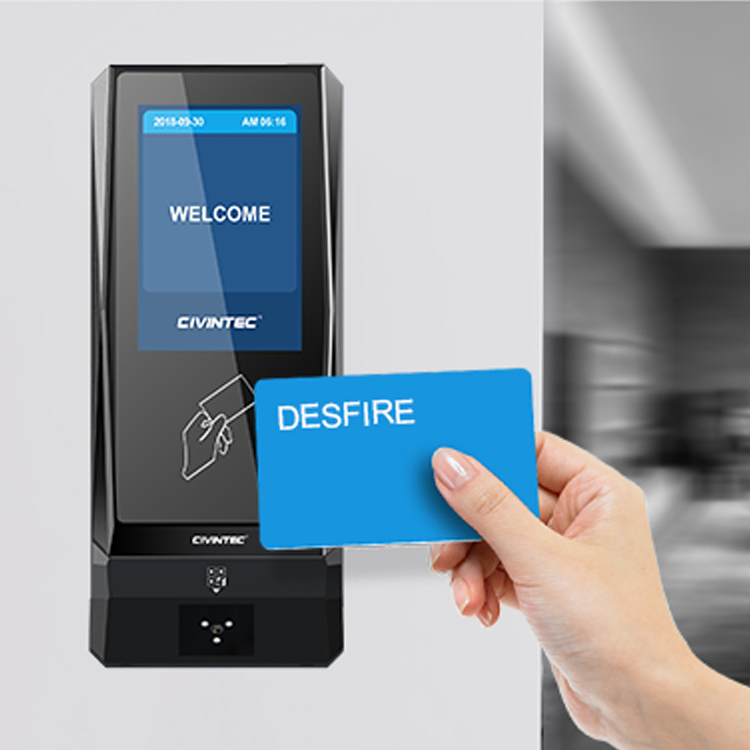

| RFID Smart Card | EM 125KHz, 13.56MHz Mifare Classic, Plus, DESFire EV1, EV2, NFC tags, ISO14443B |
| SAM Slot | ISO7816(T=0,T=1) 1 SAM module |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| I/O Port | Relay output, Tamper alarm, door contact, door exit, Buzzer control |
| Capacity | 10,000 users / 50,000 logs |
| IP Protection | IP65 outdoor/indoor use |

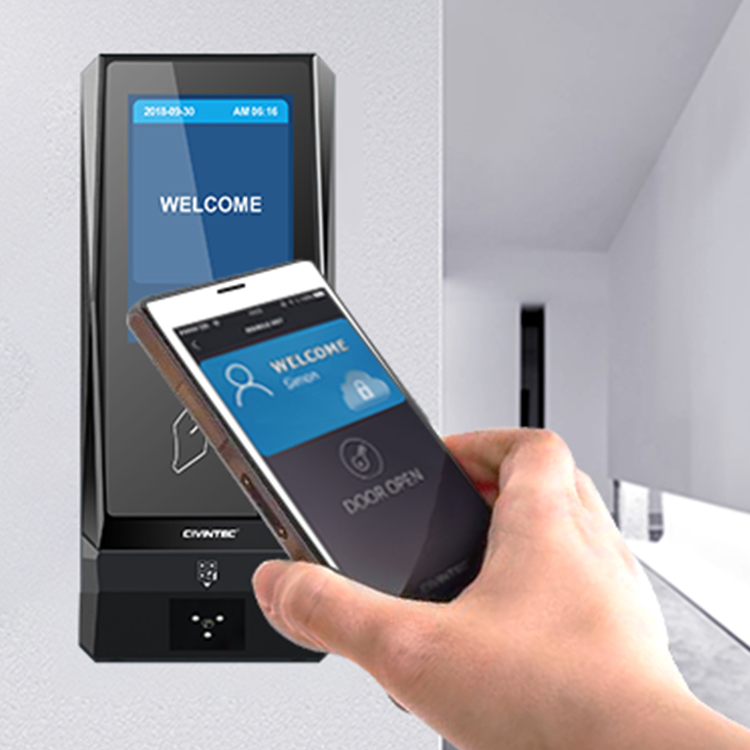

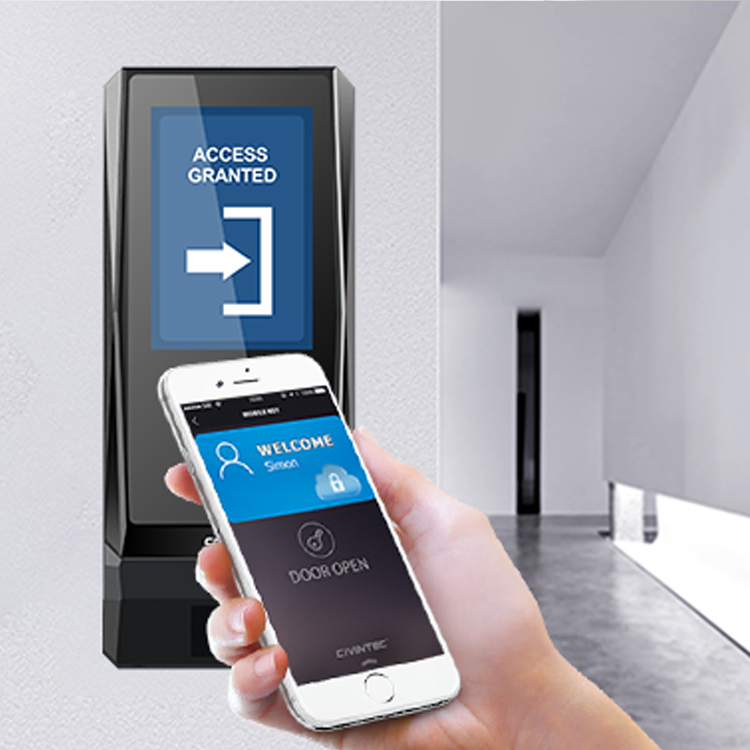

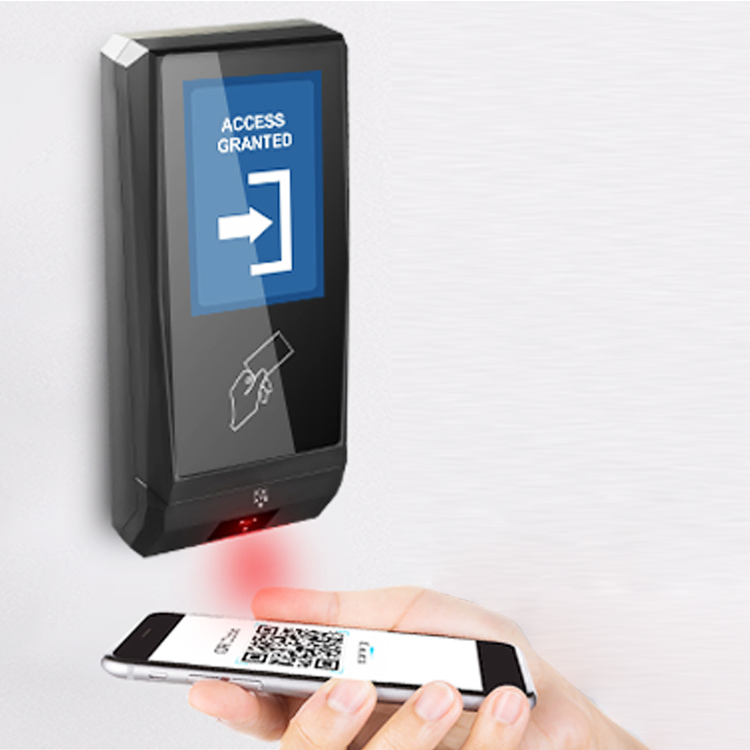

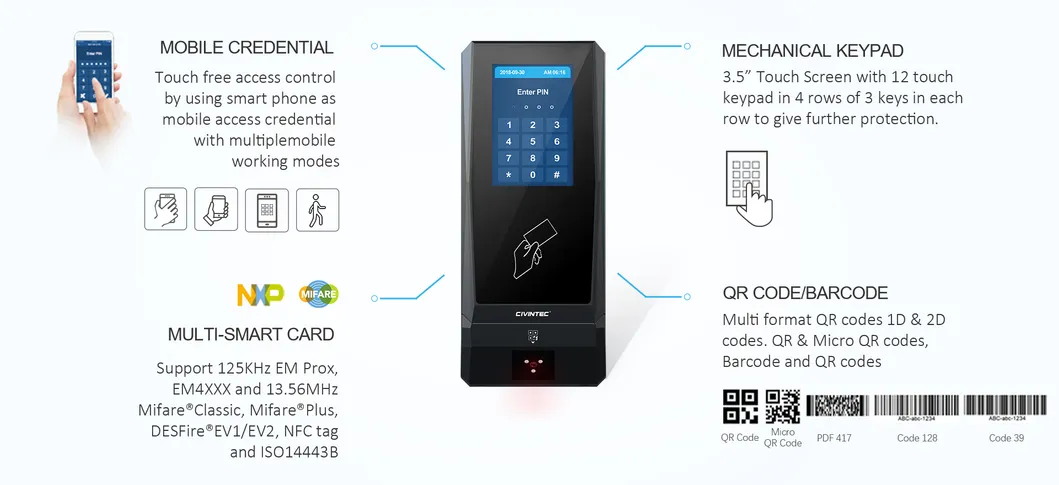

CT9 Pro incorporates 5-in-1 multiple access technologies: touch keypad, dual-frequency RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning for comprehensive visitor management.

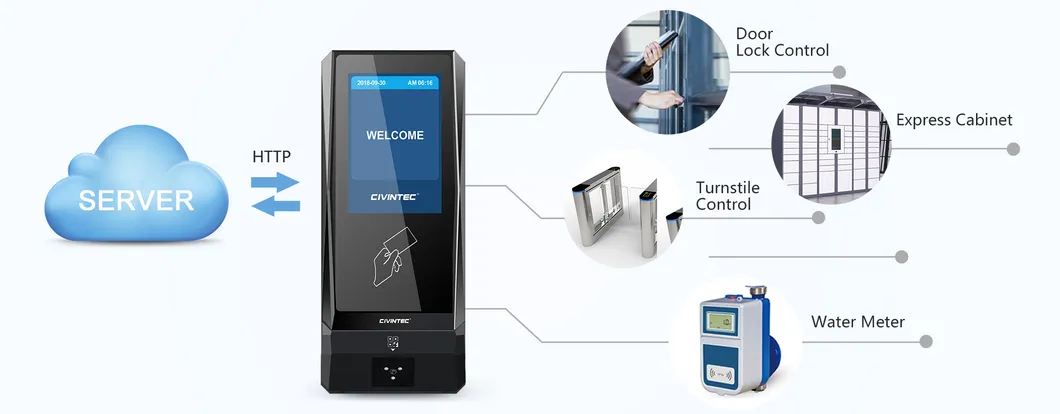

Bi-direction communication via standard HTTP & HTTPS between CT9 Pro and the server allows for remote control of door locks and various IoT facility management tasks.

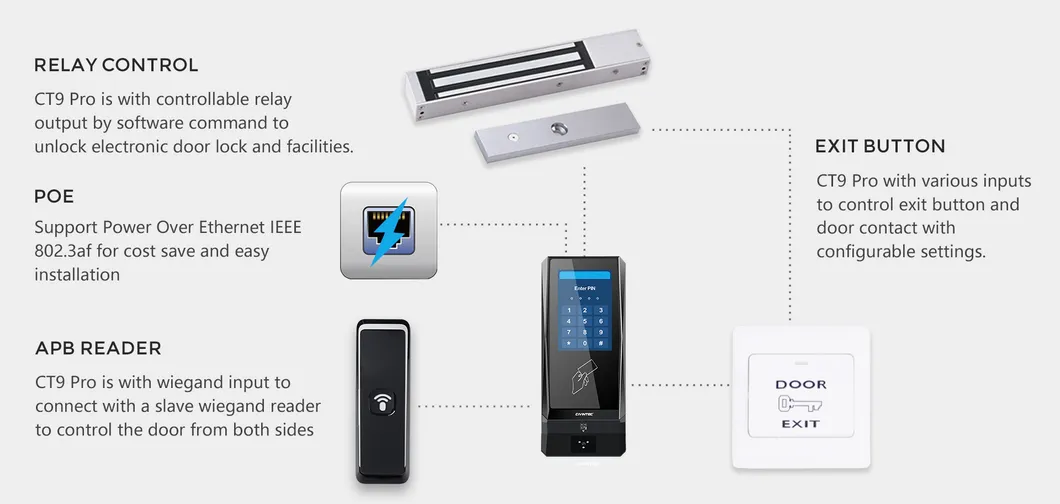

Remotely controlled by cloud web-based software in real-time. Features embedded relay output to control door locks for Access Denied or Granted scenarios, suitable for building diverse IoT solutions.
We offer comprehensive ODM customization on hardware, reader housing, firmware, and software design services.
Users can program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.
