Industrial-grade water quality monitoring station - National standard method detection - Outdoor integrated online monitoring system HG HWSZ S100

Customization:	Available
After-sales Service:	24-Hour Customer Service
Warranty:	1 Year

Basic Information

Model NO.

HG HWSZ S100

Floor area

≤ 2m²

Measurement cycle

≤ 60min

Usage

Industrial, Agriculture

Control Unit

Embedded Control System

Data Comm.

RS232/RS485; Wireless

Power Dissipation

2500W (Max)

Specification

1550*1000*2000mm

Product Description

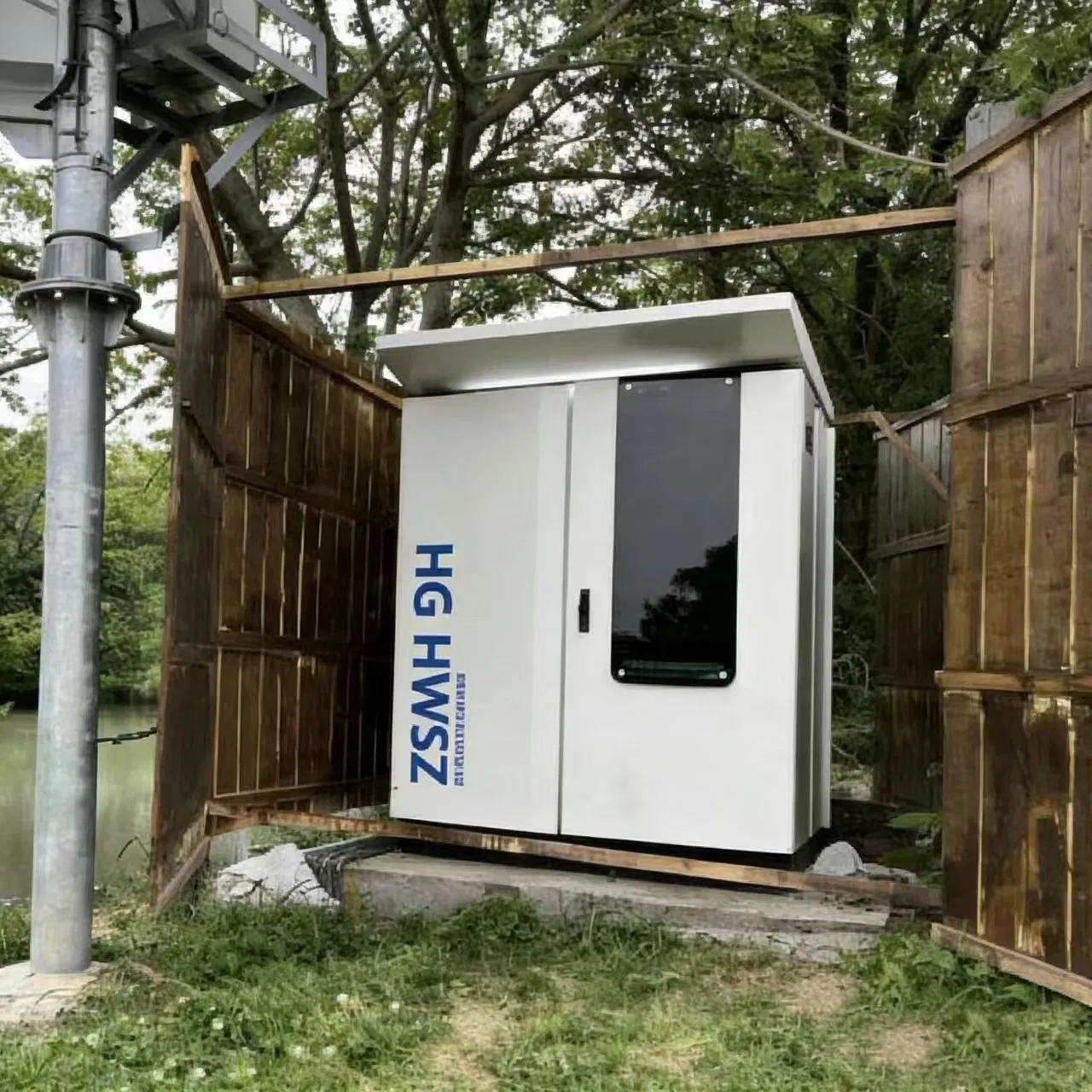

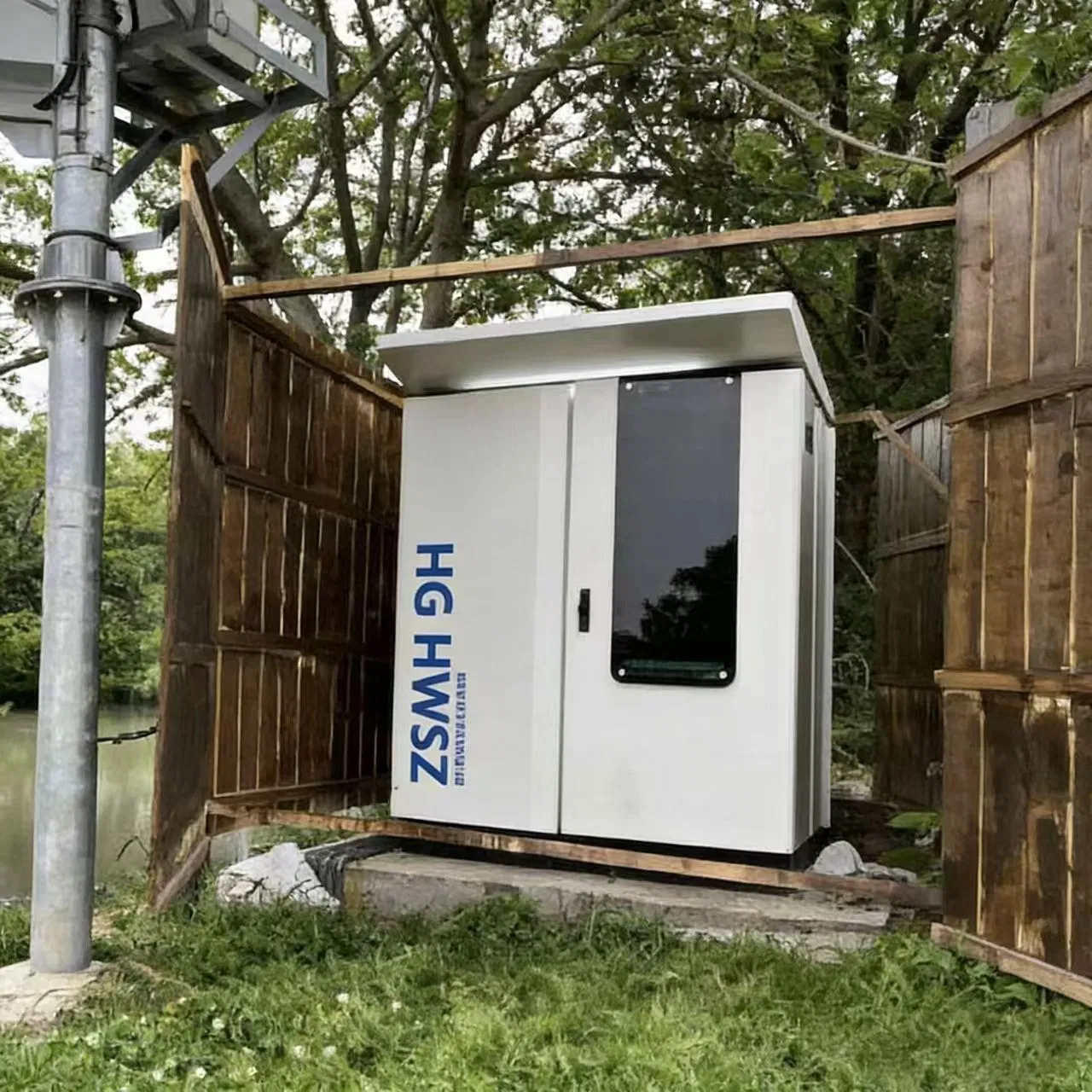

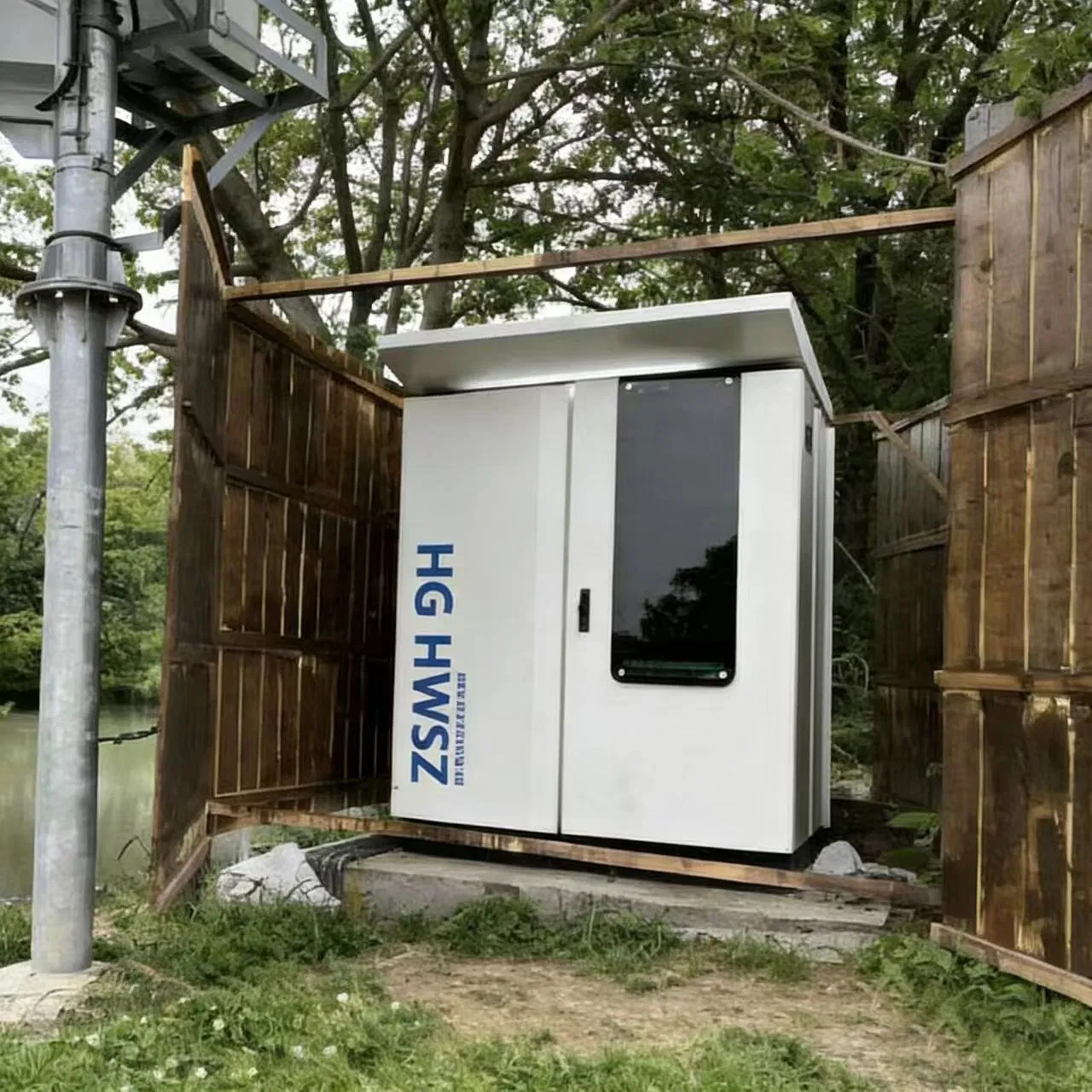

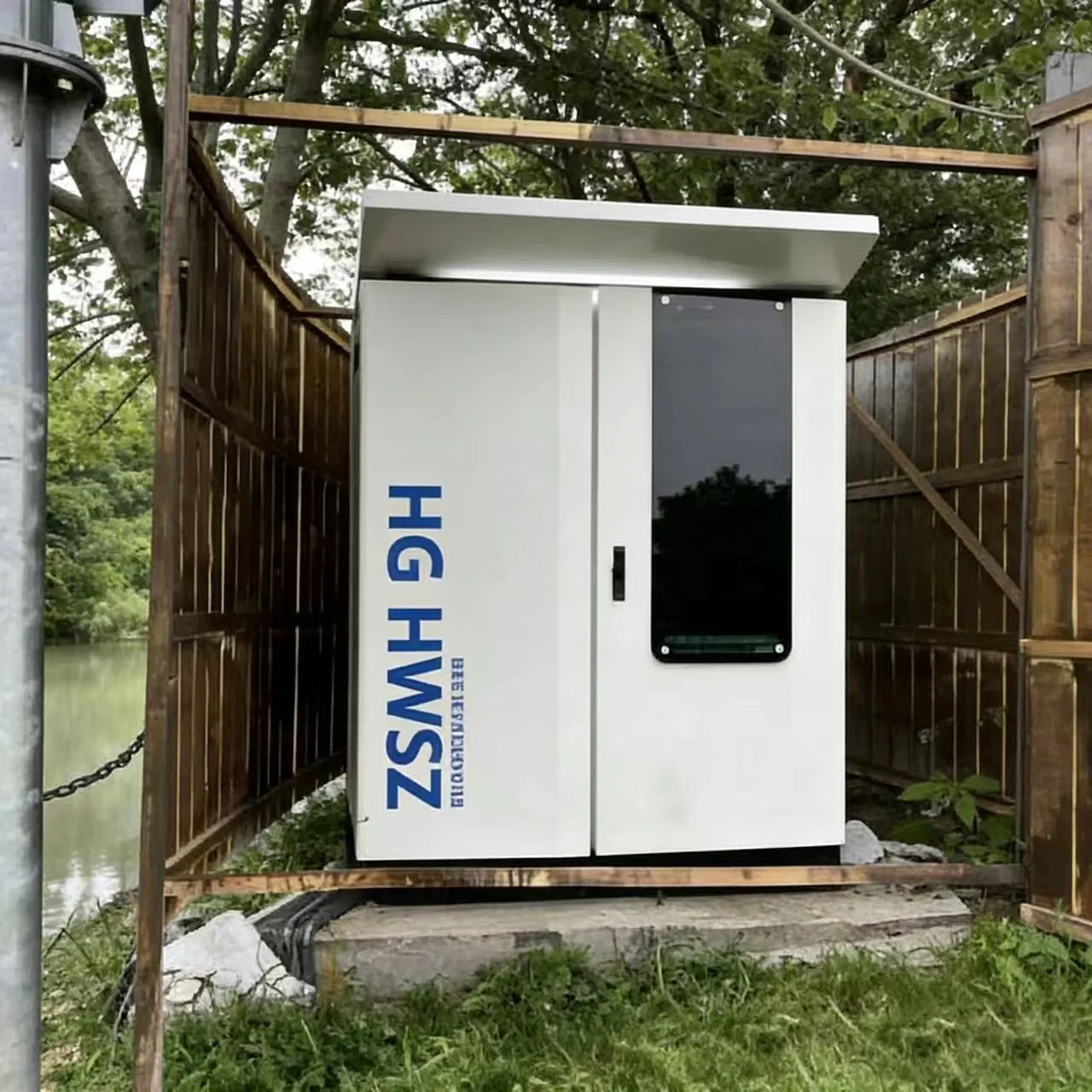

Outdoor Small-scale Automatic Water Quality Monitoring Station
This outdoor station adopts an integrated design principle, featuring a water collection and distribution system, detection units (Total Phosphorus, Total Nitrogen, Permanganate Index, Ammonia Nitrogen, and five conventional parameters), quality control units, and auxiliary units. The core units strictly follow national standard chemical analysis methods.

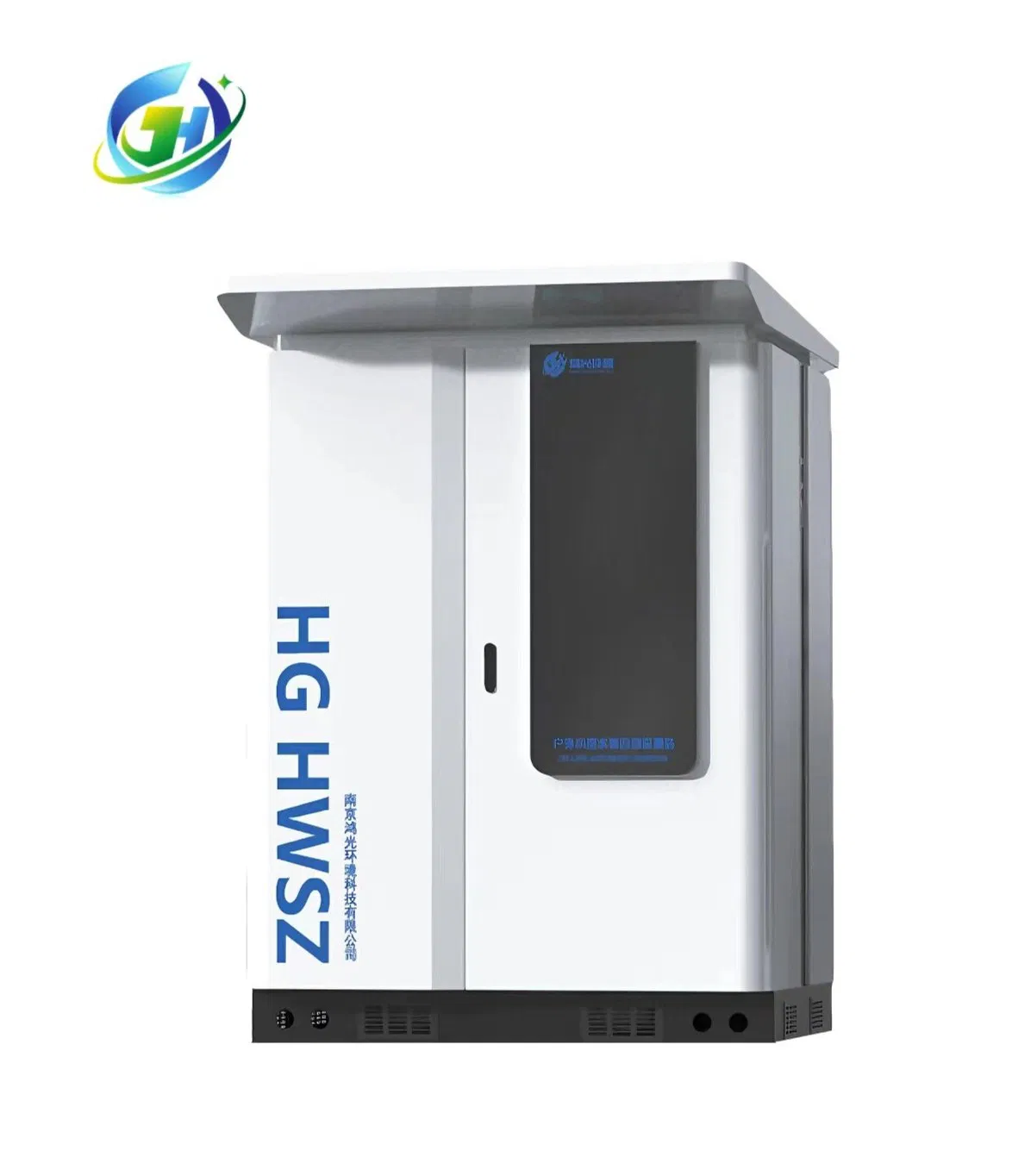

Outdoor integrated online monitoring system

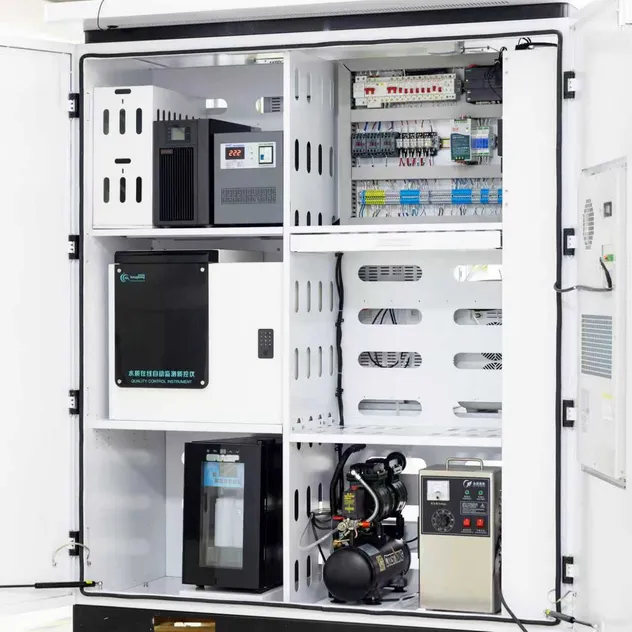

Key System Components:

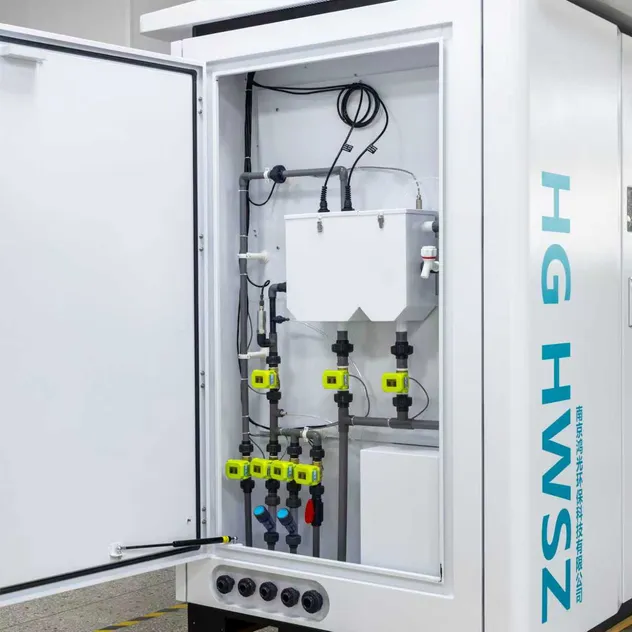

Water sampling and distribution system

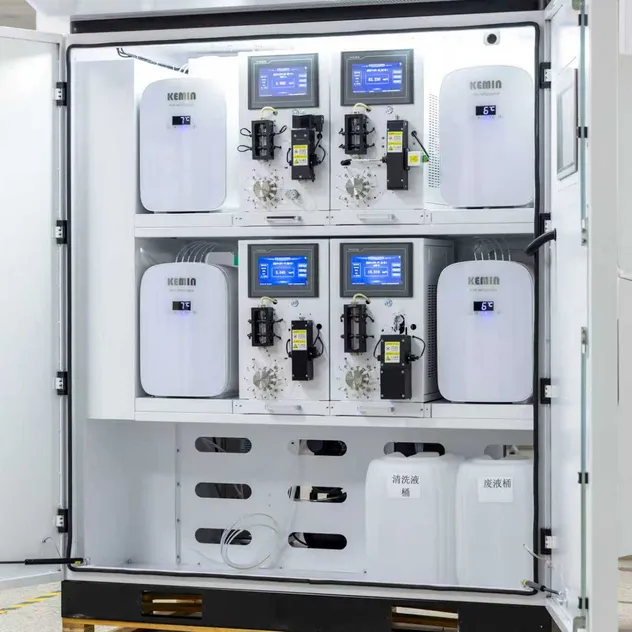

Detection unit module (TP, TN, CODmn, NH3-N)
Conventional five parameters: Dissolved oxygen, conductivity, turbidity, temperature, and pH
Auxiliary units: waste liquid collection, lightning protection, air conditioning

Technical Specifications

Parameter	Measuring Range	Error of Indication
pH	0~14 pH	±0.1pH
Conductivity	0~20000 mS/m	±2%
Dissolved Oxygen	0~20 mg/L	±0.3mg/L
Turbidity	0~4000 NTU	±10%
Ammonia Nitrogen	0~300 mg/L	±5%
Total Phosphorus	0~50 mg/L	±5%
Total Nitrogen	0~160 mg/L	±5%

Drawings & Dimensions

Application Scenarios

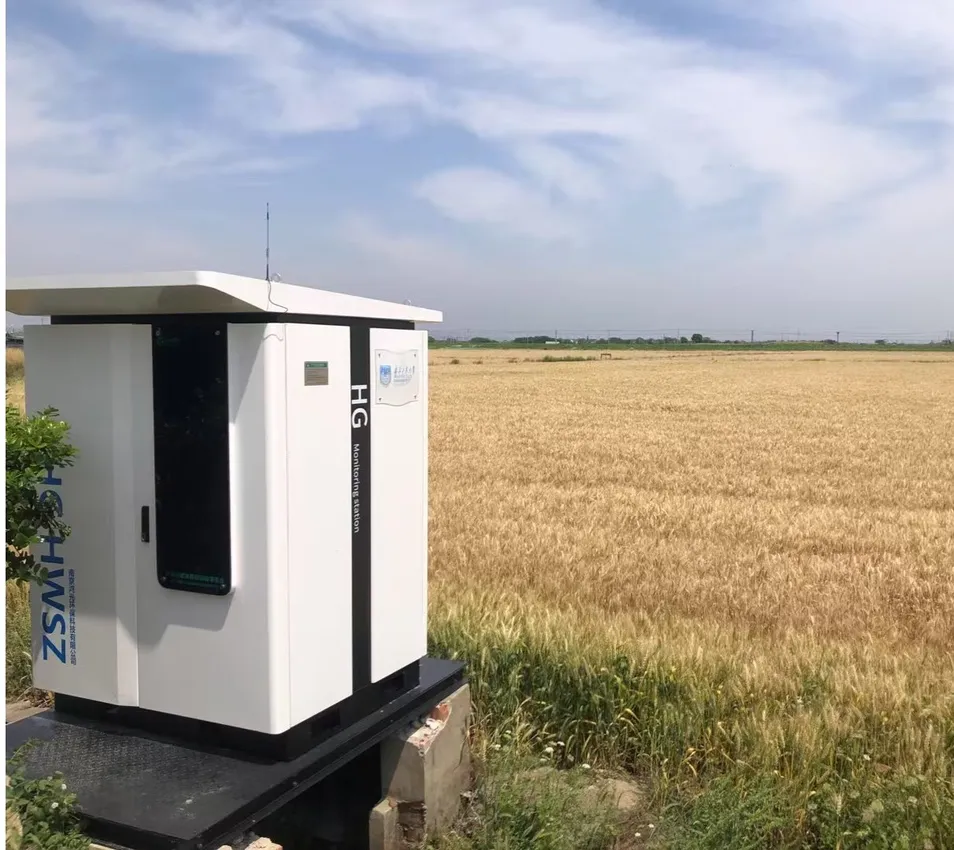

Agricultural Industry: Monitoring of nitrogen and phosphorus loads in farmland runoff to support environmental management and reduce pollutant inflow into lakes.

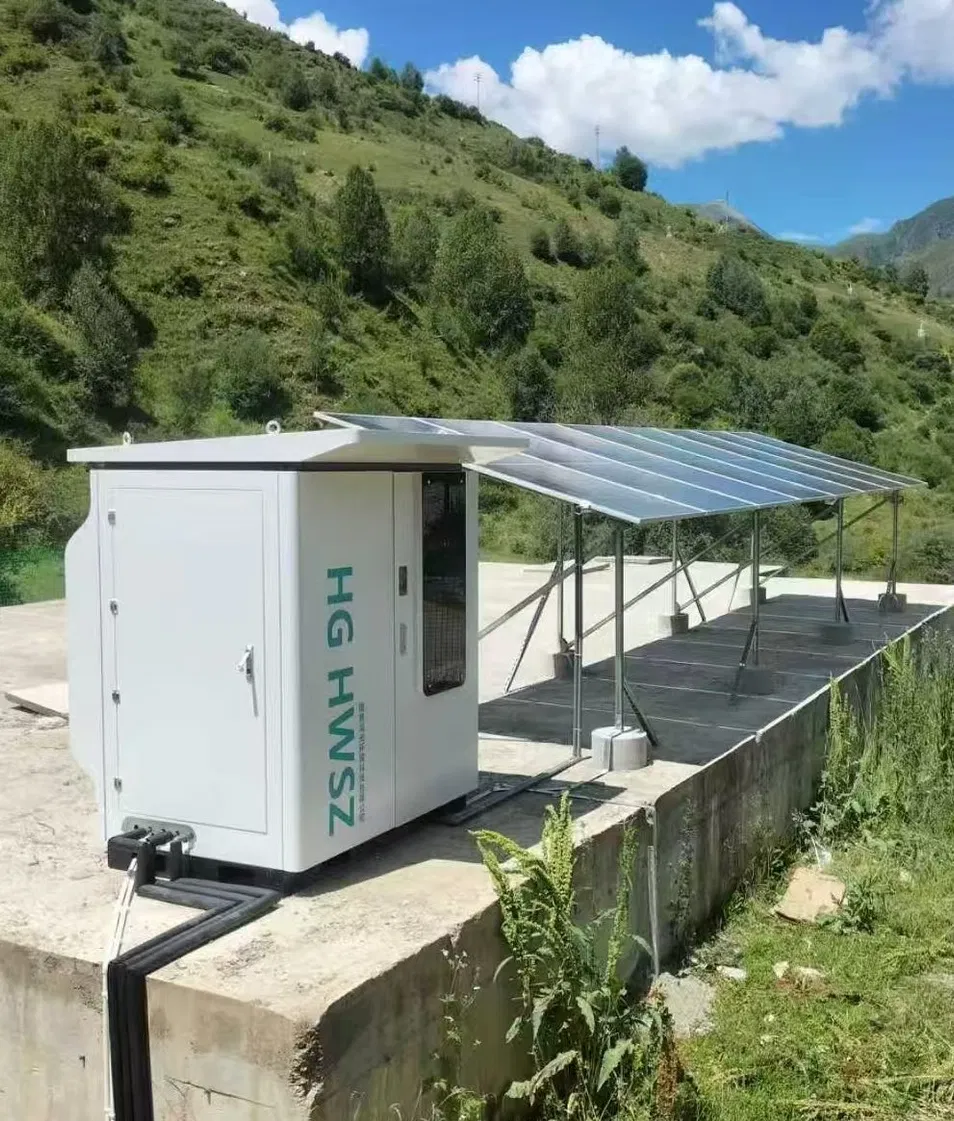

Water Source Areas: Enhanced monitoring of river discharge outlets in high-altitude environments, ensuring stable effluent quality and local water safety.

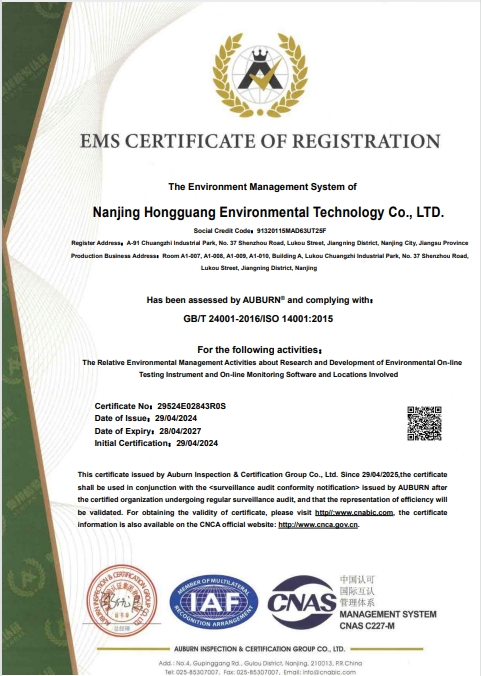

Documentation & Quality Control

Frequently Asked Questions

What is the standard lead time for orders?

Standard models typically ship within 15–30 days, while customized monitoring stations require 30–45 days depending on configuration complexity.

Can the monitoring station be customized for specific parameters?

Yes, we offer tailored configurations. You can request specific sensors or expanded measuring ranges for parameters like Ammonia Nitrogen, Total Phosphorus, and more.

How is the data transmitted from the outdoor station?

The system supports RS232/RS485 communication as standard and also supports wireless transmission for remote data collection and monitoring.

What after-sales support is provided for international clients?

We provide remote guidance for installation and commissioning, multi-dimensional technical training, and a quick-response technical support system for maintenance.

Is the equipment suitable for extreme environments?

Yes, our stations are designed for outdoor use and can be equipped with cold-resistant modules and lightning protection for stable operation in high-altitude or harsh weather areas.

What is the ordering process for high-volume projects?

The process involves technical negotiation, design recommendation based on use scenarios, sample confirmation, contract signing, and finally batch production and delivery.
