The fire detection tube plays three roles in this system: fire detecting, fire suppression system activating and fire agent releasing. Because of its soft nature, the detection tube can be easily arranged to any nearest point to the potential fire source. Thus, once there is a fire, the detection tube breaks from the heat and then it will immediately release the fire agent for implementing point-to-point fire fighting.

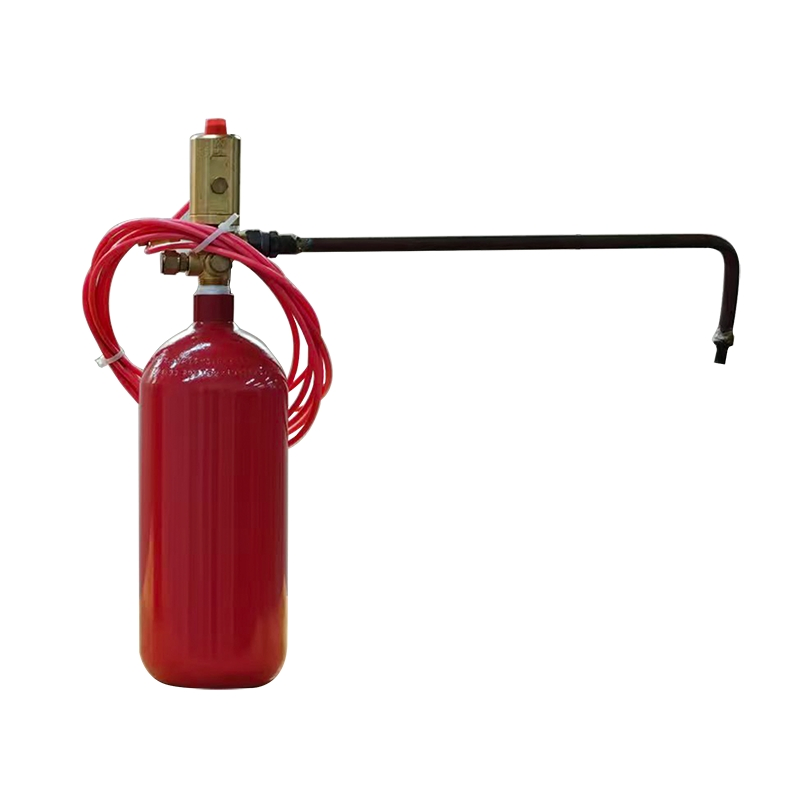

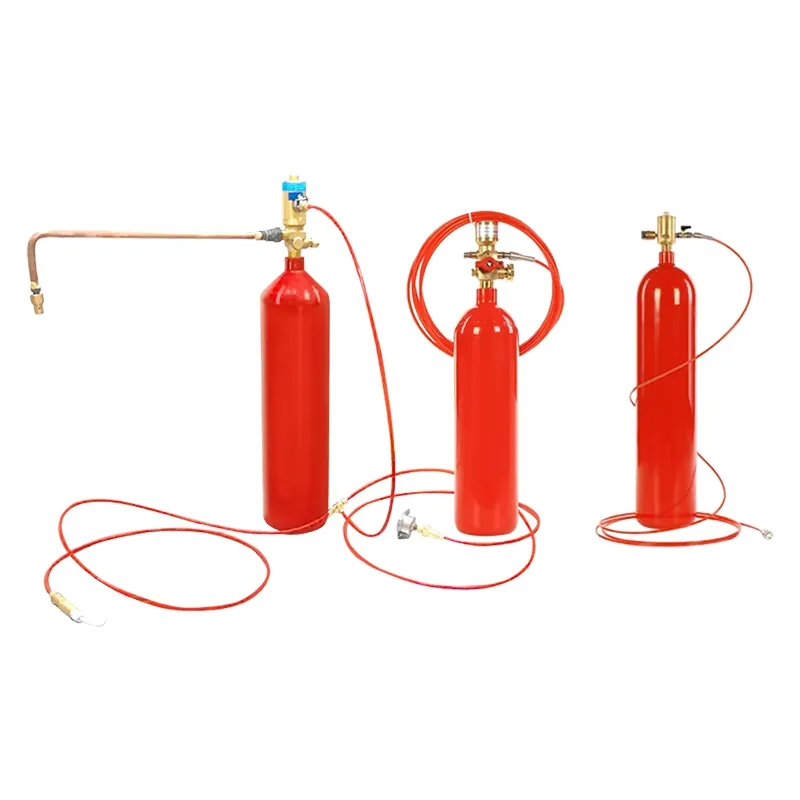

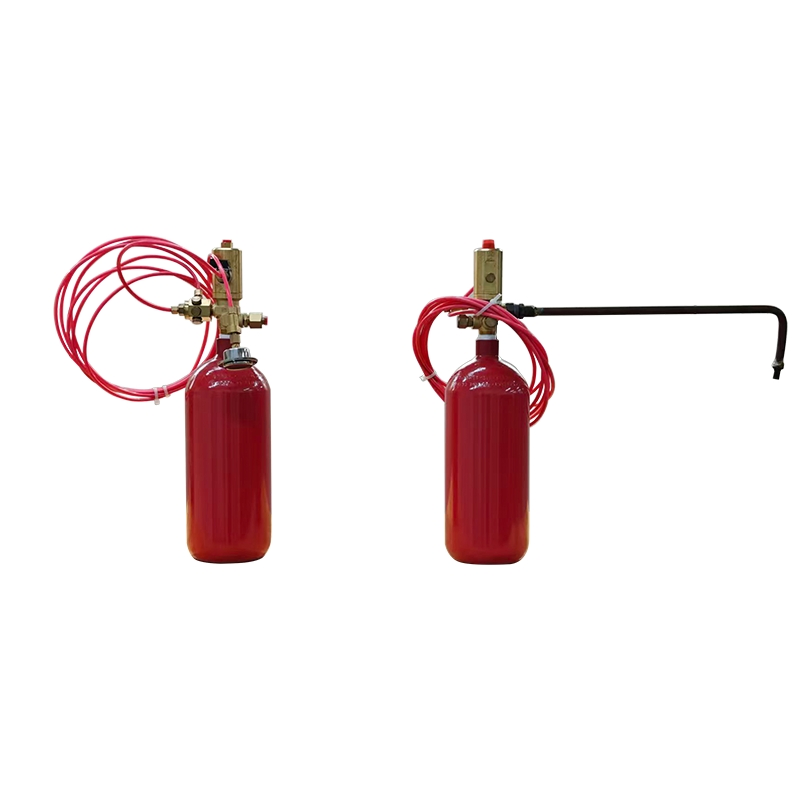

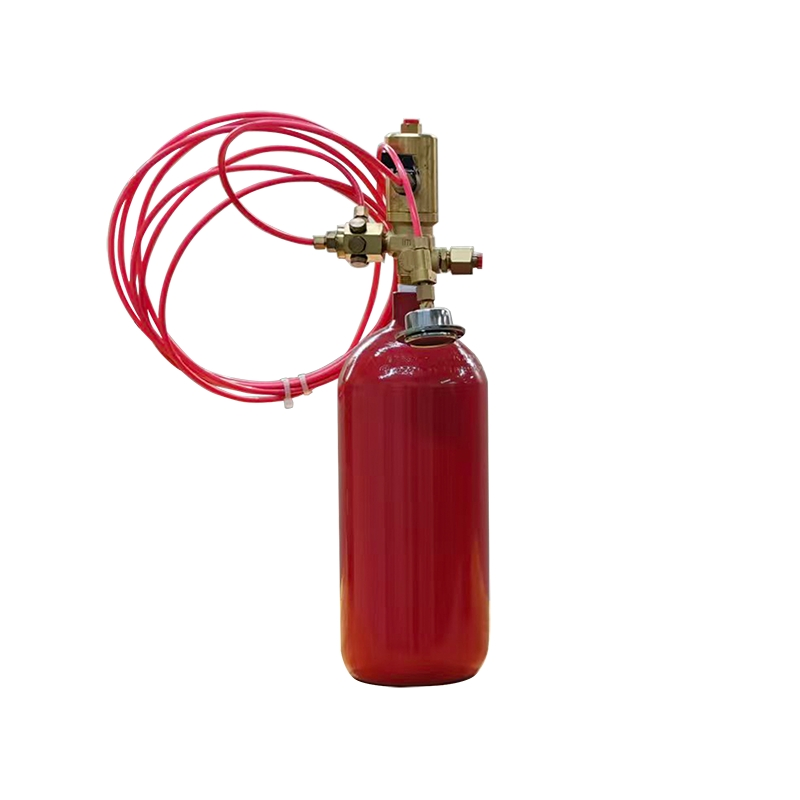

CO2 fire trace extinguisher is an advanced fire suppression system. It belongs to the fixed non-electrical self-starting type, requiring no power or traditional electrical elements. It operates automatically through a pressurized detection tube without manual manipulation.
| Specification Item | CO2 Direct Type | CO2 Indirect Type |
|---|---|---|
| Capacity of Agent | 2kg, 3kg, 4kg, 6kg, 9kg, 12kg | |
| Working Pressure | 5.7Mpa | |
| Max Working Pressure | 12.1Mpa | |
| Working Temperature | 0-49℃ | |
| Density of Unit Volume | 1.5kg/m3 | |
| Length of Detecting Tube | 5m - 25m | |
| Length of Releasing Tube | -- | 0.5m - 1.5m |

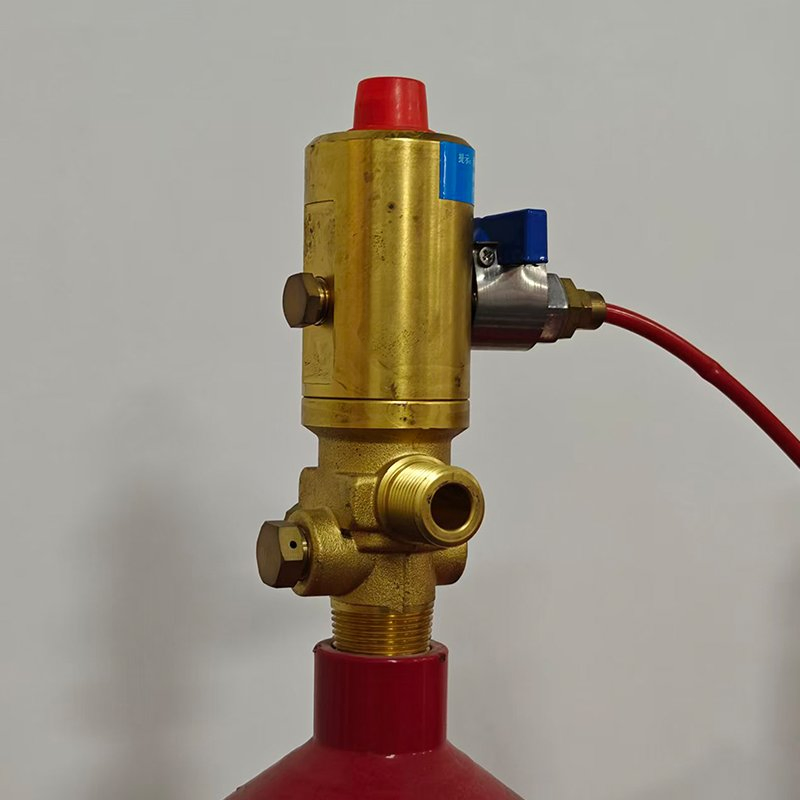

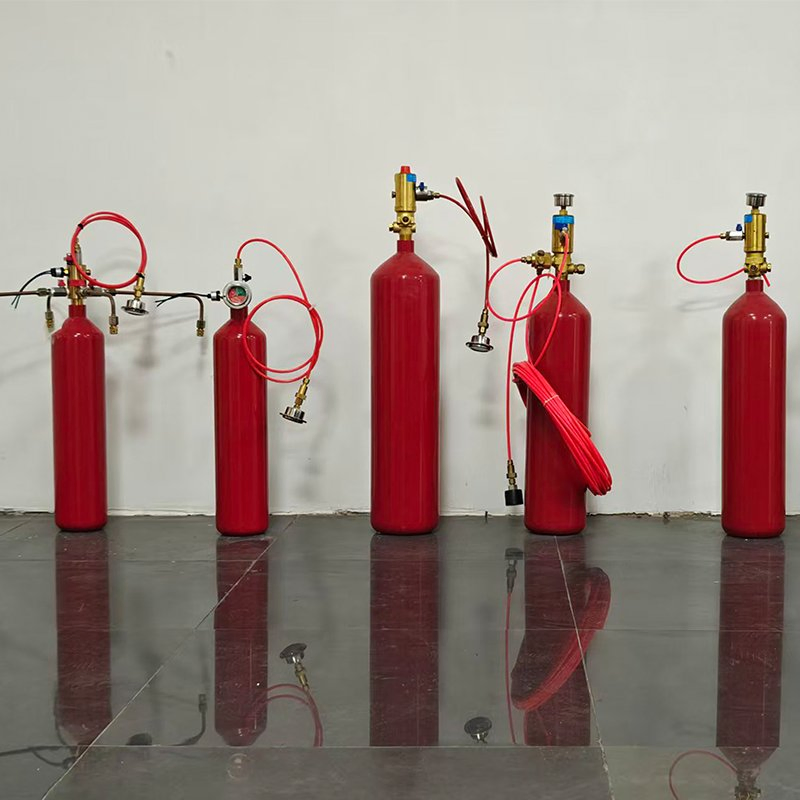

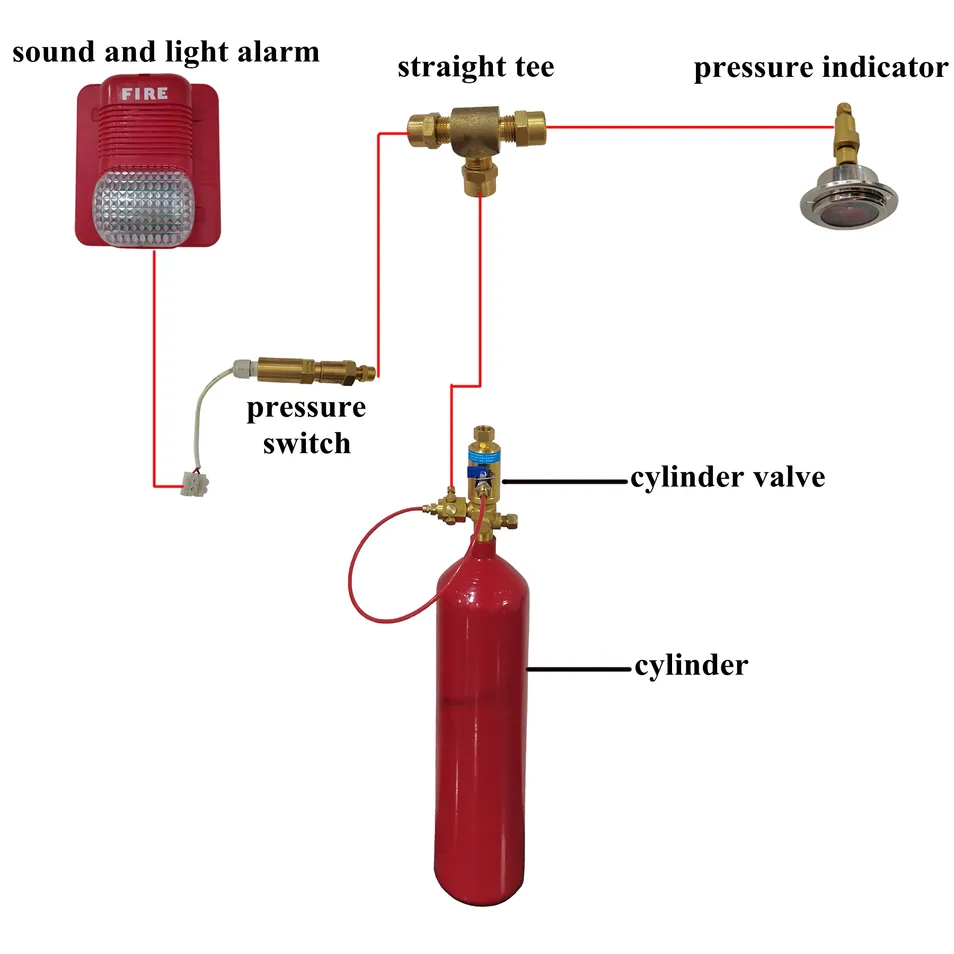

Automatic CO2 fire trace tubes do not need extensive accessories. The extinguishing device can automatically put out fires independently. It consists of a cylinder, a container valve, and agents (CO2 or FM200).
Our target customers are global users in need of high-quality fire-fighting equipment. We have established a strong presence in Southeast Asia, the Middle East, and Africa, receiving high praise for our reliable suppression systems.
