Intelligent Waterproof RFID Access Control System with Keypad
Intelligent Waterproof RFID Access Control System with Keypad
Intelligent Waterproof RFID Access Control System with Keypad
Intelligent Waterproof RFID Access Control System with Keypad
Intelligent Waterproof RFID Access Control System with Keypad
1 / 5
Intelligent Waterproof RFID Access Control System with Keypad
Intelligent Waterproof RFID Access Control System with Keypad
Intelligent Waterproof RFID Access Control System with Keypad
Intelligent Waterproof RFID Access Control System with Keypad
Intelligent Waterproof RFID Access Control System with Keypad

Intelligent Waterproof RFID Access Control System with Keypad

Customization: Available
Card Reader Quantity: 2
Control Gates: One Gate
Send Inquiry

Product Description

ℹ

Basic Info

Model NO.
ZDAC-2400W
Technology
32-Bit Technology
Way of Control
Computer Control
Type
One-way Controller
Item
Waterproof Access Control System
Operating Voltage
DC 12-24V
Reading Distance
3-6cm
Type of ID Card
125kHz, EM
Users
2000
Material
Metal
Waterproof
IP65
Certificate
CE, RoHS
📋

Product Description

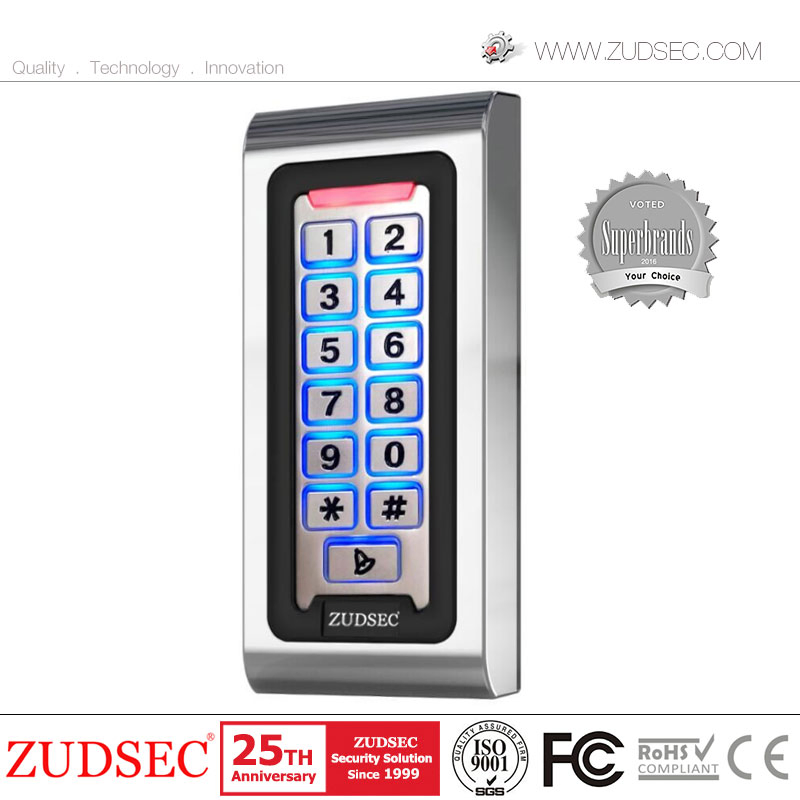

Intelligent Waterproof RFID Access Control System with Keypad

Standalone Access Controller: Aluminum alloy structure, Waterproof, fully potted, confirms to IP65, 125KHz EM and HID card for optional, Multi-function, 12P cable with built in door bell function, operating as slave reader, single door, anti-pass back, etc. Suitable for various occasions.

✨

Features

Aluminium alloy case, waterproof, fully potted, meets IP-65 standard.
Metal digital backlit keypad (Normal ON, Normal OFF or Human-Approach ON).
Built-in door bell and 125KHz card reader with Auto-Recognition.
Supports 2000 users, each with a card and a 4-6 digits password.
Master card support and 2000 serial number cards recording.
Wiegand 26-37 output card number and multiple button output formats.
⚙

Product Parameters

Specifications
Operating VoltageDC 12-24V; Operating Current ≤35mA
Reading Distance3-6CM
Keypad Transmit Format4-6 digits key press, 4 bits or 8 bits data
Type of ID Card125KHz, EM
Card Transmit FormatWiegand 26-37
Operating Temperature-40ºC to 60ºC
Operating Humidity0~95% (non-condensing)
Product Size158.6L x 43W x 21.7D (mm); Weight: 0.5Kg
🖼

Product Gallery

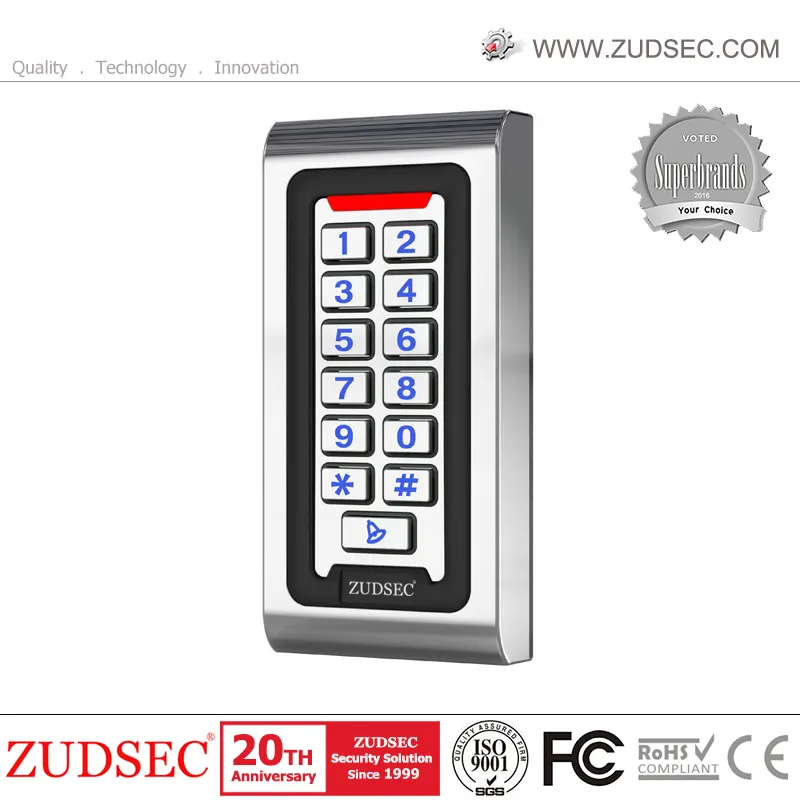

Access Control System 1

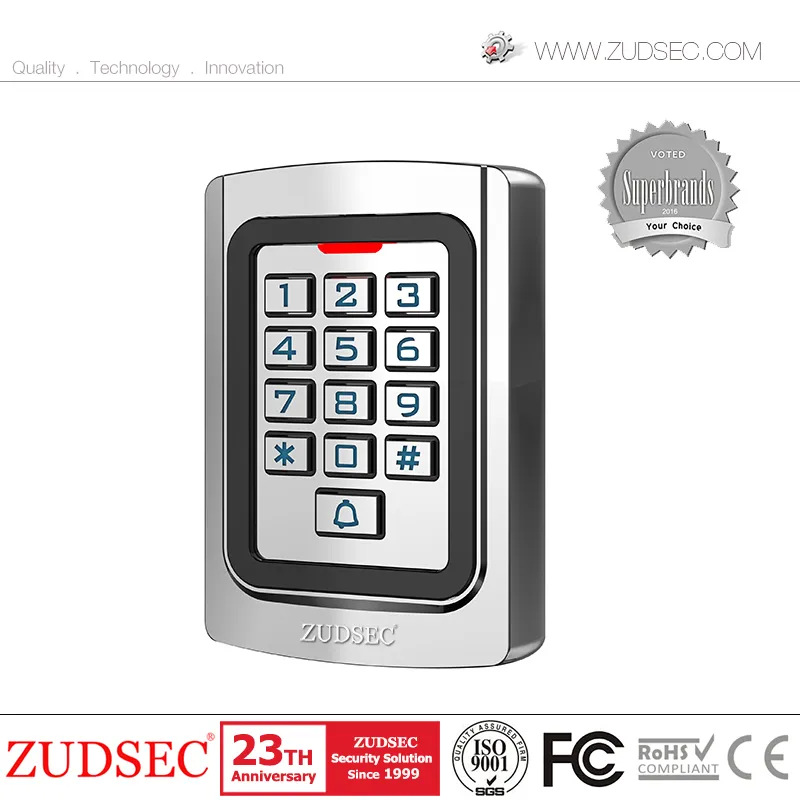

Access Control System 2

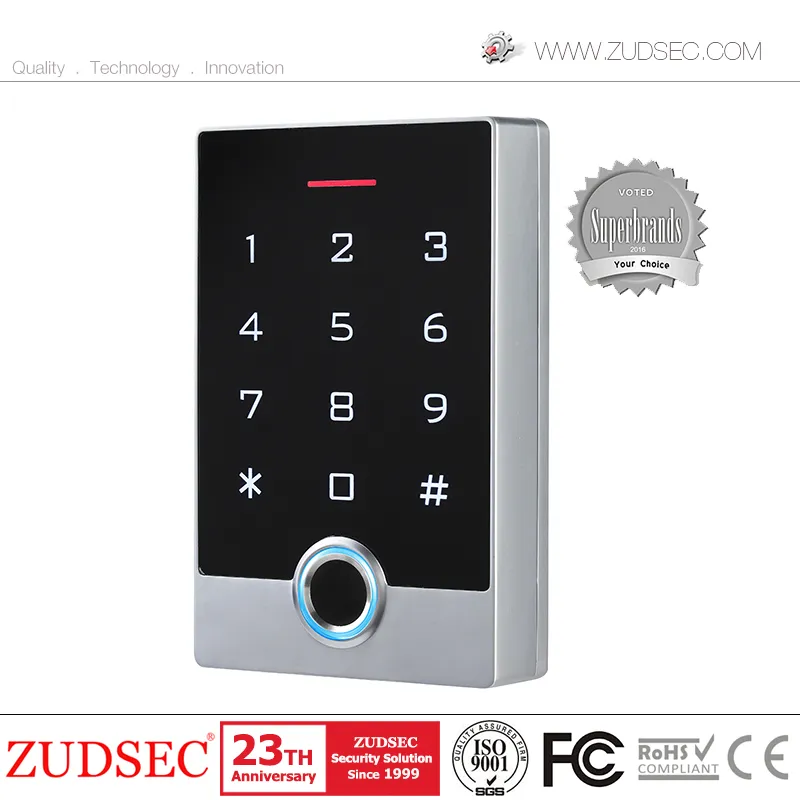

Access Control System 3

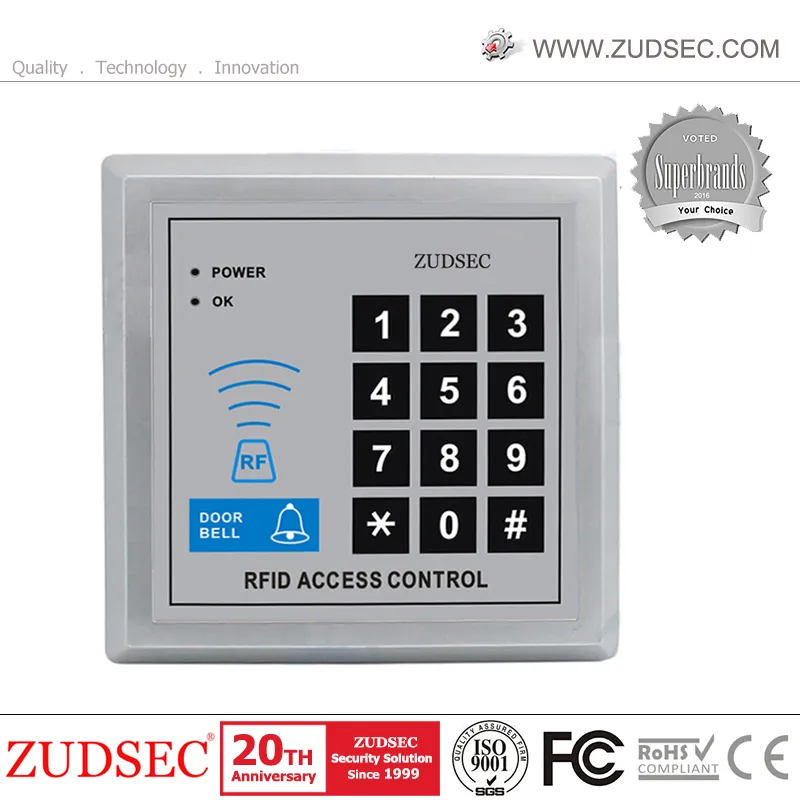

Access Control System 4

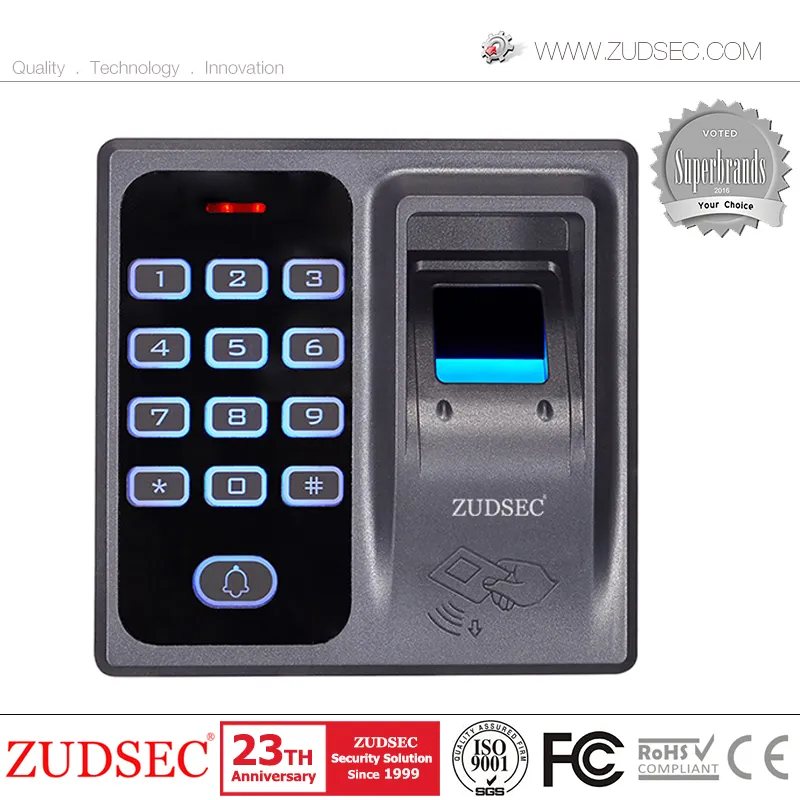

Access Control System 5

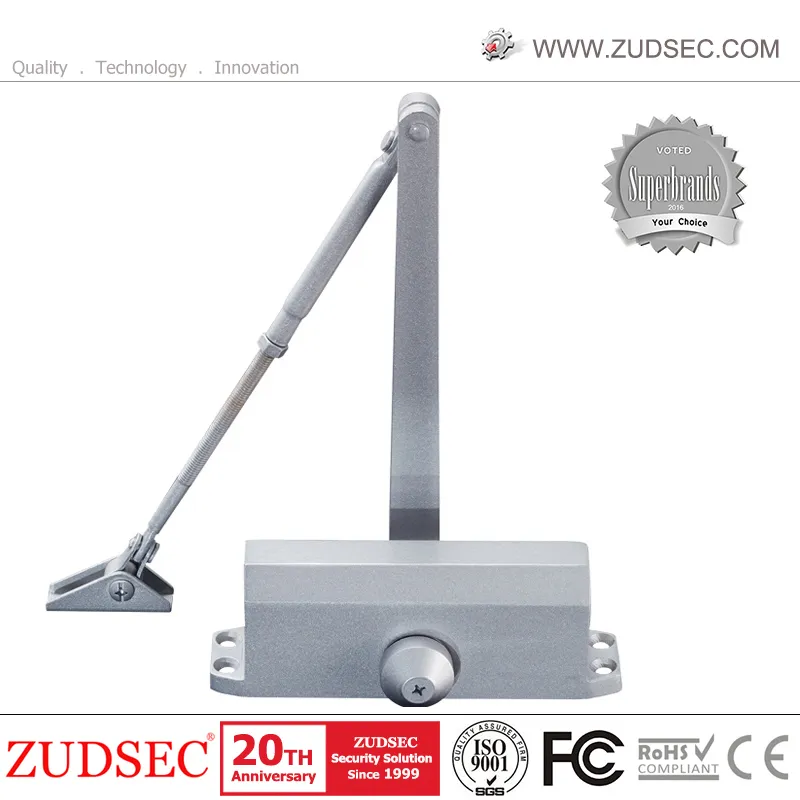

Access Control System 6
🔗

Related Products

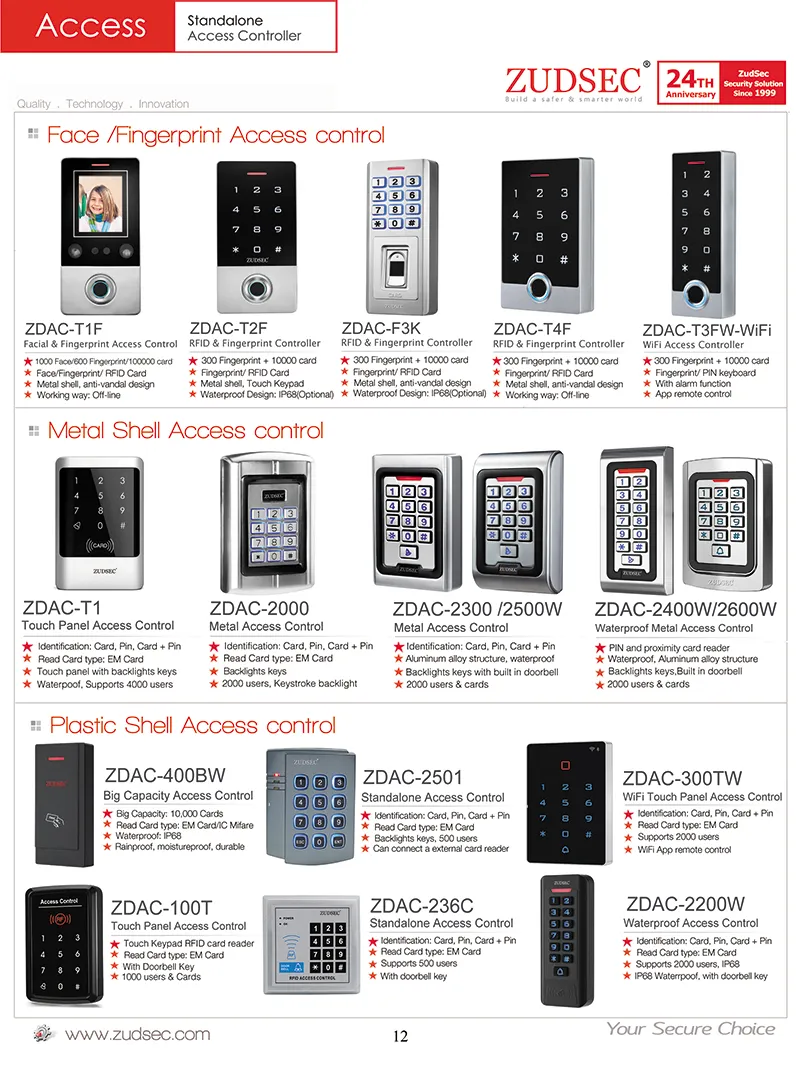

Related Product 1

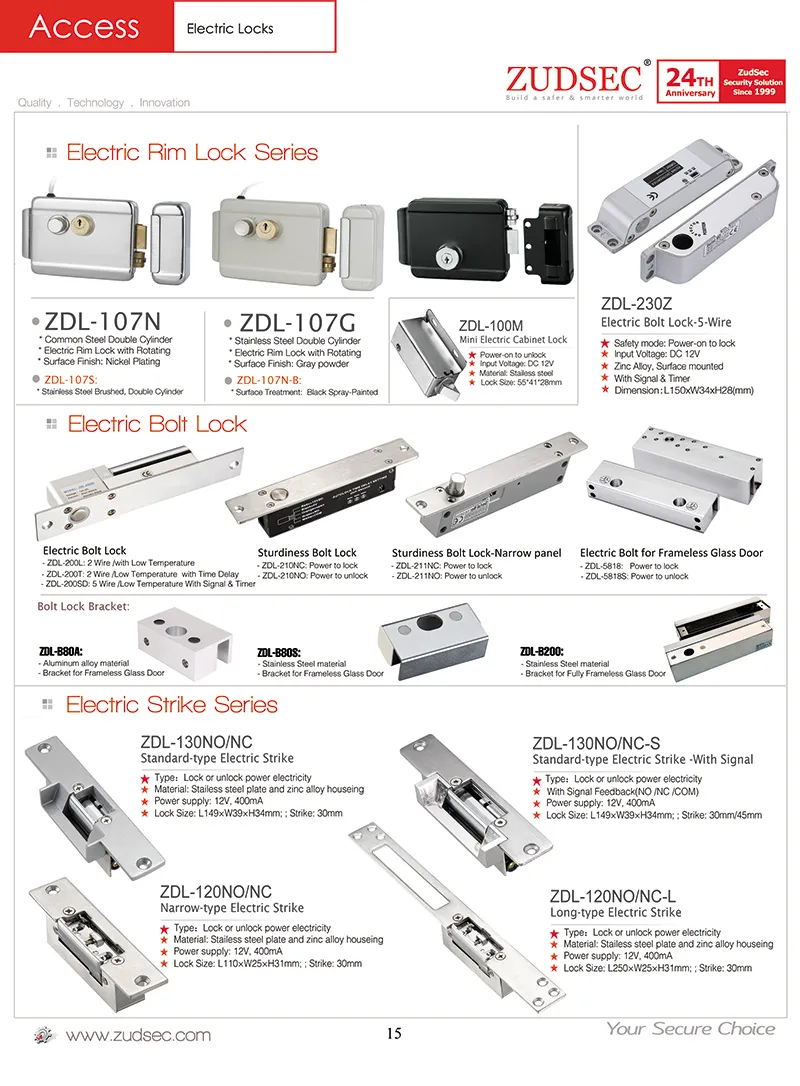

Related Product 2

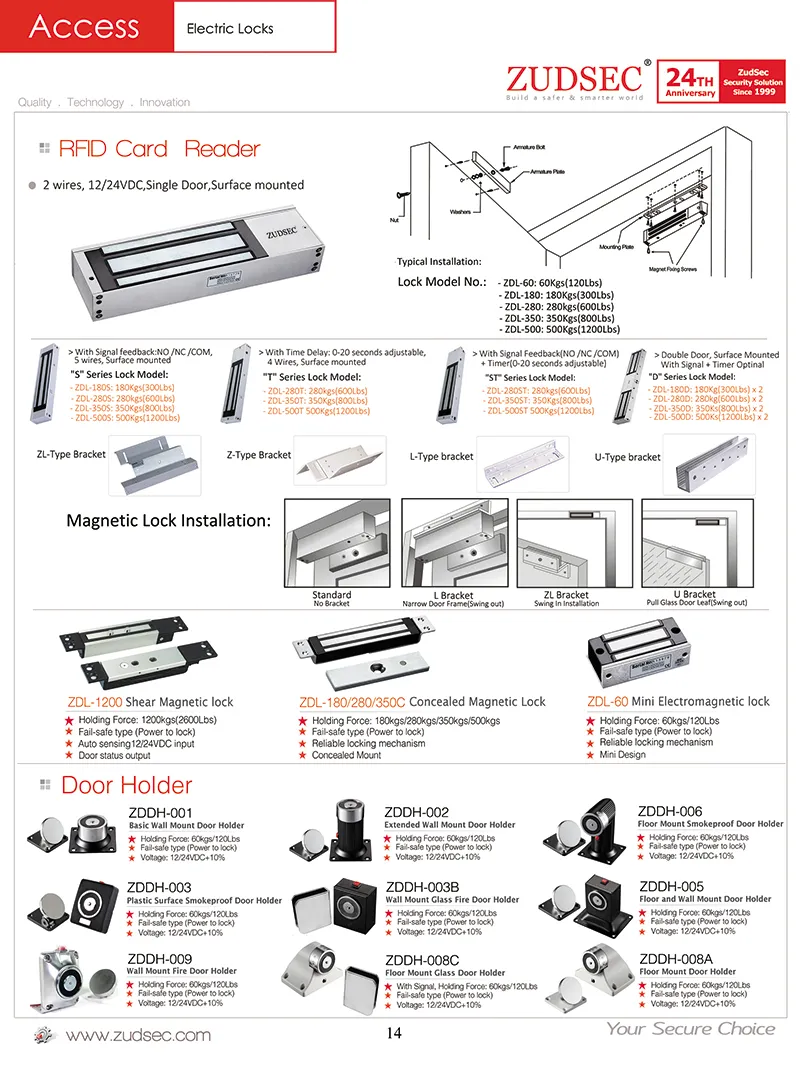

Related Product 3

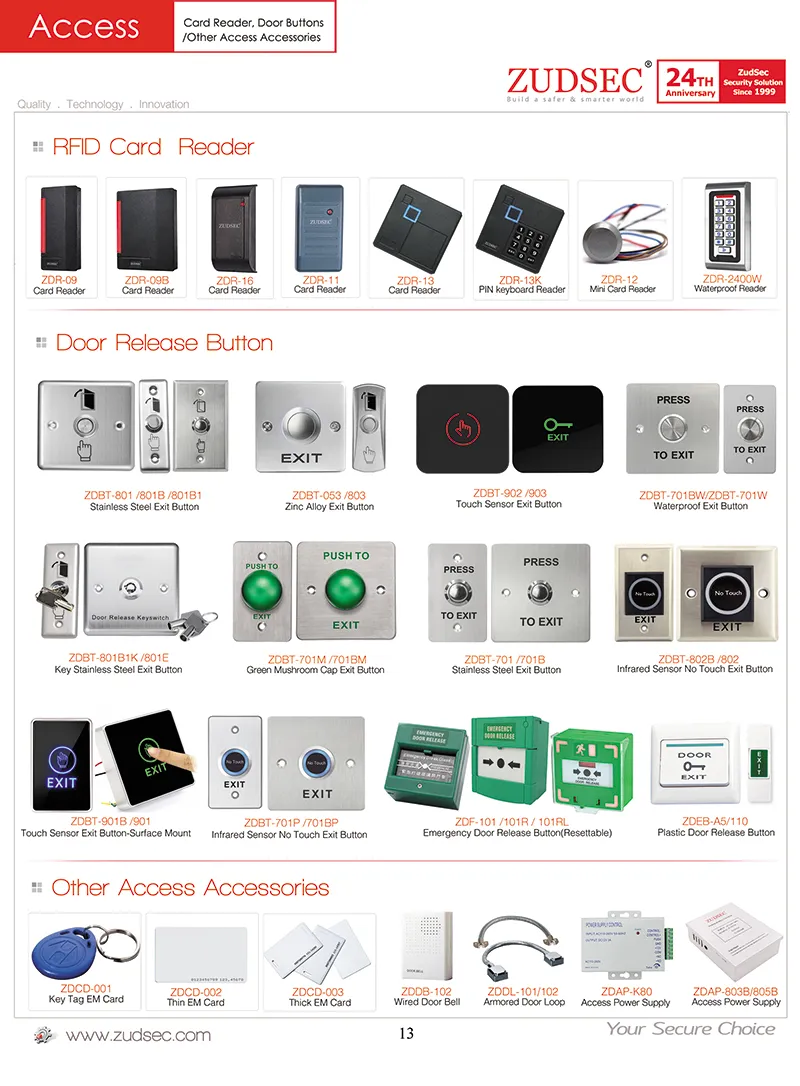

Related Product 4
Related Product 5
Related Product 6
❓

Frequently Asked Questions

Is this device suitable for outdoor installation?
Yes, the device features an aluminum alloy structure and is fully potted to meet the IP65 waterproof standard, making it ideal for outdoor environments.
How many users can the system accommodate?
The system supports up to 2000 users. Each user can be assigned a card and a 4-6 digit password for access.
What card types are compatible with this reader?
The built-in reader supports 125KHz EM cards, and HID card support is available as an option.
Can the keypad backlight be adjusted?
Yes, the metal digital backlit keypad can be configured to be Normal ON, Normal OFF, or activate via Human-Approach ON.
Does the unit support door bell functionality?
Yes, the device has a built-in door bell function via the 12P cable connection.
What is the operating voltage range for this controller?
The system is designed to operate reliably within a voltage range of DC 12V to 24V.
