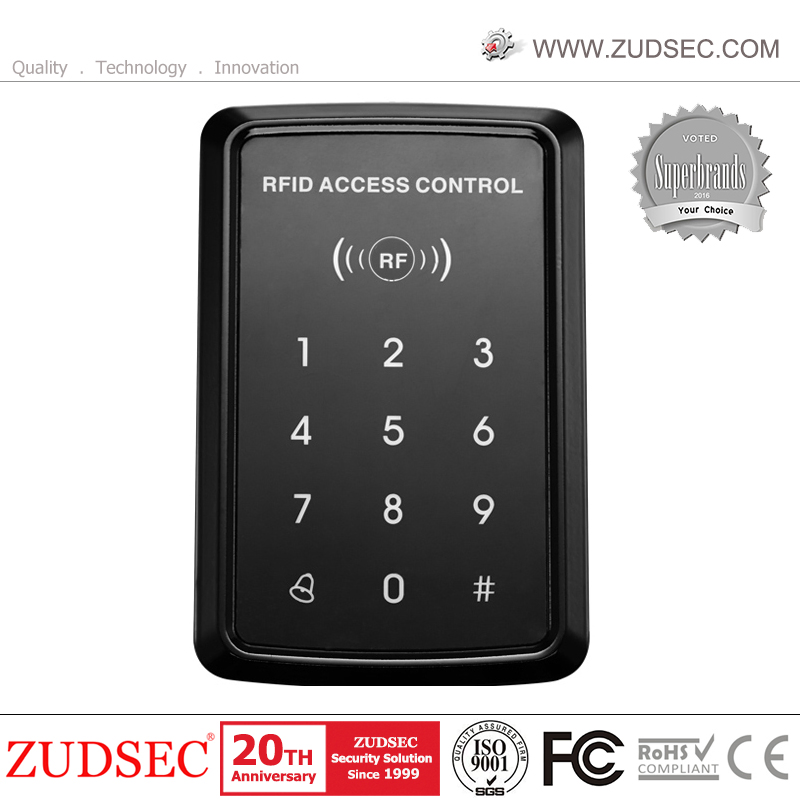

RFID Keypad Standalone Door Access Control System
RFID Keypad Standalone Door Access Control System
RFID Keypad Standalone Door Access Control System
RFID Keypad Standalone Door Access Control System
RFID Keypad Standalone Door Access Control System
1 / 5
RFID Keypad Standalone Door Access Control System
RFID Keypad Standalone Door Access Control System
RFID Keypad Standalone Door Access Control System
RFID Keypad Standalone Door Access Control System
RFID Keypad Standalone Door Access Control System

RFID Keypad Standalone Door Access Control System

Customization: Available
Card Reader Quantity: 2
Control Gates: One Gate
Send Inquiry

Product Description

Basic Specifications
Model NO.
ZDAC-100T
Technology
32-Bit Technology
Way of Control
Hand Control
Type
One-way Controller
Application
Office Building etc
Color
Black
Type of ID Card
125kHz, Em
User Capacity
2000
Operating Voltage
DC 12-24V
Material
ABS
Certificate
CE, RoHS
Dimension
116mm X 116mm X 20mm
Product Description
RFID Keypad Standalone Access Control System

The Economic Standalone RFID Door Access Control with Touch Panel is a 3rd generation controller. Built on a powerful modern Central Processing Unit, it is one of the most advanced standalone access controllers available. It manages up to 1000 card holders and supports multiple access modes including Authorized Card Only, Authorized Card or Public PIN, and Authorized Card + Personal PIN.

Optional Model: ZDAC-100T (Touch panel)

Key Features
  • Support EM-ID/Password Mode
  • Build-in access control card reader and keypad
  • Operating Mode: Card, Password or Card + Password
  • 1000 User Capacity
  • Includes 1 door button Port and 1 doorbell Port
  • 1 Relay output and 1 PUSH (low) output
  • Anti-tamper function and safe operation mode
  • Ideal for Office buildings, Communities, and Banks
Product Parameters
Parameter Details
ModelZDAC-100T
Capacity1000 cards, each with Personal PIN / One Public PIN
Reading Distance1~15CM
Compatible CardsEM ID Card or EM compatible cards
Relay OutputAlarm: 100mA | Lock: 5A
Voltage12VDC+10%; Current 0.1A
Temperature-20ºC ~ 60ºC
Humidity20% ~ 90%
Dimension116mm x 116mm x 20mm
Weight150g
Product Showcase

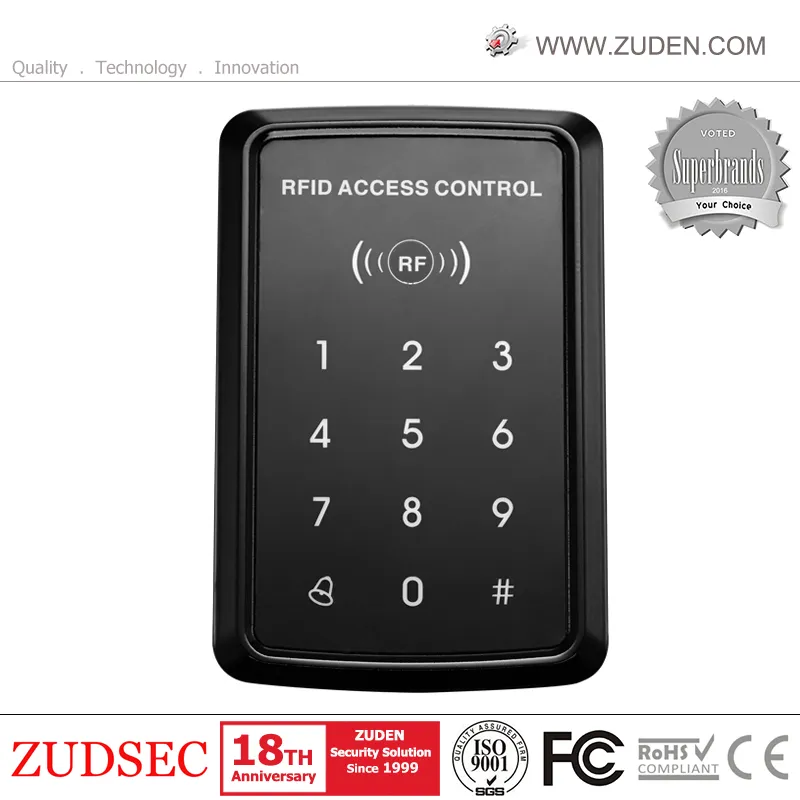

RFID Keypad Access Control 1

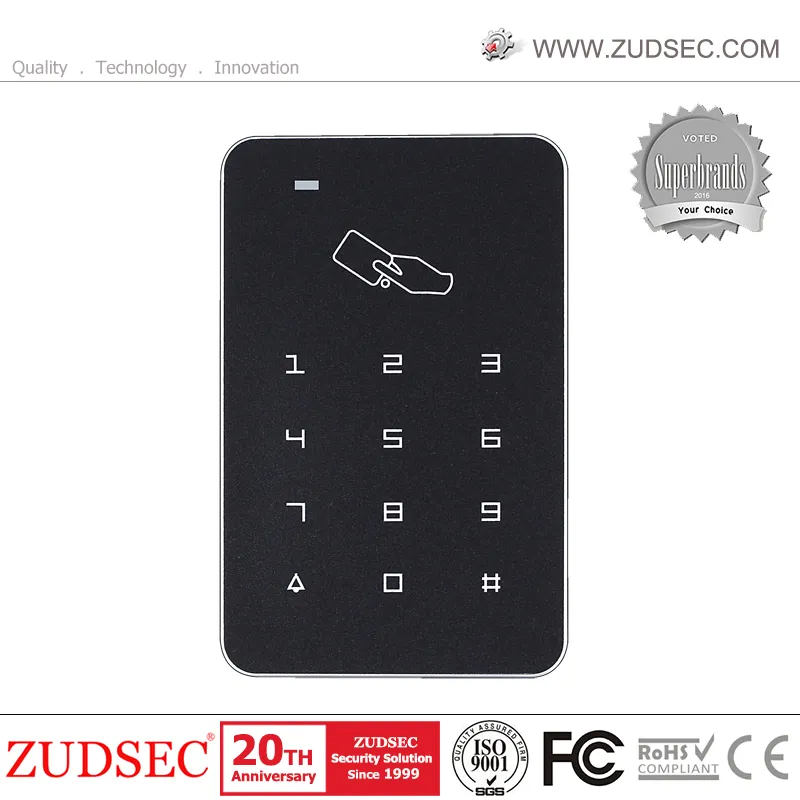

RFID Keypad Access Control 2

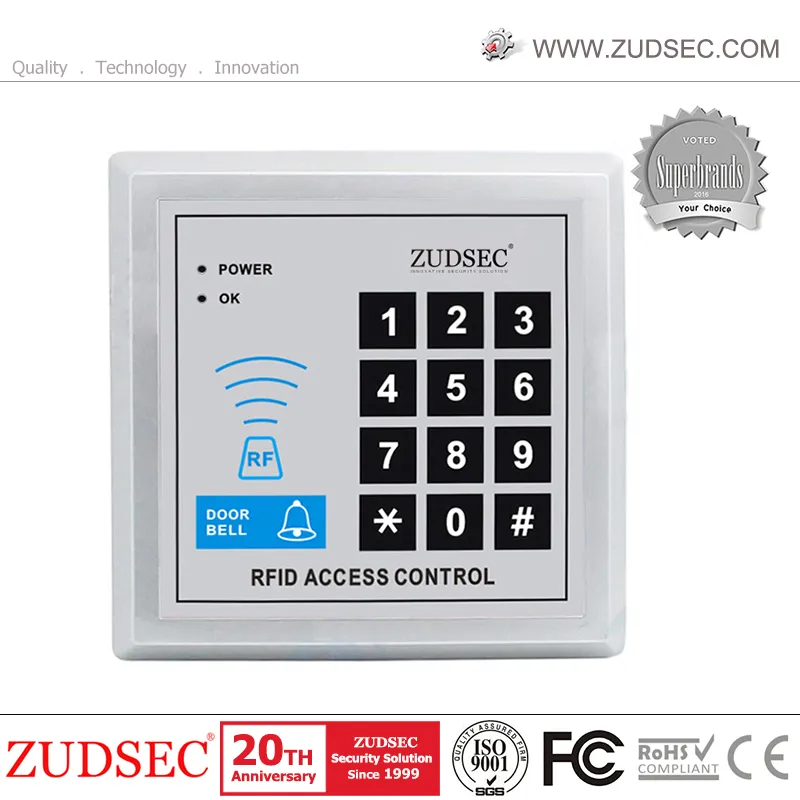

RFID Keypad Access Control 3

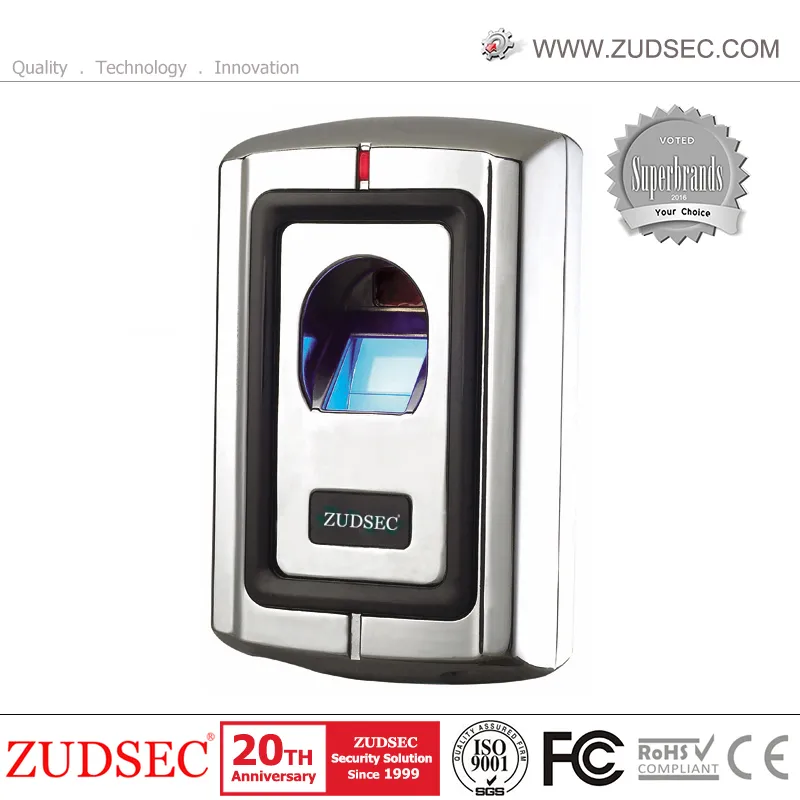

RFID Keypad Access Control 4

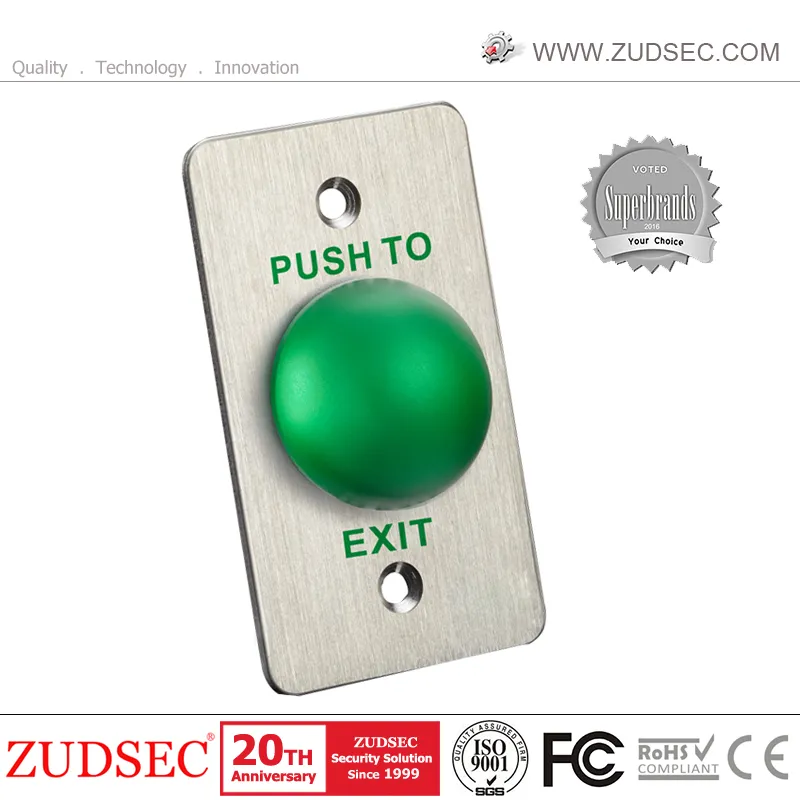

RFID Keypad Access Control 5

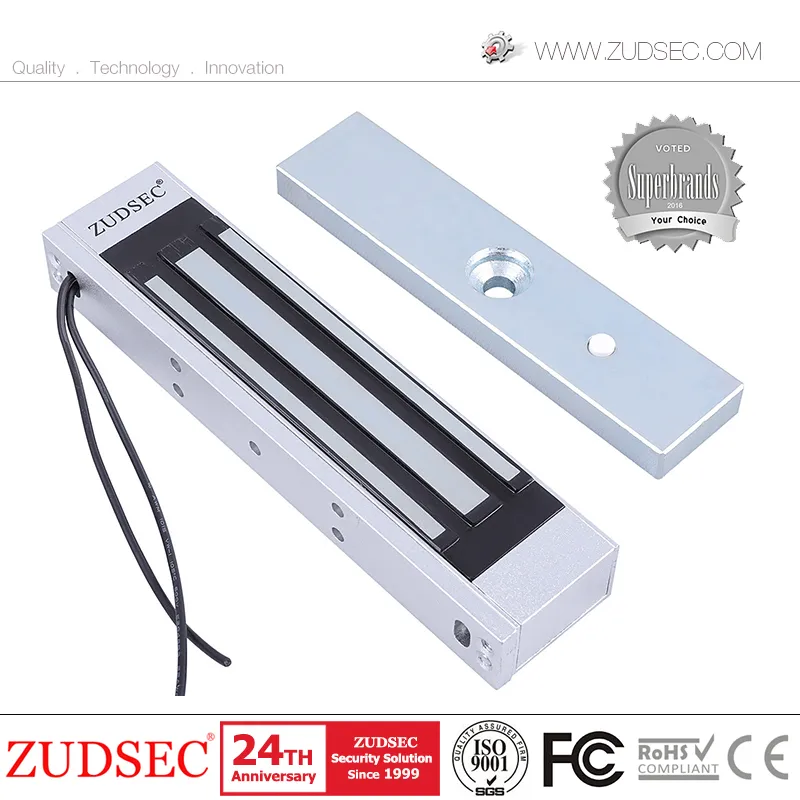

RFID Keypad Access Control 6
Related Solutions

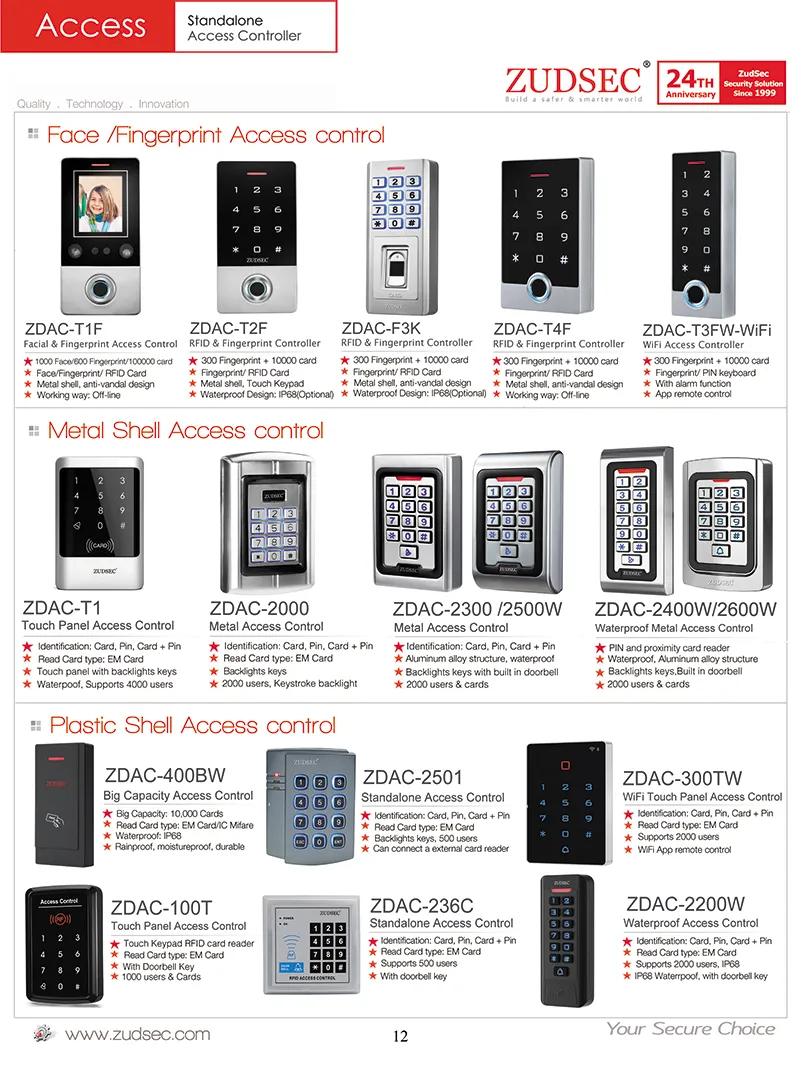

Related Product 1

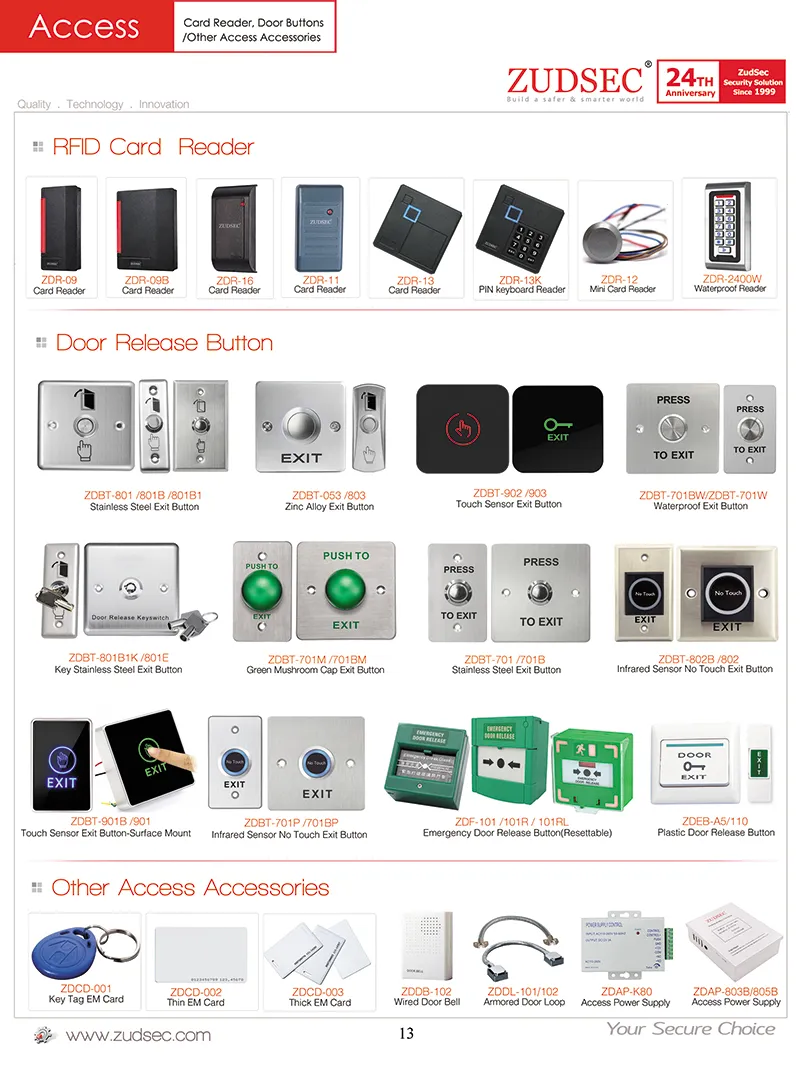

Related Product 2

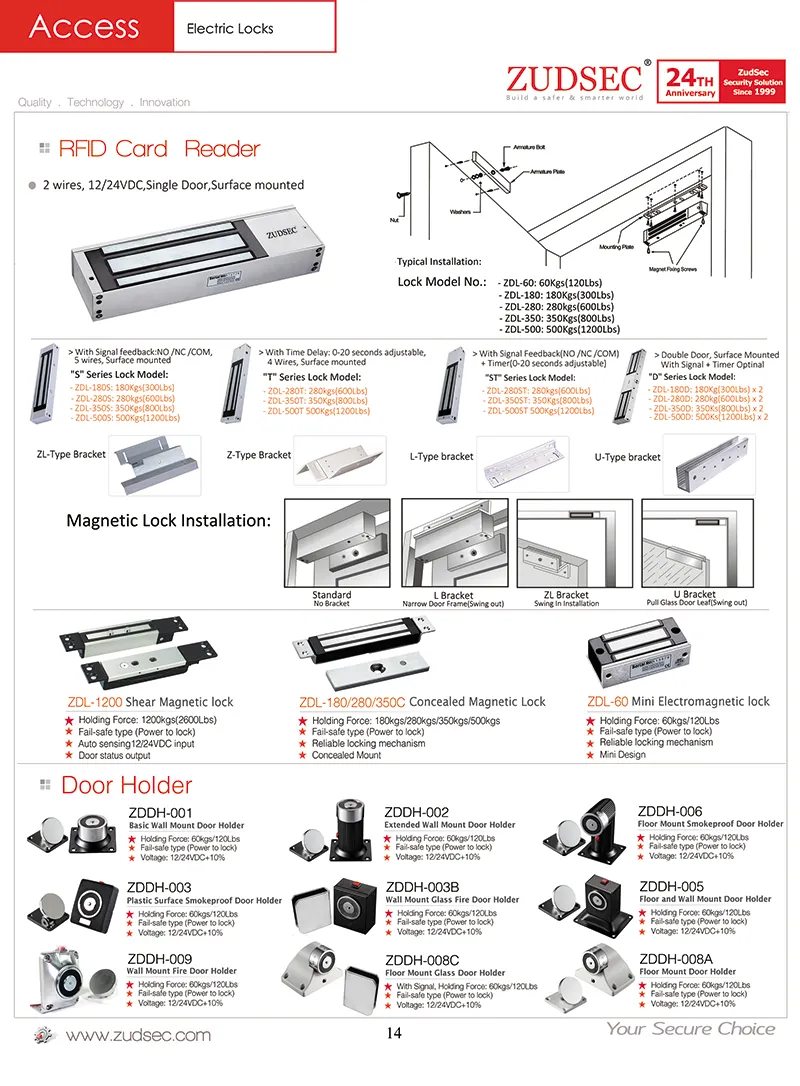

Related Product 3

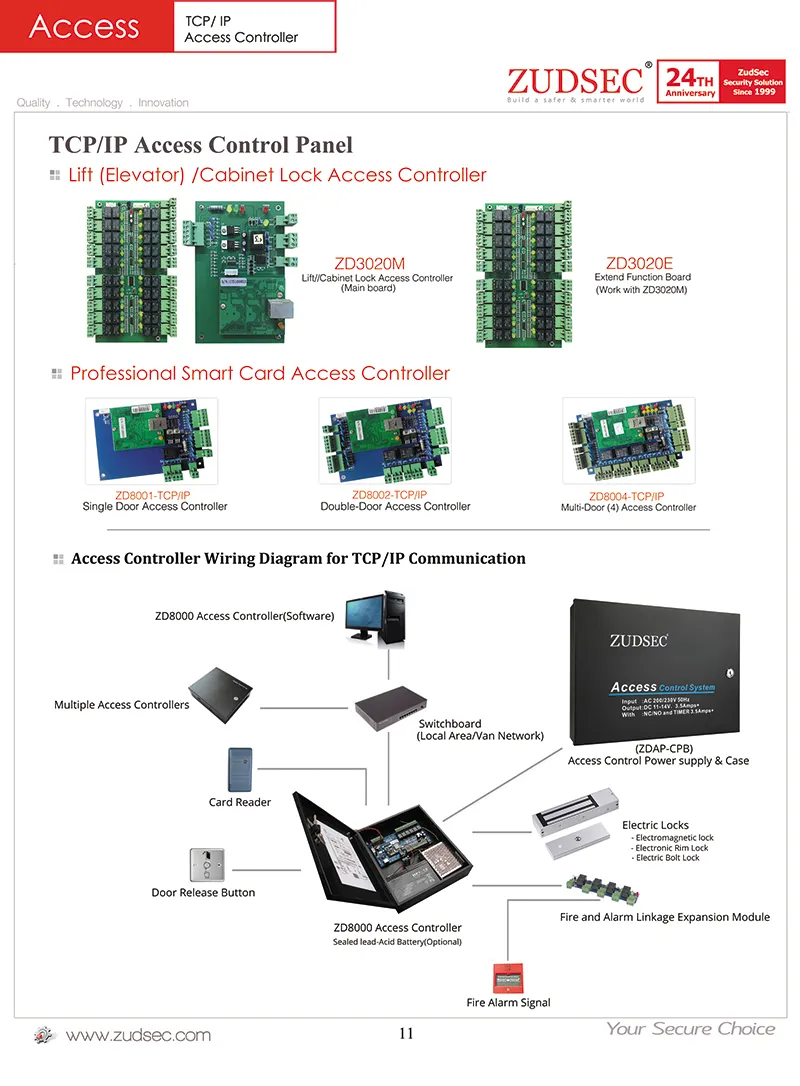

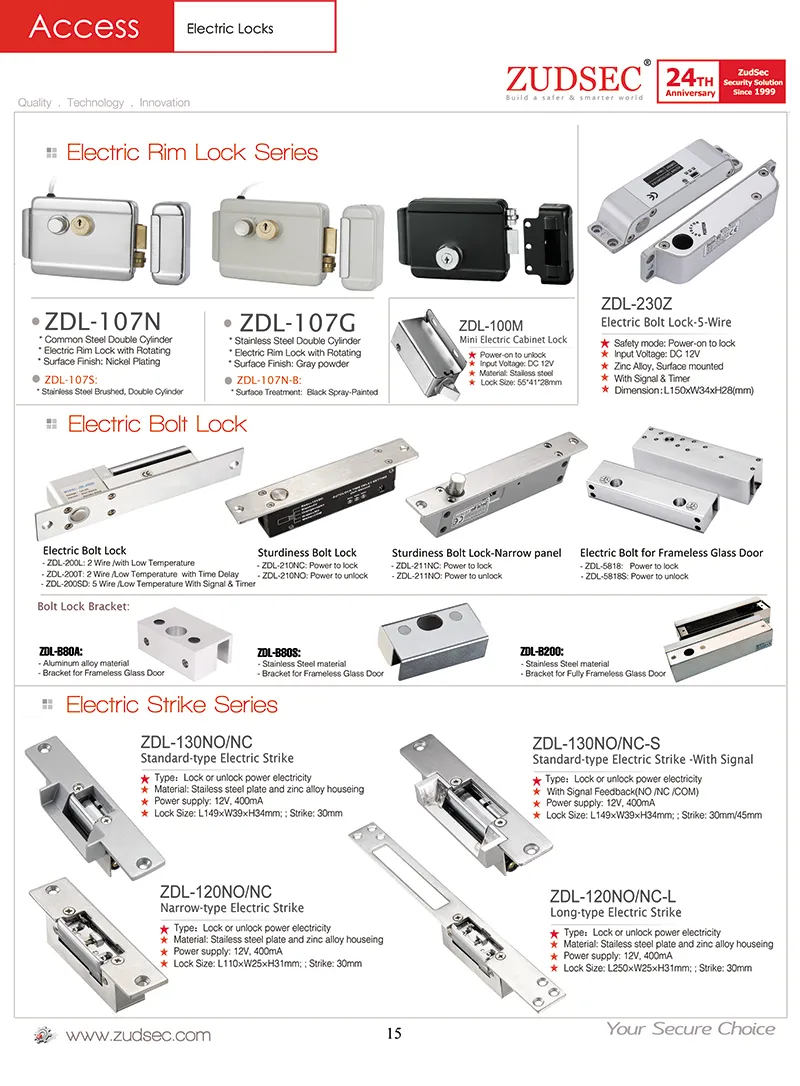

Related Product 4
Related Product 5
Related Product 6
Frequently Asked Questions
How many users can this standalone controller support?
The system supports up to 1000/2000 users, where each user can have an authorized card and a personal PIN.
What types of RFID cards are compatible with the ZDAC-100T?
It is compatible with 125kHz EM ID cards or other EM-compatible proximity cards.
Can I use this device without an external network?
Yes, this is a standalone access control system that does not require a network connection for operation.
What are the available entry modes?
You can choose between three modes: Proximity Card only, Password only, or a combination of Card + Password.
Is the keypad durable for office use?
Yes, it features a modern touch panel and is housed in durable ABS material, making it suitable for high-traffic environments like office buildings.
Does it support a doorbell connection?
Yes, the device includes a dedicated doorbell port and a door button port for full integration.
