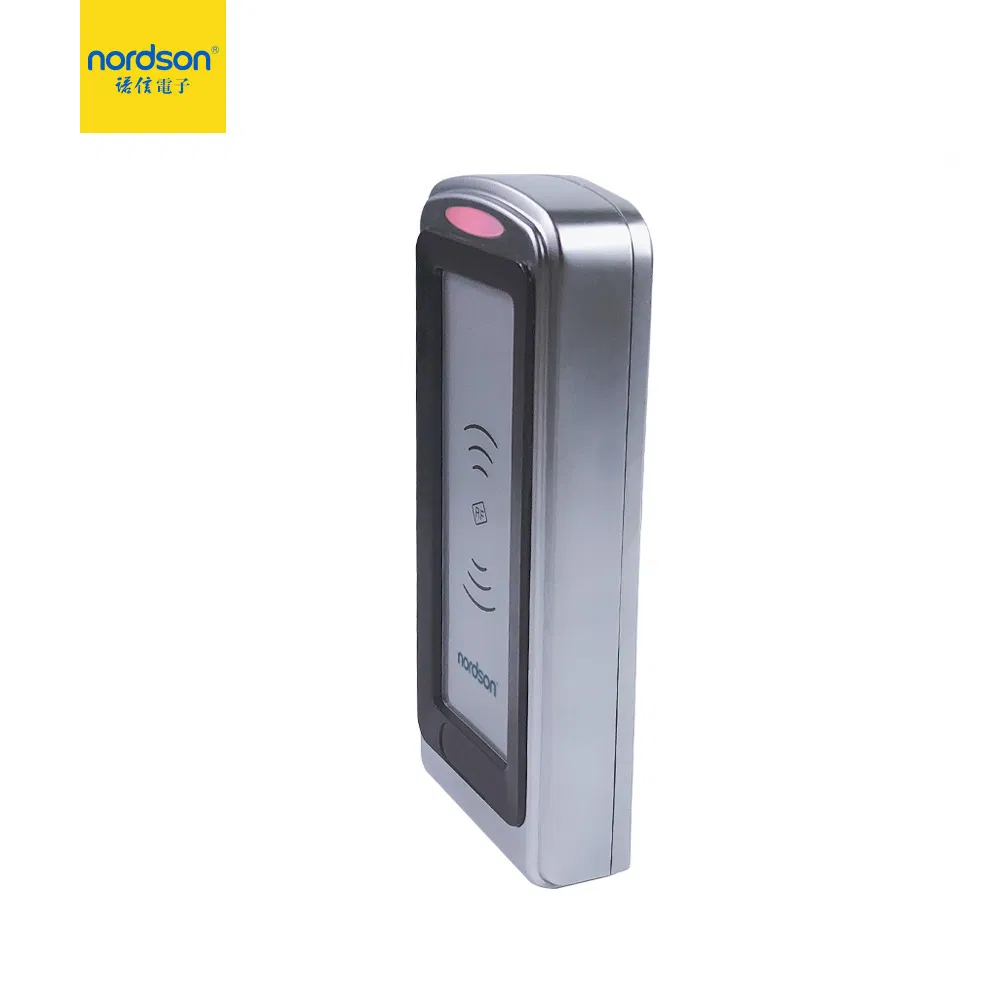

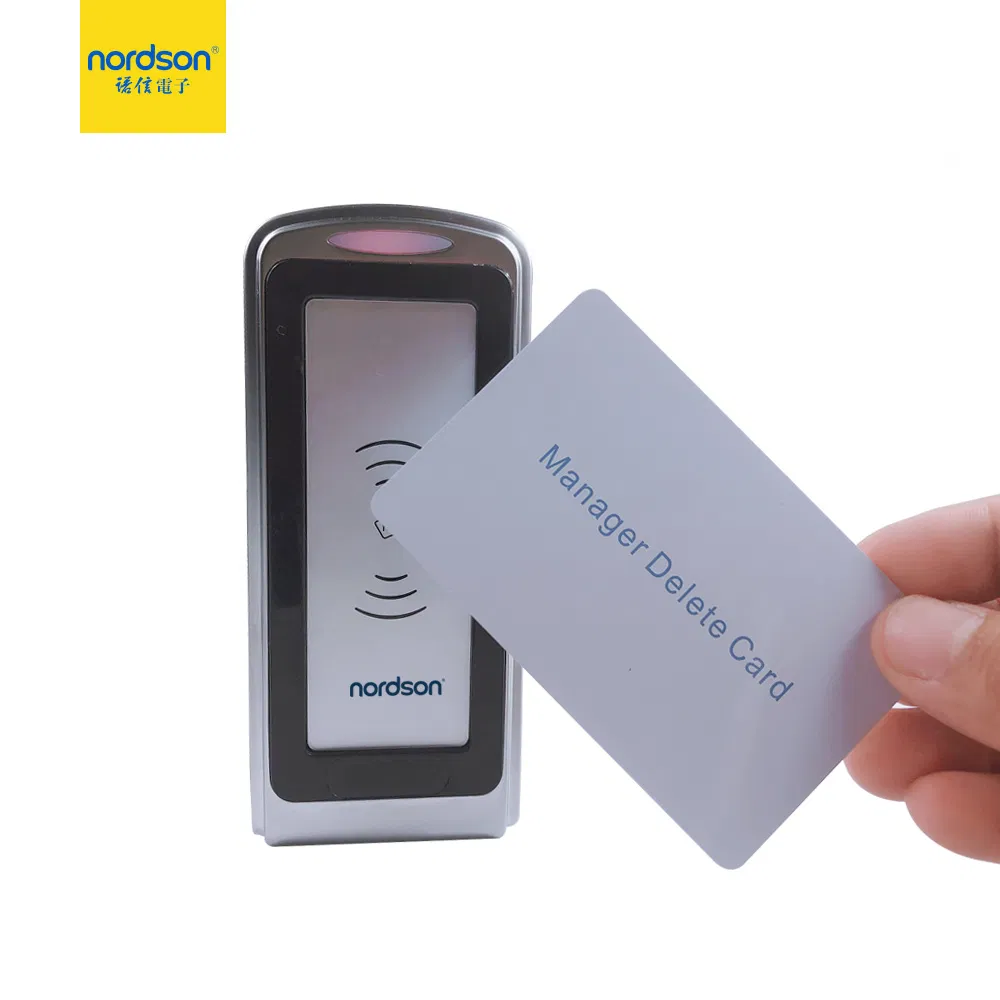

IC/ID Card and Wiegand 26 Input Standalone RFID Access Control System with Keypad Remote Control
IC/ID Card and Wiegand 26 Input Standalone RFID Access Control System with Keypad Remote Control
IC/ID Card and Wiegand 26 Input Standalone RFID Access Control System with Keypad Remote Control
IC/ID Card and Wiegand 26 Input Standalone RFID Access Control System with Keypad Remote Control
IC/ID Card and Wiegand 26 Input Standalone RFID Access Control System with Keypad Remote Control
1 / 5
IC/ID Card and Wiegand 26 Input Standalone RFID Access Control System with Keypad Remote Control
IC/ID Card and Wiegand 26 Input Standalone RFID Access Control System with Keypad Remote Control
IC/ID Card and Wiegand 26 Input Standalone RFID Access Control System with Keypad Remote Control
IC/ID Card and Wiegand 26 Input Standalone RFID Access Control System with Keypad Remote Control
IC/ID Card and Wiegand 26 Input Standalone RFID Access Control System with Keypad Remote Control

IC/ID Card and Wiegand 26 Input Standalone RFID Access Control System with Keypad Remote Control

Customization: Available
Card Reader Quantity: 2
Control Gates: One Gate
Send Inquiry

Product Description

Basic Info.
Model NO.NT-108
TechnologyWg26
Way of ControlHand/Card Control
CommunicationWiegand
TypeTwo-way Controller
Opening ModeCard, Remote Control
Storage2000 User Cards
WaterproofIP65
Operating VoltageDC 12V±10%
OriginChina
Product Description

Standalone RFID Access Control System with Keypad Remote Control

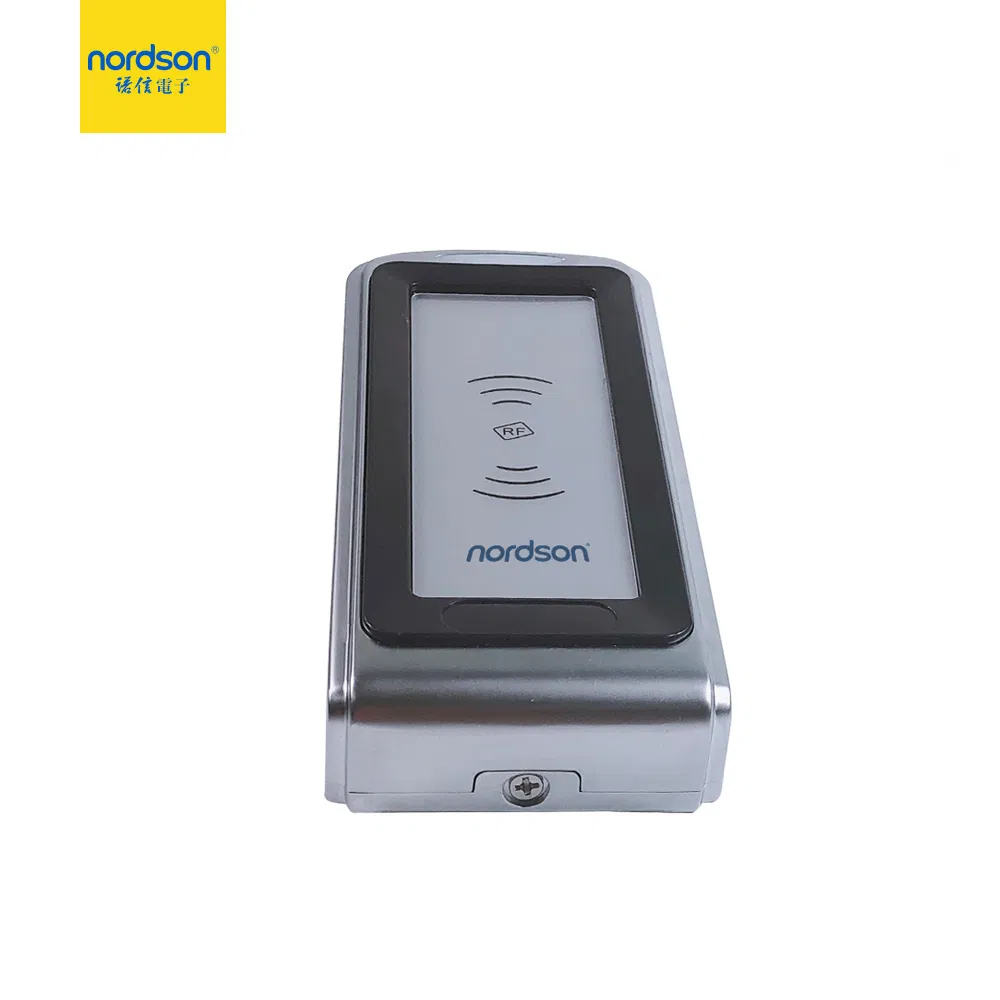

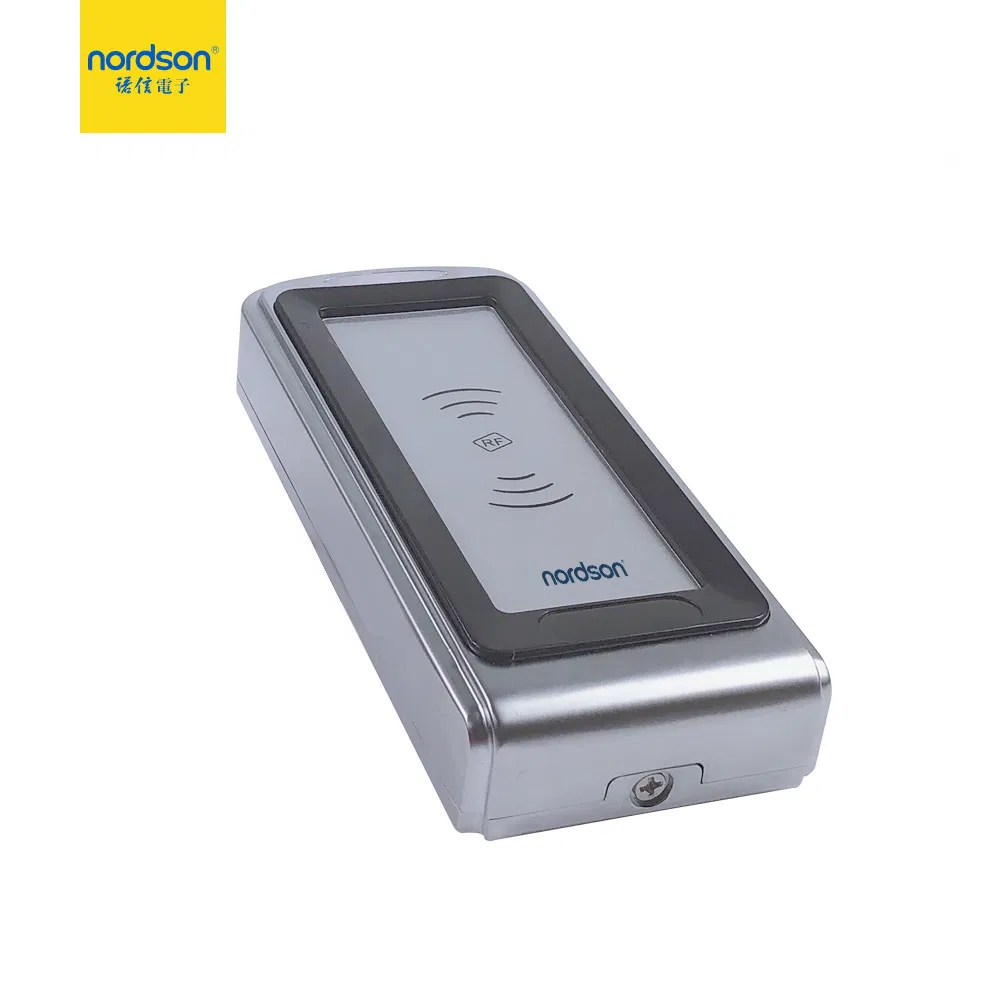

The NT-108 is a new release one-door RFID card access controller featuring keypad remote control. This smart access controller utilizes a narrow metal frame design with an IP65 waterproof rating, ensuring safe operation in outdoor environments. It supports WG26 signal input, external card readers, and connects seamlessly with various access control devices such as locks, exit buttons, and door sensors.

Access Control System 1
Access Control System 2
Access Control System 3
Access Control System 4
Access Control System 5
Key Functions

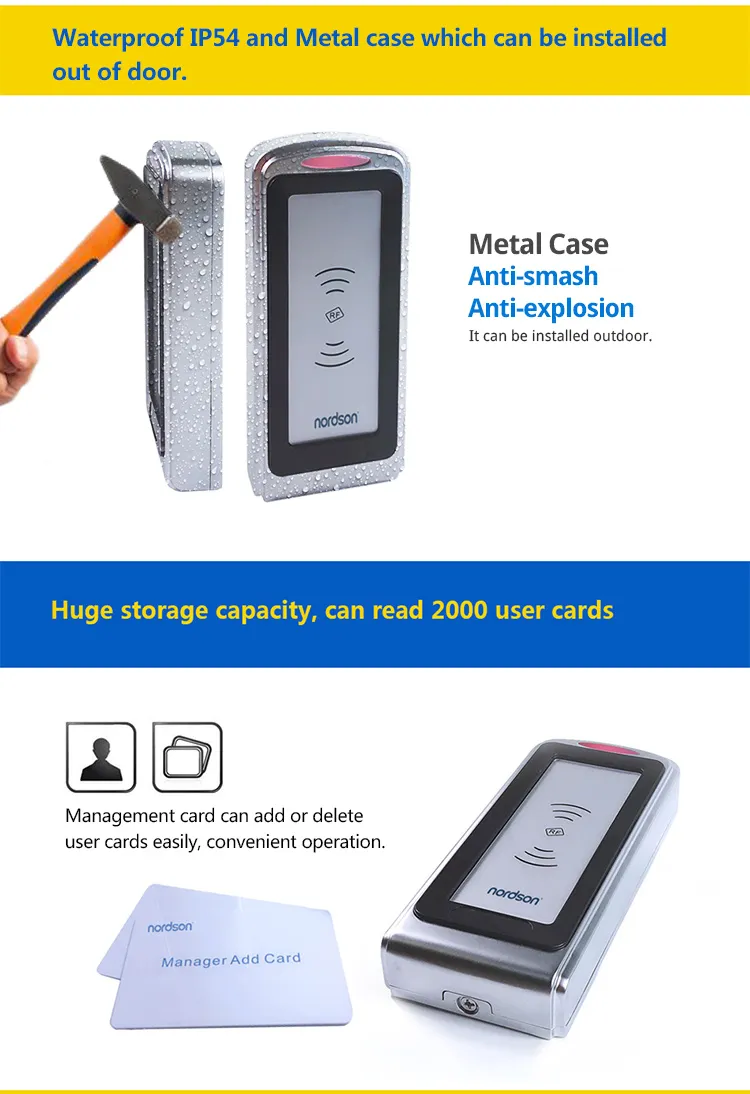

  • Durable Construction: Metal case, anti-smash and wear-resisting with IP65 waterproof rating for all-weather outdoor mounting.
  • Huge Storage: Capacity to read up to 2000 user cards, meeting the requirements of public place management.

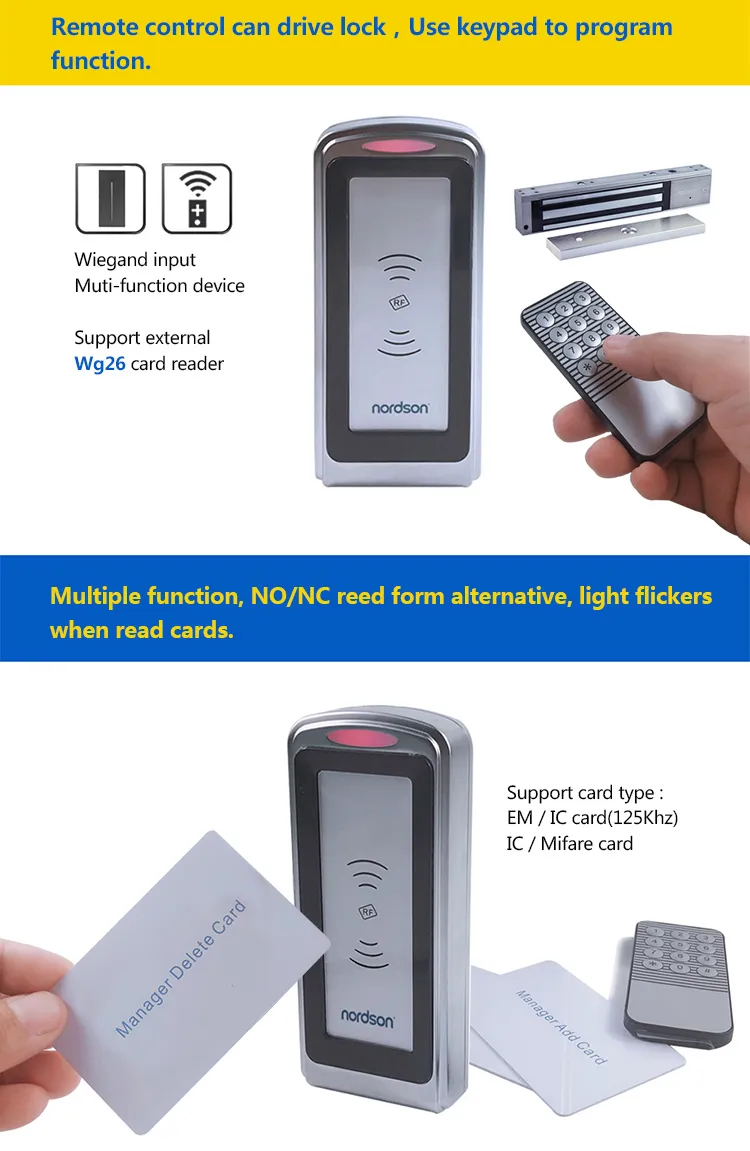

  • Remote Management: Keypad remote control allows for easy adding or deleting of user cards and long-range door programming.
  • High Compatibility: Wiegand input supports external WG26 card readers.
  • Versatile Interface: Multiple device ports for NO/NC reed forms; visual flicker feedback during card swiping.
  • Card Support: Supports both EM/ID (125Khz) and IC/Mifare (13.56MHz) cards for ample customization.

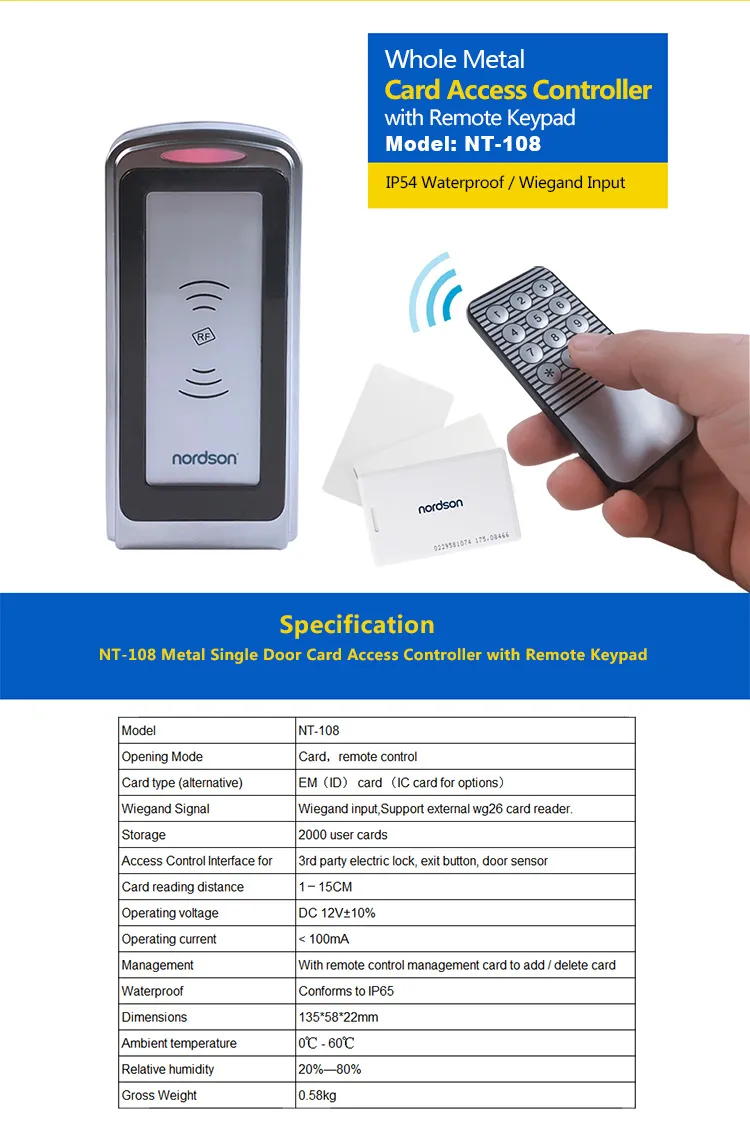

Technical Specifications
ModelNT-108
Opening ModeCard, Remote Control
Card TypeEM (ID) Card / IC Card for Options
Wiegand SignalWiegand input, Support external WG26 card reader
Storage2000 user cards

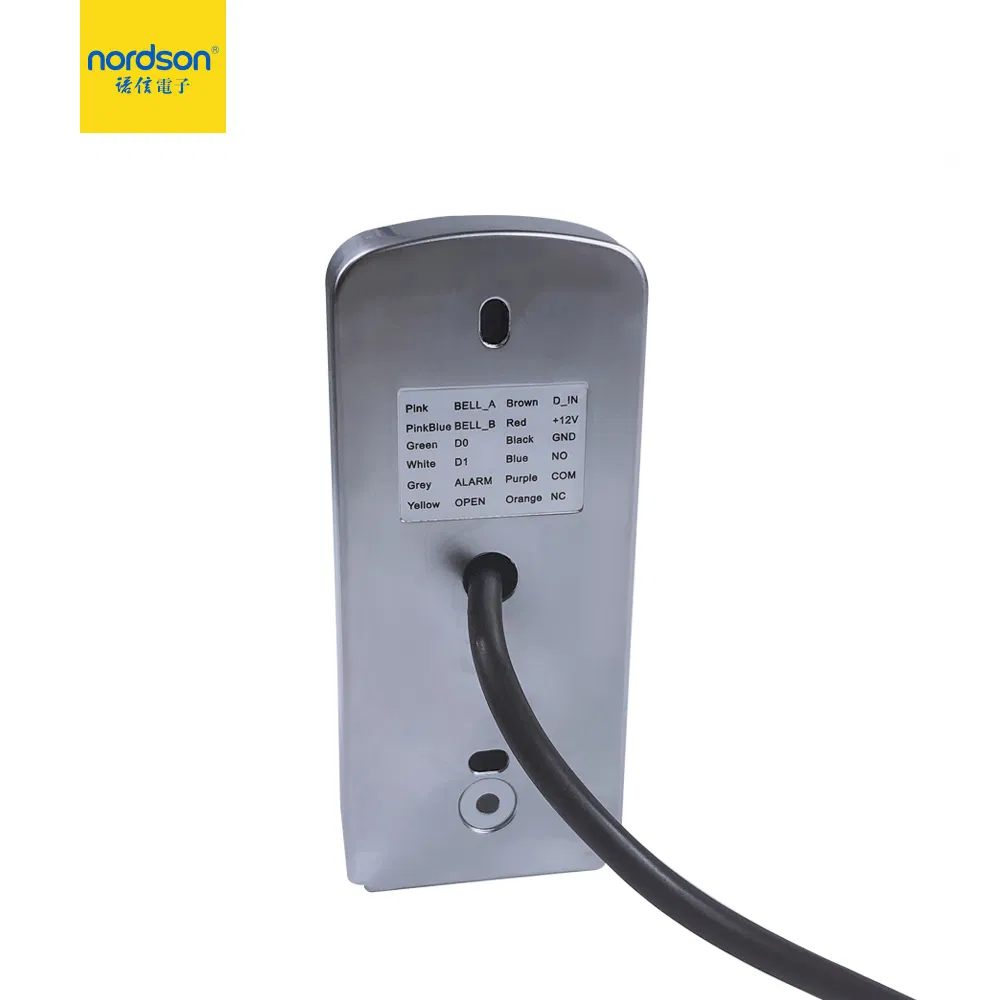

Interface for3rd party electric lock, exit button, door sensor
Reading Distance1 - 15CM
Operating VoltageDC 12V±10%
Operating Current< 100mA
Waterproof LevelConforms to IP65
Dimensions135 * 58 * 22mm
Ambient Temp0ºC - 60ºC
Frequently Asked Questions
1. How many users can the NT-108 access controller store? The system features a huge storage capacity, capable of managing up to 2000 user cards.
2. Can this device be installed outdoors? Yes, it features a durable metal case and an IP65 waterproof rating, making it suitable for outdoor mounting in various weather conditions.
3. What card types does the NT-108 support? It supports EM/ID cards (125Khz) as standard, with IC/Mifare cards (13.56MHz) available as an option.
4. How do I add or delete users? Users can be easily managed using the included keypad remote control, which allows for programming and card management from a distance.
5. Does it support external card readers? Yes, it includes Wiegand input and supports external WG26 card readers for better system compatibility.
6. What are the power requirements for this controller? The device operates on a standard DC 12V±10% power supply with an operating current of less than 100mA.
