CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
| Model NO. | CT9 PRO |
| Interface | USB, Serial Port, 4G, TCP/IP, RS485, Weigand |
| Reading Distance | 10cm-15m |
| Application | Parking, Hospital, Library, Company, Bank, Store |
| Product | 4G TCP/IP Access Control Terminal |
| Operating System | Linux OS |
| Display | 3.5" Touch Screen Display |
| Identification | RFID, NFC, BLE, Pin Code, Qr Code, Barcode |
| RFID Compatibility | MIFARE Plus, MIFARE, DESFire EV1/EV2, Em 125kHz |
| Mobile Credential | ISO18092 NFC, BLE (Bluetooth Low Energy) |
| Card Holders | 10,000 Users |
| Secure Module | ISO7816 Sam Modules |
| Work Mode | Standalone & Network Mode |
| Power | 12-30V, PoE (IEEE 802.3af) |
| IP Protection | IP65 Waterproof Outdoor Use |
| Certification | CE, FCC |

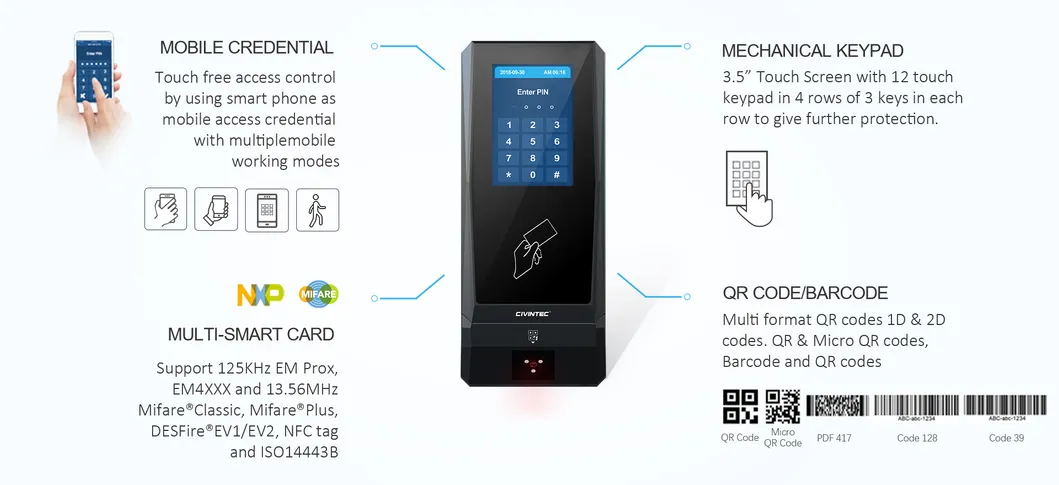

CT9 Pro incorporates 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning for visitor access control management.

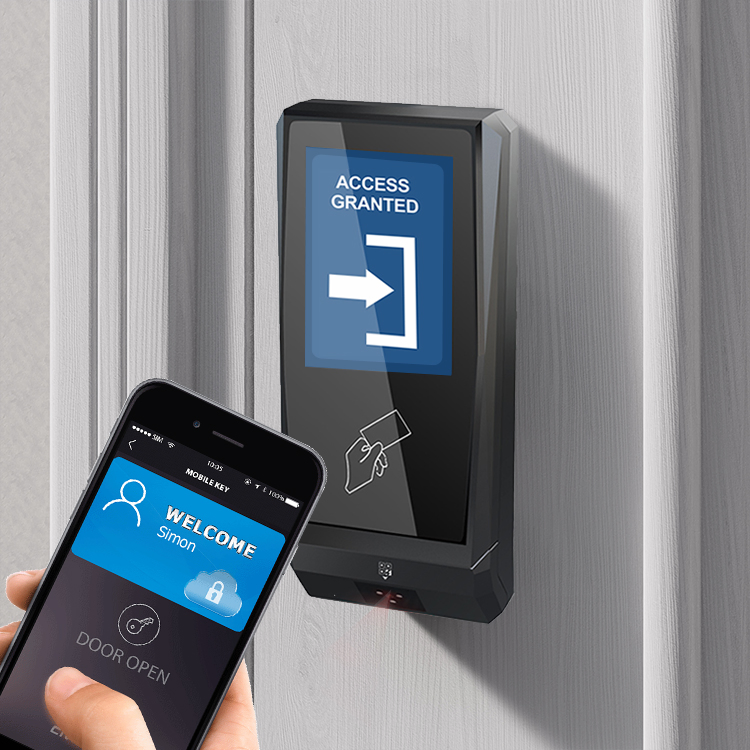

Bi-directional communication via standard HTTP & HTTPs between CT9 Pro and the server allows for remote control of door locks and various IoT facility management systems.

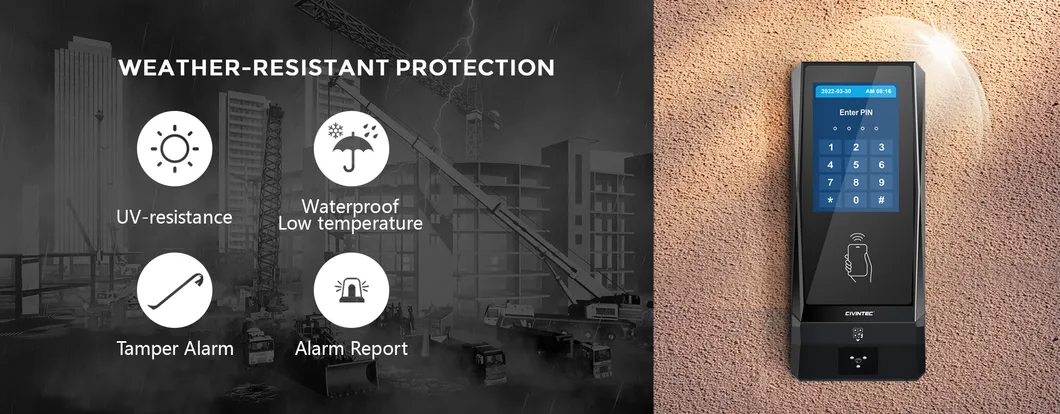

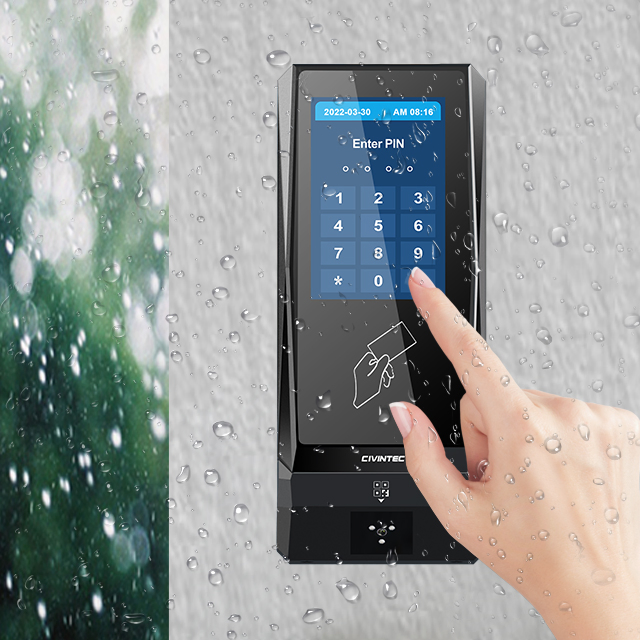

With an IP65 rating, the CT9 PRO is weather-resistant against rain, dust, and strong sunlight. It is ideal for outdoor use and various rugged working environments, including low temperatures.
We offer customization on hardware, reader housing, firmware, and software design services. Users can program and display their own LOGO on the 3.5" touch screen. LOGO printing on the reader body is also available.
