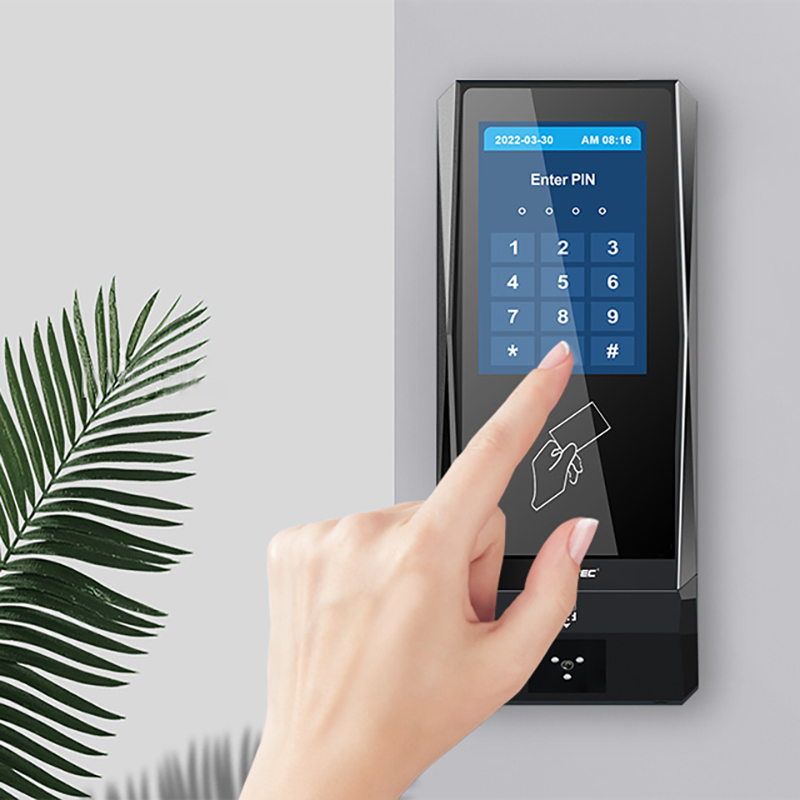

CT9 Cloud Fitness Club Access Control System with RFID NFC Card Reader and Qr Code for Visitor Access and Payment

1 / 5

CT9 Cloud Fitness Club Access Control System with RFID NFC Card Reader and Qr Code for Visitor Access and Payment

Customization:	Available
Type:	Access Control System
Card Type:	CPU, Mifare, EM, DESFire EV1/EV2/EV3, MIFARE Plus

Send Inquiry

Product Description

Basic Information

Model NO.

CT9 PRO

Reading Distance

10cm-15m

Operating System

Linux OS

Display

3.5" Touch Screen Display

Identification

RFID, NFC, BLE, Pin Code, QR Code

RFID

MIFARE Plus, DESFire EV1/EV2/EV3, 125kHz

Mobile Credential

NFC, BLE

Power

12-24V DC; Poe IEEE 802.3af

Protection

IP65 Waterproof, UV Resistance

Certification

CE, FCC

Product Overview

CT9 Pro is a Linux-based HTTP/HTTPS server centralized terminal with wireless 4G and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, with embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning.

Display	3.5" capacitive touch screen
QR code	QR Code, Micro QR code, PDF417, Code 128, Code 39, 1D/2D barcodes
Mobile ID	BLE (iOS), NFC/BLE (Android)
RFID Smart Card	125KHz, 13.56MHz Mifare Classic, Plus, DESFire EV1/EV2/EV3, iCLASS Seos
Communication	4G, WiFi, TCP/IP, Wiegand, RS485 OSDP
Protection	IP65 outdoor use, UV-resistance

Key Features

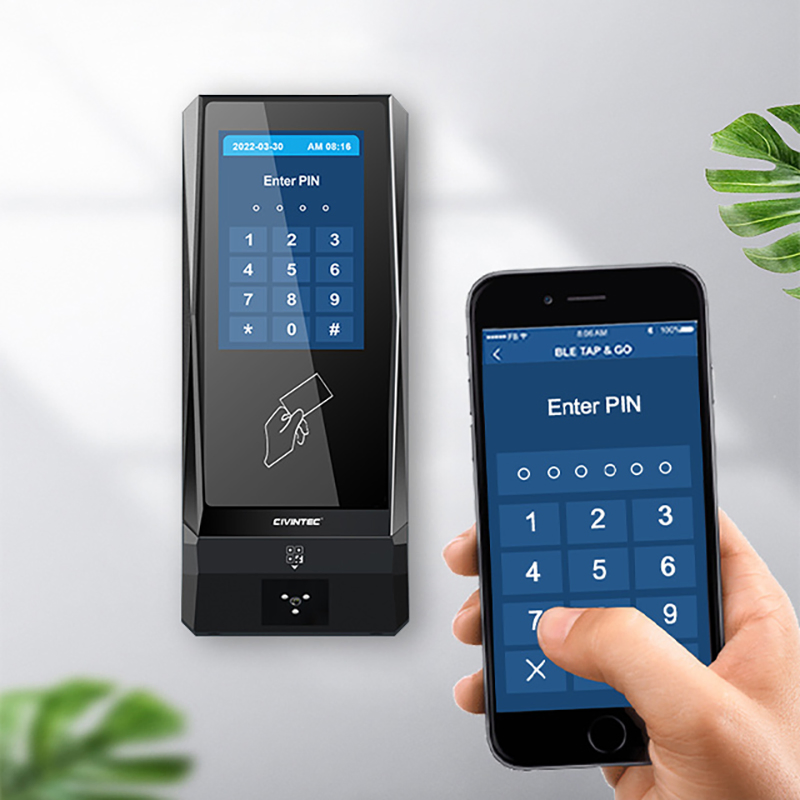

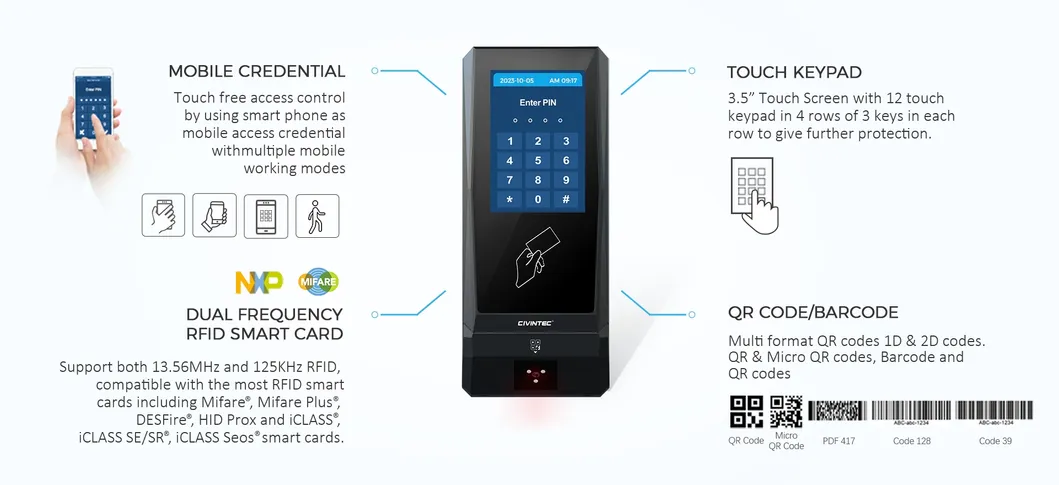

Multiple Access Credential: 5-in-1 technology including touch keypad, dual RFID, BLE/NFC mobile access, and QR code for visitors.

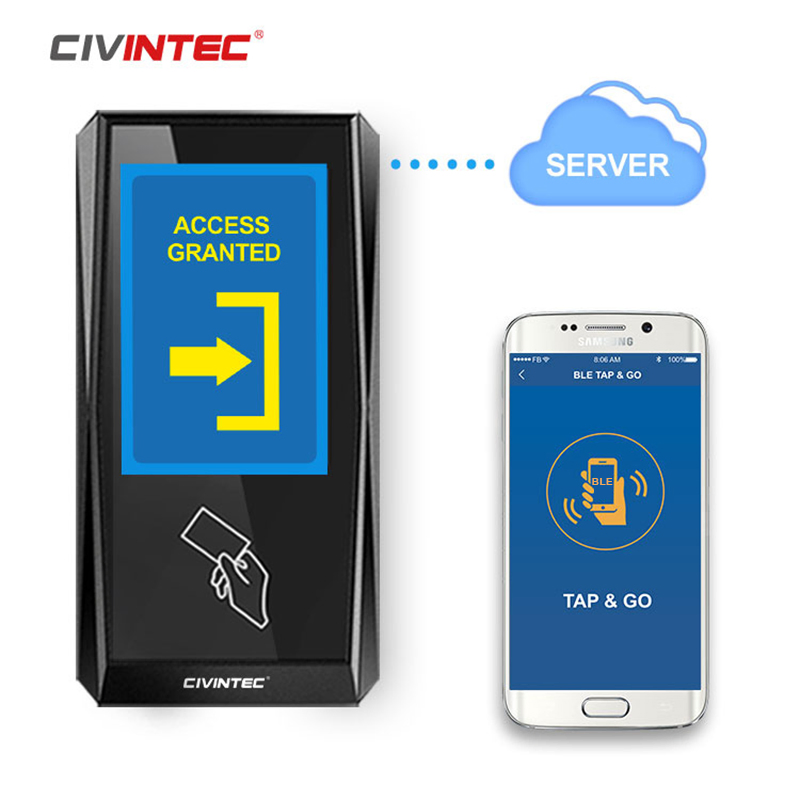

Cloud Server Remote Control: Bi-directional communication via HTTP/HTTPS for remote door lock control and IoT facility management.

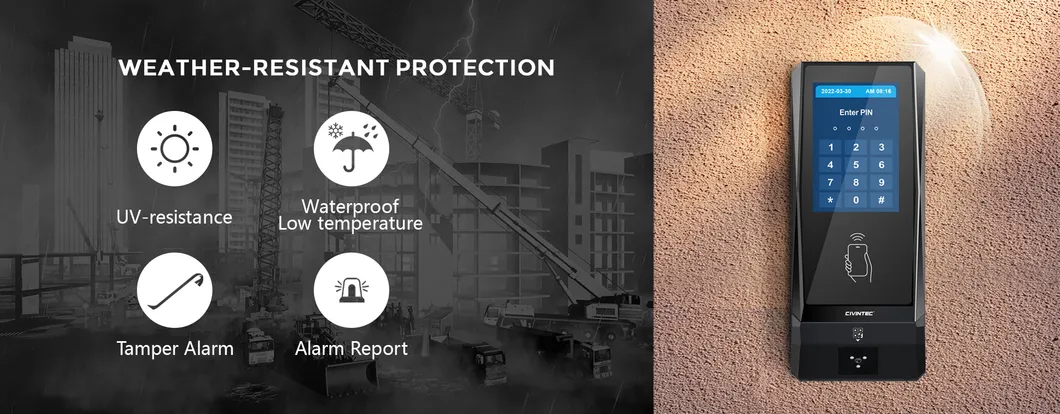

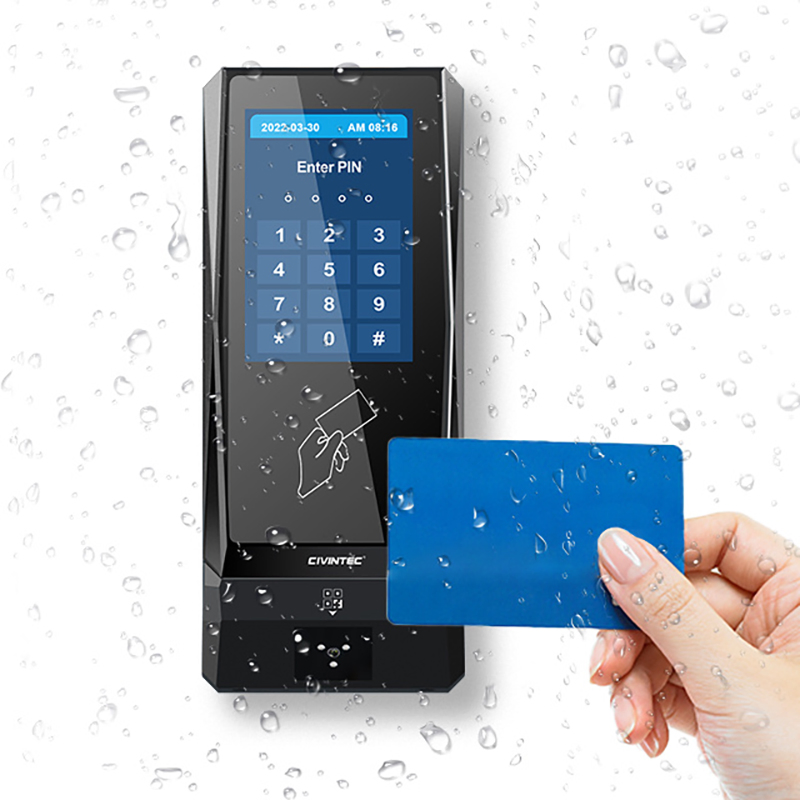

Weather-Resistant: IP65 rated protection against rain, dust, and strong sunlight, ideal for outdoor and rugged environments.

System Configuration

Customization & Services

Specialized ODM customization on hardware, reader housing, firmware, and software design. Users can program and display their own logos on the 3.5" touch screen.

Related Products

Frequently Asked Questions

What identification methods does the CT9 PRO support?

The terminal supports a 5-in-1 identification system: RFID (125KHz & 13.56MHz), NFC, BLE mobile access, Pin Code, and QR Code/Barcode scanning.

Is the device suitable for outdoor installation?

Yes, the CT9 PRO is IP65 rated, making it waterproof and UV-resistant, suitable for various rugged outdoor environments.

How does the device communicate with a server?

It uses standard HTTP and HTTPS protocols for bi-directional communication, supporting 4G, WiFi, and TCP/IP Ethernet connections.

Can I display my company logo on the screen?

Yes, the 3.5" touch screen allows users to program and display their own custom logos and branding elements.

What are the power supply options for the terminal?

The device can be powered via 12-24V DC or through PoE (Power over Ethernet) IEEE 802.3af.

What is the log capacity for offline mode?

The device can store up to 10,000 users and 50,000 event logs offline, with higher capacities available on request.
