Customization: Available
Card Reader Quantity: 2
Control Gates: One Gate
Send Inquiry

Product Description

📋 Basic Information
Model NO.
ZDAC-2300
Technology
32-Bit Technology
Way of Control
Hand Control
Communication
Standalone
Type
One-way Controller
Product Name
Access Control System
Application
Office, Home, Apartment
Color
Silver
Card Type
125kHz EM ID Cards
Access Ways
Cards, Code, Card & Code
Capacity
2000 Users
Open-Door Time
0~99 Seconds
Reading Range
Up to 5 cm
Housing
Metal
Short-Circuit Protect
Yes
Backlight
Keystroke Backlight
💻 Product Description

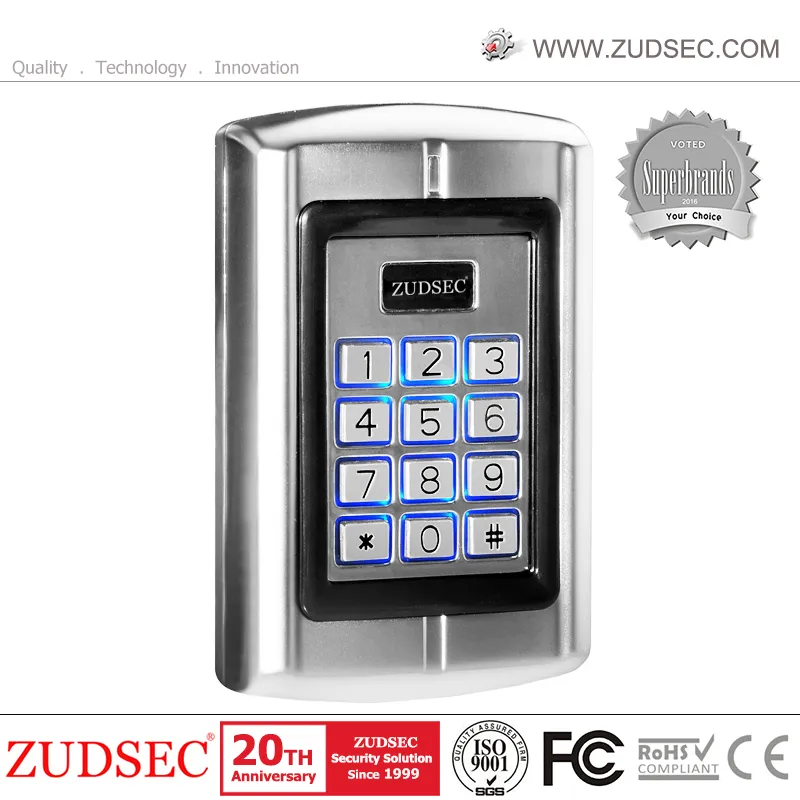

Metal Waterproof Keypad RFID Door Access Control System

The ZDAC-2300 is a standalone access controller suitable for mounting either indoor or outdoor in harsh environments. Featuring an exquisite non-masking metal shell, keystroke backlight, and Wiegand output.

Supports up to 2000 users with Card, 4-digit PIN, or Card + PIN options. Includes a dedicated doorbell function. This powerful device is an ideal choice for commercial and industrial applications such as factories, warehouses, laboratories, banks, and residential properties.
★ Key Features
  • ✓Exquisite non-masking Metal shell
  • ✓Keystroke backlight for night use
  • ✓Supports 125kHz EM ID cards
  • ✓WG26 output (Access reader mode)
  • ✓Large capacity: 2000 users
  • ✓Low power: Static current < 30mA
  • ✓Search speed: Less than 0.1s
  • ✓Short-circuit protection for output
⚙ Technical Parameters
Parameter Specification
Operating VoltageDC 12V±10%
User Capacity2000
Card Reading Distance3~6cm
Active Current<60mA
Idle Current25±5 mA
Lock Output LoadMax 3A
Alarm Output LoadMax 20A
Operating Temperature-45ºC~60ºC
Operating Humidity10%- 90% RH
Adjustable Door Relay time0 - 99 seconds
Wiegand InterfaceWiegand 26 bit
Dimensions128mm X 82mm X 28mm
Weight500g
📷 Product Gallery

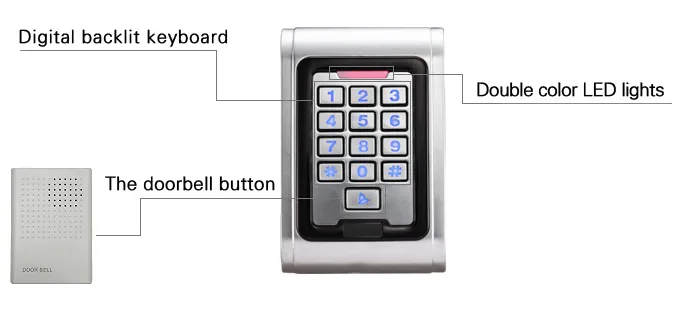

Access Control Overview

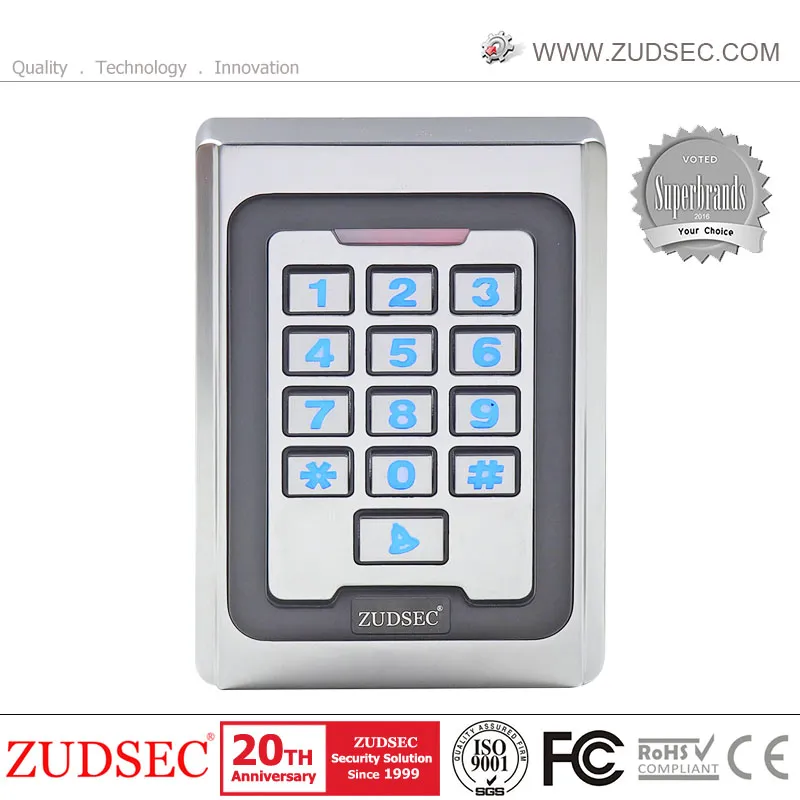

Access Control Front View
Access Control Side View
Keypad Backlight Detail
Metal Housing Detail
Installation View
📦 Related Solutions
Related product 1
Related product 2
Related product 3
Related product 4
Related product 5
Related product 6
❓ Frequently Asked Questions
How many users does this system support?
The system supports a maximum capacity of 2000 users using cards, PINs, or a combination of both.
Is this keypad suitable for outdoor installation?
Yes, it features a waterproof metal shell designed for harsh environments and is suitable for both indoor and outdoor use.
What type of RFID cards are compatible?
The ZDAC-2300 is compatible with standard 125kHz EM ID cards or compatible EM tokens.
Does the keypad have a backlight for night use?
Yes, it features a keystroke backlight, making it easy to operate in low-light or dark conditions.
Can I connect an external doorbell to this device?
Absolutely. The device includes a dedicated doorbell key and can be connected to any standard external doorbell.
What happens if there is a short circuit in the output?
The system includes short-circuit protection. The output will automatically close within 100μS if a short circuit is detected.
