CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet, suitable for both LAN and Internet cloud server software communication, with an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode by using a mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes. |
| Mobile ID | BLE, NFC |

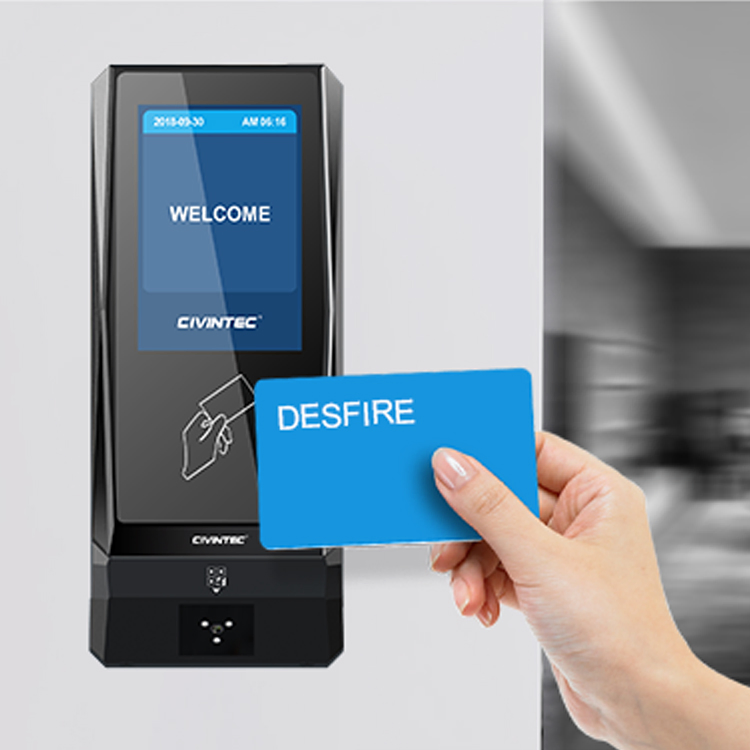

| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Mifare® Plus, DESFire® EV1, EV2, NFC tags (T2T, T4T), ISO14443B |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| IP Protection | IP65 outdoor/indoor use |

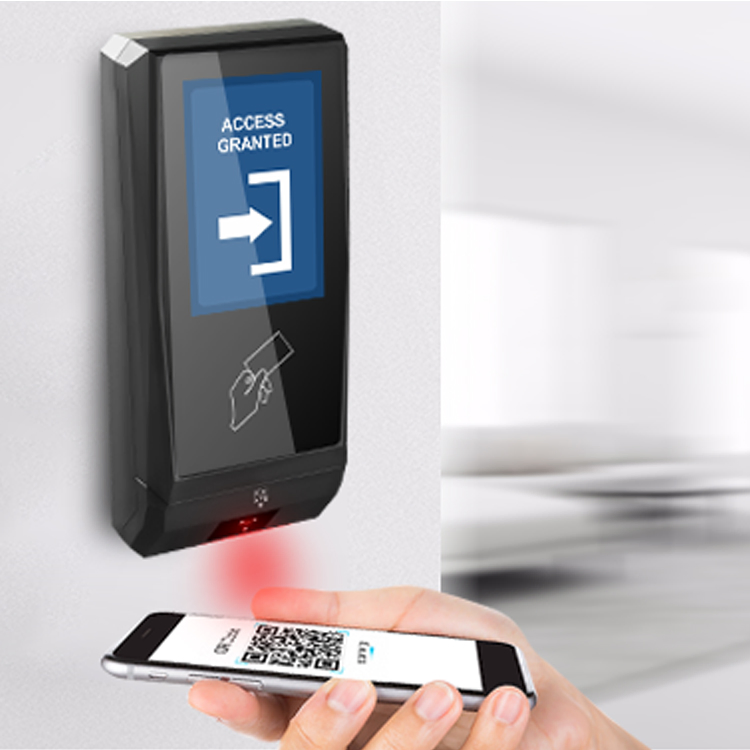

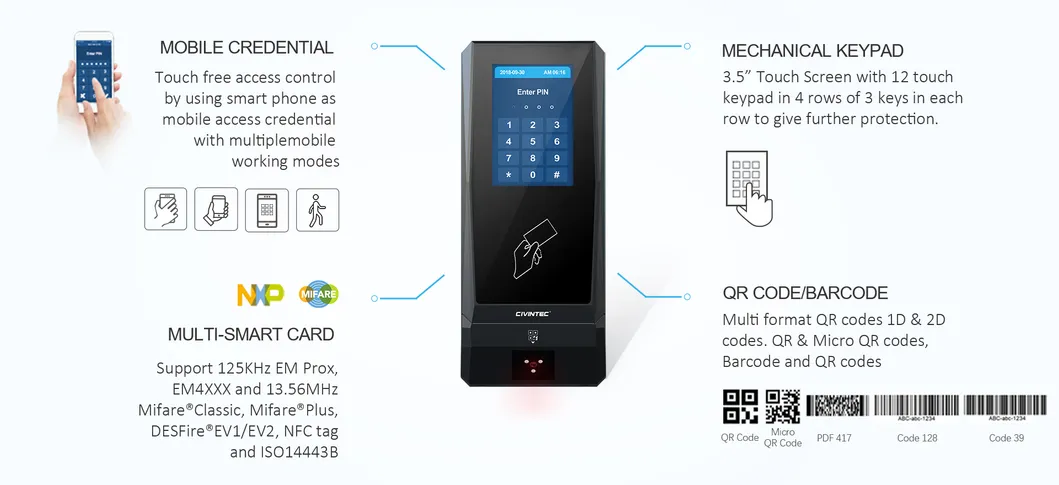

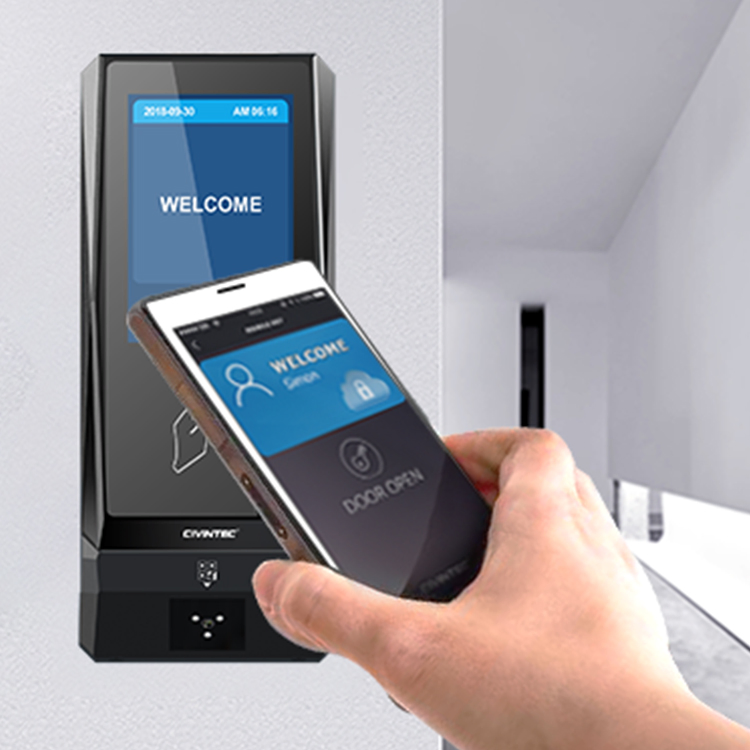

CT9 Pro incorporates 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning for modern visitor access control management.

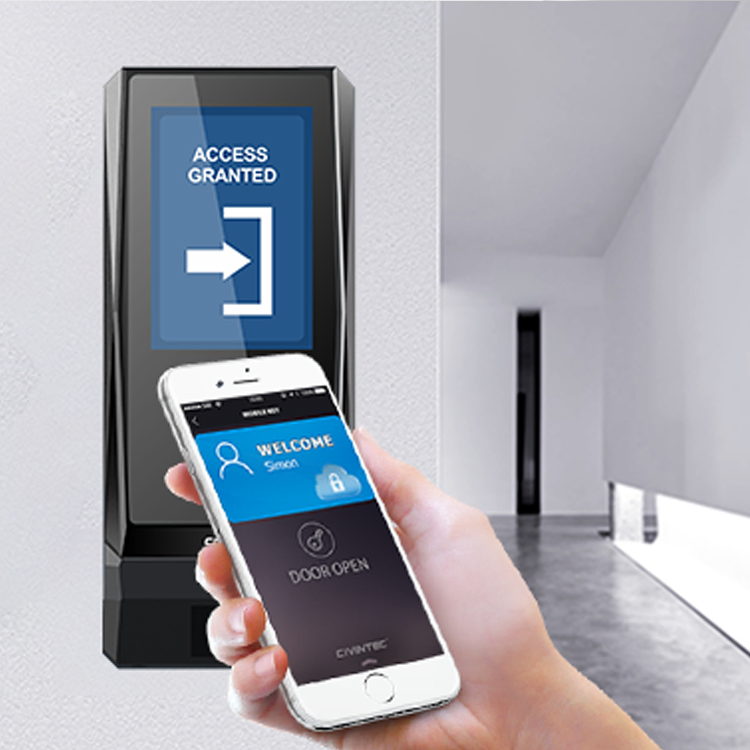

Bi-directional communication via standard HTTP & HTTPs between CT9 Pro and the server allows for remote control of door locks and various IoT facility management systems.

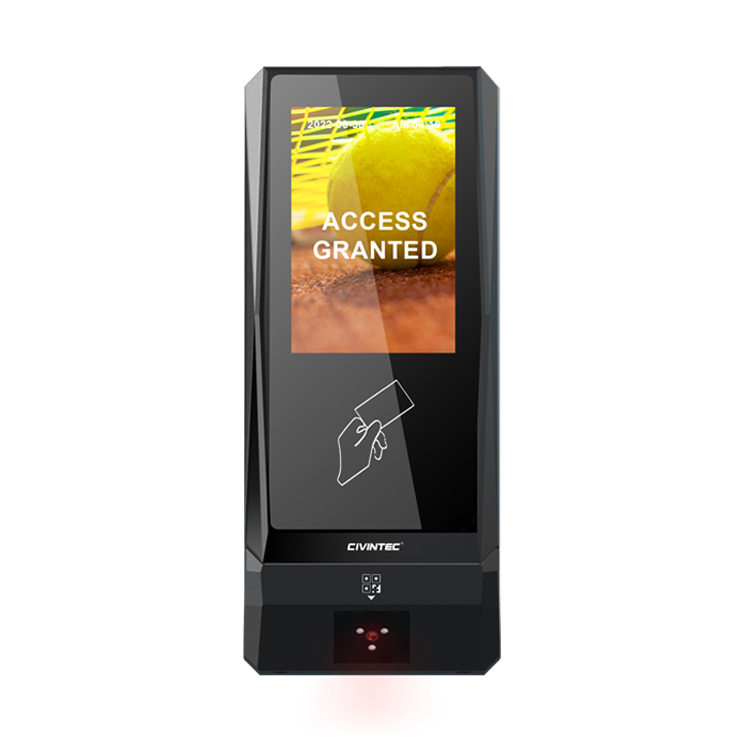

Crystal Touch CT9 is an IP access control door reader remotely controlled by cloud web-based software in real-time. With an embedded relay output, it can control doors as ACCESS DENIED or ACCESS GRANTED and manage other IoT facilities.
We offer ODM customization on hardware, reader housing, firmware, and software design services. Users can program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.
