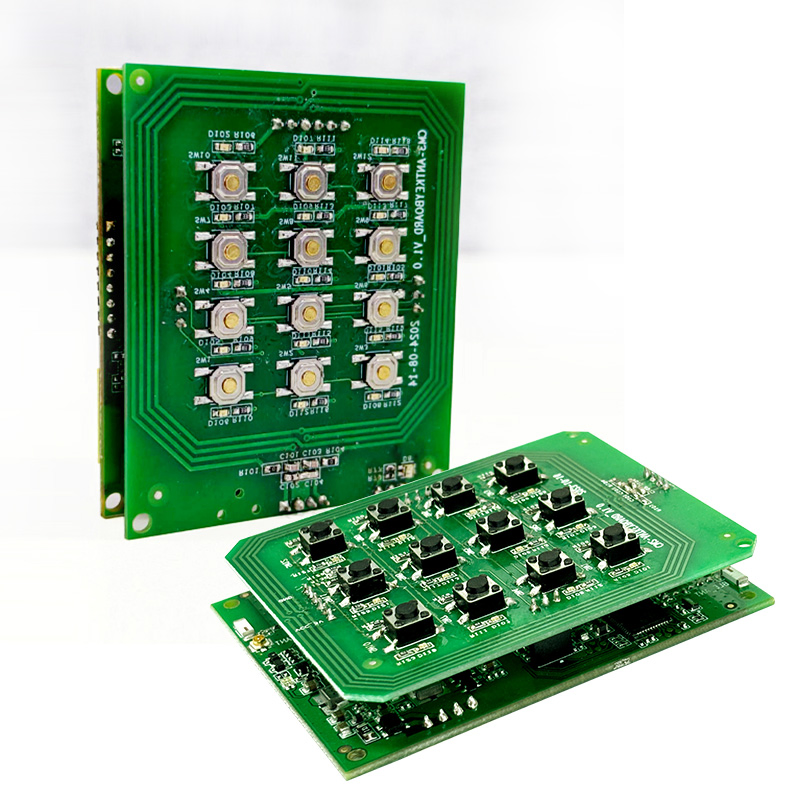

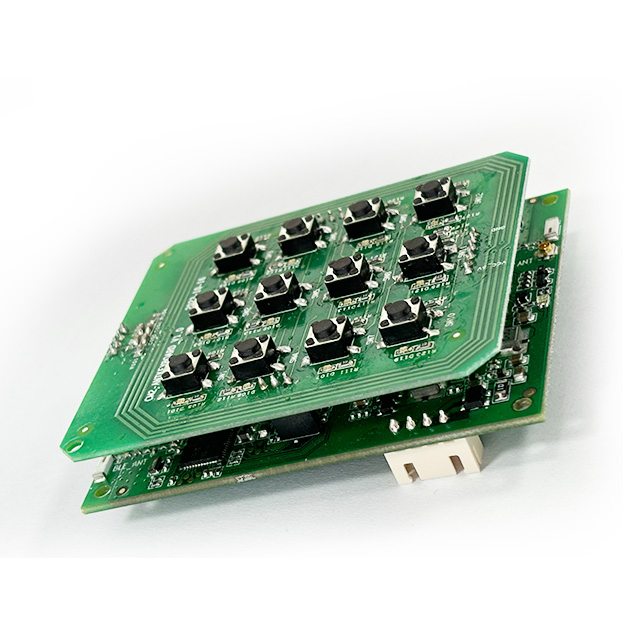

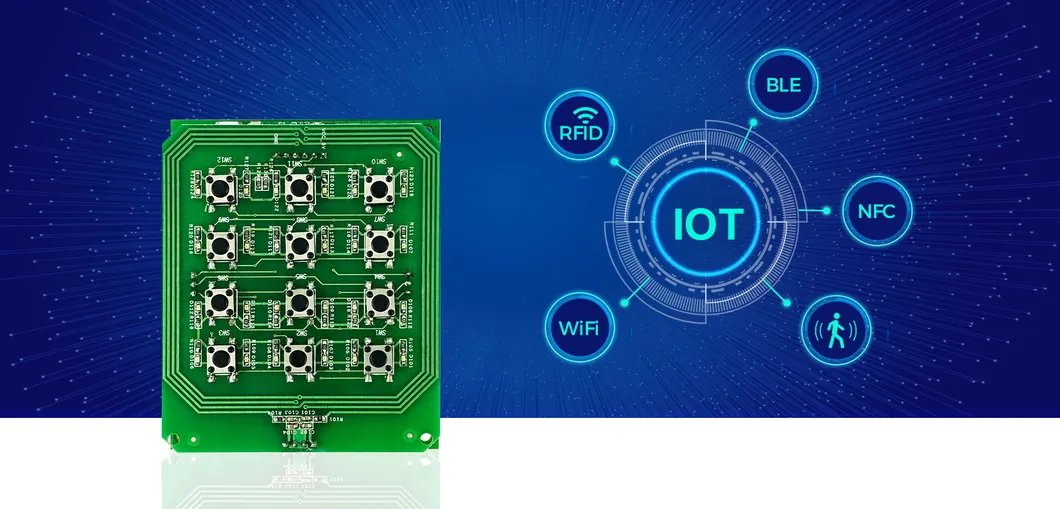

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi-technology platform. It provides an ultra-low battery-operated power consumption design, which contains the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking and different handheld applications.
Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including DESFire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile applications. Together with supporting Arm® TrustZone® and securable I/Os features, it meets the requirements of high-security applications.
Thanks to the latest technologies, it meets the Ultra-low power consumption requirement. Smart CM3's powerful platform is highly recommended for both hardware and software customization.
| Memory | 4M BYTE |
| Power Supply | USB / 3V (4 * Battery) |
| RFID ISO Standard | 13.56MHz ISO14443A, ISO15693 and ISO18092; Mifare Classic, DESfire EV1/EV2/EV3, Ultralight C, Mifare Plus, NFC Tag, HID iCLASS CSN |
| Secure Interface | Optional SAM slot ISO7816; SAM AV2 Support; Secure IC EAL5+ Level |
| Mobile Communication | NFC Mobile Phone; BLE 5.3 |

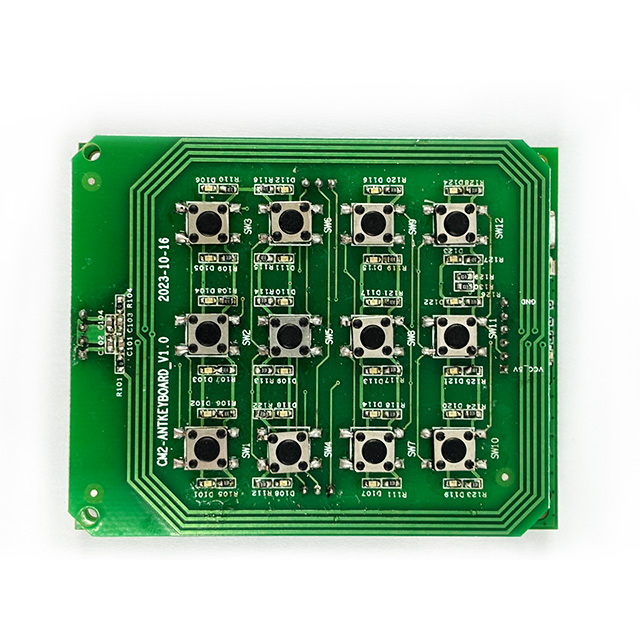

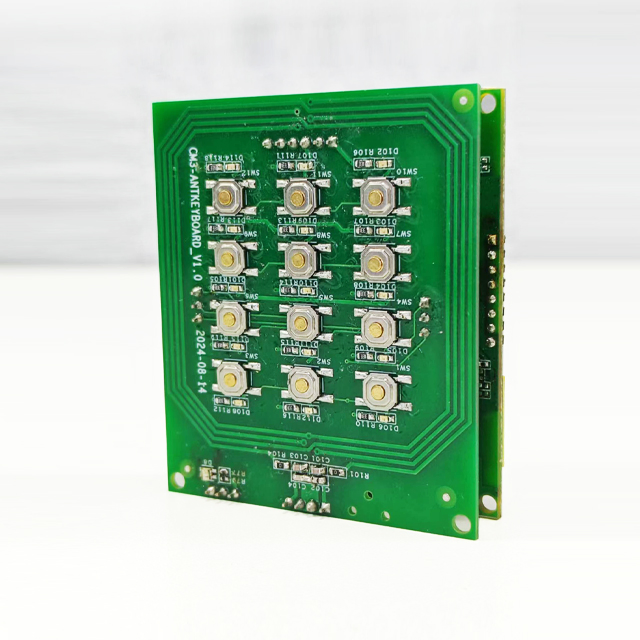

| Mechanical Keypad | 12 Digit Keypad |
| Communication Interfaces | WiFi, BLE 5.3 (Master/Slave, Beacon, Thread, Zigbee, Mesh), USB |
| Indicators | Buzzer and Bio-color LED |
| Operating Temperature | -20ºC ~ 60ºC |
| Configuration | Configuration card, reader tool software or factory configuration |
