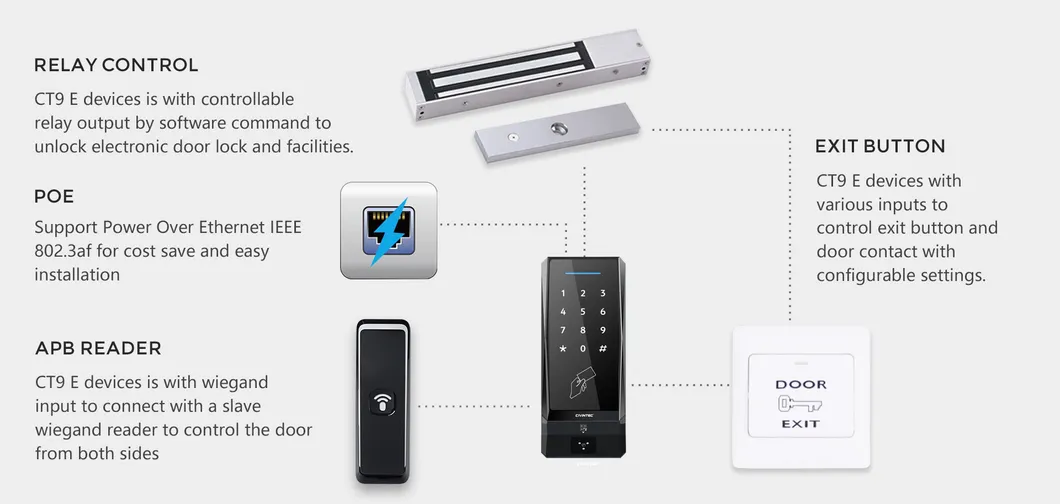

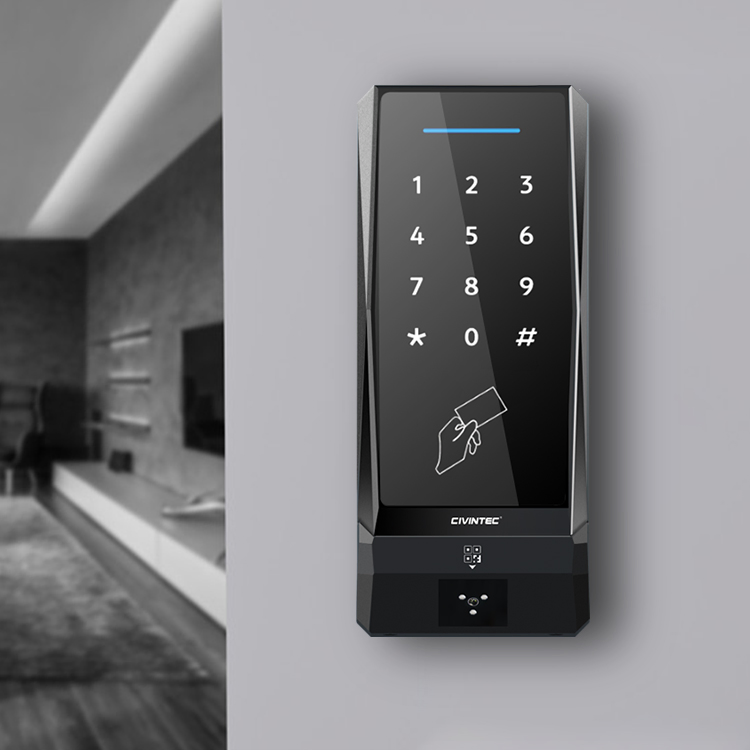

CT9 E is a Linux-based HTTP/HTTPS server centralized terminal equipped with wireless WiFi, 4G, and TCP/IP Ethernet. It is designed for both LAN and Internet cloud server software communication. With an embedded relay, it serves as a versatile solution for IoT and security. It supports 5-in-1 multiple access technologies: touch keypad, RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning.

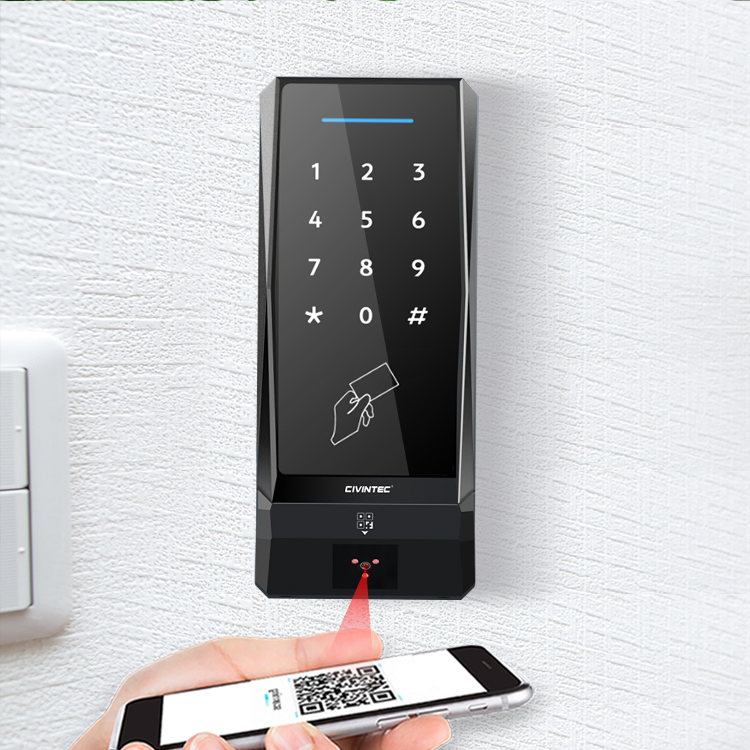

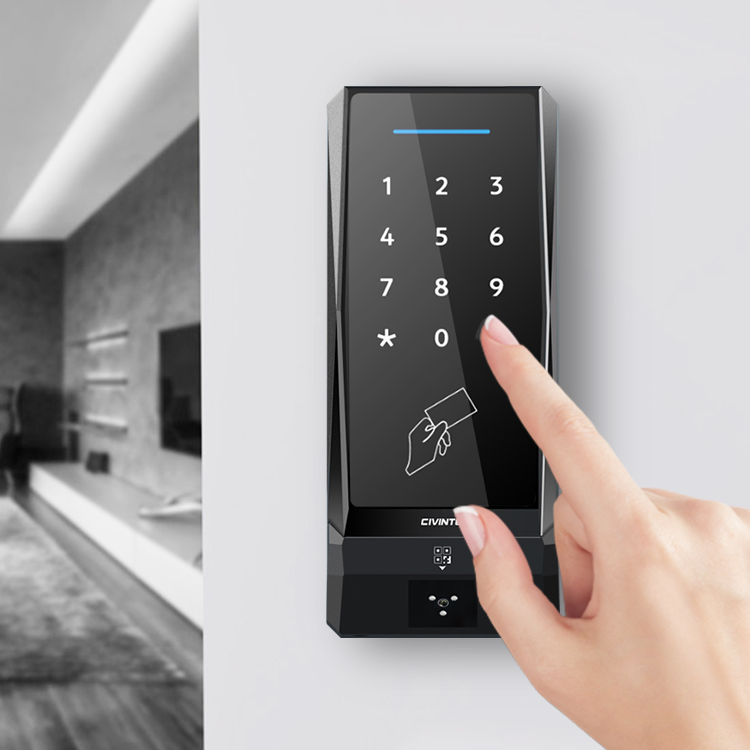

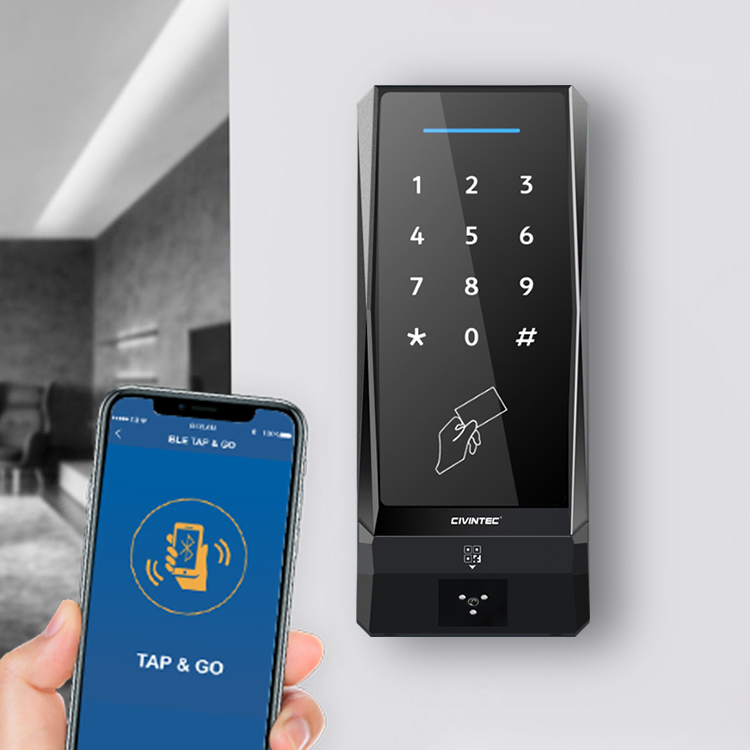

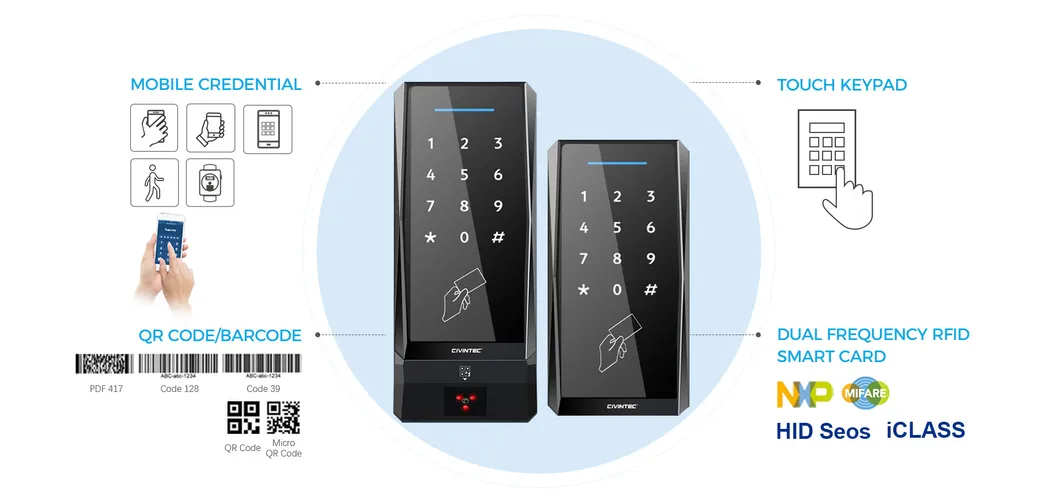

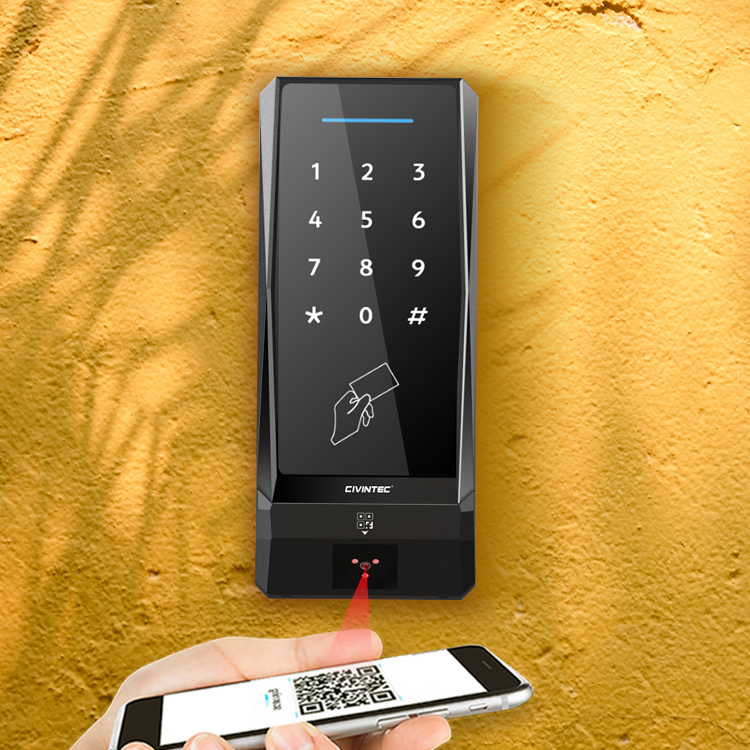

CT9 E incorporates 5-in-1 technologies, including touch keypad, dual-frequency RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR/barcode scanning for comprehensive visitor management.

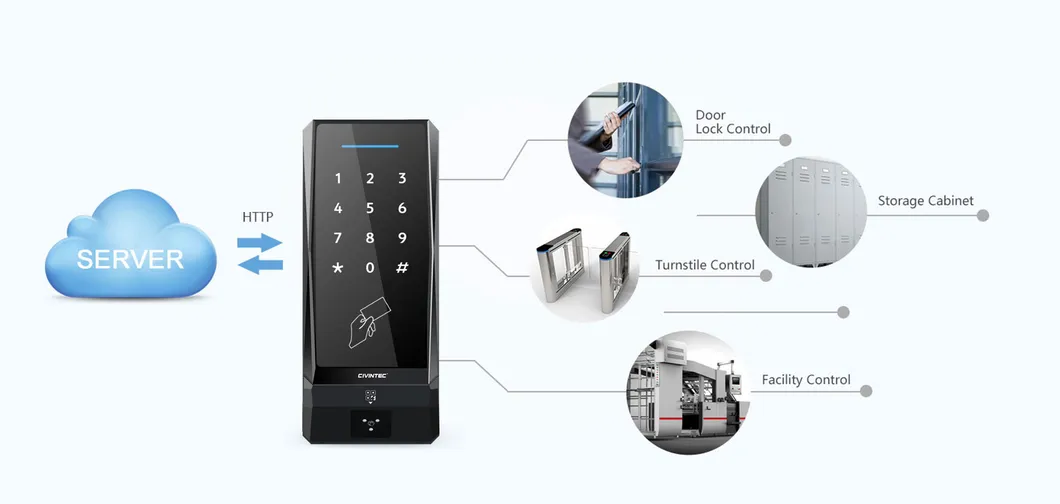

Bidirectional communication via standard HTTP/HTTPS protocols allows the CT9 E to interact with servers remotely to control door locks and manage various IoT facilities.
With an IP65 rating, the device is resistant to rain, dust, and strong sunlight. It is ideal for outdoor use and functions reliably in rugged environments and low temperatures.
| Category | CT9 E Specifications |
|---|---|
| RFID Technology | 125KHz PROx/EM, 13.56MHz MIFARE Classic, Plus, DESFire EV1/EV2/EV3, NFC tags |
| Mobile Credential | BLE (2.4GHz), NFC |
| Barcode/QR | 1D & 2D QR Code, Micro QR, PDF417, Code 128, Code 39 |
| Communication | TCP/IP (RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand Input |
| Operating System | LINUX |
| User Capacity | Online: Unlimited / Offline: 10,000 users & 50,000 logs |
| Power Supply | 12~24V DC or PoE (IEEE 802.3af) |
