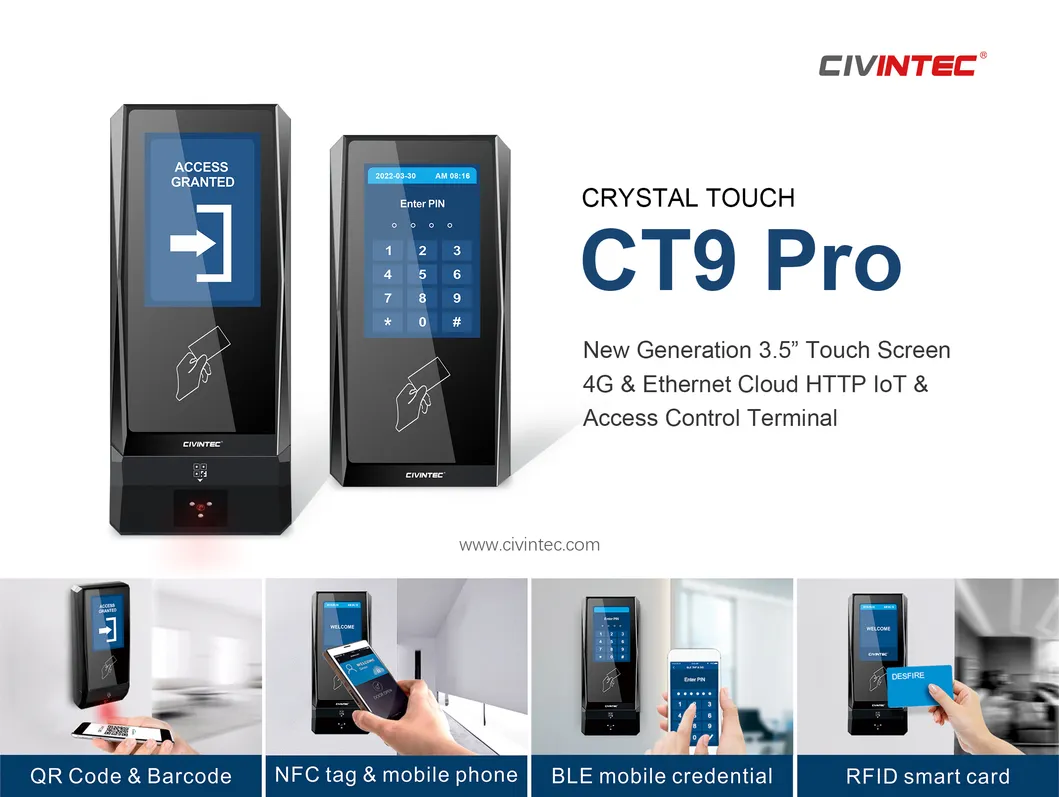

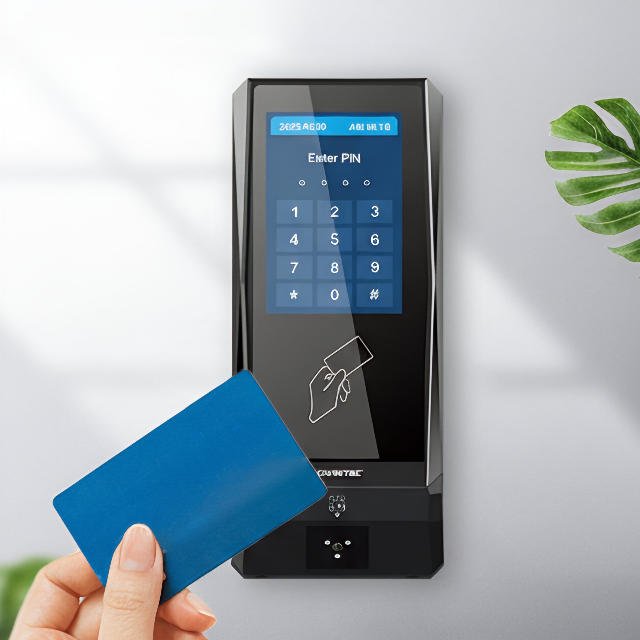

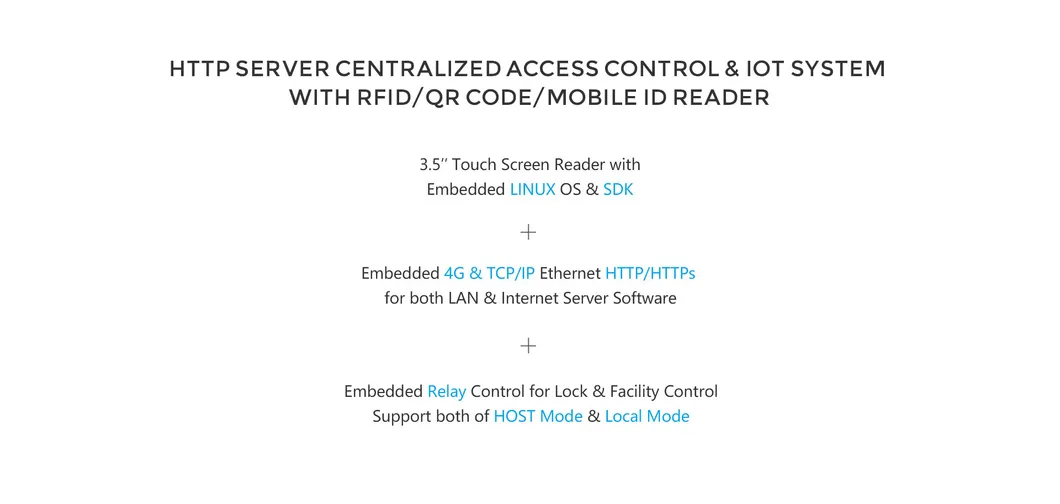

CT9 Pro is a Linux-based HTTP/HTTPS server centralized terminal with wireless 4G and TCP/IP Ethernet, suitable for both LAN and Internet cloud server software communication. With an embedded relay, it builds versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, dual RFID (125KHz & 13.56MHz) smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream barcodes. |
| Mobile ID | BLE, NFC |
| RFID smart card | - EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Plus, DESFire® EV1/EV2, NFC tags, ISO14443B - HID Prox and iCLASS®, iCLASS SE/SR® iCLASS Seos® smart cards |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| I/O Port | 1~2 relay outputs, Tamper alarm switch, door contact, door exit control |
| Storage | 10,000 users / 50,000 logs |
| IP protection | IP65 outdoor/indoor use, UV-resistance |
| Certification | CE approved |

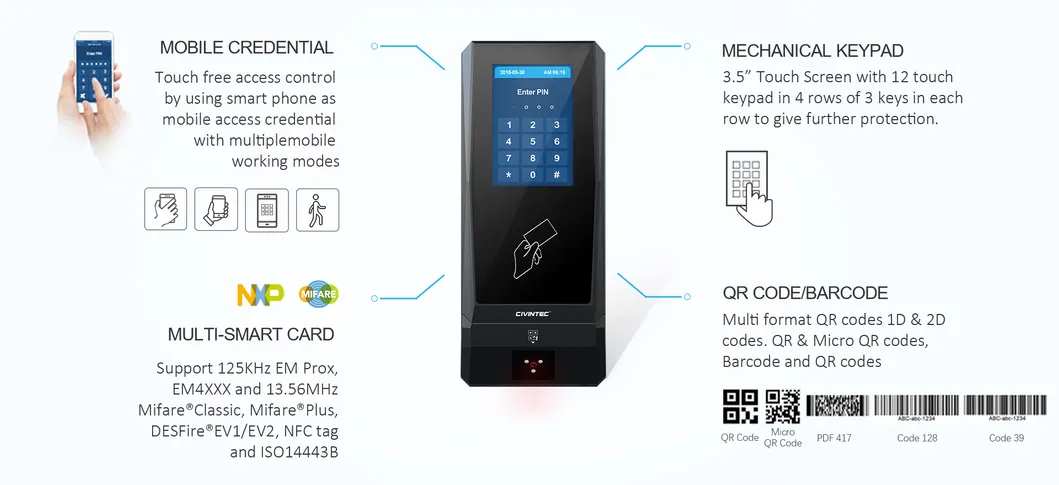

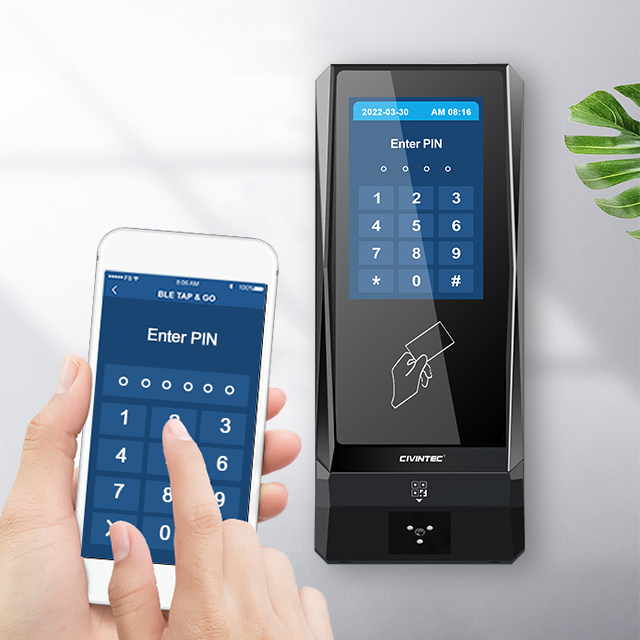

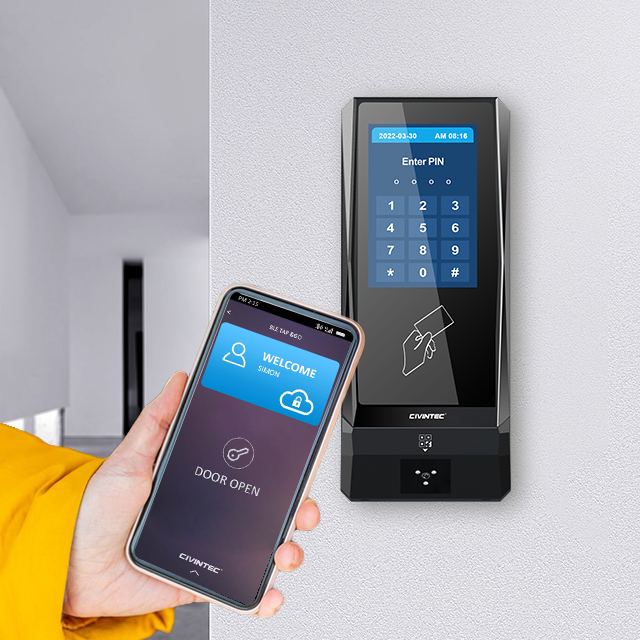

CT9 Pro incorporates 5-in-1 multiple access credential technologies: touch keypad, RFID dual frequency smart cards, BLE & NFC mobile access, and QR CODE scanning for visitor management.

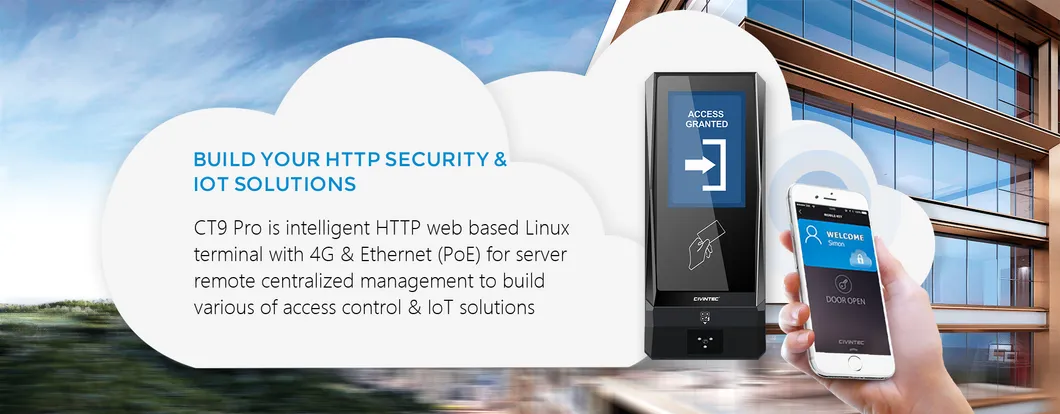

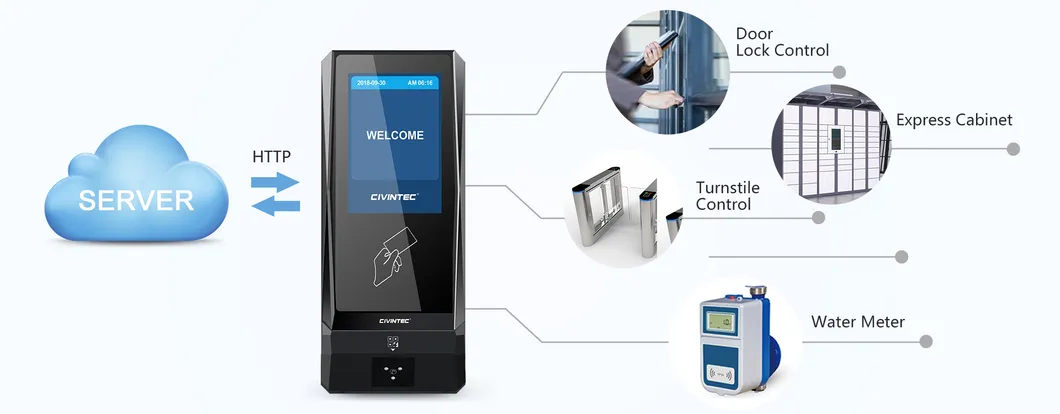

Bi-directional communication via standard HTTP & HTTPS between CT9 Pro and the server allows for remote control of door locks and various IoT facility management systems.

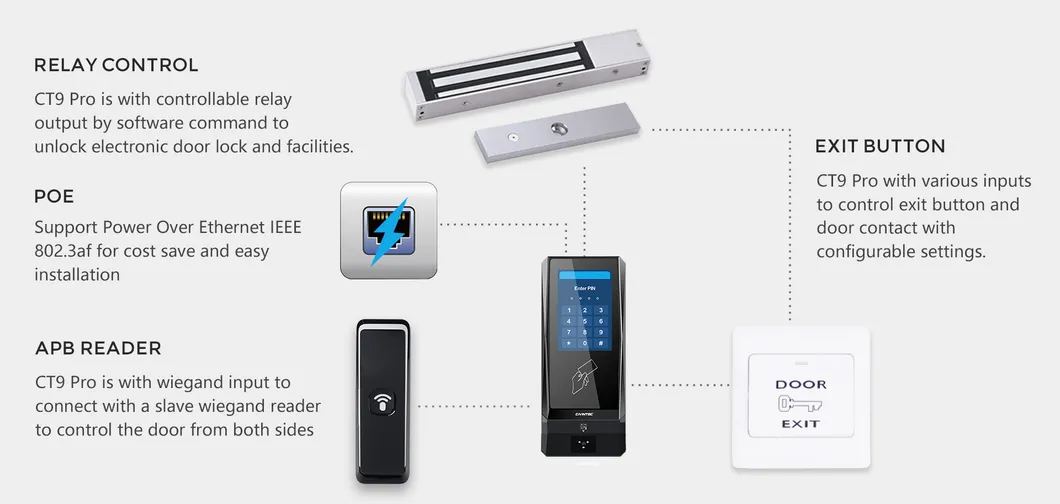

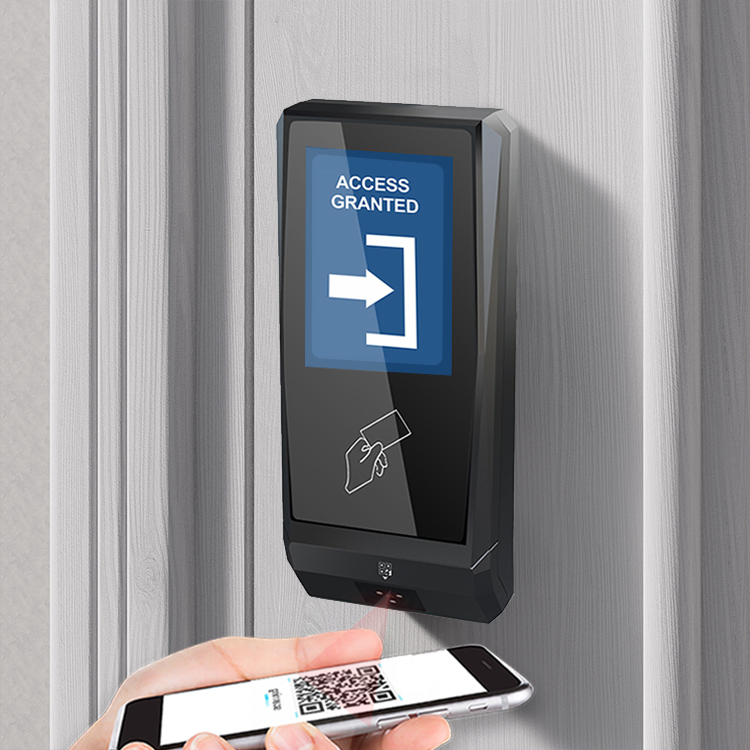

The reader is remotely controlled by cloud web-based software in real-time. With an embedded relay output, it can manage access (DENIED or GRANTED) and facility controls for custom IoT solutions.

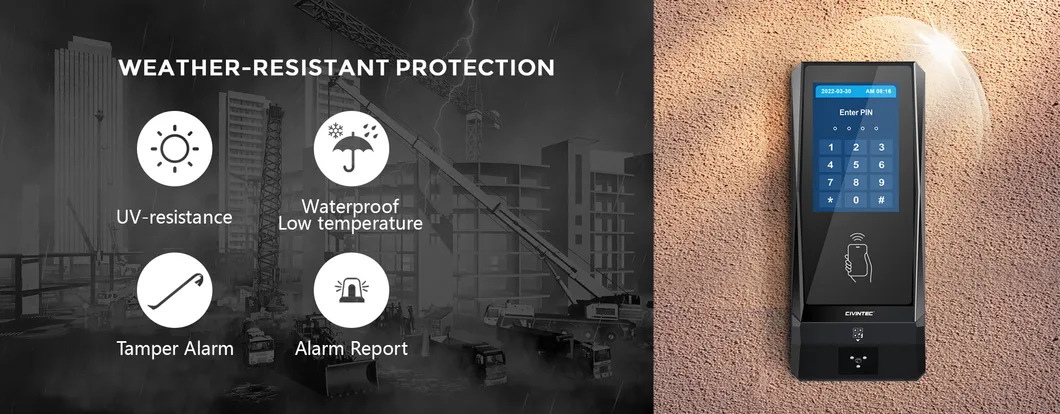

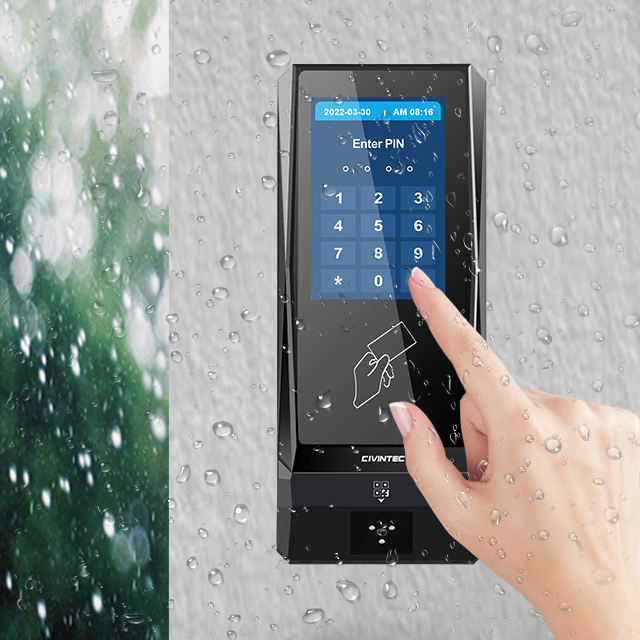

With an IP65 rating, the terminal is weather-resistant to rain, dust, and strong sunlight. It is ideal for outdoor use and rugged working environments with low temperatures.
As a leading designer and manufacturer of access control devices, we offer ODM customization on hardware, reader housing, firmware, and software design services.
Users can program and display their own LOGO on the 3.5" touch screen. We also offer OEM LOGO printing on the reader body.
