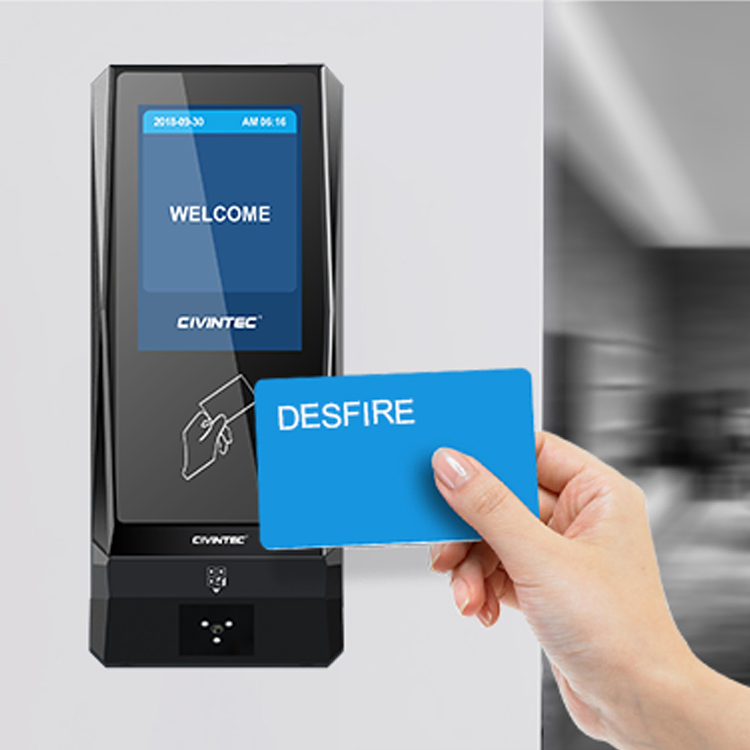

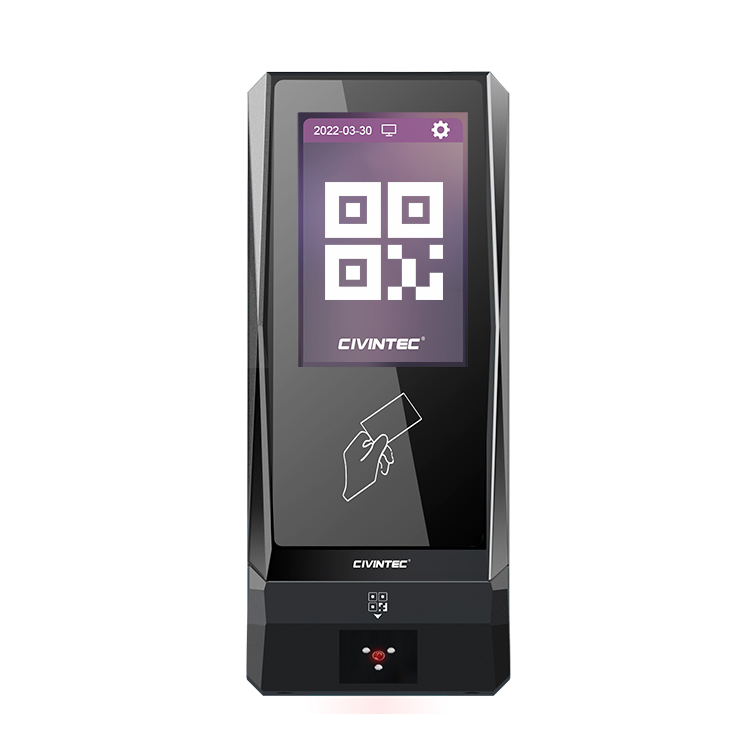

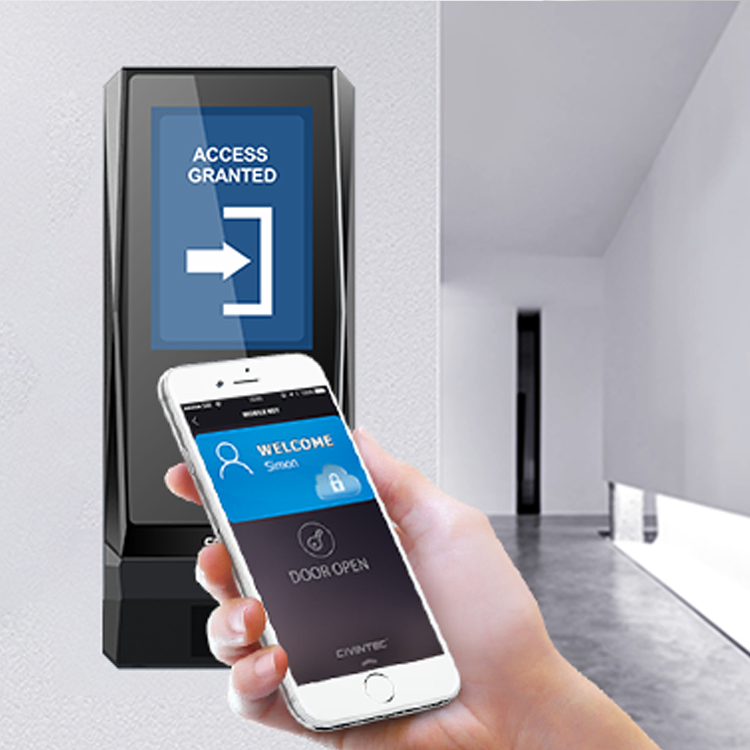

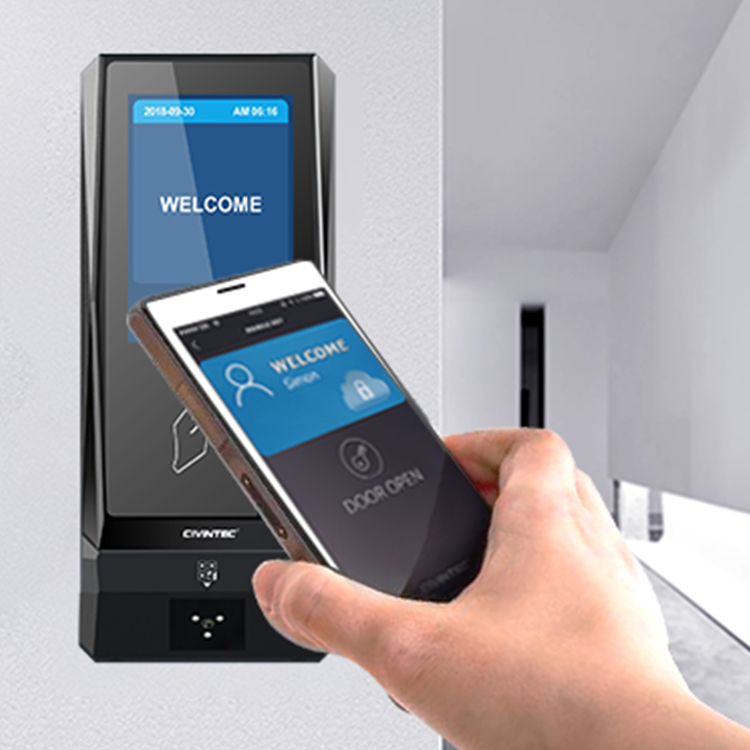

NFC Smart Card RFID Reader Hotel Condo Visitor Control Door Access System
NFC Smart Card RFID Reader Hotel Condo Visitor Control Door Access System
NFC Smart Card RFID Reader Hotel Condo Visitor Control Door Access System
NFC Smart Card RFID Reader Hotel Condo Visitor Control Door Access System
NFC Smart Card RFID Reader Hotel Condo Visitor Control Door Access System
1 / 5
NFC Smart Card RFID Reader Hotel Condo Visitor Control Door Access System
NFC Smart Card RFID Reader Hotel Condo Visitor Control Door Access System
NFC Smart Card RFID Reader Hotel Condo Visitor Control Door Access System
NFC Smart Card RFID Reader Hotel Condo Visitor Control Door Access System
NFC Smart Card RFID Reader Hotel Condo Visitor Control Door Access System

NFC Smart Card RFID Reader Hotel Condo Visitor Control Door Access System

Customization: Available
Communication Mode: TCP/IP
Product: Biometric Access Control Terminal
Send Inquiry

Product Description

1

Basic Information

Model NO.CT9 PRO
Dual OSAndroid or Linux Embedded OS
Display7" Large Touch Screen
IdentificationRFID Tag, Mobile ID, Password
BiometricOptional Fingerprint Sensor
RFID Card13.56MHz 125kHz
Mobile CredentialNFC, Bluetooth
Secure AccessISO7816 Sam Modules
InterfaceWiFi, 4G, TCP/IP, USB, RS485
PowerPoE, 9-24VDC
Camera5.0 Megapixel Camera
Production1000 Pcs / Month
2

Product Overview

Smart Access System
CT9 Pro is a Linux-based HTTP/HTTPS server centralized terminal equipped with wireless 4G and TCP/IP Ethernet. It is designed for both LAN and Internet cloud server software communication, featuring embedded replies to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, dual RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning.
Feature View 1 Feature View 2
Display3.5" capacitive touch screen
QR codeMultiple formats: QR Code, Micro QR, PDF417, Code 128, Code 39, etc.
Mobile IDBLE, NFC
RFID Smart CardEM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Plus, DESFire® EV1/EV2, NFC tags
SAM SlotISO7816(T=0, T=1) 1 SAM module
Communication4G, TCP/IP, Wiegand, RS485 OSDP 1&2
Power Supply12-30V DC; PoE IEEE 802.3af
IP ProtectionIP65 outdoor/indoor use
Logs10,000 users / 50,000 logs
3

Product Features

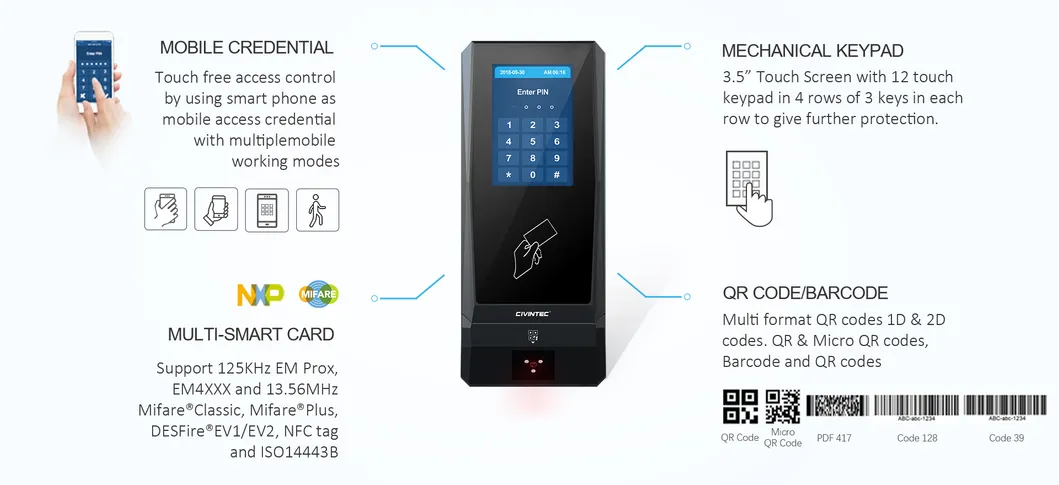

Multiple Access Credentials

CT9 Pro incorporates 5-in-1 multiple access technologies: touch keypad, dual-frequency RFID, BLE/NFC mobile access, and QR code scanning for efficient visitor management.
Access Credentials

Cloud Server Remote Control

Bi-directional communication via standard HTTP & HTTPS protocols allows remote control of door locks and various IoT facility management tasks directly from your server.
Cloud Control

Versatile Application Solutions

This IP access control reader is remotely managed via cloud web software. With an embedded relay output, it handles Access Denied/Granted states and integrates seamlessly into IoT ecosystems.
Application Solutions
4

System Configuration & Services

System Configuration
We offer ODM customization on hardware, reader housing, firmware, and software design. Users can program and display their own LOGO on the 3.5" touch screen, and OEM LOGO printing is available for the reader body.
Customization 1 Customization 2
5

Related Products

Related Product List Comparison Table
?

Frequently Asked Questions

What access methods does the CT9 Pro support?
The CT9 Pro supports 5-in-1 access methods: RFID (Dual 125KHz & 13.56MHz), BLE/NFC mobile credentials, QR codes/barcodes, and a touch keypad for PIN entry.
Can the device be used outdoors?
Yes, the device is rated IP65, making it suitable for both indoor and outdoor environments with protection against dust and water.
Does the terminal support Power over Ethernet (PoE)?
Yes, it supports PoE IEEE 802.3af for simplified installation, or it can be powered by a 9-24V DC supply.
What communication protocols are available for server integration?
The terminal communicates via standard HTTP and HTTPS protocols, making it compatible with cloud-based software and various IoT management systems.
Is the touchscreen interface customizable?
Yes, users can customize the 3.5" touch screen to display their own branding and logos through firmware programming.
How many users and logs can the device store?
The device has an offline capacity of up to 10,000 users and can store up to 50,000 event logs.
