TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)
1 / 5
TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)
TCP/IP Web Based RFID Card Access Control System (S600)

TCP/IP Web Based RFID Card Access Control System (S600)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info

Model NO.
S600
Power Supply
110/220VAC ~ 12VDC (PS-3A Is Optional)
Attendance Status
Check in, Check out
Communications
TCP/IP RS232/485 USB Host Wiegand in/out
Usage
Access Controller, Access Machine
Data Reading
Card
Connection
Several Network Access Control System
Capacity
6000sets/Month
Specification
CE, FCC, ROHS, ISO9001
HS Code
8543709990

Product Description

S600 Biometric Time Attendance and Access Control System

A professional TCP/IP web-based RFID card access control solution designed for security and efficiency.

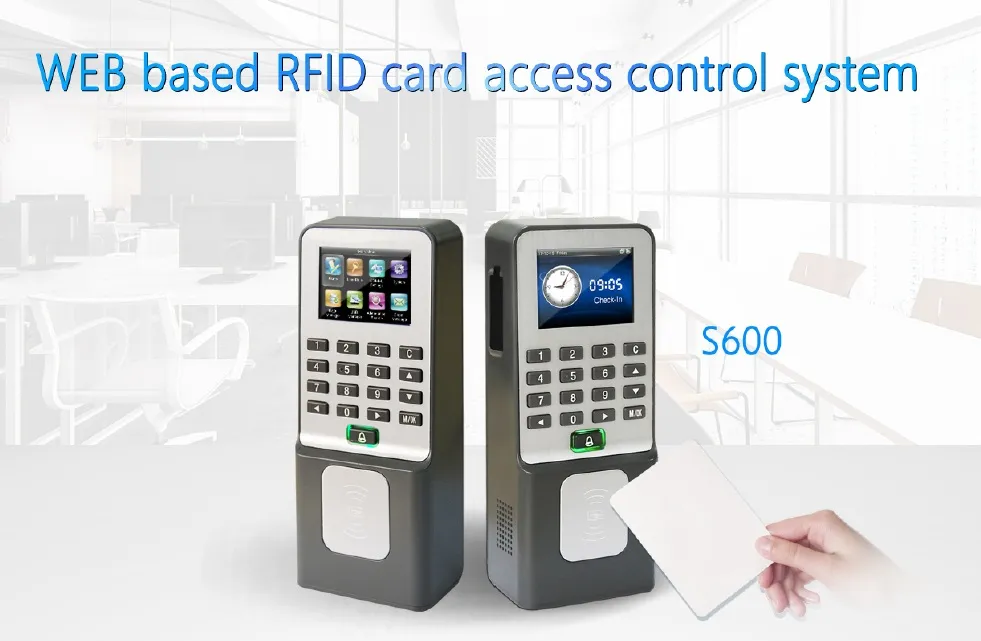

S600 Access Control System

Key Features

  • Composite algorithm system with high speed operating
  • 1 touch a-second user recognition
  • Standalone or network environment support
  • Real-time entrance logs transferring
  • 24 hours continuous operation available
  • Support 125Khz ID card
  • Support wired door bell connection

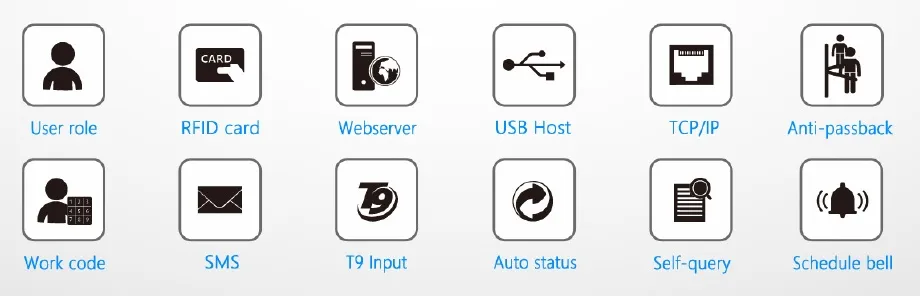

S600 Features Diagram

Technical Specifications

Display 2.4 TFT color LCD screen Language Multi Language (40+ types), English, French, Spanish, Arabic, etc.
Speaker Voice Prompt Environment Temp: 0 ~ 45℃; Humidity: 20% ~ 80%
Card Capacity 50,000 Log Capacity 100,000
Verification Speed ≤0.5s (1:1) Identification Speed ≤1s (1:N)
FRR ≤0.01% FAR ≤0.0001%
Power Supply 110/220VAC ~ 12VDC Dimensions 185(L)*75(W)*40(H)mm
Communication TCP/IP, RS232/485, USB Host, Wiegand In/out Attendance Status Check in, Check out
Standard Functions Professional access control, built-in relay, 50 time zones, 5 groups, 10 combinations; Multi-Alarm; Auto status, DST; Scheduled bell, SMS, Webserver, Work code; Anti-pass back; 9 PIN user ID
Optional Functions ID reader, M1 reader, HID reader; 3A power supply

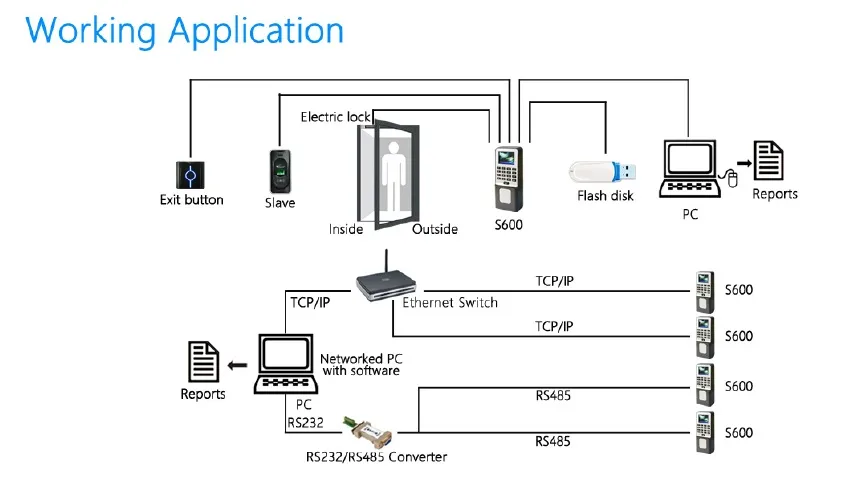

S600 Connection Diagram
S600 Dimensions

Frequently Asked Questions

How many RFID cards can the S600 system store?
The S600 system has a large capacity, supporting up to 50,000 cards and storing up to 100,000 transaction logs.
What communication interfaces are available for data transfer?
It supports a wide range of interfaces including TCP/IP, RS232/485, USB Host, and Wiegand In/Out for seamless network integration.
Does the device support multiple languages?
Yes, it supports more than 40 languages, including English, French, Spanish, and Arabic, making it suitable for global applications.
Can the S600 handle complex access control rules?
Absolutely. It features professional access control functions such as 50 time zones, 5 user groups, and 10 unlock combinations, along with anti-passback security.
What type of card readers are compatible with this system?
The standard model supports 125Khz ID cards. It also offers customizable options for Mifare (M1) readers and HID readers.
Is the device capable of real-time monitoring?
Yes, the professional access control system supports real-time entrance log transferring through its network connection.
